Endüstriyel Mobil Bilgisayar

DS-1300

10th Generation Intel® Xeon/Core™ Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer

ÜRÜN ÖZELLİKLERİ

  • 10-core 10th-gen Intel® Xeon® and Core™ i9/i7/i5/i3 CPU (max 80 W TDP)
  • 2x GbE LAN and optional 2x 10GbE LAN
  • 2x 2.5″ SATA storage 3x mSATA sockets 1x M.2 key M for NVMe SSD
  • 3x full-size Mini PCIe sockets 2x SIM card slots
  • Optional CMI modules for I/O expansion
  • Optional CFM modules for ignition sensing & PoE
  • Wide operating temperature -40°C to 70°C
  • MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only)
DS-1300
DS-1300
DS-1300
DS-1300
DS-1300
Teklif Al
PDF
Endüstriyel Mobil Bilgisayar

DS-1300

OVERVIEW

The DS-1300 is a powerful embedded computer and brings unrivalled performance. It has versatile functionalities and rich industrial I/O. Equipped with Cincoze’s CMI, CFM, MEC modular expansion, customization for additional I/O or other functionality to fulfill different applications couldn’t be easier. The DS-1300 meets the requirements of industrial environments and is certified with industry standards. It delivers ultimate and reliable performance for factory automation, industrial automation and rolling stock applications.

"10-Core,

10-Core,
Up To 80 W CPU

——

The DS-1300 series, powered by a workstation-grade 10th-gen Intel® Xeon® or Core™ i9/i7/i5/i3 CPU with up to 10-core architecture, provides superior processing performance. The DS-1300 supports Xeon® CPU up to 80 W TDP. It incorporates DDR4 2933/2666 MHz memory up to 64 GB, delivering unparalleled performance in a rugged, fanless system.

More Powerful & Faster
Multiplies Productivity

——

The DS-1300 series’s 10th-gen CPU brings to 31% better integer multi-tasking for compute-intensive application performance than 9th-gen CPUs*. DDR4 2933 MHz memory further increases speed by 10%**. The processing platform delivers the performance required to consolidate multiple workloads for intelligent devices and applications.

* 31% increase for 10th-gen i9-10900E 65W vs 9th-gen i7-9700 65W CPU
** 10% increase for 2933 MHz of DS-1300 vs 2666 MHz of DS-1200.

"More
"Industrial

Industrial I/O and
Modular Expansion

——

The DS-1300 series offers a vast array of industrial-focused I/O including up to 2x GbE LAN, 6x USB 3.2, and 2x USB 2.0, 2x RS232/422/485, 2x 2.5″ SATA, 3x mSATA, 1x M.2 key M for NVMe SSD, 2x SIM card slots, 3x full-size Mini-PCIe and triple independent displays (DisplayPort, HDMI, VGA). It also features modular expansion through Cincoze’s CMI/CFM modules, adding additional I/O or other functionality such as high-speed 10GbE LAN, PoE, and ignition sensing.

Rugged Reliability
Against Rigorous Environments

——

The DS-1300 series’s fanless and cableless industrial-grade design can withstand rigorous environments. Its unique thermal design supports an extended operating temperature range from -40°C to 70°C. It has also passed stringent industry standards, including MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only) for rolling stock environments.

"Rugged
DS-1300
DS-1300
DS-1300
DS-1300
DS-1300
Teklif Al
PDF
Available Models
Model No. Product Description
DS-1300 10th Generation Intel® Xeon/Core™ Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer
Package Checklist
√ DS-1300 Embedded System x1 √ Heatsink Pack x1
√ Utility DVD Driver x1 √ Screw Pack x1
√ Wall Mount Kit x1 √ Power Terminal Block Connector x1
√ Remote Function Terminal Block Connector x 2 √ Fan Terminal Block Connector x 1
Optional I/O Modules
Model No. Description
CMI-LAN01-R12/UB1012 CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout
CMI-M12LAN01-R12/UB1010 CMI Module with M12 Connector, 4x Intel GbE LAN / 1x Universal Bracket with 4x M12 Cutout
CMI-XM12LAN01-R10/UB1030-R10 CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports / Universal Bracket with 4x M12 X-Coded Cutout
CMI-10GLAN03-R10/UB1028 CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port / 1x Universal Bracket with 2x RJ45 Cutout
CMI-COM02/UB1004 CMI Module with 4x RS232/422/485 Ports (Support 5V/12V) / 1x Universal Bracket with 4x DB9 Cutout
CMI-ICOM01/UB1004 CMI Module with 4x Isolated RS232 Ports (Support 5V/12V) / 1x Universal Bracket with 4x DB9 Cutout
CMI-DIO02/UB1018 CMI Module with 16DIO (8in 8out) / 1x Universal Bracket with DIO Cutout
MEC-COM-M212-DB9/UB0303 Mini-PCIe Module with 2x RS-232 Ports, 1x Standard DB9 Cable / 2x Universal Bracket each with 1x DB9 Cutout
MEC-USB-M102-15/UB0314 Mini-PCIe Module with 2x USB 3.0 Ports, 1x 15cm cable / 1xUniversal Bracket with 2x USB Cutout
MEC-LAN-M002-30/UB0311 Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout
Model No. Description
CFM-PoE03 CFM Module with PoE Function, Individual Port 25.5W
CFM-IGN101 CFM Module with Power Ignition Sensing Function, 12V/24V Selectable

Optional Function Modules



Model No. Description
FAN-EX101 External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan
GST120A24-CIN Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
GST220A24-CIN Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI
Endüstriyel Mobil Bilgisayar

DS-1300

Daha Fazla
DS-1300
DS-1300
DS-1300
DS-1300
DS-1300
Teklif Al
PDF

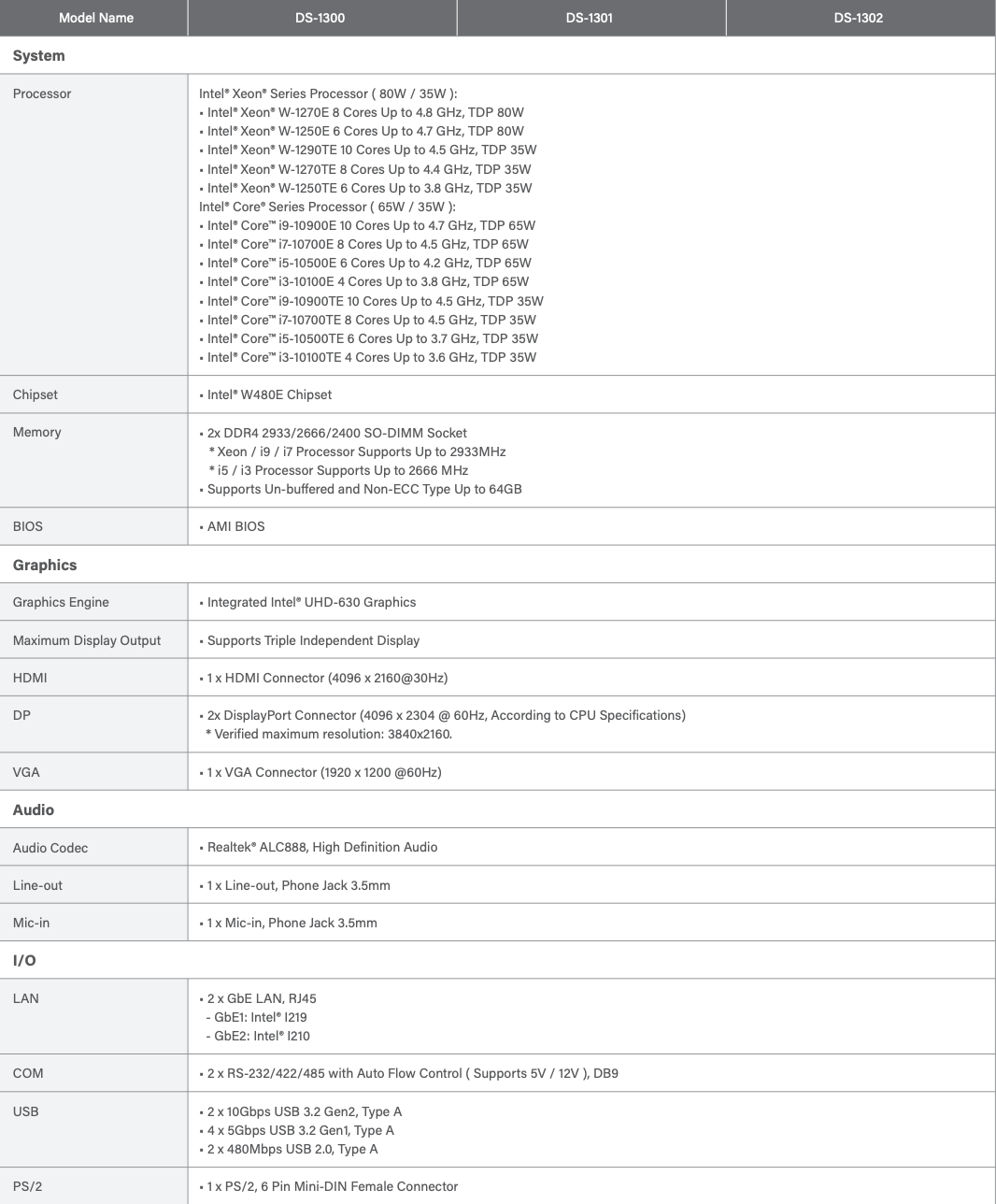

Ürün Özellikleri

DS-1300
Processor Intel® Xeon® Series Processor ( 80W / 35W ):

• Intel® Xeon® W-1270E 8 Cores Up to 4.8 GHz, TDP 80W

• Intel® Xeon® W-1250E 6 Cores Up to 4.7 GHz, TDP 80W

• Intel® Xeon® W-1290TE 10 Cores Up to 4.5 GHz, TDP 35W

• Intel® Xeon® W-1270TE 8 Cores Up to 4.4 GHz, TDP 35W

• Intel® Xeon® W-1250TE 6 Cores Up to 3.8 GHz, TDP 35W

Intel® Core® Series Processor ( 65W / 35W ):

• Intel® Core™ i9-10900E 10 Cores Up to 4.7 GHz, TDP 65W

• Intel® Core™ i7-10700E 8 Cores Up to 4.5 GHz, TDP 65W

• Intel® Core™ i5-10500E 6 Cores Up to 4.2 GHz, TDP 65W

• Intel® Core™ i3-10100E 4 Cores Up to 3.8 GHz, TDP 65W

• Intel® Core™ i9-10900TE 10 Cores Up to 4.5 GHz, TDP 35W

• Intel® Core™ i7-10700TE 8 Cores Up to 4.5 GHz, TDP 35W

• Intel® Core™ i5-10500TE 6 Cores Up to 3.7 GHz, TDP 35W

• Intel® Core™ i3-10100TE 4 Cores Up to 3.6 GHz, TDP 35W

Intel® Pentium® Series Processor ( 58W / 35W ):

• Intel® Pentium® G6400E 2 Cores Up to 3.8 GHz, TDP 58W

• Intel® Pentium® G6400TE 2 Cores Up to 3.2 GHz, TDP 35W

• Intel® Celeron® Series Processor ( 58W / 35W ):

• Intel® Celeron® G5900E 2 Cores Up to 3.2 GHz, TDP 58W

• Intel® Celeron® G5900TE 2 Cores Up to 3.0 GHz, TDP 35W
Chipset Intel® W480E Chipset
Memory • 2x DDR4 SO-DIMM Socket, Support Up to 64GB ( Un-buffered and non-ECC)

• Xeon / i9 / i7 Processor Supports Up to 2933MHz

• i5 / i3 Processor Supports Up to 2666 MHz

• Pentium / Celeron Processor Supports Up to 2400MHz
BIOS AMI BIOS
Graphics Engine Integrated Intel® UHD-630 Graphics
Maximum Display Output Supports Triple Independent Display
HDMI 1 x HDMI Connector (4096 x 2160@30Hz)
DP 2 x DisplayPort Connector (4096 x 2340@60Hz)
VGA 1 x VGA Connector (1920 x 1200 @60Hz)
Audio Codec Realtek® ALC888, High Definition Audio
Line-out 1 x Line-out, Phone Jack 3.5mm
Mic-in 1 x Mic-in, Phone Jack 3.5mm
LAN • 2 x GbE LAN, RJ45

– GbE1: Intel® I219

– GbE2: Intel® I210
COM 2 x RS-232/422/485 with Auto Flow Control ( Supports 5V / 12V ), DB9
USB • 2 x 10Gbps USB 3.2 Gen2, Type A

• 4 x 5Gbps USB 3.2 Gen1, Type A

• 2 x 480Mbps USB 2.0, Type A
PS/2 1 x PS/2, 6 Pin Mini-DIN Female Connector
SSD/HDD • 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 )

• 1x 2.5” Internal SATA HDD/SSD Bay ( SATA 3.0 )
mSATA 3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket )
M.2 SSD 1x M.2 Key M Type 2280 Socket, Support PCIe x4 NVMe SSD or SATA SSD ( SATA 3.0 )
RAID Support RAID 0/1/5/10
Mini PCI Express 3 x Full-size Mini-PCIe Socket
SIM Socket 2 x SIM Socket
CMI (Combined Multiple I/O) Interface • 2 x High Speed CMI Interface for optional CMI Module Expansion

• 2 x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Interface 1 x CFM IGN Interface for optional CFM-IGN Module Expansion
External FAN Connector 1 x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
Power Ignition Sensing Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
Clear CMOS Switch 1 x Clear CMOS Switch
Rest Button 1 x Rest Button
Instant Reboot Support 0.2sec Instant Reboot Technology
Watchdog Timer Software Programmable Supports 256 Levels System Reset
Power Button 1 x ATX Power On/Off Button
Power Mode Switch 1 x AT/ATX Mode Switch
Power Input 9 – 48VDC, 3-pin Terminal Block
Remote Power On/Off 1 x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED 1 x Remote Power LED, 2-pin Terminal Block
Total Power Budget 180W
Dimension ( W x D x H ) 227 x 261 x 88 mm
Weight Information 4.5 KG
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall Mount
Physical Design • Fanless Design

• Cableless Design

• Jumper-less Design

• Unibody Design
Reverse Power Input Protection Yes
Over Voltage Protection • Protection Range: 51~58V

•​ Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection 15A
Surge Protection 3.84 kV (impedance 12 ohm 1.2/50us waveform)
CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF • 371,393 Hours

– Database: Telcordia SR-332 Issue 3, Method 1, Case 3
Windows Windows® 10
Linux Supports by project
Operating Temperature • 35W TDP Processor: -40°C to 70°C

• 58W – 65W TDP Processor: -40~50°C (With External Fan Kit)

• 80W TDP Processor: -40~40°C (With External Fan Kit)

* PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)

* With extended temperature peripherals; Ambient with air flow

* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature -40°C to 85°C
Relative Humidity 95%RH @ 70°C (non-Condensing)
Shock MIL-STD-810G
Vibration MIL-STD-810G
EMC CE, FCC, ICES-003 Class A, EN50121-3-2 (Railway)
Safety IEC/EN 62368-1
