ORT-G10A

Genel Bakış
Açıklama
Sipariş Bilgileri
İndirmeler

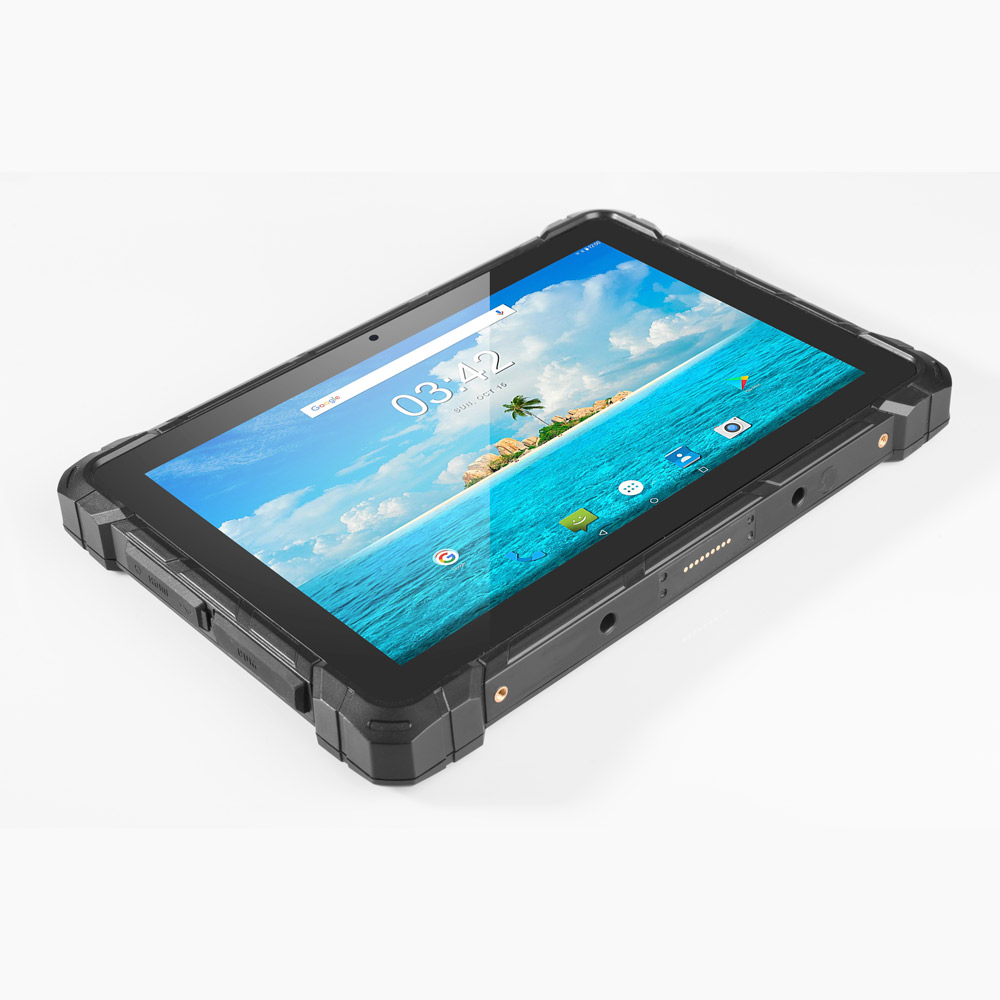

10" Rugged Tablet

Model No: ORT-G10A
Screen:10.1 inch
System: Android
CPU: RK3399
Frequency: Up to 1.8GHz
Resoltion: 800*1280
Storage: 4+64G
Dimensions：280×184×26.5mm

Teklif Al

PDF

Rugged Tablet

ORT-G10A

Key Features	IP67, 10.1″ IPS + RK3399 + 4G +64G + WiFi 2.4G&5G Dual band + 1000Mbps + HDMI1.4 + RS-232(DB9)+ USB3.0

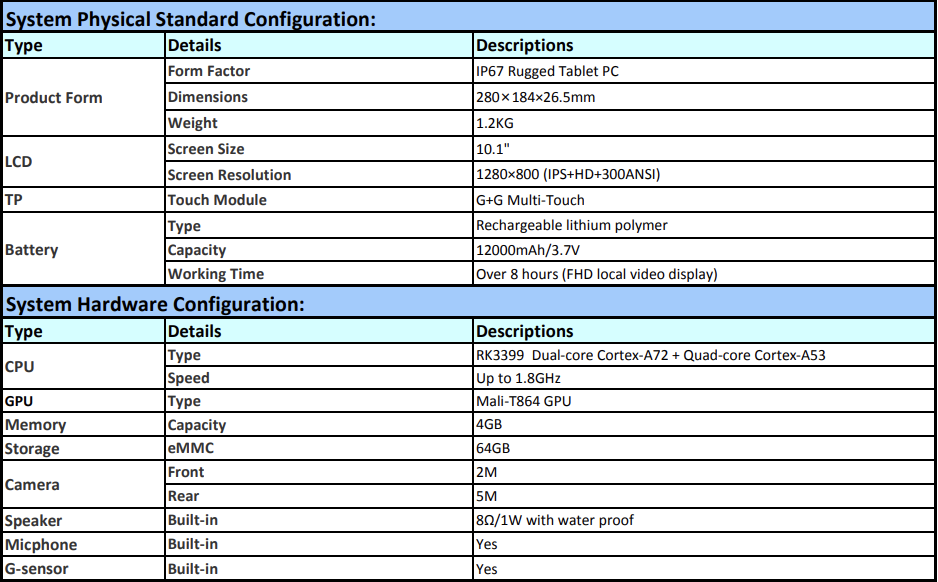

System Physical Standard Configuration:
Type	Details	Descriptions
Product Form	Form Factor	IP67 Rugged Tablet PC
	Dimensions	280×184×26.5mm
	Weight	1.2KG
LCD	Screen Size	10.1″
	Screen Resolution	1200×1920 (IPS+FHD+600ANSI)
		800×1280 (IPS+HD+300ANSI)
TP	Touch Module	G+G Multi-Touch
Battery	Type	Rechargeable lithium polymer
	Capacity	12000mAh/3.7V
	Working Time	Over 8 hours (FHD local video display)
System Hardware Configuration:
Type	Details	Descriptions
CPU	Type	RK3399 Dual-core Cortex-A72 + Quad-core Cortex-A53
	Speed	Up to 1.8GHz
GPU	Type	Mali-T864 GPU
Memory	Capacity	4GB
Storage	eMMC	64GB
	SSD	/
	SATA 2.5“ HDD	/
Camera	Front	2M
	Rear	5M
Speaker	Built-in	8Ω/1W with water proof
Micphone	Built-in	Yes
G-sensor	Built-in	Yes

Teklif Al

PDF

10" Android Rugged Tablet

10″ Android Rugged Tablet

Rugged Tablet

ORT-G10A

10" Android Rugged Tablet Datasheet

Daha Fazla

Ürün Özellikleri

Key Features	IP67, 10.1″ IPS + RK3399 + 4G +64G + WiFi 2.4G&5G Dual band + 1000Mbps + HDMI1.4 + RS-232(DB9)+ USB3.0
System Physical Standard Configuration:
Type	Details	Descriptions
Product Form	Form Factor	IP67 Rugged Tablet PC
	Dimensions	280×184×26.5mm
	Weight	1.2KG
LCD	Screen Size	10.1″
	Screen Resolution	1200×1920 (IPS+FHD+600ANSI)
		800×1280 (IPS+HD+300ANSI)
TP	Touch Module	G+G Multi-Touch
Battery	Type	Rechargeable lithium polymer
	Capacity	12000mAh/3.7V
	Working Time	Over 8 hours (FHD local video display)
System Hardware Configuration:
Type	Details	Descriptions
CPU	Type	RK3399 Dual-core Cortex-A72 + Quad-core Cortex-A53
	Speed	Up to 1.8GHz
GPU	Type	Mali-T864 GPU
Memory	Capacity	4GB
Storage	eMMC	64GB
	SSD	/
	SATA 2.5“ HDD	/
Camera	Front	2M
	Rear	5M
Speaker	Built-in	8Ω/1W with water proof
Micphone	Built-in	Yes
G-sensor	Built-in	Yes
Network Connections:
Type	Details	Descriptions
WIFI	WIFI Module: Broadcom AP6255/AP6256	WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band
Bluetooth	BT Module: Broadcom AP6255/AP6256	Bluetooth4.0
3G/4G LTE	Optional	Optional with external small PCBA
QR code Scanners	Optional	Optional
NFC	Optional	Optional
GPS	BD2/GPS	Optional
Fingerprinter	Capacitive fingerprint sensor	Optional
Ethernet Network	RJ-45	1000Mbps Gigabit Lan
Interface Configuration:
Type	Details	Descriptions
USB Interface	USB3.0	×1pc
	USB2.0	×2pcs (USB2.0 TypeA×1 + Micro USB2.0 (Debug port)×1)
SD / TF Card reader	TF Card reader	×1pc (up to 128GB)
SIM Card Slot	SIM Slot for 3G/4G LTE	Optional
Audio Jack	3.5mm standard	×1pc
HDMI	Micro HDMI 1.4	×1pc
	Video output through HDMI	Up to 4K
COM Port	DB9 (RS232)	×1pc
Button Switch:
Type	Details	Descriptions
Power	On/Off	×1pc
Volume	Down/UP	×1pc
CMOS Reset	Reset by Short Press	/
Main Accessories:
Type	Details	Descriptions
Power adapter	DC 12V/3A	×1pc
User’s Manual	User’s Manual	×1pc
Handle Straps	Optional	Optional
Extension Docking	USB2.0×1pc ; DC IN × 1pc	Optional
Software Configuration:
Type	Details	Descriptions
Wake up on Lan	Wake up on Lan by RJ45	/
PXE	Preboot Execution Environment	/
Operating System	Android 7.1 or above	Yes
	Linux	Test by end user
Environment:
Temperature	Operation Temperature	-10^oC ~ 55^oC (1080p or 4K local video display)
	Storage Temperature	-20^oC ~ 70^oC (Restore to Operation Temperature 2hr before use)
Humidity	Oprating Humidity	35% ~ 80% relative humidity, Non-condensing
	Storage Humidity	20% ~ 93% relative humidity, Non-condensing
Certification:
IP67	IP67 Certification	Yes
Other	Other	Optional
