12.3"

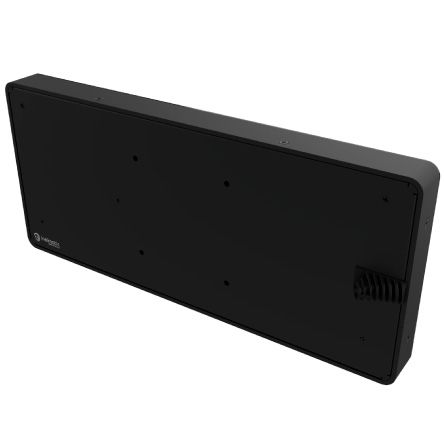

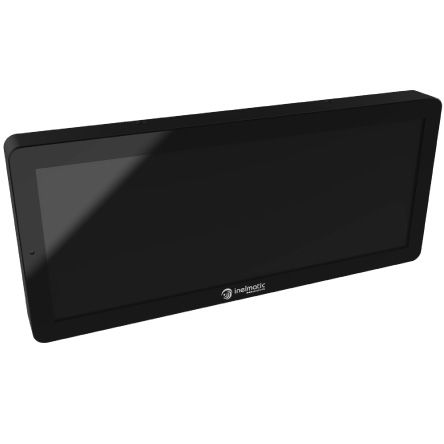

BA1230 is a 12.3 inches XGA monitor (1920 x 720 px) with high brightness (1000 nits) and wide viewing angle. It includes a touch panel (resistive and projected capacitive). It is perfect for industrial and vehicular applications because it supports DVI, VGA and HDMI inputs (fully customizable).

It is a good choice for passenger information in public transportation such as metro, city buses and train.

This display is compliant with automotive power supplies from 9-36VDC, 72VDC, 110VDC, according with railway applications (EN50155).

It has been built with steel and aluminum and it operates in harsh environments from -40ºC to 85ªC.

Optical finish including optionally, anti-glare, anti-reflective and, sunlight readable and transflective enhancements.

Teklif Al

PDF

Endüstriyel Mobil Monitörler

BA1230

• 12.3 inches monitor.

• High brightness and wide viewing angle.

• Resistive 4W/5W and Projected Capacitive touch panel.

• Fully configurable manual and automatic dimmer.

• Slim frame and reduced depth.

• Wide power supply options

• -40ºC to 85ºC operating temperature.

• LED backlight lifetime min. 50.000h.

Teklif Al

PDF

Ordering Information

BA1230SHB-G20-DNN-DAR2-1

Endüstriyel Mobil Monitörler

BA1230

BA1230 Datasheet
