13.3"

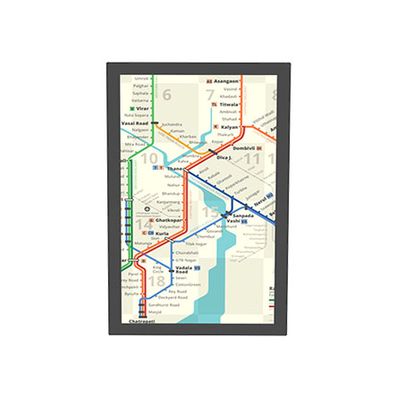

BA1335 is a 13.3 inches Full HD monitor (1920 x 1080 px) with high brightness, LED backlight and wide viewing angle. Includes a fully configurable manual and automatic dimmer and extensive power options. It supports VGA / DVI / HDMI / Display Port and Ethernet / USB / RS232 / RS485 inputs. It is perfect for applications in public transportation and industry.

It is compatible with 9-36 VDC, 43-160 VDC and 14-160 VDC power supplies. Isolated with M12 A Coded connectors.

It has been built in aluminum and it operates in harsh environments from -20ºC to 70ªC.

Optical finish including optionally, anti-glare, anti-reflective and, sunlight readable and transflective enhancements.

Teklif Al

PDF

Endüstriyel Mobil Monitörler

BA1335

Very Wide Aspect 13.3” 1920 x 1080px

• Wide viewing angle and high brightness

• Integrated Intel Atom or ARM 4 / 6 cores CPU

• Optional protection lens or touch panel

• Fully configurable manual and automatic dimmer

• Robust and lightweight metal frame

• Wide power supply options available

• Extended operating temperature range

• LED backlight lifetime min. 50.000h

Teklif Al

PDF

Ordering Information

BA1335HB-P00-R28-YNS0-1

Endüstriyel Mobil Monitörler

BA1335

BA1335 Datasheet
