Endüstriyel Mobil Monitörler

BA1560

15.6"

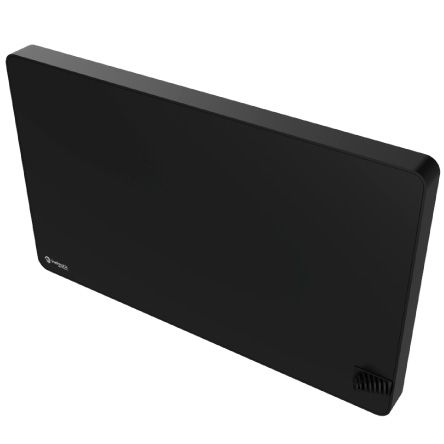

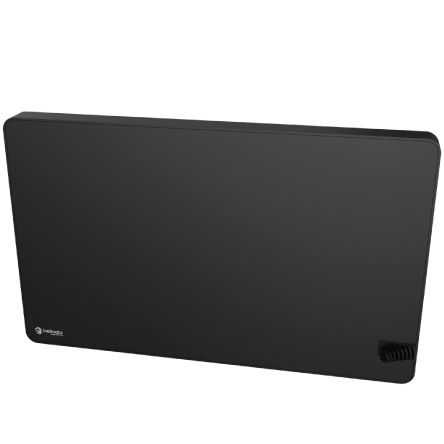

BA1560 is a15.6-inch (1920 x 1080) XGA display with 450, 800 and also 1000 nits illumination alternatives as well as a wide viewing angle. It consists of a projected resistive and capacitive touch panel. It is best for industrial and automotive applications due to the fact that it sustains DVI, VGA and HDMI inputs totally customized.

It has been created with a slim structure and minimal depth. The housing has been developed with steel and aluminum, operating in harsh atmospheres from -40ºC to 85ºC.

This display is certified with automotive power supply materials of 9-36VDC, 72VDC, 110VDC according with railway applications (EN50155).

The optical surface consists of additional enhancements, anti-glare, anti-reflective and sunlight readable and transflective enhancements.

Endüstriyel Mobil Monitörler

BA1560

• 15.6 inches monitor.

• High brightness and wide viewing angle.

• Resistive 4W/5W and Projected Capacitive touch panel.

• Fully configurable manual and automatic dimmer.

• Slim frame and reduced depth.

• Wide power supply options

• -40ºC to 85ºC operating temperature.

• LED backlight lifetime min. 50.000h.

Ordering Information

BA1560-G20-DNN-DAR2-1

BA1560HB-G20-DNN-DAR2-1

BA1560SHB-G20-DNN-DAR2-1
