Endüstriyel Mobil Monitörler

BA2001

20"

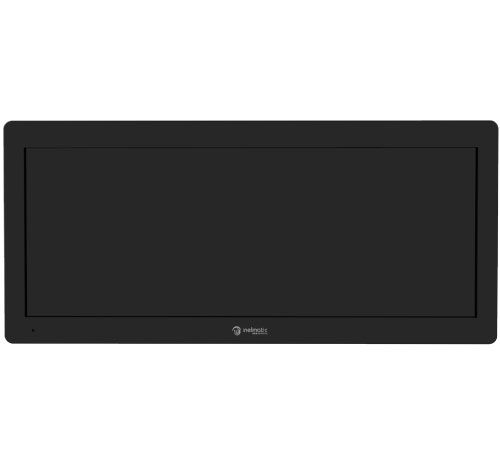

BA2001 is a 20 inches stretched BAR display (1920 x 720 px) with high brightness (350 – 500 – 1000 – 1500 nits)and also wide viewing angles. It consists of a projected resistive and capacitive touch panel. It is ideal for industrial and vehicular applications as it supports fully customizable DVI, VGA and HDMI inputs.

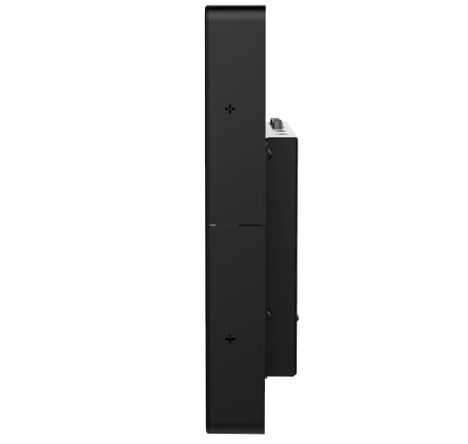

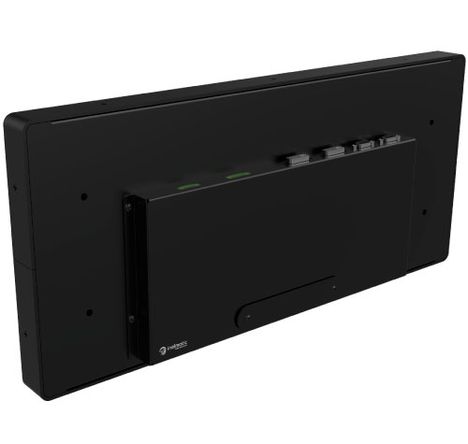

It has been manufactured with a slim frame and reduced depth. The housing has been constructed with steel and aluminum and also operates in harsh environments from -40ºC to 85ºC.

This display is certified with automotive power supplies of 9-36VDC, 72VDC, 110VDC, according to railway applications (EN50155).

Optical coating that additionally includes anti-glare, anti-reflective, sunlight readable and transflective enhancements.

Endüstriyel Mobil Monitörler

BA2001

• 20” very wide aspect.

• Wide viewing angle and high brightness.

• Optional protection glass or touch panel.

• Fully configurable manual and automatic dimmer.

• Aluminum frame.

• Wide power supply options available.

• Extended operating temperature range.

• LED backlight lifetime min. 50.000h.

Ordering Information

BA2001HB-NN-DNNY-ND1-B

BA2001HB-P20-DNNY-NN1-B

Ürün Özellikleri
