Endüstriyel Mobil Monitörler

BA2005 – BA2006

20"

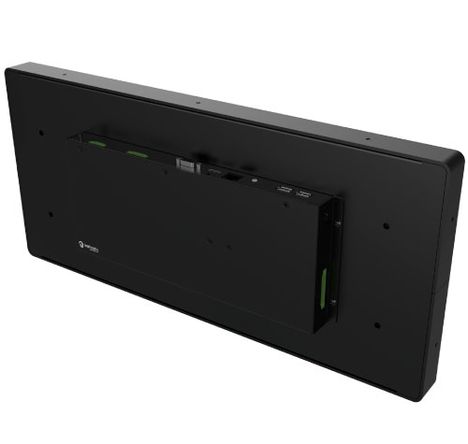

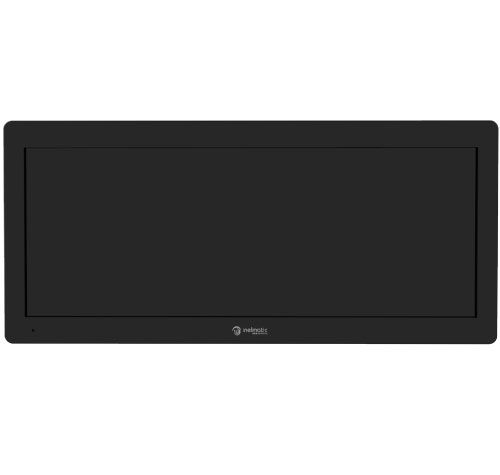

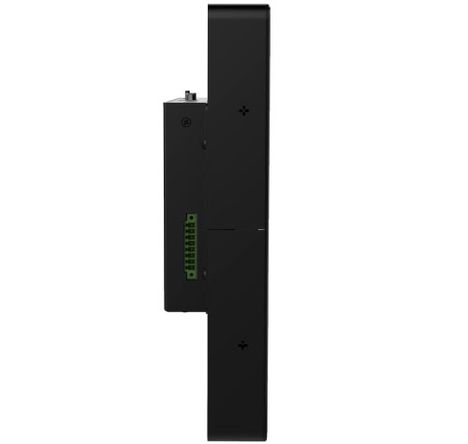

BA2005  and BA2006 are a very wide 20 inches native TFT monitor (1920 x 720 px) with CPU. They include high brightness and wide viewing angle, mounting a 500 nits LED backlight with a PMMA cover lens which brings a IP65 front and IP40 rear (opt. full IP65).  Also includes a projected capacitive touch panel (PCAP).

BA2905 and BA2906 include CPU, Quad-core ARM Cortex-A 17 or Intel (Single core, Dual core, Quad core). It has been designed with slim frame and reduced depth. The enclosure has been built with steel and aluminum and it operates in harsh environments from -25ºC to 55ªC.

Both Panel PC support wide power supplies from 9-36VDC, 43-160VDC, 14-160VDC, according with automotive and railway regulations. It is perfect for industrial and vehicular applications because it supports DVI, VGA and HDMI inputs (fully customizable). Optical finish includes, optionally, anti-glare, anti-reflective and transflective treatments. Dimmer is fully configurable, manual and automatic.

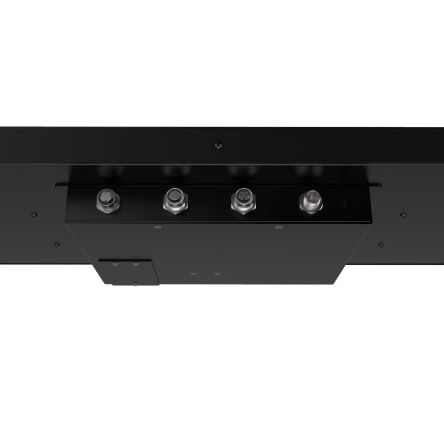

BA2005 includes Ethernet, USB and RS485 in M12 connectors (Power Supply M12 A Coded) for railway applications.

BA2006 includes standard  Ethernet, USB and RS485 connectors.

Endüstriyel Mobil Monitörler

BA2005 – BA2006

• 20” inches very wide aspect.

• Wide viewing angle and high brightness.

• Integrated Quad Core ARM CPU.

• Optional touch panel, Glass or PMMA 3mm.

• Fully configurable manual and automatic dimmer.

• Slim frame and reduced depth.

• Wide power supply options available.

• Extended range operating temperature.

• LED backlight lifetime min. 50.000h.

Ordering Information

BA2006HB-G40-R28-2NSC-1

BA2006HB-P20-R28-2NDC-1

BA2006HB-P20-R28-2HDC-1

Ürün Özellikleri
