1) Modüler Panel Bilgisayarlar

BA3201

32"

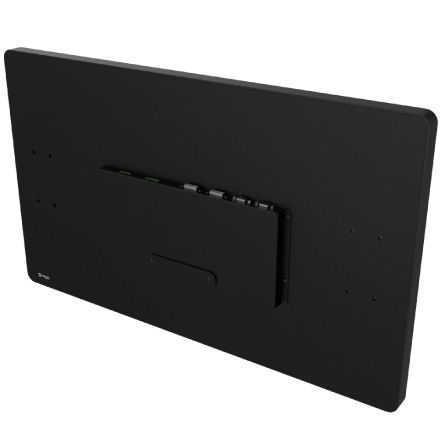

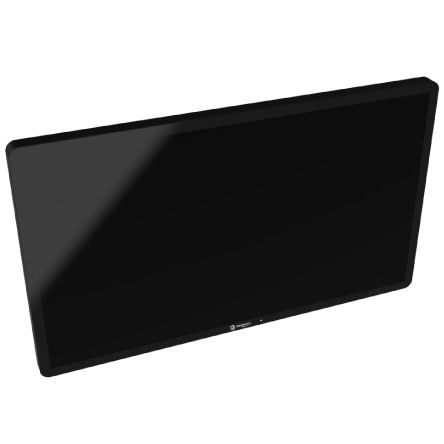

BA3201 is a very wide 32″ inches native TFT monitor (1920 x 1080 px) with high brightness and wide viewing angle. It mounts a 400 nits LED backlight with a PMMA cover lens which brings a IP65 front and IP40 rear (opt. full IP65).  Also includes a projected capacitive touch panel (PCAP).

BA3201 support wide power supplies from 11-36VDC, 43-160VDC, 14-160VDC, according with automotive and railway regulations. It is perfect for industrial and vehicular applications because it supports DVI and HDMI inputs (fully customizable).

Optical finish includes, optionally, anti-glare, anti-reflective and transflective treatments. Dimmer is fully configurable, manual and automatic.

1) Modüler Panel Bilgisayarlar

BA3201

• 32 inches native TFT.

• Wide viewing angle and high brightness.

• Optional protection glass or touch panel.

• Fully configurable manual and automatic dimmer.

• Metal frame.

• Wide power supply options available.

• LED backlight lifetime min. 50.000h.

Ordering Information

BA3201HB-NN-DNNY-ND1-1

BA3201HB-P20-DNNY-NA1-1

BA3201HB-G50-DNNY-NN1-1

BA3201HB-G50-DNNY-ND1-1

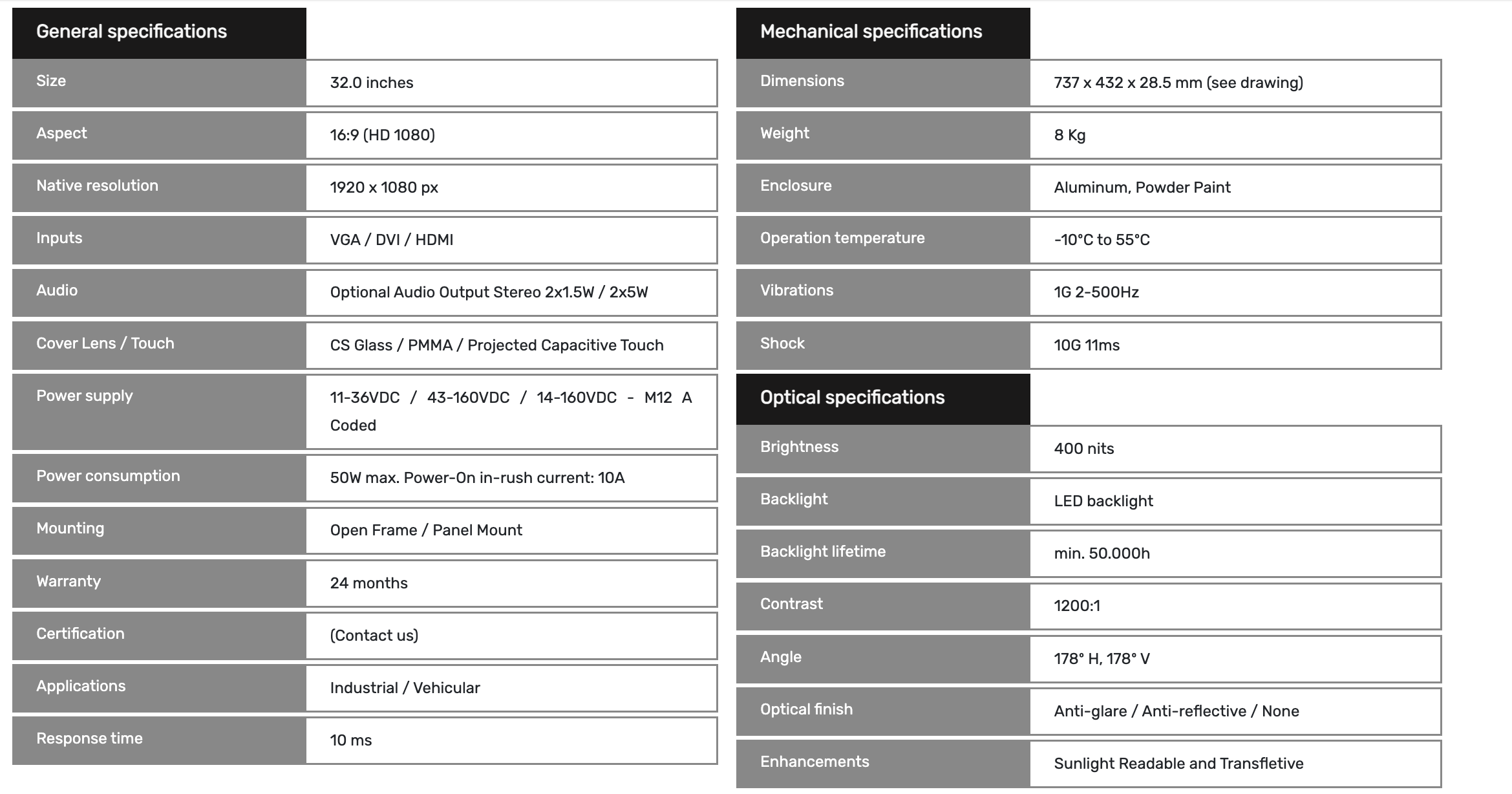

Ürün Özellikleri
