1) Modüler Panel Bilgisayarlar

BA3205 / BA3206

32"

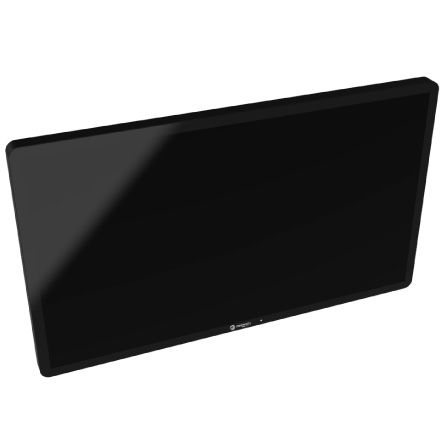

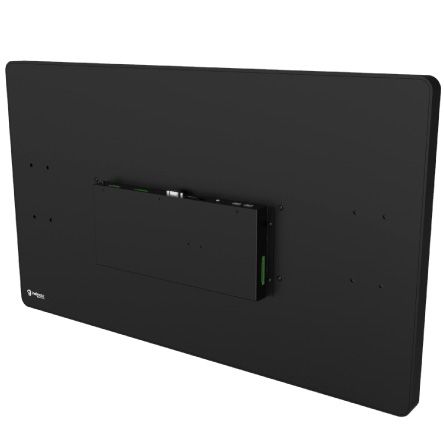

BA3205 and BA3206 are very wide 32 inches native FHD TFT monitors (1920 x 1080 px) with CPU. They include high brightness and wide viewing angle, mounting a 400 nits LED backlight with a PMMA cover lens which brings a IP65 front and IP40 rear (opt. full IP65).  Also includes a projected capacitive touch panel (PCAP).

BA3205 and BA3206 include CPU, Quad-core ARM Cortex-A 17 or Intel (Single core, Dual core, Quad core). It has been designed with slim frame and reduced depth. The enclosure has been built with steel and aluminum and it operates in harsh environments from -10ºC to 55ªC.

They support wide power supplies from 11-36VDC, 43-160VDC, 14-160VDC, according with automotive and railway regulations. Thus are perfect for industrial and vehicular applications. Optical finish includes, optionally, anti-glare, anti-reflective and transflective treatments. Dimmer is fully configurable, manual and automatic.

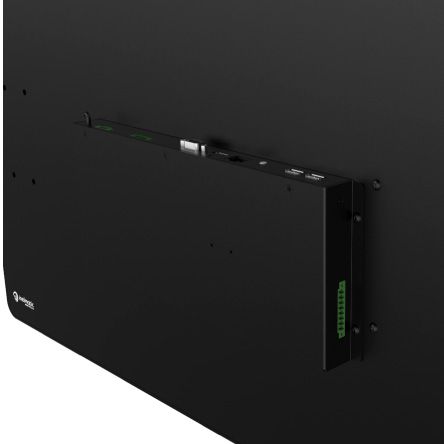

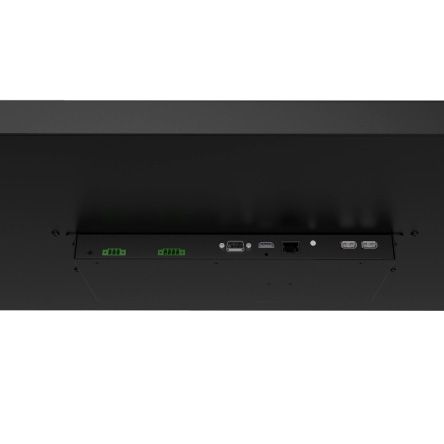

BA3205 mounts Ethernet, USB and RS485 in M12 connectors (Power Supply M12 A Coded) for railway applications.

BA3206 mounts standard  Ethernet, USB and RS485 connectors.

1) Modüler Panel Bilgisayarlar

BA3205 / BA3206

• 32 inches native TFT.

• Wide viewing angle and high brightness.

• Integrated Intel Atom or ARM Quad Core CPU.

• Optional protection glass or touch panel.

• Fully configurable manual and automatic dimmer.

• Metal frame.

• Wide power supply options available.

• LED backlight lifetime min. 50.000h.

Ordering Information

BA3205HB-NN-R28-YND0-1

BA3205HB-NN-R28-YND0-1

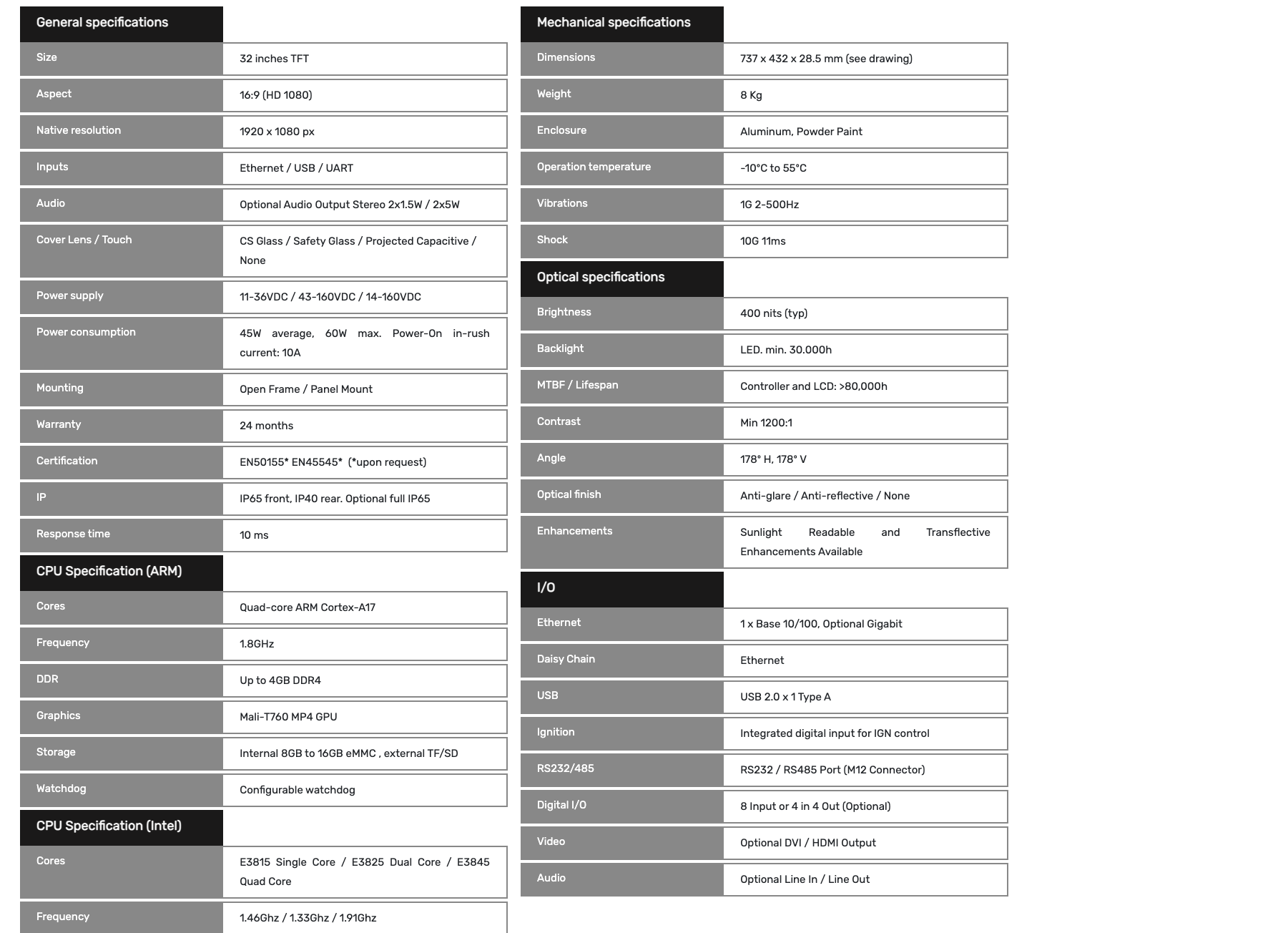

Ürün Özellikleri
