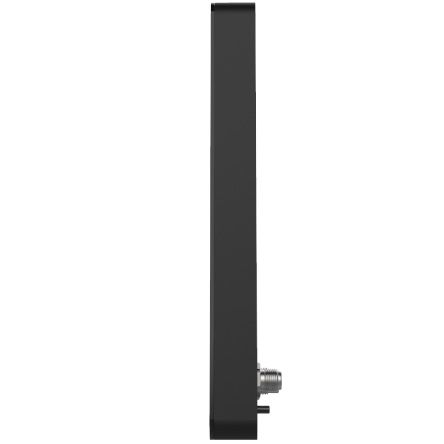

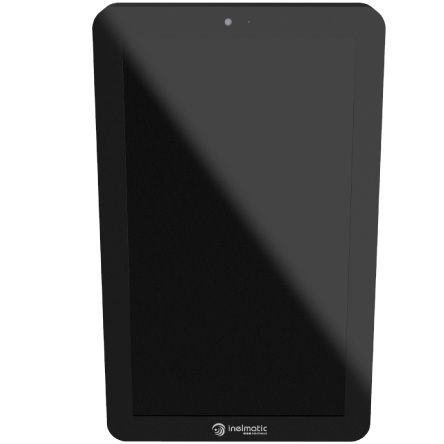

BA905 is a 9 inches XGA monitor (1920 x 720 px) with high brightness (700 nits) LED backlight and wide viewing angle. It includes a projected capacitive touch panel with a glass and PMMA in the cover lens. It is perfect for industrial and vehicular applications because it supports VGA / DVI / HDMI / Display Port and Ethernet / USB / RS232 / RS485 inputs. In some projects it has been integrated as digital rear mirror in bus and railway fleets.

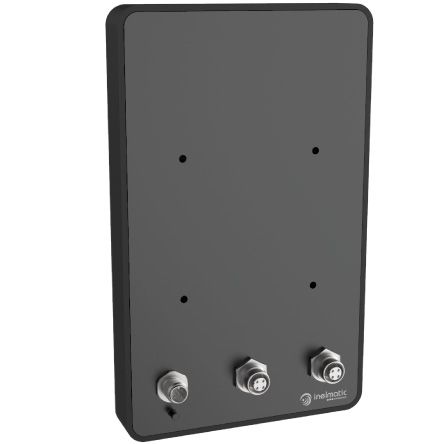

It’s compliant with automotive power supplies from 9-36VDC and railway 24/72/110VDC (EN50155). Isolated with M12 A Coded connectors.

It has been built in aluminum and it operates in harsh environments from -25ºC to 70ªC.

Optical finish including optionally, anti-glare, anti-reflective and, sunlight readable and transflective enhancements.

Teklif Al

PDF

Endüstriyel Mobil Monitörler

BA905

• 9 inches Embedded Display.

• Wide viewing angle and high brightness.

• Integrated Intel Atom or ARM Quad Core CPU.

• Optional protection glass or touch panel.

• Fully configurable manual and automatic dimmer.

• Metal frame.

• Wide power supply options available.

• Extended operating temperature range.

• LED backlight lifetime min. 50.000h.

Teklif Al

PDF

Ordering Information

BA905HB-NN-R28-2NDA-T

BA905HB-G20-R28-2NDC-9

BA905HB-G20-R28-2URC-9

Endüstriyel Mobil Monitörler

BA905

BA905 Datasheet
