1) Modüler Panel Bilgisayarlar

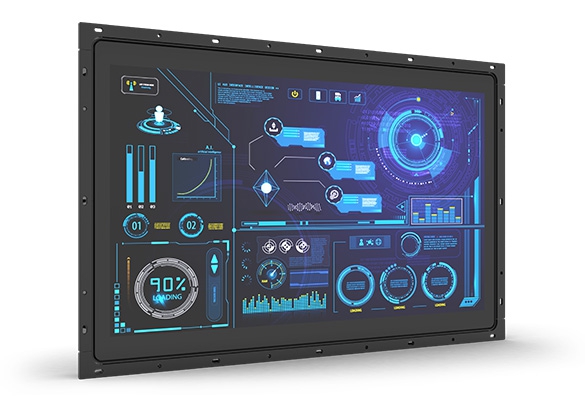

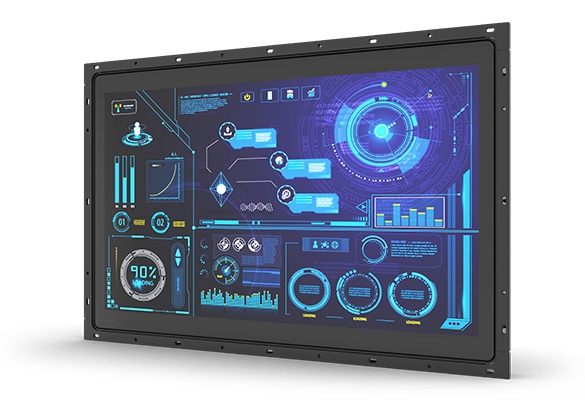

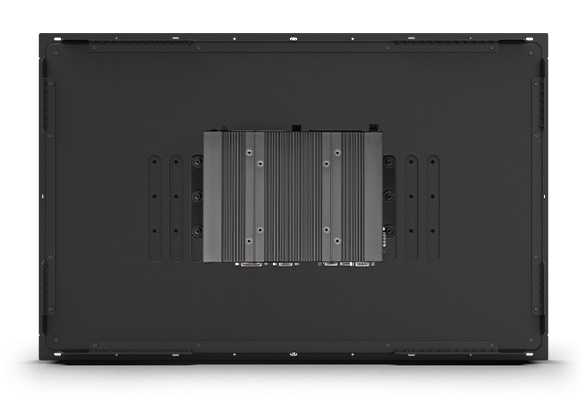

CO-119C / P1001

19" TFT-LCD

  • 19″ TFT-LCD with Projected Capacitive Touch
  • Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
  • 1x DDR3L SO-DIMM max. up to 8GB
  • Designed with Adjustable Mounting Bracket
  • Support Flat / Standard / VESA / Rack Mount
  • Front Panel IP65 Compliant
  • Wide Operating Temperature
  • Cincoze Patent CDS Technology Support
Destekleyen İşlemciler
  • CO-119C / P1001
1) Modüler Panel Bilgisayarlar

CO-119C / P1001

Cincoze power eicient open frame modular panel PCs (CO-119C/P1001 Series) support Intel® Atom® processors, and multiple displays. Native I/O ports include LAN, USB, COM, and DIO, oering expansion functions to meet dierent application needs. The integrated structure, exclusive adjustable mounting bracket, and support for various mounting methods enable a perfect fit in cabinets of dierent materials and thicknesses. The robust design also meets the application needs of harsh industrial environments.

Available Models
Model No. Product Description
CO-119C-R10/P1001-R10 19″ TFT-LCD SXGA 5:4 Open Frame Display Modular Panel PC with Intel Atom E3845 Quad Core Processor and P-Cap. Touch
CO-119C-R10/P1001E-R10 19″ TFT-LCD SXGA 5:4 Open Frame Display Modular and Expandable Panel PC with Intel Atom E3845 Quad Core Processor and P-Cap. Touch



Model Configuration
CO-119C P1001 P1001E
CO-119C/P1001 V V
CO-119C/P1001E V V
Package Checklist

• CO-119C/P1001 Series Panel PC x 1

• DIO Terminal Block Connector (Female) x 1

• Mini PCIe Screw Pack x 1

• Power Terminal Block Connector (Female) x 1

• HDD Screw Pack x 1

Optional Modules and Accessories
Model No. Description
MEC-COM-M212-DB9 Mini-PCIe Module with 2x COM Ports, 1x Standard DB9 Cable (For P1001E only)
MEC-LAN-M102-30 Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable (For P1001E only)
MEC-USB-M102-30 Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable (For P1001E only)
UB0303 2x Universal Bracket each with 1x DB9 Cutout (For P1001E only)
UB0311 1x Universal Bracket with 2x RJ45 Cutout (For P1001E only)
UB0314 1x Universal Bracket with 2x USB Cutout (For P1001E only)
URM01 Universal 19″ Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST60A12-CIN1 Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C)



Ürün Özellikleri

Display LCD Size • 19” (5:4)
Max. Resolution • 1280 x 1024
Brightness (cd/m2) • 350
Contrast Ratio • 1000 : 1
LCD Color • 16.7M
Pixel Pitch (mm) • 0.294 (H) x 0.294 (V)
Viewing Angle (H-V) • 170 / 160
Backlight LED Life Time • 50,000 hrs (LED Backlight)
Touch Screen Touchscreen Type • Projected Capacitive Touch
Physical Dimension (W x D x H) • 472.8 x 397.5 x 63mm
Weight • 6.91kg
Construction • One-piece and Slim Bezel Design
Mounting Type • Flat / Standard / VESA / Rack Mount
Mounting Bracket • Pre-installed Mounting Bracket with Adjustable Design
(Support 11 different stages of adjustment)
Power Power Consumption • 21W (Max.)
Protection Ingress Protection • Front Panel IP65 Compliant * According to IEC60529
Environment Operating Temperature • 0°C – 50°C (with Industrial Grade peripherals; Ambient with air flow)
Storage Temperature • -20°C – 60°C
Humidity • 80% RH @ 50°C (non-condensing)
EMC • CE, UKCA, FCC, ICES-003 Class A
EMI • CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz

P1001 Series

Model Name P1001 P1001E
System Processor Onboard Intel® Atom™ Processor E3845 Quad Core, 1.91 GHz
Memory 1x DDR3L 1066/1333 MHz SO-DIMM Socket (un-buffered and non-ECC)
Support up to 8 GB
BIOS AMI 64Mbit SPI BIOS
Graphics CDS (Convertible Display System) Technology 1x Convertible Display System (CDS) Interface
VGA 1x VGA Connector (1920×1080@60Hz)
DP 1x DisplayPort Connector (1920×1080@60Hz)
Audio Line-out 1x Line-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm
I/O LAN 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
– GbE1: Intel® I210
– GbE2: Intel® I210
USB 1x USB 3.2 Gen1 (Type A), 3x USB 2.0 (Type A)
Serial Port 2x RS-232/422/485 with Auto Flow Control Support, DB9
DIO 8x Isolated Digital I/O (4in/4out)
Storage SSD/HDD 1x 2.5” HDD/SSD Drive
SIM Socket 1 x Front Accessible SIM Socket
CFast 1 x Front Accessible CFast Socket
Expansion Mini PCI Express 1x Full-size Mini PCIe Socket for Wi-Fi/GSM/Expansion Module
Universal Bracket 2x Universal I/O Brackets
Other Function Watchdog Timer Software Programmable Supports 256 Levels System Reset
Internal Speaker AMP 2W + 2W
OSD Function LCD On/Off, Brightness Up, Brightness Down
Reset Button 1x Reset Button
Power Power Button 1x ATX Power On/Off Switch
Power Mode Switch 1x AT/ATX Mode Switch
Power Input 1x 3-pin Terminal Block Connector with Power Input 9~48VDC
Power Adapter (Optional) 1x Optional AC/DC 12V/5A, 60W
Physical Dimension ( W x D x H ) 204.5 x 149 x 37.5 mm 204.5 x 150 x 60 mm
Weight Information 1.34kg 1.54kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / VESA / CDS Mounting
Physical Design Fanless Design
Jumper-less Design
Reliability & Protection Reverse Power Input Yes
Over Voltage Protection Protection Range: 51~58V
Protection Type: shut down operating voltage, re-power on at the present level to recover
Over Current Protection 20A
Operating Stystem Microsoft® Windows® Windows® 10, Windows® 8, Windows® 7
Windows® Embedded 8 Standard, Windows® Embedded Standard 7
Linux Supports by project
Environment Operating Temperature Ambient with Air Flow: -20°C to 70°C (with Industrial Grade Peripherals)
StorageTemperature -30°C to 85°C
Relative Humidity 10%~95% (non-condensing)
Shock Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
Vibration Operating, 1 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
EMC CE, UKCA, FCC, ICES-003 Class A
EMI • CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
