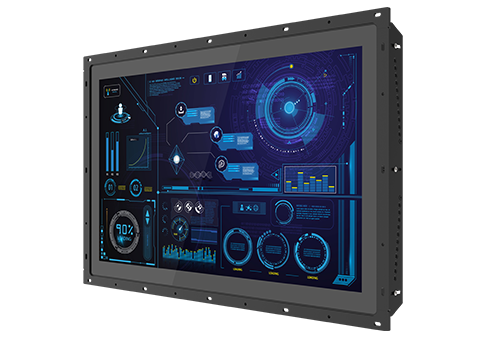

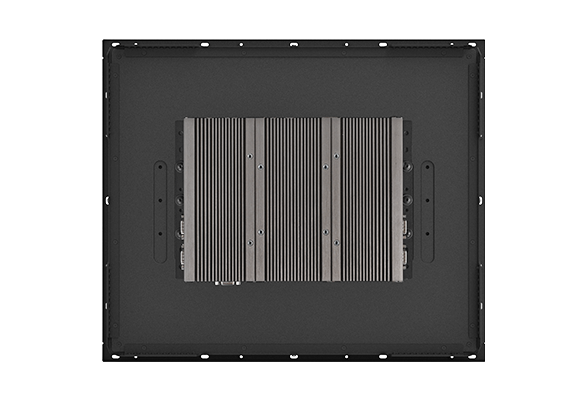

1) Modüler Panel Bilgisayarlar

CO-119C / P2002

19" TFT-LCD

  • 19″ TFT-LCD with Projected Capacitive Touch
  • Onboard Intel® 6th Generation Core™ Processor U Series (15W)
  • 2x DDR4 SO-DIMM Socket, Support Up to 32 GB
  • Designed with Adjustable Mounting Bracket
  • Support Flat / Standard / VESA / Rack Mount
  • Front Panel IP65 Compliant
  • Wide Operating Temperature
  • Cincoze Patent CDS Technology Support
Destekleyen İşlemciler
  • CO-119C / P2002
  • CO-119C / P2002
1) Modüler Panel Bilgisayarlar

CO-119C / P2002

Cincoze’s high-performance open-frame modular panel PCs (CO-119C/P2002 Series) use Intel® Core U series processors that provide high-performance data processing and graphics computing capabilities with only 15W low power consumption. The CO-100/P2002 series supports CFM technology that extends system functions according to requirements, with options such as Power Ignition Sensing (IGN) and Power over Ethernet (PoE). The series has multiple sizes, display ratios (4:3 and 16:9), and touchscreen options. Its integrated structure, exclusive adjustable mounting bracket, and support for multiple mounting methods to perfectly fit cabinets of dierent materials and thicknesses. The robust design also meets the application needs of harsh industrial environments

Available Models
Model No. Product Description
CO-119C-R10/P2002-i5-R10 19“ TFT-LCD SXGA 5:4 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Fanless Computer, CFM Interface, CDS Interface
CO-119C-R10/P2002E-i5-R10 19“ TFT-LCD SXGA 5:4 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface
CO-119C-R10/P2002E-i5-E4-R10 19“ TFT-LCD SXGA 5:4 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Fanless Computer, CFM Interface, CDS Interface, 1x PCIex4 Expansion
CO-119C-R10/P2002E-i5-PI-R10 19“ TFT-LCD SXGA 5:4 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCI Expansion
CO-119C-R10/P2002-i3-R10 19“ TFT-LCD SXGA 5:4 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Fanless Computer
CO-119C-R10/P2002E-i3-R10 19“ TFT-LCD SXGA 5:4 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface
CO-119C-R10/P2002E-i3-E4-R10 19“ TFT-LCD SXGA 5:4 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Fanless Computer, CFM Interface, CDS Interface, 1x PCIex4 Expansion
CO-119C-R10/P2002E-i3-PI-R10 19“ TFT-LCD SXGA 5:4 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCI Expansion



Model Configuration
CO-119C P2002 (i3/i5) P2002E (i3/i5/E4/PI)
CO-119C/P2002 V V
CO-119C/P2002E V V
Package Checklist

• CO-119C/P2002 Series Panel PC x 1

• Wall / CDS Mounting Kit x 1

• Power Terminal Block Connector x 1

• Fan Terminal Block Connector x 1

• DIO Terminal Block Connector x 2

• Remote Power On/Off Terminal Block Connector x 1

• Screw Pack x 1

Optional Modules and Accessories
Model No. Description
CFM-IGN100 CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (41 x 35 mm)
CFM-PoE100 CFM Module with PoE Control Function, Individual Port 25.5W (50 x 44 x 15 mm)(For P2002 only)
CFM-PoE101 CFM Module with PoE Control Function, Individual Port 25.5W (50 x 44 x 33 mm) (For P2002E only)
RC-E4-01 Riser Card with 1x PCIex4 Slot (For P2002E only)
RC-PI-01 Riser Card with 1x PCI Slot (For P2002E only)
MEC-COM-M212 Mini-PCIe Module with 2x COM Ports
MEC-COM-M334 Mini-PCIe Module with 4x RS-232/422/485 Serial Ports
MEC-LAN-M102-30 Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable
MEC-USB-M102-30 Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable
UB0503 1x Universal Bracket with 2x DB9 Cutout (154 x 17 mm)
UB0504 1x Universal Bracket with 4x DB9 Cutout (154 x 17 mm)
UB0511 1x Universal Bracket with 2x RJ45 Cutout (154 x 17 mm)
UB0514 1x Universal Bracket with 2x USB Cutout (154 x 17 mm)
URM01 Universal 19″ Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST220A24-CIN Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, GST220A24-CIN (For P2002E only)
GST120A24-CIN Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp(-30°C ~ +70°C), level VI
GST60A12-CIN1 Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C)

Ürün Özellikleri

Display LCD Size • 19” (5:4)
Max. Resolution • 1280 x 1024
Brightness (cd/m2) • 350
Contrast Ratio • 1000 : 1
LCD Color • 16.7M
Pixel Pitch (mm) • 0.294 (H) x 0.294 (V)
Viewing Angle (H-V) • 170 / 160
Backlight LED Life Time • 50,000 hrs (LED Backlight)
Touch Screen Touchscreen Type • Projected Capacitive Touch
Physical Dimension (W x D x H) • 472.8 x 397.5 x 63mm
Weight • 6.91kg
Construction • One-piece and Slim Bezel Design
Mounting Type • Flat / Standard / VESA / Rack Mount
Mounting Bracket • Pre-installed Mounting Bracket with Adjustable Design
(Support 11 different stages of adjustment)
Power Power Consumption • 21W (Max.)
Protection Ingress Protection • Front Panel IP65 Compliant * According to IEC60529
Environment Operating Temperature • 0°C – 50°C (with Industrial Grade peripherals; Ambient with air flow)
Storage Temperature • -20°C – 60°C
Humidity • 80% RH @ 50°C (non-condensing)
EMC • CE, UKCA, FCC, ICES-003 Class A
EMI • CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz

P2002 Series

Model Name P2002 P2002E
System Processor Onboard 6th Intel® Core™ U processors (Skylake)
• Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz)
• Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz)
• TDP: 15 W
Memory 2x DDR4 2133 MHz 260-Pin SO-DIMM Socket
Support Un-buffered and Non-ECC Type up to 32 GB
BIOS AMI 64Mbit SPI BIOS
Graphics Graphics Engine Integrated Intel® UHD Graphics 520
Maximum Display Output Supports Triple Independent Display
CDS 1x CDS Connector for Cincoze Display Module
VGA 1x VGA Connector(1920 x 1080 @60Hz), DB-15
DVI-D 1x DVI-D Connector (1920 x 1080 @ 60Hz)
Audio Audio Codec Realtek® ALC888, High-Definition Audio
Speaker-out 1x Speaker-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm
I/O LAN 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
– GbE1: Intel® I219LM
– GbE2: Intel® I210
USB 4x USB 3.2 Gen1 (Type A), 1x USB 2.0(Type-A)
Serial Port 6x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
DIO 16x Isolated Digital I/O (8in/8out), 10-Pin Terminal Block
Storage SSD/HDD 2x 2.5″ SATA HDD/SSD Bay, Support RAID 0/1 (Gen3)
mSATA 2x mSATA (One Shared by Mini-PCIe Socket) (Gen2)
CFast 1x CFast Socket (Gen3)
Expansion Mini PCI Express 2x Full-size Mini-PCIe Socket
PCI Express • 1x PCI or 1x PCIe x4 Expansion slot
(with Optional Riser Card)
• maximum dimension of add-on card:
100mm x 200mm (H x L)
SIM Socket 1 x Front Accessible SIM Socket
Universal Bracket 1x Universal I/O Bracket
CFM (Control Function Module) Interface 2x CFM Interface for optional CFM-IGN or CFM-PoE (max 25.5W) Module Expansion
CDS (Convertible Display System) Technology 1x Convertible Display System (CDS) Interface, Compact PCI Connector
Other Function Instant Reboot Support 0.2sec Instant Reboot technology
Watchdog Timer Software Programmable Supports 256 Levels System Reset
Internal Speaker AMP 2W + 2W
OSD Function LCD On/Off, Brightness Up, Brightness Down
Reset Button 1x Reset Button
External Fan Connector 1x External Fan Connector, 4-pin Terminal Block
Power Power Button 1x ATX Power On/Off Switch
Power Mode Switch 1x AT/ATX Mode Switch
Power Input 1x 3-pin Terminal Block Connector with Power Input 9~48VDC
Power Adapter (Optional) 1x Optional AC/DC 12V/5A 60W or 24V/5A 120W
1x Optional AC/DC 24V/9.2A 220W (For P2002E only)
Remote Power On/Off 1x Remote Power On/Off Connector, 2-pin Terminal Block
Physical Dimension ( W x D x H ) 254.5 x 220 x 54mm 254.5 x 220 x 72 mm
Weight Information 2.92 kg 3.18 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / VESA / CDS
Physical Design Fanless Design
Jumper-less Design
Reliability & Protection Reverse Power Input Yes
Over Voltage Protection Protection Range: 51~58V
Protection Type: shut down operating voltage, re-power on at the present level to recover
Over Current Protection 15A
CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation
Operating Stystem Microsoft® Windows® Windows®10, Windows® 8.1, Windows® 7
Linux Linux® Kernel 4.4
Environment Operating Temperature Ambient with Air Flow: -25°C to 70°C (with Extended Temperature Peripherals)
Storage Temperature -40°C to 85C
Relative Humidity 95% RH @ 40˚C (Non-condensing)
Shock Operating, 50 Grms, Half-sine 11ms Duration (w/ SSD, according to IEC60068-2-27)
Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
EMC CE, UKCA, FCC, ICES-003 Class A
EMI • CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
