1) Modüler Panel Bilgisayarlar

CO-W121C / P2202

21.5" TFT-LCD

  • 21.5” TFT-LCD with Projected Capacitive Touch
  • Onboard Intel® Alder Lake-P U-Series Core™ Processor
  • 2 x DDR5 SO-DIMM Socket, Supports up to 4800MHz 64GB Memory
  • Designed with Adjustable Mounting Bracket
  • Quad Independent Display (CDS / HDMI / DP / VGA)
  • 1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
  • Front Panel IP65 Compliant
Destekleyen İşlemciler
  • CO-W121C / P2202
  • CO-W121C / P2202
1) Modüler Panel Bilgisayarlar

CO-W121C / P2202

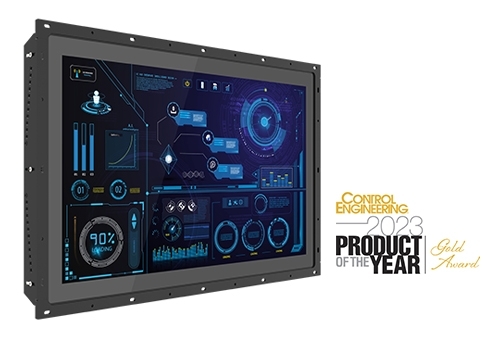

Cincoze open-frame high-performance industrial panel PC (CO-100/P2202) is equipped with an Intel® Core™ U-series (Alder Lake-P) processor, rich I/O interfaces (1 GbE LAN, USB 3.2 Gen 2×1, COM, DIO, etc.), and flexible expansion. The biggest highlight is its adjustable mounting bracket design (Patent No.: D224544, D224545, I802427) that allows flexible adjustment and multi-stage locking to greatly improve the convenience of installation, eectively reducing the degree of customization required when integrating with equipment. It is purpose-built for equipment manufacturers.

Available Models
Model No. Product Description
CO-W121C-R10/P2202-i5-R10 21.5″ TFT-LCD Full HD 16:9 Open Frame Display Modular Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Projected Capacitive Touch
CO-W121C-R10/P2202E-i5-R10 21.5“ TFT-LCD Full HD 16:9 Open Frame Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Projected Capacitive Touch
CO-W121C-R10/P2202-i3-R10 21.5″ TFT-LCD Full HD 16:9 Open Frame Display Modular Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Projected Capacitive Touch
CO-W121C-R10/P2202E-i3-R10 21.5“ TFT-LCD Full HD 16:9 Open Frame Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Projected Capacitive Touch



Model Configuration
CO-W121C P2202 (i3/i5) P2202E (i3/i5)
CO-W121C/P2202 V V
CO-W121C/P2202E V V



Package Checklist

CO-W121C/P2202 Series Panel PC x1

Power Terminal Block x1

Remote Power On/Off Terminal Block Connector x1

DIO Terminal Block Connector x2

Thermal Pad x1

Screws Pack x5

PCI / PCIe Card Installation Kit x 1 (For P2202E Only)

DIN Rail Mounting Kit x1

Optional Modules and Accessories

Description
CFM-IGN101 CFM Module with Power Ignition Sensing Control Function, 12V/24V Voltage Detection Selectable
CFM-PoE04 CFM Module with PoE Control Function, Individual Port 25.5W (For P2202 Only)
CFM-PoE05 CFM Module with PoE Control Function, Individual Port 25.5W (For P2202E Only)
RC-E4-02 Riser Card with 1x PCIe x4 Slot (For P2202E Only)
RC-PI-02 Riser Card with 1x PCI Slot (For P2202E Only)
MEC-COM-M212-TDB9 Mini-PCIe Module with 2x RS-232 Ports, 1x Thin DB9 Cable (For P2202E Only)
MEC-COM-M334-TDB9 Mini-PCIe Module with 4x RS-232/422/485 Ports, 2x Thin DB9 Cable (For P2202E Only)
MEC-USB-M102-30 Mini-PCIe Module with 2x USB 3.0 Ports, 1x 30cm cable (For P2202E Only)
MEC-LAN-M102-30 Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable (For P2202E Only)
UB1203 1x Universal Bracket with 2x DB9 Cutout (For P2202E Only)
UB1211 1x Universal Bracket with 2x RJ45 Cutout (For P2202E Only)
UB1214 1x Universal Bracket with 2x USB Cutout (For P2202E Only)
URM01 Universal 19″ Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST60A12-CIN1 Adapter AC/DC 12V 5A 60W, GST60A12-CIN, wide temp (-30°C ~ +70°C), level VI
GST120A24-CIN Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
GST220A24-CIN Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI (For P2202E Only)

Ürün Özellikleri

Display LCD Size 21.5” (16:9)
Resolution 1920 x 1080
Brightness 300 cd/m2
Contrast Ratio 5000 : 1
LCD Color 16.7M
Pixel Pitch 0.24825 (H) x 0.24825 (V) mm
Viewing Angle 178 (H) / 178 (V)
Backlight LED Life Time 50,000 hrs
Touch Screen Touchscreen Type Projected Capacitive Touch
Physical Dimension (W x D x H) 550 x 343.7 x 63.3
Weight 7.16 kg
Construction One-piece and Slim Bezel Design
Mounting Type Flat / Standard / VESA / Rack Mount
Mounting Bracket Pre-installed Mounting Bracket with Adjustable Design ( Support 11 different stages of adjustment )
Power Power Consumption 24.8W (Max.)
Protection Ingress Protection Front Panel IP65 Compliant * According to IEC60529
Environment Operating Temperature Ambient with Air flow: 0°C to 60°C (with Industrial Grade Peripherals)
Storage Temperature -20°C to 60°C
Humidity 80% RH @ 50°C (Non-condensing)
EMC CE, UKCA, FCC, ICES-003 Class A
EMI • CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Safety UL, cUL, CB, IEC, EN 62368-1

P2202 Series

Model Name P2202 P2202E
System Processor • Onboard 12th Generation Intel® Alder Lake-P U-Series CPU:
– Intel® Core™ i5-1245UE 10 Cores Up to 4.40 GHz, TDP 15W
– Intel® Core™ i3-1215UE 6 Cores Up to 4.40 GHz, TDP 15W
Memory • 2x DDR5 4800MHz SO-DIMM Socket
Supports Un-buffered and non-ECC Type, Up to 64GB
BIOS • AMI BIOS
Graphics Graphics Engine • Integrated Intel® Iris® Xe Graphics: Core™ i5-1245UE
• Integrated Intel® UHD Graphics: Core™ i3-1215UE
Maximum Display Output • Supports Quad Independent Display
CDS • 1x CDS Connector (1920 x 1080 @60Hz)
DP • 1x DisplayPort Connector (4096 x 2304 @60Hz)
* Verified maximum resolution: 3840 x 2160 @ 60Hz
HDMI • 1x HDMI Connector (3840 x 2160 @30Hz)
VGA • 1x VGA Connector (1920 x 1200 @60Hz)
Audio Audio Codec Realtek® ALC888, High Definition Audio
Line-out 1x Line-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm
I/O LAN • 2x 1GbE LAN, RJ45
– GbE1: Intel® I219
– GbE2: Intel® I210
COM • 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB • 3 x USB 3.2 Gen2x1 (10Gbps), Type A
• 1 x USB 2.0 (480Mbps), Type A
DIO • 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block
Storage SSD/HDD 2x 2.5” SATA HDD/SSD Bay (SATA3.0)
RAID Support RAID 0/1
Expansion Mini PCI Express 2x Full-size Mini-PCIe Socket
PCI Express 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card)
* Supports maximum dimensions of add-on card (H x L) : 111 x 169mm
SIM Socket • 1x SIM Socket
M.2 • 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module
CFM (Control Function Module) Interface • 1x CFM Interface for optional IGN Module Expansion
• 1x CFM Interface for optional PoE Module Expansion
CDS (Convertible Display System) Interface • 1x CDS Interface for Convertible Display Module
Other Function Clear CMOS Switch • 1x Clear CMOS Switch
Reset Button • 1x Reset Button
Instant Reboot • Support 0.2sec Instant Reboot Technology
Watchdog Timer • Software Programmable Supports 256 Levels System Reset
OSD Button • LCD On/Off, Brightness Up, Brightness Down
Internal Speaker • AMP 2W + 2W
Status LED Indicator • Power LED, HDD LED
Power Power Button • 1x ATX Power On/Off Button
Power Mode Switch • 1x AT/ATX Mode Switch
Power Input • 9 – 48VDC, 3-pin Terminal Block
Remote Power On/Off • 1x Remote Power On/Off, 2-pin Terminal Block
Max. Power Consumption • i5-1245UE CPU
– OS Idle Mode: 49.66 W
– Full Loading: 95.06 W
Inrush Current (Peak) • i5-1245UE CPU: 5.381 A @ 24V
Operating Stystem Windows • Windows®11, Windows®10
Linux • Ubuntu 22.04
Physical Dimension ( W x D x H ) • 254.5 x 190 x 41.5 mm • 254.5 x 190 x 61 mm
Weight Information • 2.22 kg • 2.74 kg
Mechanical Construction • Extruded Aluminum with Heavy Duty Metal
Mounting • Wall / VESA / CDS / DIN Rail
Physical Design • Fanless Design
• Jumper-less Design
Reliability & Protection Reverse Power Input Protection • Yes
Over Voltage Protection • Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection • 15A
CMOS Battery Backup • SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF • 216,747 Hours – Database: Telcordia SR-332 Issue3, Method 1, Case 3
Environment Operating Temperature • -40°C to 70°C
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature • -40°C to 70°C
Relative Humidity • 95%RH @ 70°C (non-Condensing)
Shock • Operating, 50 Grms (w/ SSD, according to IEC60068-2-27)
Vibration • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6)
• Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
EMC • CE, UKCA, FCC, ICES-003 Class A
• EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
EMI • CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Safety • UL, cUL, CB, IEC/EN 62368-1
