1) Modüler Panel Bilgisayarlar

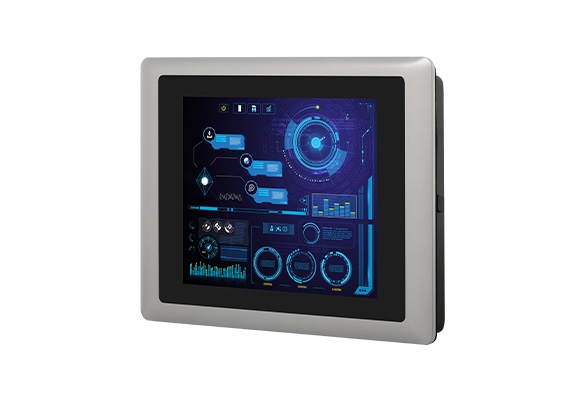

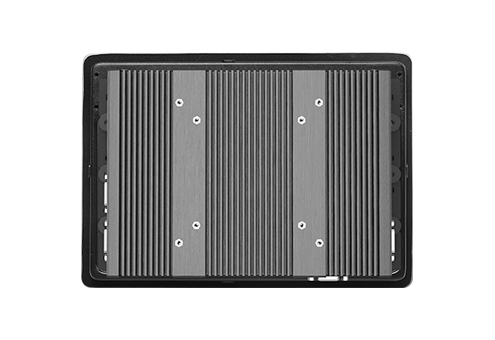

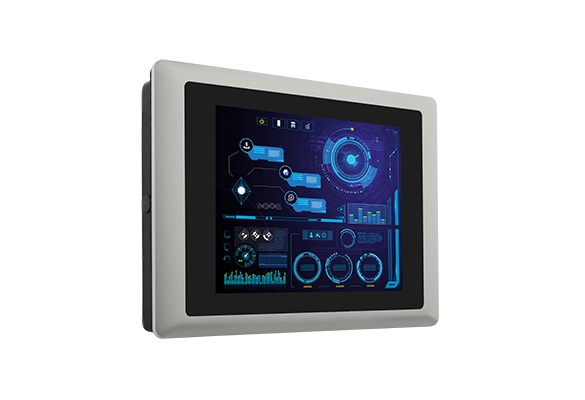

CV-108 / P1201 Series

Intel® Elkhart Lake Atom® x6425E/x6211E Processor

  • 8.4″ TFT-LCD SVGA with Resistive 5-wire / Projected Capacitive Touch
  • Intel® Elkhart Lake Atom® x6425E/x6211E Processor
  • 1x DDR4 SO-DIMM
  • Designed with Rugged Aluminum Die-casting Front Bezel
  • Support Panel / VESA / Rack Mount
  • Front Panel IP65 Compliant
  • Wide Operating Temperature
  • Cincoze Patent CDS Technology Support
Destekleyen İşlemciler
  • CV-108 / P1201 Series
1) Modüler Panel Bilgisayarlar

CV-108 / P1201 Series

The CV-100/P1201 series is a modular industrial panel PC with an Intel® Atom® (Elkhart Lake) processor. Available in a selection of screen sizes, the CV-100/P1201 has flexible expansion options, including rich native I/O interfaces (GbE LAN, USB 3.2, COM, and DIO), Mini PCIe and M.2 Key E Type 2230 expansion slots, and exclusive CFM expansion to add functions such as PoE and IGN. Cincoze’s exclusive patented Convertible Display System (CDS) technology enables further flexible future computer performance upgrades and screen replacements. The robust CV-100/P1201 series is well suited for equipment HMI and production process visualization applications.

Available Models

CV-108R-R10/P1201-X6425E-R10: 8.4“ TFT-LCD SVGA 4:3 Panel PC with Intel Atom x6425E Quad Core Processor and Resistive 5-wire Touch

CV-108C-R10/P1201-X6425E-R10: 8.4“ TFT-LCD SVGA 4:3 Panel PC with Intel Atom x6425E Quad Core Processor and P-Cap. Touch

CV-108R-R10/P1201-X6211E-R10: 8.4“ TFT-LCD SVGA 4:3 Panel PC with Intel Atom x6211E Dual Core Processor and Resistive 5-wire Touch

CV-108C-R10/P1201-X6211E-R10: 8.4“ TFT-LCD SVGA 4:3 Panel PC with Intel Atom x6211E Dual Core Processor and P-Cap. Touch

Model Configuration

CV-108R/P1201-X6425E

CV-108C/P1201-X6425E

CV-108R/P1201-X6211E

CV-108C/P1201-X6211E

Package Checklist

• CV-108/P1201 Series Panel PC x 1

• Thermal Pad (for CPU Thermal Block) x 1

• DIO Terminal Block Connector (Female) x 1

• Panel Mounting Kit x 4

• Power Terminal Block Connector (Female) x 1

• Screw Pack x 1

• Remote Power On/O Terminal Block Connector x 1

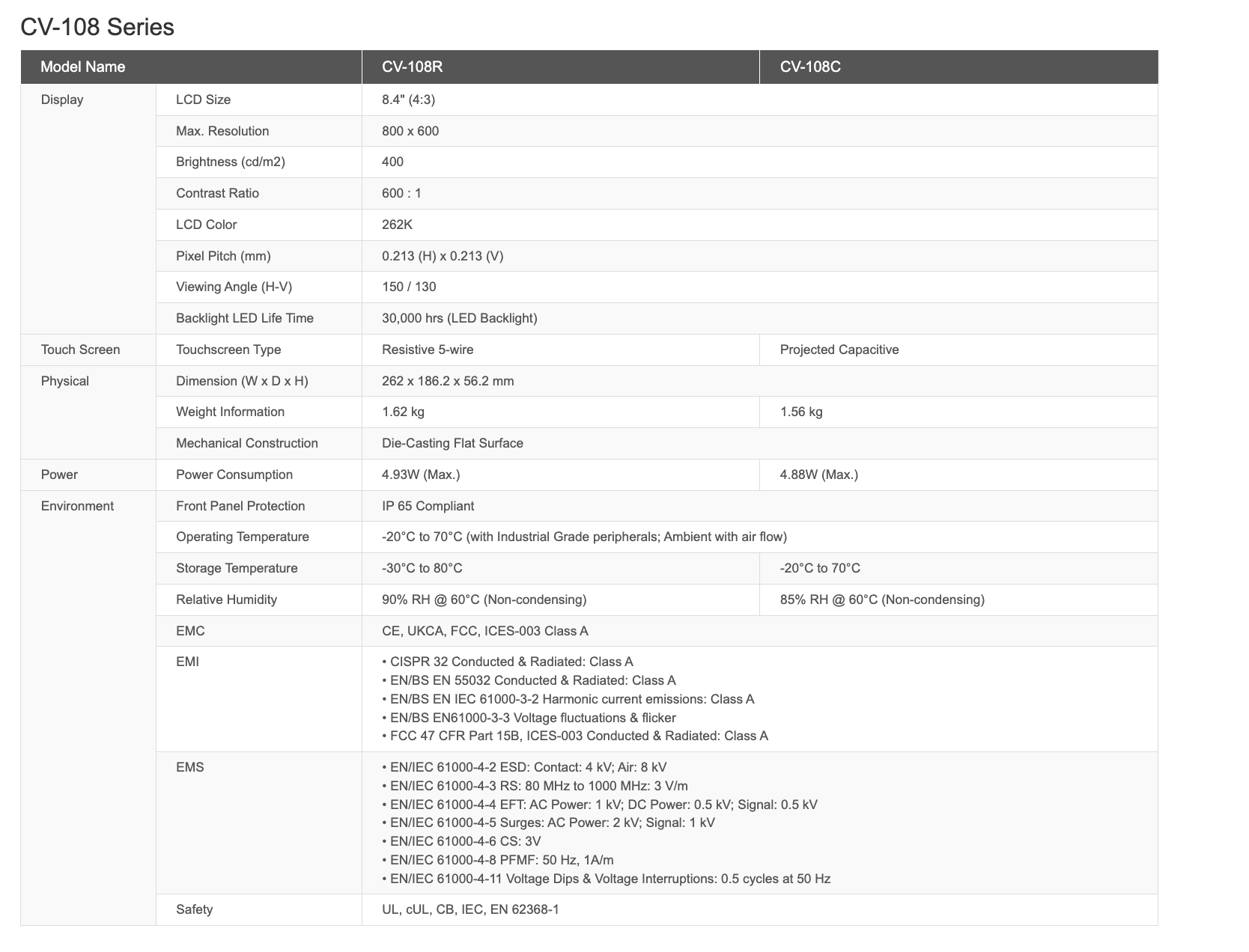

Ürün Özellikleri
