1) Modüler Panel Bilgisayarlar

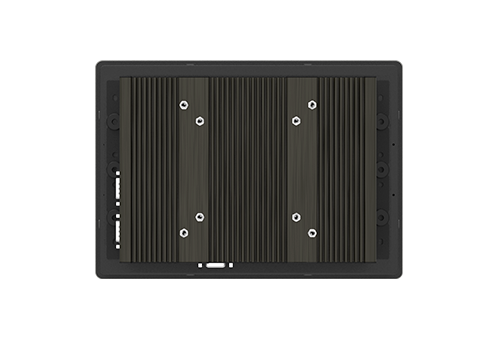

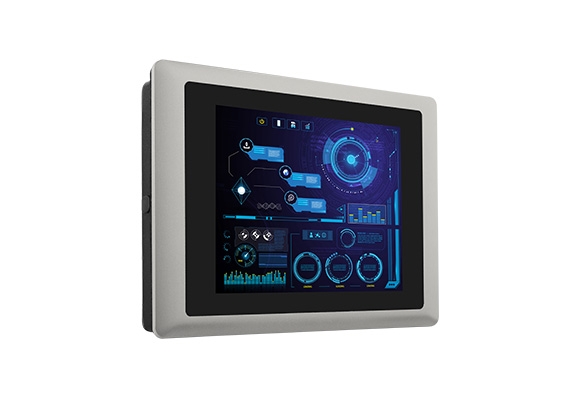

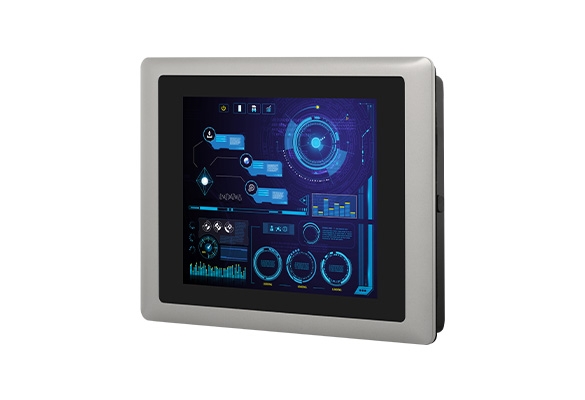

CV-108 / P1301 Series

Onboard Intel® Alder Lake-N Core™ i3-N305, Processor N97 and Atom® x7425E Processor

  • 8.4″ TFT-LCD SVGA with Resistive 5-wire / Projected Capacitive Touch
  • Onboard Intel® Alder Lake-N Core™ i3-N305, Processor N97 and Atom® x7425E Processor
  • 1 x DDR5 SO-DIMM Socket, Supports up to 4800MHz & 16GB Memory
  • 1 x M.2 Key E Type 2230 Socket for Wireless / Intel CNVi Module Expansion
  • 1 x M.2 Key B Type 3042 / 3052 Socket for 5G / Storage / Add-on Card Expansion
  • Front Panel IP65 Compliant
  • Designed with Rugged Aluminum Die-casting Front Bezel
  • Supports Panel / VESA / Rack Mount
  • Supports Cincoze Patent CDS Technology (Patent No. M482908)
Destekleyen İşlemciler
  • CV-108 / P1301 Series
  • CV-108 / P1301 Series
1) Modüler Panel Bilgisayarlar

CV-108 / P1301 Series

The CV-100/P1301 series is a modular industrial panel PC with an Intel® Alder Lake-N processor, a comprehensive selection of screen sizes, and flexible expansion. It includes a rich set of native I/O interfaces (2.5 GbE LAN, USB 3.2 Gen 2×1, COM, and DIO), has M.2 Key B Type 3052 and M .2 Key E Type 2230 expansion slots, and supports the exclusive CFM expansion module to add PoE and IGN functions. Cincoze’s exclusive CDS patented technology provides flexibility for future computer performance upgrades or display replacements. The rugged CV-100/P1301 series can meet the diverse applications of equipment machine HMI and production process visualization.

Available Models

CV-108R-R10/P1301-N97-R10: 8.4“ TFT-LCD SVGA 4:3 Panel PC with Intel® Processor N97 Quad Core Slim Embedded Computer and Resistive 5-wire Touch

CV-108C-R10/P1301-N97-R10: 8.4“ TFT-LCD SVGA 4:3 Panel PC with Intel® Processor N97 Quad Core Slim Embedded Computer and P-Cap. Touch

CV-108R-R10/P1301-X7425E-R10: 8.4“ TFT-LCD SVGA 4:3 Panel PC with Intel® Atom® x7425E Quad Core Slim Embedded Computer and Resistive 5-wire Touch

CV-108C-R10/P1301-X7425E-R10: 8.4“ TFT-LCD SVGA 4:3 Panel PC with Intel® Atom® x7425E Quad Core Slim Embedded Computer and P-Cap. Touch

CV-108R-R10/P1301-i3-R10: 8.4“ TFT-LCD SVGA 4:3 Panel PC with Intel® Core i3-N305 Octa Core Slim Embedded Computer and Resistive 5-wire Touch

CV-108C-R10/P1301-i3-R10: 8.4“ TFT-LCD SVGA 4:3 Panel PC with Intel® Core i3-N305 Octa Core Slim Embedded Computer and P-Cap. Touch

Model Configuration

CV-108R/P1301-N97

CV-108C/P1301-N97

CV-108R/P1301-X7425E

CV-108C/P1301-X7425E

CV-108R/P1301-i3

CV-108C/P1301-i3

Package Checklist

• CV-108/P1301 Series Panel PC x 1

• Thermal Pad (for CPU Thermal Block) x 1

• Screw Pack x 2

• Panel Mounting Kit x 4

• Power Terminal Block Connector x 1

• Remote Function Terminal Block Connector x 1

• DIO Terminal Block Connector x 1

• M.2 Key B Type 3052 to 3042 Adapter Bracket x 1

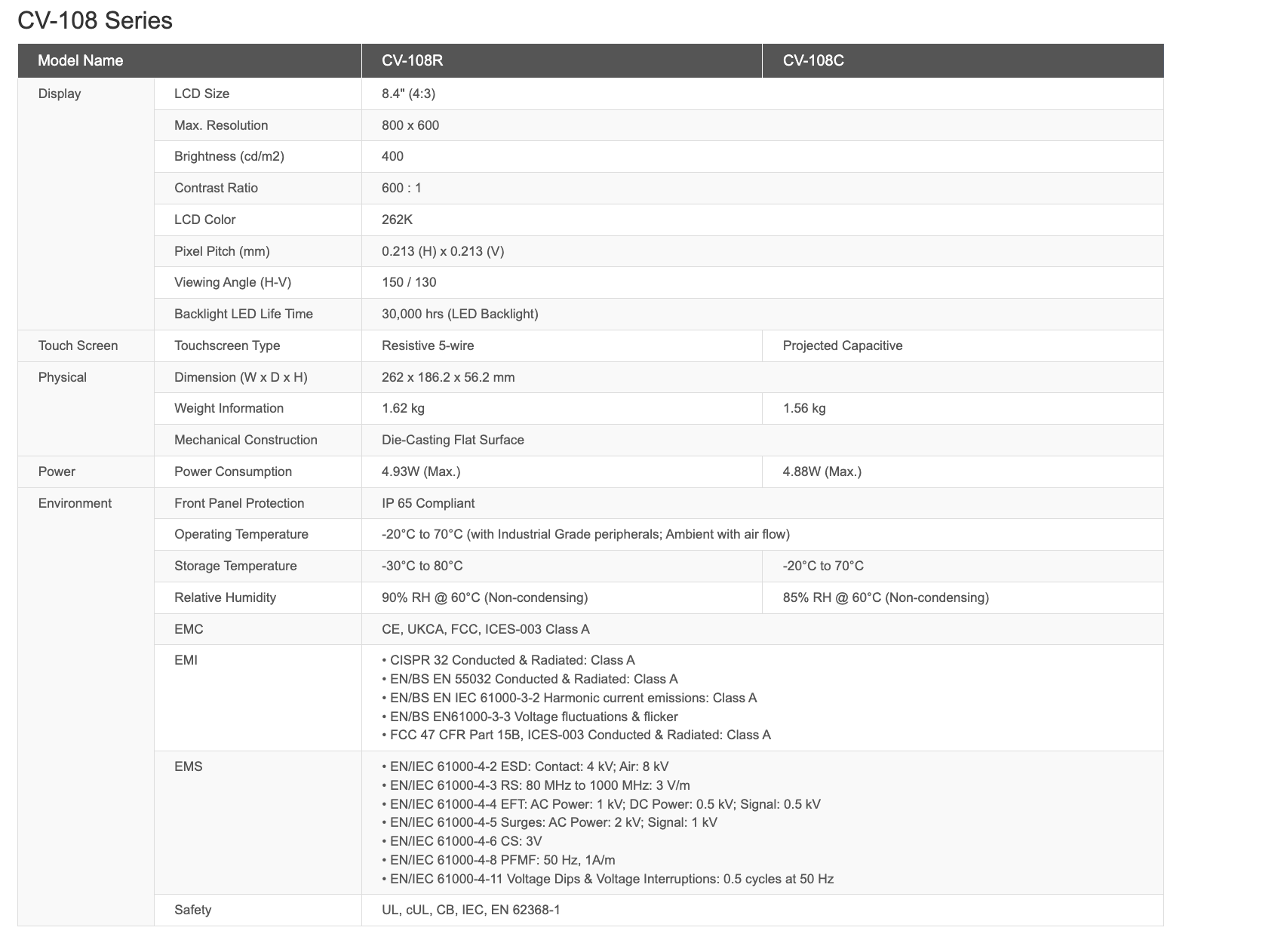

Ürün Özellikleri
