1) Modüler Panel Bilgisayarlar

CV-W115 / M1001

ÜRÜN ÖZELLİKLERİ

  • 15.6″ TFT WXGA 16:9 LCD with Resistive 5-wire / Projected Capacitive Touch
  • Designed with Aluminum Die-Casting Front Frame
  • 1x USB 1x COM 1x VGA 1x DVI-D 1x DisplayPort 1x Audio
  • IP 65 Compliant Front Panel
  • Support Panel / Wall / VESA Mounting
  • Convertible Display System (CDS) Supported
  • Built-in Two 5W Internal Speakers
1) Modüler Panel Bilgisayarlar

CV-W115 / M1001

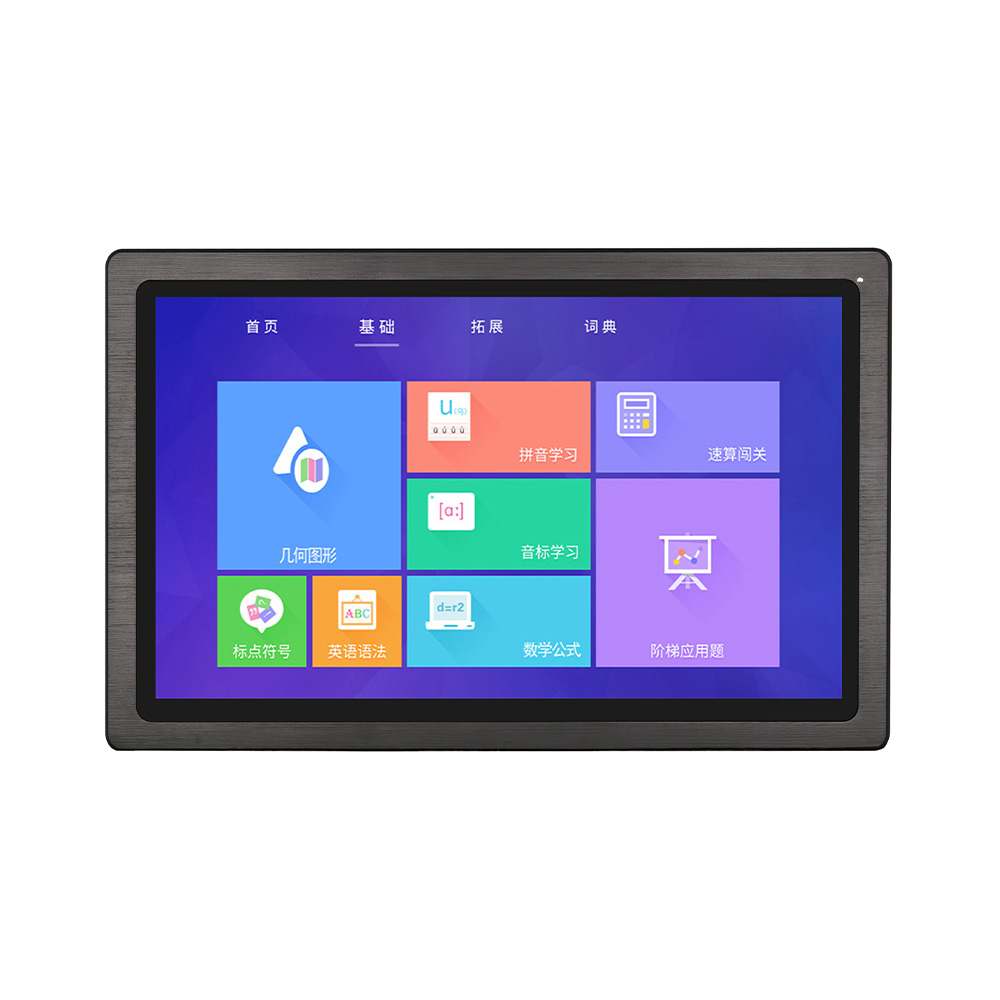

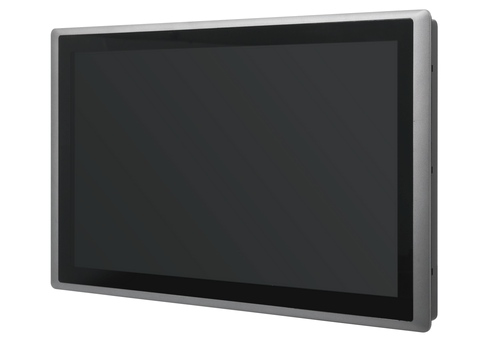

The 15.6″ (16:9) touch monitor with resistive 5-wire / projected capacitive touch screen offers resolution up to 1366×768 (WXGA) and 400 nits brightness. CV-W115/M1001 features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. CV-W115/M1001 supports Convertible Display System (CDS) which allows to configure, upgrade and maintain your touch monitor easily.

CV-W115/M1001 supports both digital and analog signal input via three types of display interface: VGA, DVI-D and Display-Port. Touch screen can be connected with USB or COM port. It has OSD function for adjusting the viewing options of display.
With support to wide range power input from 9~48VDC, CV-W115/M1001 is designed as an ideal solution for industrial application.

Available Models
Model No. Product Description
CV-W115R/M1001 15″ TFT WXGA 16:9 Monitor with Resistive 5-wire Touch, 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort
CV-W115C/M1001 12.1″ TFT WXGA 16:9 Monitor with Projected Capacitive Touch, 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort
Package Checklist
CV-W115/M1001
√ CV-W115/M1001 Touch Monitor x 1
√ Panel Mounting Kit x 1
√ Utility DVD Driver x 1
√ Power Terminal Block Connector x 1
√ USB Cable x 1
√ VGA Cable x 1
√ Screw Pack x 1
Optional Accessories
Model No. Description
GSM60A12-CIN Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch, GSM60A12-P1J
DVI-D Cable DVI-D male to DVI-D male Cable 1.8M
SL2-SL3 US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3 EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3 UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3

Ürün Özellikleri

Model Name CV-W115/M1001
Display
LCD Size 15.6″ (16:9)
Max. Resolution 1366 X 768
Brightness (cd/m2) 400
Contrast Ratio 500 : 1
LCD Color 16.2M
Pixel Pitch (mm) 0.252 (H) x 0.252 (V)
Viewing Angle (H-V) 170 / 160
Backlight MTBF 50000 hrs (LED Backlignt)
Touch
Resistive 5-wire V
Projected Capacitive V
System
A/D Board Novatek NT68856UFG
VGA Input 1
DVI-D Input 1
DisplayPort Input 1
USB 2.0 Input 1
COM Port Input (Resistive Only) 1
Audio Input 1
Power Switch 1
Other Features
Audio AMP 5W + 5W (Internal Speaker)
OSD Function LCD On/Off, Auto, Menu, Up and Down

Multi-language OSD

Power
Power Requirement 9~48VDC
Connector 3-pin Terminal Block
Power Adaptor Optional AC/DC 12V/5A, 60W
Physical
Dimension (WxHxD) 420 x 254 x 76 mm
Weight Information 5.37 kg
Construction Front Panel Die-cast Flat Surface
Mounting Panel/ Wall/ VESA Mounting
Fanless Design V
Operating System
Windows Windows 10

Windows 8.1

Windows 7

Liunx Kernel 3.x
Environment
Operating Temperature Ambient with air flow: 0°C to 60°C

(with Industrial Grade Peripherals)

Storage Temperature -20°C to 60°C
Relative humidity 80% RH @ 50°C (Non-Condensing)
IP Level IP 65 Compliant Front Panel
EMC CE/ FCC Class A
