1) Modüler Panel Bilgisayarlar

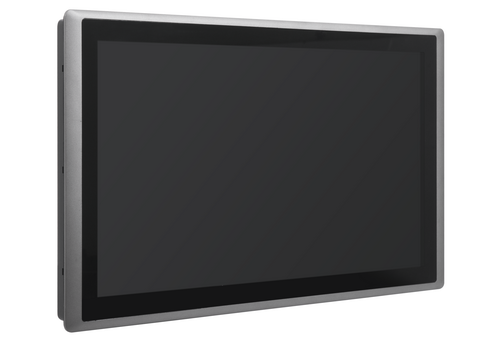

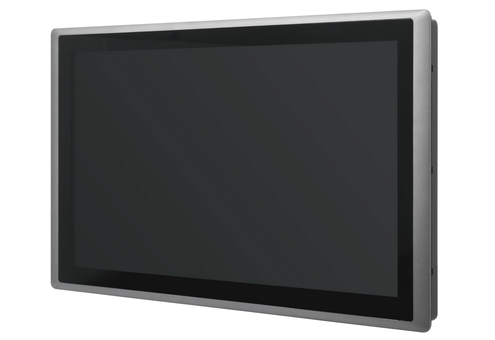

CV-W121 / M1001

ÜRÜN ÖZELLİKLERİ

  • 21.5″ TFT Full HD 16:9 LCD with Resistive 5-wire / Projected Capacitive Touch
  • Designed with Aluminum Die-Cast Front Frame
  • IP65 Compliant Front Panel
  • 1x USB 1x COM 1x VGA 1x DVI-D 1x DisplayPort 1x Audio
  • Built-in Two 5W Internal Speakers
  • Convertible Display System (CDS) Supported
  • Support Panel / Wall / Arm / VESA Mounting
1) Modüler Panel Bilgisayarlar

CV-W121 / M1001

The 21.5″ (16:9) touch monitor with resistive 5-wire / projected capacitive touch screen offers resolution up to 1920 x 1080 (Full HD) and 300 nits brightness. CV-W121/M1001 features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. CV-W121/M1001 supports Convertible Display System (CDS) which allows to configure, upgrade and maintain your touch monitor easily.

CV-W121/M1001 supports both digital and analog signal input via three types of display interface: VGA, DVI-D and DisplayPort. Touch screen can be connected with USB or COM port. It has OSD function for adjusting the viewing options of display. With support to wide range power input from 9~48VDC, CV-W121/M1001 is designed as an ideal solution for industrial application.

Available Models
Model No. Product Description
CV-W121R/M1001 21.5″ TFT Full HD 16:9 Display Module with Resistive 5-wire Touch, 1x USB,
1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort, 9V~48VyPort
CV-W121C/M1001 21.5″ TFT Full HD 16:9 Display Module with Projected Capacitive Touch, 1x USB,
1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort, 9V~48V
Package Checklist
√Touch Monitor x 1
√Panel Mounting Kit x 1
√Utility DVD Driver x 1
√Power Terminal Block Connector x 1
√USB Cable x 1
√VGA Cable x 1
√Screw Pack x 1
Optional Accessories
Model No. Description
GSM60A12-CIN Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch
DVI-D Cable DVI-D male to DVI-D male Cable 1.8M
SL2-SL3 US 2 heads power cord, US B type to IEC C13,SVT 18AWG/3C Black 1.8M
SL6-SL3 EU 2 heads power cord, EU G type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M
QP026-SL3 UK 2 heads power cord, UK I type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M

Ürün Özellikleri

Model Name CV-W121/M1001
Display
LCD Size 21.5″ (16:9)
Max. Resolution 1920 x 1080
Brightness (cd/m2) 300
Contrast Ratio 5000 : 1
LCD Color 16.7M
Pixel Pitch (mm) 0.24825 (H) x 0.24825 (V)
Viewing Angle (H-V) 178 / 178
Backlight MTBF 50000 hrs (LED Backlignt)
Touch
Resistive 5-wire V
Projected Capacitive V
System
VGA Input 1
DVI-D Input 1
DisplayPort Input 1
USB 2.0 Input 1
RS-232 Input 1
Audio Input 1
Other Features
Audio AMP 5W + 5W (Internal Speaker)
OSD Function LCD On/ LCD Off, Auto, Menu, Up and Down (Multi-language)
Power
Power Requirement 9~48VDC
Connector 3-pin Terminal Block Connector
Power Adaptor Optional AC/DC 12V/5A, 60W Power Adapter
Environment
Operating Temperature Ambient with air flow: 0°C to 60°C

(With extended temperature peripherals; Ambient with air flow

According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage Temperature -20°C to 60°C
Relative humidity 80% RH @ 50°C (Non-Condensing)
IP Level IP65 Compliant Front Panel
Physical
Dimension (WxHxD) 550 x 330.5 x 73 mm
Weight 6.68 kg
Construction Front Panel Die-cast Flat Surface
Mounting Panel / Wall / Arm / VESA Mounting
Certification
Safety Certifications
  • CE
  • FCC Class A
