DA-1000-J1900

Intel® Celeron® J1900 Affordable Fanless Embedded Computer

ÜRÜN ÖZELLİKLERİ

  • Onboard Intel® Celeron® Processor J1900 Quad Core 2.42GHz
  • One DDR3L SO-DIMM Support DDR3L 1333MHz Up to 8G
  • Dual Intel® I210 GbE LAN Ports Support WoL Teaming Jumbo Frame PXE
  • Ultra Compact Size (150x105x56.02mm)
  • Support Dual Display Output from One DVI-I Port
  • Support -25˚C~70˚C Extended Operating Temperature
  • Support 9~48VDC Input Support AT/ATX Power Mode
  • CMI (Combined Multiple I/O) Interface for I/O Module Expandability
  • Various Mounting Options (VESA DIN-Rail Side/Wall Mounting)
1) Modüler Panel Bilgisayarlar

DA-1000-J1900

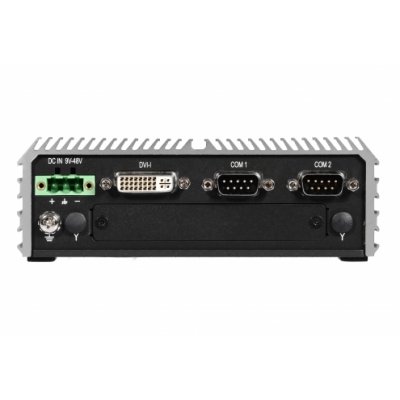

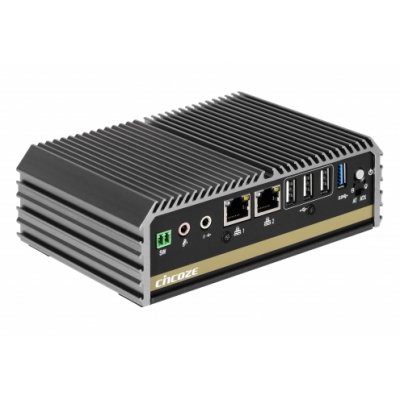

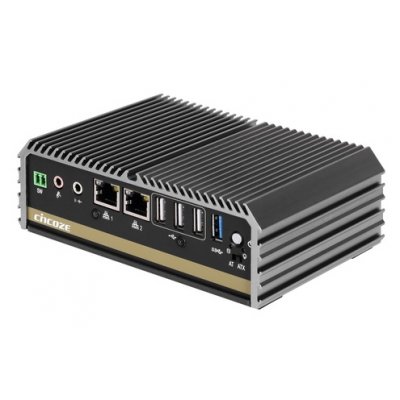

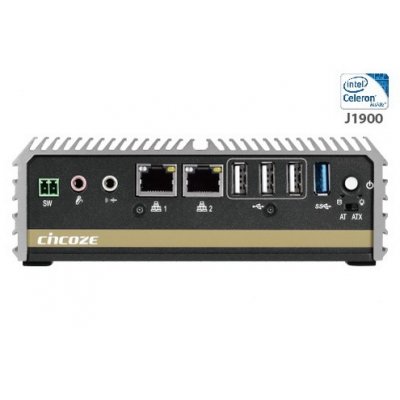

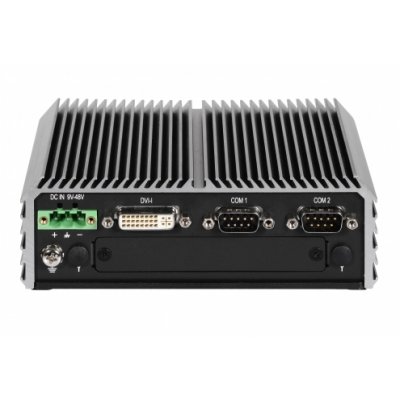

DA-1000 Series is an ultra-compact size fanless embedded computer powered by Intel® Atom™ or Celeron® Processors; it integrated HD graphics processor supporting dual display. This can bring economic advantages on budget and also fulfill the needs for industrial computing tasks. DA-1000 Series manages to pack a diverse array of I/O into its small form factor, with one DVI-I port, two RS-232/422/485 COM ports, dual Gbe LAN ports, four USB ports and one set of Mic-in and Line-out.

DA-1000 Series supports Combined Multiple I/O (CMI) interface and modules which are specially designed for flexible I/O expandability; it allows users to extend various I/Os according to their needs. CMI modules are including COMs, DIO, DisplayPort, DVI, LPT/PS2 or VGA. The rugged construction, wide operating temperature and high tolerance for shock and vibration enable DA-1000 Series to deploy in a harsh environment and for critical applications, and it is totally maintenance-free.

Available Models
Model Name Product Description
DA-1000-J19 Intel® Celeron® J1900 Affordable Fanless Embedded Computer
Package Checklist
DA-1000-J19
√ DA-1000-J19 Embedded System x 1
√ Utility DVD Driver x 1
√ Power Terminal Block Connector x 1
√ Remote Power On/Off Terminal Block Connector x 1
√ DVI-I to VGA Adapter x 1
√ Screw Pack x 1 (For HDD/Mini-PCIe/Wall & VESA Mounting)
√ Wall Mount Kit x 1
Optional Modules & Accessories
Model No. Description
CMI-COM102/UB0403 CMI Module with 2x RS232/422/485, 1x Universal Bracket (96 x 15 mm)
CMI-DIO100/UB0415 CMI Module with 8x Optical Isolated DIO (4 in/4 out), 1x Universal Bracket (96 x 15 mm)
CMI-DP101/UB0406 CMI Module with 1x DisplayPort, 1x Universal Bracket (96 x 15 mm)
CMI-DVI101/UB0407 CMI Module with 1x DVI-D Connector, 1x Universal Bracket (96 x 15 mm)
CMI-LPPS102/UB0409 CMI Module with 1x LPT Port, 1x PS/2, 1x Universal Bracket (96 x 15 mm)
CMI-VGA101/UB0416 CMI Module with 1x VGA Port, 1x Universal Bracket (96 x 15 mm)
MEC-LAN-M002-R1/UB0411 Mini-PCIe Module with 2x LAN Ports, 1x Universal Bracket (96 x 15 mm)
MEC-USB-M002/UB0414 Mini-PCIe Module with 2x USB 3.0 Ports, 1x Universal Bracket (96 x 15 mm)
SIDE-DA DA Series Side Mount Kit
DINRAIL Diamond Series DIN-Rail Kit

Ürün Özellikleri

Model Name DA-1000-J19
Processor System
CPU Intel® Celeron® J1900
Frequency 2.42 GHz
Core Number 4
BIOS AMI 64Mbit SPI
Chipset
Memory
Technology DDR3L 1333MHz (un-buffered and non-ECC)
Max. Capacity 8 GB
Socket 1x 204-Pin SO-DIMM
Display
Dual Display Supported 1x DVI-I

(1x DVI-D and 1x VGA with optional split cable)

Expansion
PCI
PCIe
Mini PCIe 2x Full-size Mini-PCIe
Ethernet
Controller 2x Intel® GbE1: Intel I210-AT GbE LAN Port.

Support Wake-on-LAN, Jumbo Frame and PXE

PoE
Speed 10/100/1000 Mbps
Audio
Codec Realtek ALC888S
Connector 1x Mic-in and 1x Line-out
WatchDog Timer Software Programmable Supports 1~255 sec. System Reset
Storage
SSD / HDD 1x 2.5″ SATA Bay
mSATA 1x Internal mSATA / Internal SIM Socket (shared by one Mini-PCIe socket)
SIM Socket
I/O Ports
USB 3.0 1
USB 2.0 3
COM Port 2 (DB9, RS-232/RS-422/RS-485 with Auto Flow Control)
Antenna Hole 2
Power Switch 1
AT/ATX Switch 1
External Fan Connector
Remote Power On/Off and

Remote Power Reset

Yes
Universal I/O Bracket 1
Power Requirement
Power Type AT / ATX
Power Supply Voltage 9~48VDC
Connector 1x 3-pin Terminal Block

1x 2-pin Terminal Block Connector (For Remote Power On/Off)

Power Adaptor Optional AC/DC 12V/5A, 60W
Power Consumption Typical 8.3W, Max.15W
Environment
Operating Temperature Ambient with Air Flow: -25°C to 70°C (with Industrial Grade Peripherals)
Storage Temperature -40°C to 85°C
Relative Humidity 95% RH @ 40˚C (Non-condensing)
Shock 50 Grms (with SSD According to IEC 60068-2-27, Half Sine, 11ms Duration)
Vibration Random: 5 Grms (with SSD According to IEC 60068-2-64, 5~500Hz, 1 hr/axis)
Physical
Dimension (WxDxH) 150 x 105 x 56.02 mm
Weight 0.86kg
Construction Aluminum Chassis with Fan-less Design
Mounting VESA/Wall Mounting (Optional DIN-Rail/Side Mounting)
Operating System
Windows • Windows® 10

• Windows® 8.1

• Windows® 7

Certification
EMC • CE

• FCC Class A
