1) Modüler Panel Bilgisayarlar

DA-1200

Processor N97

  • Onboard Intel ® Alder Lake-N Processor N97
  • Ultra Compact Size (150 x 105 x 52.3 mm)
  • 1 x DDR5 SO-DIMM Sockets, Supports Up to 4800MHZ, 16GB
  • 1 x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion
  • 1 x M.2 Key B Type 2242 Socket for Storage/Add-on Card Expansion
  • Optional CMI modules for I/O expansion
  • Wide Operating Temperature -40°C to 70°C
  • Safety Standard: UL, cUL, CB, IEC, EN 62368-1
Destekleyen İşlemciler
  • DA-1200
  • DA-1200
  • DA-1200
  • DA-1200
  • DA-1200
  • DA-1200
  • DA-1200
1) Modüler Panel Bilgisayarlar

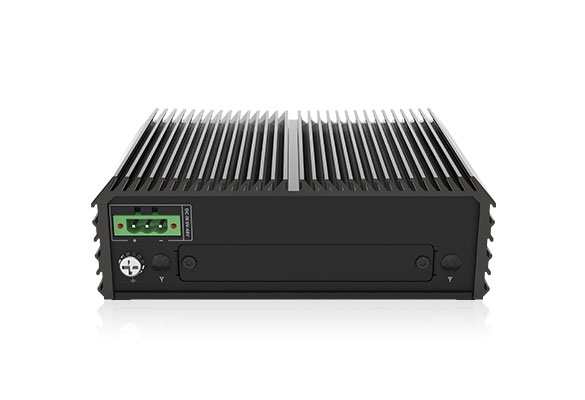

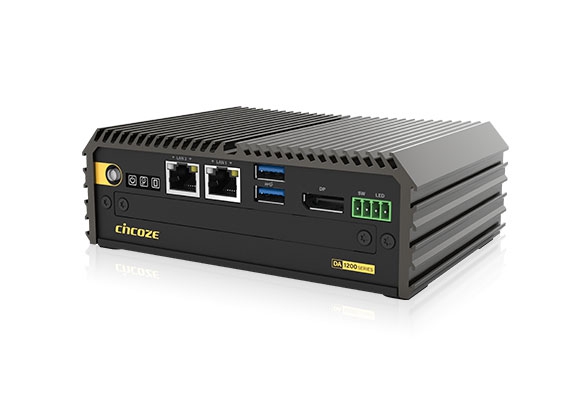

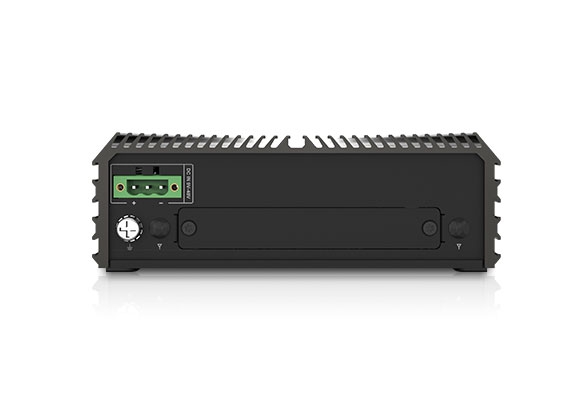

DA-1200

The palm-sized DA-1200, equipped with an Intel® N97 processor (Alder Lake-N platform), is the smallest and an aordable model in the DIAMOND product line. It inherits the rugged features consistent throughout the Cincoze lineup and has passed or complies with many international certification standards, such as EMC standards in industrial environments (IEC 61000-6-2 and IEC 61000-6-4) and US military shock vibration standards (MIL-STD-810H). The DA-1200 is best for IoT gateway applications in smart manufacturing, smart logistics, and factory automation.

Available Models
Model No. Product Description
DA-1200-N97-R10 Intel Alder Lake-N Processor N97 Rugged Embedded Computer
Package Checklist
  • DA-1200 Embedded System x1
  • Thermal Pad (for CPU Thermal Block) x 1
  • Screw Pack x 1
  • M.2 Key B Type 3052 to 3042 Adapter Bracket x1
  • Wall Mounting Kit x1
  • Power Terminal Block Connector x 1
  • Remote Function Terminal Block Connector x 1
Optional Modules and Accessories
Model No. Description
CMI-DP101 CMI Module with 1x DP Connector
CMI-HD01 CMI Module with 1x HDMI Connector
CMI-DVI101 CMI Module with 1x DVI Connector
CMI-VGA101 CMI Module with 1x VGA Connector
CMI-LPPS102 CMI Module with 1x LPT Port, 1x PS/2 Connector
CMI-COM102 CMI Module with 2x RS232/422/485 Ports (Support 5V/12V)
CMI-DIO100 CMI Module with 8DIO (4in 4out)
UB0403 Universal Bracket with 2x DB9 Cutout for DA Series
UB0415 Universal Bracket with DIO Cutout for DA Series
UB0409 Universal Bracket with PS/2, LPT Cutout for DA Series
UB0406 Universal Bracket with DP Cutout for DA Series
UB0407 Universal Bracket with DVI-D Cutout for DA Series
UB0416 Universal Bracket with VGA Cutout for DA Series
UB0408 Universal Bracket with HDMI Cutout for DA Series
UB0429-R10 Universal Bracket with 2x Antenna Cutout
SIDE02 Side Mount Kit for DA Series, with KMRH-K175 for DIN-Rail option
DINRAIL-R10 Diamond series DIN-RAIL Mount Kit
AC-BE01-R10 M.2 Key B Type 2242 to M.2 Key E Type 2230 Adapter Card
GST60A12-CIN-1 Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C)

Ürün Özellikleri

Model Name DA-1200
System Processor • Onboard Intel® Alder Lake-N Processor N97 Quad Core, up to 3.6 GHz
Memory • 1x DDR5 SO-DIMM Socket
• Supports DDR5 4800MHz Memory Up to 16GB (un-buffered and non-ECC)
BIOS • AMI BIOS
Graphics Graphics Engine • Integrated Intel® UHD Graphics
Maximum Display Output • Supports Two Independent Display
(Onboard 1x DisplayPort + Optional CMI 1x Display)
DP • 1x DisplayPort Connector (4096 x 2304 @ 60Hz,According to CPU Specifications)
* Verified maximum resolution: 3840 x 2160 @60Hz
I/O LAN • 2x 2.5GbE LAN, RJ45
– GbE1: Intel® I225
– GbE2: Intel® I225
USB • 2x 10Gbps USB 3.2 Gen2 x1, Type A
Storage SSD/HDD • 1x 2.5″ SATA HDD/SSD or 1x Half-Slim SSD (SATA 3.0)
M.2 SSD • 1 x M.2 SSD shared by M.2 Key B Type 3052 Socket, Support NVMe SSD (PCIe Gen 3×1) or SATA SSD (SATA 3.0)
• 1 x M.2 SSD shared by M.2 Key B Type 2242 Socket, Support NVMe SSD (PCIe Gen 3×2)
Expansion M.2 Key B Socket • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3×1/ USB3.2 Gen2 x1 / SATA), Support 5G/Storage/Add-on Card Expansion
• 1x M.2 Key B Type 2242 (PCIe Gen 3×2), Support Storage/Add-on Card Expansion
SIM • 1x Front Accessible SIM Socket
CMI (Combined Multiple I/O) Interface • 1x CMI Interface for optional CMI Module Expansion
Other Function Clear CMOS Switch • 1x Clear CMOS Switch
Reset Button • 1x Reset Button
Instant Reboot • Support 0.2sec Instant Reboot Technology
Watchdog Timer • Software Programmable Supports 256 Levels System Reset
Antenna • 2x Antenna Holes
Power Power Button • 1x ATX Power On/Off Button
Power Mode Switch • 1x AT/ATX Mode Switch
Power Input • 9 – 48VDC, 3-pin Terminal Block
Remote Power On/Off • 1x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED • 1x Remote Power LED, 2-pin Terminal Block
Max. Power Consumption • N97 CPU
– OS Idle Mode: 32.83 W
– Full Loading: 47.04 W
Inrush Current (Peak) • N97 CPU: 4.356 A@12V
Physical Dimension ( W x D x H ) • 150 x 105 x 52.3 mm
Weight Information • 0.81 kg
Mechanical Construction • Extruded Aluminum with Heavy Duty Metal
Mounting • Wall / Side / DIN-RAIL / VESA Mount
Physical Design • Fanless Design
• Cableless Design
• Jumper-less Design
• Unibody Design
Reliability & Protection Reverse Power Input Protection • Yes
Over Voltage Protection • Protection Range: 51~58V
• ​Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection • 15A
MTBF • 614,831 Hours – Database: Telcordia SR-332 Issue3, Method 1, Case 3
Operating System Windows • Windows® 11, Windows® 10
Linux • Ubuntu 22.04
Environment Operating Temperature • -40°C to 70°C
PassMark BurnInTest: 100% CPU, 2D/3D Graphics
(without thermal throttling)
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature • -40°C to 70°C
Relative Humidity • 95% RH @ 70°C (Non-condensing)
Shock • MIL-STD-810H
Vibration • MIL-STD-810H
EMC • CE, UKCA, FCC, ICES-003 Class A
• EN61000-6-4, EN61000-6-2 (24VDC Input Only)
EMI • CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 10V
(**Compliant with the standard when utilizing shielded ethernet cable.)
• EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Safety UL, cUL, CB, IEC, EN 62368-1
