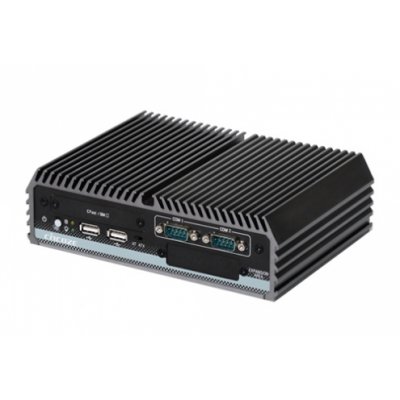

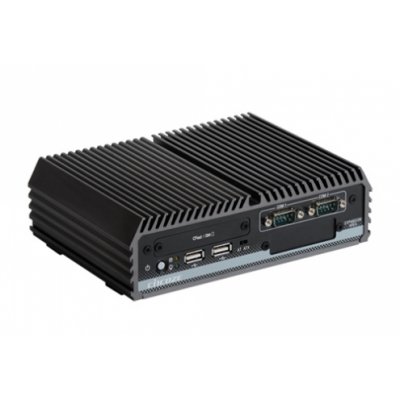

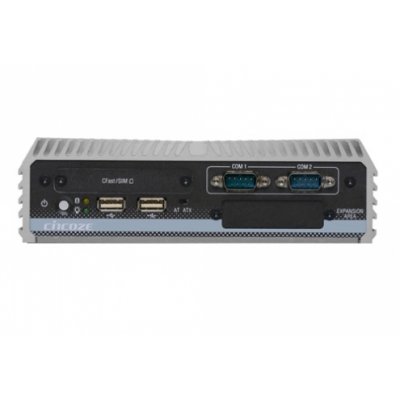

DC-1100

Intel® Atom™ E3845 Quad Core Compact Size Fanless Computer and 2x Mini-PCIe Expansion

ÜRÜN ÖZELLİKLERİ

  • Onboard Intel® Atom™ E3845 Processor Quad Core 1.91GHz
  • 1x DDR3L SO-DIMM Max. up to 8 GB
  • Dual Independent Display from 1x DVI-I and 1x DisplayPort
  • 2x Intel® GbE port support Wake-on-LAN and PXE
  • 1x USB 3.0 3x USB 2.0
  • 4x RS232/422/485 port with 5V/12V power
  • 4x Isolated DI 4x Isolated DO
  • 1x 2.5” SATA SSD/HDD bay
  • 1x CFast card and 1x SIM card socket
  • 9~48VDC power input support AT/ATX mode
  • 2x Mini-PCIe slot for Wi-Fi / GSM / I/O expansion
  • Universal I/O bracket for Mini-PCIe expansion
  • E-Mark (E13 No.10R-0514062) Certified
1) Modüler Panel Bilgisayarlar

DC-1100

DC-1100 is a high performance compact size 185mm (W) x 131mm (D) x 54mm (H) system designed with onboard Intel® Atom™ E3845 Quad Core 1.91GHz processor, rich I/O, an unique expansion capability, and supports wide range (9~48V) DC power input.

It supports the latest USB 3.0 technology. With features including completely cable-less designed, special heat dissipation, anti-vibration, and industrial components selection, DC-1100 is a ruggedized system that can operate in a harsh environment.

A build in voltage protection, reliable DC power input, and reverse power protection make DC-1100 a safety system for industrial applications.

Available Models
Model No. Product Description
DC-1100 Intel® Atom™ E3845 Quad Core™ Compact Size Fanless Computer and 2x Mini-PCIe Expansion
Package Checklist
DC-1100
DC-1100 Embedded System x 1
Utility DVD Driver x 1
DIO Terminal Block Connector x 1
Power Terminal Block Connector x 1
DVI-I to VGA Adapter x 1
Screw Pack x 1
Wall Mount Kit x 1
Optional Accessories
Model No. Description
GSM60A12-CIN Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch, GSM60A12-P1J
SL2-SL3 US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3 EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3 UK 2 heads power cord, UK I type to IEC C13 ,H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
VESA-DC DC series VESA Mount Kit
SIDE-DC DC series SIDE Mount Kit
DINRAIL Diamond series DIN-RAIL Mount Kit
59381560000E MINI-DIN(M) (PS/2 KB+MS) TO MINI-DIN(F) (PS/2 KB)+MINI-DIN(F) (PS/2 MS) L:10CM, 59381560000E
N0307-140507-01 DVI-I(M) TO DVI-D(F) + VGA(F) Cable, L=200mm, N0307-140507-01

Ürün Özellikleri

Model Name DC-1100
Processor System
CPU Intel® Atom™ E3845
Frequency 1.91 GHz
Core Number 4
BIOS AMI 64Mbit SPI
Chipset
Memory
Technology DDR3L 1066 / 1333MHz (un-buffered and non-ECC)
Max. Capacity 8 GB
Socket 1x 204-Pin SO-DIMM
Display
VGA Yes (with optional split cable)
DDI (HDMI/DVI/DisplayPort) 1x DVI

1x DisplayPort

Multiple Display Dual
Expansion
PCI
PCIe
Mini PCIe 2x Full-size Mini PCIe
Ethernet
Controller
  • GbE1: Intel® i210-AT
  • GbE2: Intel® i210-AT
  • Support Wake-on-LAN and PXE
PoE
Speed 10/100/1000 Mbps
Audio
Codec Realtek ALC888S
Connector 1x Mic-in

1x Speak-out

WatchDog Timer Software Programmable Supports 1~255 sec. System Reset
Storage
SSD / HDD 1x 2.5″ SATA HDD Bay
mSATA
CompactFlash/CFast 1x CFast
SIM Socket 1
I/O Ports
USB 3.0 1
USB 2.0 3
DIO 4 in/4 out
COM Port 4x RS-232/422/485
PS/2
Antenna Hole 2
Power Switch 1
AT/ATX Switch 1
External Fan Connector
Remote Power On/Off and Remote Power Reset
Universal I/O Bracket 1
Power
Power Type AT, ATX
Power Supply Voltage 9~48VDC
Connector 3-pin Terminal Block
Power Adaptor Optional AC/DC 12V/5A, 60W
Environment
Operating Temperature -25°C to 70°C

(With extended temperature peripherals; Ambient with Air Flow by IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage Temperature -30°C to 85°C
Relative Humidity 10%~95% (Non-Condensing)
Shock 50 Grms

(With SSD According to IEC 60068-2-27, Half Sine, 11ms Duration)

Vibration: Random 5 Grms

(With SSD According to IEC 60068-2-64, 5~500Hz, 1 hr/axis)

Physical
Dimension (WxDxH) 185 x 131 x 54 mm
Weight 1.58 kg
Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall

Optional Side / VESA / DIN-Rail Mounting

Operating System
Microsoft®
  • Windows® 10
  • Windows® 8.1
  • Windows® 7
Linux® Kernel 3.x
Certification
Safety Certifications
  • CE
  • FCC Class A
  • E-Mark (E13, No.10R-0514062) Certified
