Fansız Endüstriyel PC

DC-1300

• Onboard Intel® Alder Lake-N Series Processor: - Intel® Core™ i3-N305 8 Cores Up to 3.80 GHz, TDP 15W - Intel® Processor N97 4 Cores Up to 3.60 GHz, TDP 12W

• Onboard Intel® Alder Lake-N Processor N97 and Core™ i3-N305 Processor

• 1 x DDR5 SO-DIMM Sockets, Supports up to 4800MHz 16GB Memory

• 1x M.2 Key B Type 3052/3042 Socket for 5G Module Expansion

• 1x M.2 key B Type 2242 Socket for I/O Module Expansion

• CMI Technology for Optional I/O Module Expansions

• CFM Technology for Power Ignition Sensing Function

Destekleyen İşlemciler
  • DC-1300
Fansız Endüstriyel PC

DC-1300

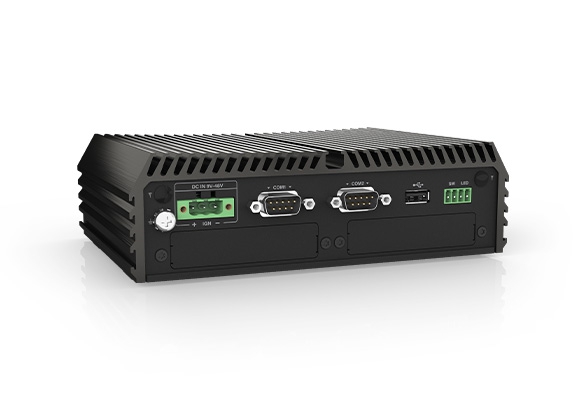

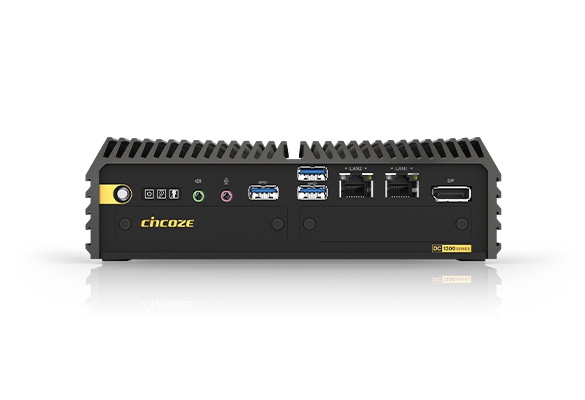

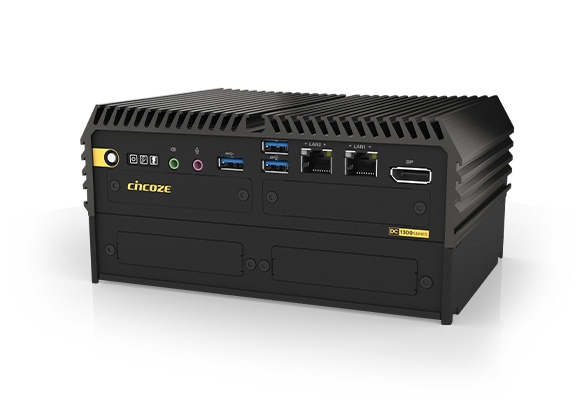

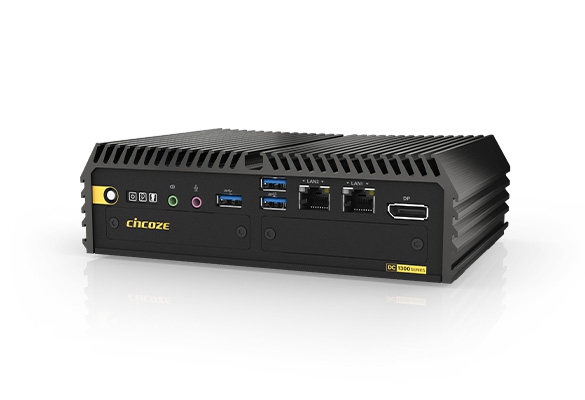

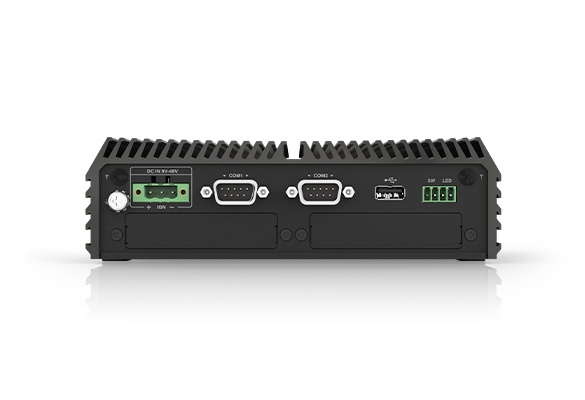

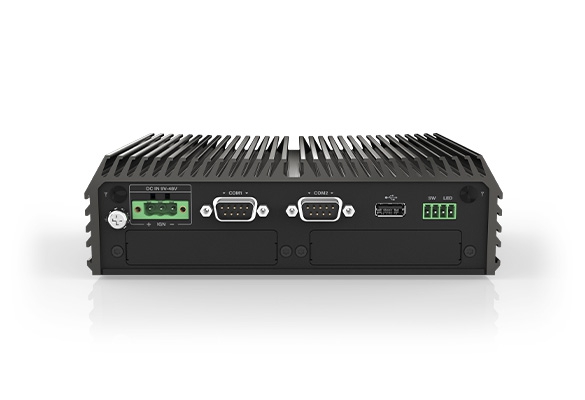

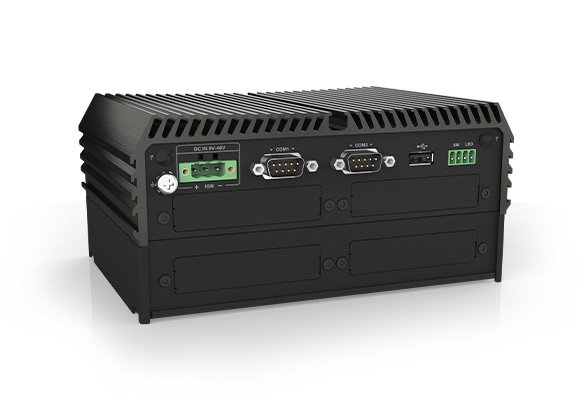

The DC-1300 is the entry-level option in the DIAMOND product line specially designed for basic industrial applications. It supports an Intel® Core™ i3 or N97 (Alder Lake-N) processor and maximum expansion flexibility in a compact design, providing a robust and reliable solution for space-constrained industrial automation applications.

4.5X Performance The Intel® Core™ i3-N305 processor (Alder Lake-N) option boasts 4.5 times the computing performance of the previous generation model, and features a DDR5 memory slot and multiple storage options (2.5″ HDD/SSD, Half-Slim SSD, M.2 SSD, etc.) to flexibly meet various application needs.

Available Model
Model No. Description
DC-1300-i3-R10 Intel® Core™ i3-N305 Entry Performance and Compact Rugged Embedded Computer
DC-1300-N97-R10 Intel® Processor N97 Entry Performance and Compact Rugged Embedded Computer
Package Checklist

DC-1300 Embedded Computer x1

CPU Thermal Pad  x1

Screw Pack x1

Wall Mounting Kit x1

Power Terminal Block Connector x1

Remote Power On/Off  + Remote Power LED Connector x1

M.2 Key B Type 3052 to 3042 Adapter Bracket x1

Optional Modules and Accessories
Model No. Description
CMI-VGA01 CMI Module with 1x VGA Port
CMI-DVI01 CMI Module with 1x DVI-D Connector
CMI-HD02 CMI Module with 1x HDMI Port
CMI-DP03-R10 CMI Module with 1x DisplayPort
CMI-COM03 CMI Module with 2x RS232/422/485 Ports(Support 5V/12V), 2x DB9 Connector
CMI-DIO03 CMI Module with 8x DIO (4in 4out) Ports, 1x 10 Pin Terminal Block
CFM-IGN02 CFM Module with Power Ignition Sensing Function, Select 12V/24V
MEC-LAN-2002i M.2 2242/2260/2280 2-port 10/100/1000 isolated Ethernet board (-40℃~+85℃), 2x RJ45 Connector
MEC-LAN-2002i-S M.2 2242/2260/2280 2-port 10/100/1000 isolated Ethernet board (0℃~+70℃),  2x RJ45 Connector
MEC-USB-2002 M.2 2242/2260/2280 2-port USB 3.2 board (0℃~+70℃),  2x USB Type A Connector
MEC-USB-2002C M.2 2242/2260/2280 2-port USB 3.2 board (0℃~+70℃),  2x USB Type C Connector
MEC-CAN-2812i M.2 2242/2260/2280 (B+M key) 2x isolated CAN bus 2.0B board (-40℃~+85℃), 2x DB9 Connector
MEC-CAN-2814i M.2 2242/2260/2280 (B+M key) quad isolated CAN bus 2.0B board (-40℃~+85℃), 4x DB9 Connector
UB1103 Universal Bracket with 2x DB9 Cutout for CMI-COM & MEC-CAN Expansion
UB1106-R10 Universal Bracket with 1x DP Cutout for CMI-DP Expansion
UB1107 Universal Bracket with 1x DVI Cutout for CMI-DVI Expansion
UB1108 Universal Bracket with 1x HDMI Cutout for CMI-HDMI Expansion
UB1111 Universal Bracket with 2x RJ45 Cutout for MEC-LAN Expansion
UB1114-R10 Universal Bracket with 2x USB Type A Cutout for MEC-USB Expansion
UB1115 Universal Bracket with 1x 10 Pin Terminal Block Cutout for CMI-DIO Expansion
UB1116 Universal Bracket with 1x DB9 Cutout for CMI-VGA Expansion
UB1131-R10 Universal Bracket with 2x Antenna Cutout
UB1133-R10 Universal Bracket with 2x USB Type C Cutout for MEC-USB Expansion
AC-BE01-R10 M.2 Key B Type 2242 to M.2 Key E Type 2230 Adapter Card
SIDE03 Side Mount Kit for DC Series, with KMRH-K175 for DIN-Rail Mount
DIN01 DIN-RAIL Mount Kit, KMRH-K175
VESA-DC DC series VESA Mount Kit
GST60A12-CIN1 Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug and Tubes, Level VI
GST120A24-CIN Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI

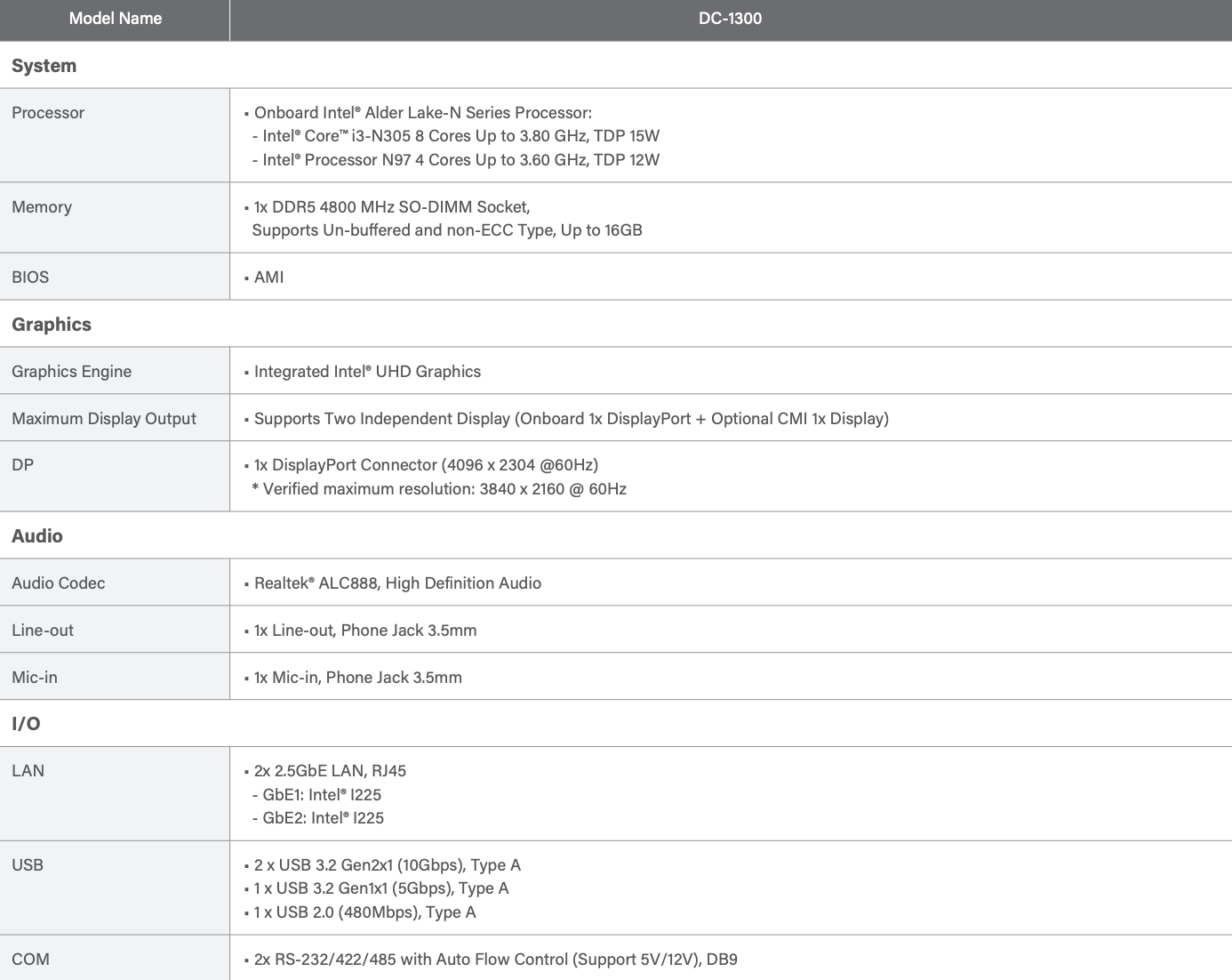

Ürün Özellikleri
