1) Modüler Panel Bilgisayarlar

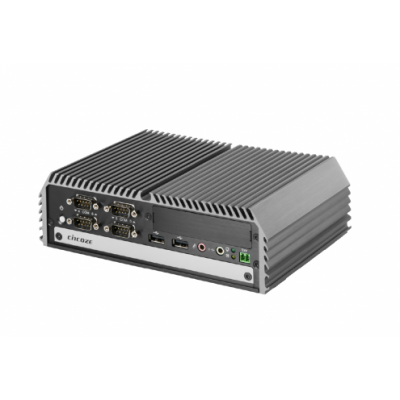

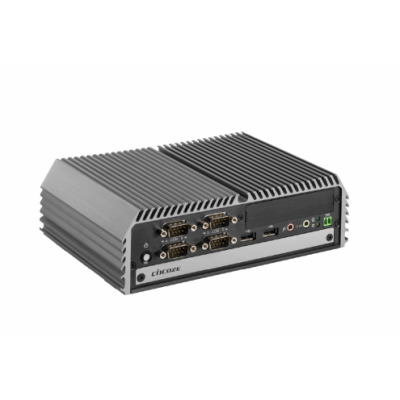

DI-1000-i3

6th Generation Intel® Core™ Processor (Skylake-U) High Performance, Compact and Modular Rugged Embedded Computer

ÜRÜN ÖZELLİKLERİ

  • Onboard 6th Generation Intel® Core™ Mobile Processor (BGA Type)
  • 1x DDR4 SO-DIMM Socket 2133MHz Supports Up to 16 GB
  • Triple Independent Display (DVI-I DisplayPort)
  • Compact Size 203 x 142 x 66.8 mm with Light Weight 1.65 kg
  • 1x Hot-swappable 2.5” SATA HDD/SSD Bay and 1x Internal 2.5” SATA HDD/SSD Bay Supports RAID 0/1
  • Rich I/O Including DVI DP 2x GbE LAN 6x COM 6x USB 8x Optical Isolated DIO
  • Supports Cincoze CMI Technology for LAN PoE & M12 Connector Expansion
  • Supports Cincoze CFM Technology for Power Ignition Sensing (IGN) Function Expansion
  • Cincoze MEC Module Kits for Various I/O Expansion
  • 2x Full-size Mini-PCIe Slots for Wireless and I/O Expansion
  • Wide Operating Temperature (-40°C to 70°C)
  • EN50155 Certified for Railway Application
  • E-Mark (E13 No. 10R-0514273) Certified for In-vehicle Application
1) Modüler Panel Bilgisayarlar

DI-1000-i3

Available Models
Model No. Product Description
DI-1000-i3 6th Gen. Intel® Core™ i3-6100U High Performance, Compact and Modular Rugged Embedded Computer
Package Checklist
√ DI-1000 Embedded System x 1 √ Power Terminal Block Connector x 1
√ CPU Heatsink Thermal Pad x 1 √ Remote Power On/Off Terminal Block Connector x 2
√ Utility DVD Driver x 1 √ DIO Terminal Block Connector x 2
√ Screw Pack x 1 √ DVI-I to VGA Adaptor
√ Wall Mounting Kit x 1
Optional Accessories
Model No. Description
CFM-IGN102 CFM Module with Power Ignition Sensing Control Function, Selectable 12V/24V
CMI-LAN104/UB0712 CMI Module with 4x Intel GbE LAN, RJ45 Port, 1x Universal Bracket
CMI-PoE114/UB0712 CMI Module with 4x PoE+, Intel GbE LAN, RJ45 Port, Individual Port 25.5W, 1x Universal Bracket
CMI-M12LAN104/UB0710 CMI Module with M12 Connector, 4x Intel GbE LAN, 1x Universal Bracket
CMI-M12PoE114/UB0710 CMI Module with M12 Connector, 4x PoE+, Intel GbE LAN, Individual Port 25.5W, 1x Universal Bracket

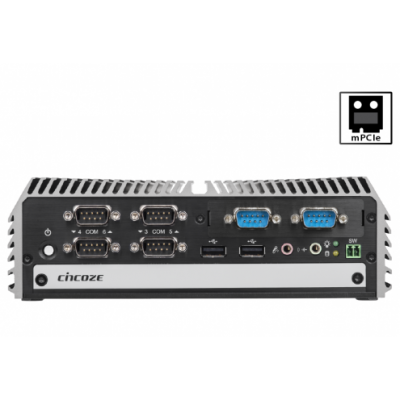

MEC-COM-M212/UB0703 Mini-PCIe Module with 2x COM Ports, 2x Universal Brackets
MEC-FIR-M003/UB0701 Mini-PCIe Module with 1x 1394A Port, 2x 1394B Ports, 1x Universal Bracket
MEC-LAN-M002-R1/UB0711 Mini-PCIe Module with 2x LAN Ports, 1x Universal Bracket

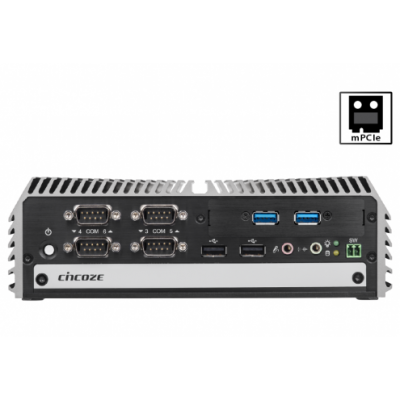

MEC-USB-M002/UB0714/CB0101 Mini-PCIe Module with 2x USB 3.0 Ports, 1x Universal Bracket, 1x Cable for MEC-USB
DIN01 DIN-RAIL Mount Kit, KMRH-K175
SIDE01 SIDE Mount Kit
GSM60A12-CIN1 Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch, with Tubes
GS120A24-CIN1 Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch, with Tubes

Ürün Özellikleri

Model Name DI-1000-i3
SYSTEM
Processor Onboard Intel® Core™ i3-6100U Processor (3M Cache, 2.30 GHz, 15W TDP)
Chipset SoC
Memory 1x DDR4 260-pin SO-DIMM Socket, Support up to 16 GB

(2133MHz, Un-buffered and Non-ECC type)

Graphics • Integrated Intel® HD Graphics

• Three Independent Display

Audio • Realtek® ALC888-GR

• High Definition Audio

BIOS AMI 8Mbit SPI BIOS

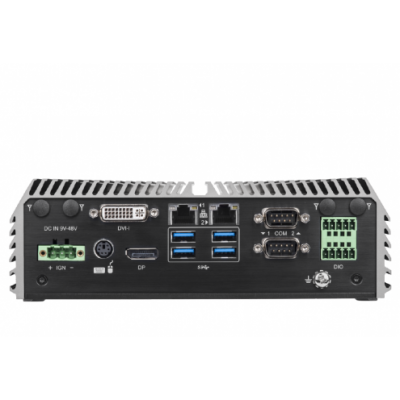

I/O INTERFACE
DVI 1x DVI-I Connector, Resolution 1920 x 1080
DP 1x DisplayPort Connector, Resolution 3840 x 2160
LAN 2x GbE LAN (Support Wake-on-LAN, Teaming, Jumbo Frame,

IEEE 1588v2 and PXE), RJ45

– GbE1: Intel I210AT

– GbE2: Intel I219LM

Serial Port 6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9
USB .4x USB 3.0, Type-A

.2x USB 2.0, Type-A

PS/2 Port 1x PS/2, 6-Pin Mini-DIN Female Connector
Isolated DIO 8x Optical Isolated DIO (4x DI, 4x DO), 10-Pin Terminal Block Support 5~48V
Line-Out 1x Line-Out, Phone Jack 3.5mm
Mic-In 1x Mic-In, Phone Jack 3.5mm
Power Button 1x ATX Power On/Off Button
AT/ATX Switch 1x AT/ATX Mode Switch
Clear CMOS Switch 1x Clear CMOS Switch
Remote Power On/Off Connector 1x Remote Power On/Off Connector, 2-pin Terminal Block
STORAGE
SSD/HDD 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3)

(One Internal, One Front Accessible & Hot-swappable)

mSATA 2x mSATA (Shared by Mini-PCIe Socket) (Gen2)
EXPANSION
CFM (Control Function Module) Interface 1x CFM Interface for CFM Modules
CMI (Combine Multiple I/O) Interface 1x CMI Interface for CMI Modules
Mini PCI Express 2x Full-size Mini PCIe Supports Wireless &  I/O Expansion
SIM Socket 1x SIM Socket
OTHER FUNCTION
CFM Support CFM (Control Function Module) Technology
CMI Support CMI (Combined Multiple I/O) Technology
Instant Reboot Support 0.2sec
Super Cap Super Cap integrated for CMOS Battery Maintenance-free
Watchdog Timer Software Programmable Supports 1~255 sec. System Reset
POWER REQUIREMENT
Power Type AT/ATX
Power Input Voltage 9~48VDC
Connector 3-pin Terminal Block
Power Adapter Optional AC/DC Adapter

.AC/DC 12V/5A, 60W

.AC/DC 24V/5A, 120W

PHYSICAL
Dimension (WxDxH) 203 x 142 x 66.8 mm
Weight Information 1.65 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / Side / DIN-RAIL / VESA
Unibody Design Yes
Fanless Design Yes
Cable-less Design Yes
Jumper-less Design Yes
PROTECTION
Reverse Power Input Protection Yes
Over Voltage Protection 58V
Over Current Protection 15A
ESD Protection +/-15kV(Air), +/-8kV(Contact)
Surge 3kW
MTBF
Time 360, 145 Hours
Calculation Model Telcordia SR-332 Issue 3, Method 1, Case 3
Environment GB, GC
Temperature 40°C
OPERATING SYSTEM
Windows Windows 10

Windows 8.1

Windows 7

ENVORENMENT
Operating Temperature Operating Temperature: -40°C to 70°C

(With extended temperature peripherals; Ambient with air flow;

According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage Temperature -40°C to 85°C
Relative Humidity 95% RH @ 40°C (Non-condensing)
Shock Operating, 50 Grms, Half-sine 11 ms Duration

(w/ SSD, according to IEC60068-2-27)

Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes

(w/ SSD, according to IEC60068-2-64)

EMC CE,  FCC Class A
Railway EN50155, EN50121-3-2
In-Vehicle E-Mark (E13, No. 10R-0514273) Certified
