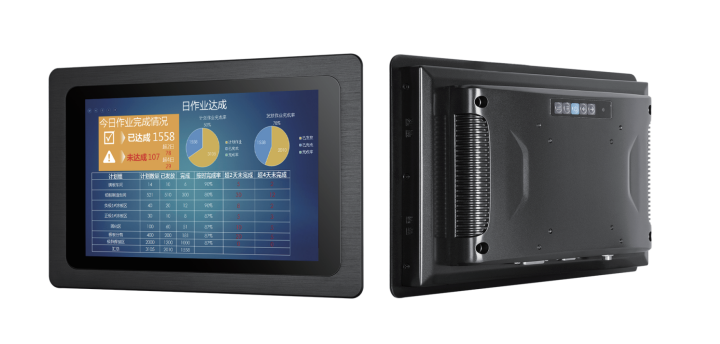

1) Modüler Panel Bilgisayarlar

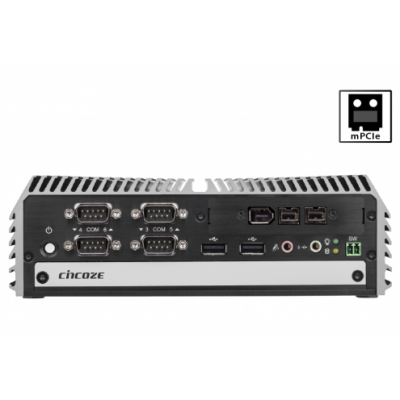

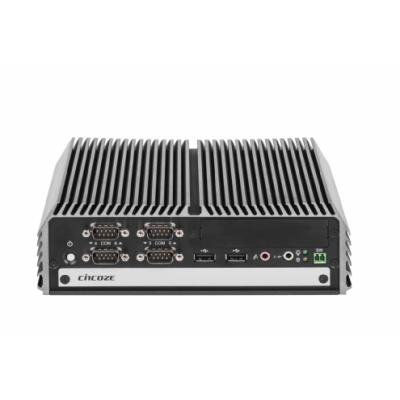

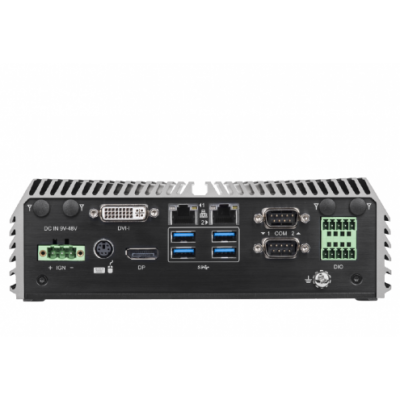

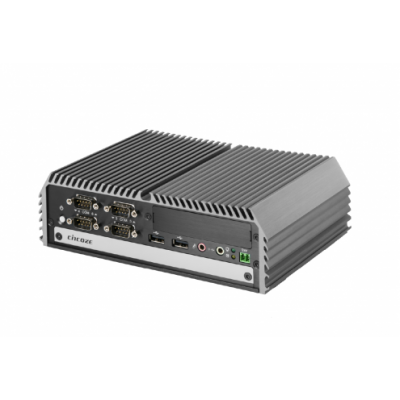

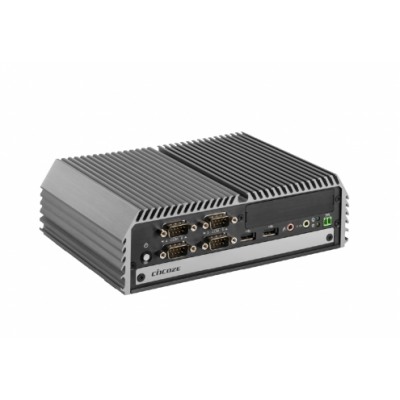

DI-1000-i7

6th Generation Intel® Core™ Processor (Skylake-U) High Performance, Compact and Modular Rugged Embedded Computer

ÜRÜN ÖZELLİKLERİ

  • Onboard 6th Generation Intel® Core™ Mobile Processor (BGA Type)
  • 1x DDR4 SO-DIMM Socket 2133MHz Supports Up to 16 GB
  • Triple Independent Display (DVI-I DisplayPort)
  • Compact Size 203 x 142 x 66.8 mm with Light Weight 1.65 kg
  • 1x Hot-swappable 2.5” SATA HDD/SSD Bay and 1x Internal 2.5” SATA HDD/SSD Bay Supports RAID 0/1
  • Rich I/O Including DVI DP 2x GbE LAN 6x COM 6x USB 8x Optical Isolated DIO
  • Supports Cincoze CMI Technology for LAN PoE & M12 Connector Expansion
  • Supports Cincoze CFM Technology for Power Ignition Sensing (IGN) Function Expansion
  • Cincoze MEC Module Kits for Various I/O Expansion
  • 2x Full-size Mini-PCIe Slots for Wireless and I/O Expansion
  • Wide Operating Temperature (-40°C to 70°C)
  • EN50155 Certified for Railway Application
  • E-Mark (E13 No. 10R-0514273) Certified for In-vehicle Application
1) Modüler Panel Bilgisayarlar

DI-1000-i7

Cincoze DI-1000 Series is a high-performance, compact and modular fanless embedded computer powered by 6th generation Intel® Core™ mobile processor (Skylake-U), it integrates Intel® HD graphic engine and accommodates one DDR4 socket up to 16 GB which allows DI-1000 Series to fulfill all kinds of high-end computing demands. Extremely compact size with dimension 203 x 142 x 66.8 mm, comprising unbeatable I/O such as DVI-I, DP, 2x LAN, 6x COM, 6x USB, 8x Optical Isolated DIO, PS/2, Mic-in, Line-out, and remote power on/off switch, supporting two full-size Mini-PCIe slots for wireless communication and I/O expansion, accommodating two 2.5” SATA HDD/SSD bay for RAID 0/1 function, making DI-1000 series unmatchable in the market for its size and functions. DI-1000 Series weighs only 1.65 kg supporting 4 types of mounting mechanisms (Wall, DIN, Side and VESA) allowing it to be installed everywhere. The unique Cincoze’s CMI (Combined Multiple I/O), CFM (Control Function Module) and MEC (Mini-PCIe Card) technologies allow DI-1000 Series to be expanded according to the specific needs. The options of ready-to-use modules including Multi-LAN, PoE, M12 connections, Power Ignition Sensing and various types of I/O interface, making DI-1000 series application-ready platform for factory automation, machine vision, in-vehicle, and mobile surveillance applications.

Ürün Özellikleri

Model Name DI-1000-i7
SYSTEM
Processor Onboard Intel® Core™ i7-6600U Processor (3M Cache, 2.30 GHz, 15W TDP)
Chipset SoC
Memory 1x DDR4 260-pin SO-DIMM Socket, Support up to 16 GB

(2133MHz, Un-buffered and Non-ECC type)

Graphics
  • Integrated Intel® HD Graphics
  • Three Independent Display
Audio
  • Realtek® ALC888-GR
  • High Definition Audio
BIOS AMI 8Mbit SPI BIOS
I/O INTERFACE
DVI 1x DVI-I Connector, Resolution 1920 x 1080
DP 1x DisplayPort Connector, Resolution 3840 x 2160
LAN 2x GbE LAN (Support Wake-on-LAN, Teaming, Jumbo Frame,

IEEE 1588v2 and PXE), RJ45

– GbE1: Intel I210AT

– GbE2: Intel I219LM

Serial Port 6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9
USB
  • 4x USB 3.0, Type-A
  • 2x USB 2.0, Type-A
PS/2 Port 1x PS/2, 6-Pin Mini-DIN Female Connector
Isolated DIO 8x Optical Isolated DIO (4x DI, 4x DO), 10-Pin Terminal Block Support 5~48V
Line-Out 1x Line-Out, Phone Jack 3.5mm
Mic-In 1x Mic-In, Phone Jack 3.5mm
Power Button 1x ATX Power On/Off Button
AT/ATX Switch 1x AT/ATX Mode Switch
Clear CMOS Switch 1x Clear CMOS Switch
Remote Power On/Off Connector 1x Remote Power On/Off Connector, 2-pin Terminal Block
STORAGE
SSD/HDD 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3)

(One Internal, One Front Accessible & Hot-swappable)

mSATA 2x mSATA (Shared by Mini-PCIe Socket) (Gen2)
EXPANSION
CFM (Control Function Module) Interface 1x CFM Interface for CFM Modules
CMI (Combine Multiple I/O) Interface 1x CMI Interface for CMI Modules
Mini PCI Express 2x Full-size Mini PCIe Supports Wireless &  I/O Expansion
SIM Socket 1x SIM Socket
OTHER FUNCTION
CFM Support CFM (Control Function Module) Technology
CMI Support CMI (Combined Multiple I/O) Technology
Instant Reboot Support 0.2sec
Super Cap Super Cap integrated for CMOS Battery Maintenance-free
Watchdog Timer Software Programmable Supports 1~255 sec. System Reset
POWER REQUIREMENT
Power Type AT/ATX
Power Input Voltage 9~48VDC
Connector 3-pin Terminal Block
Power Adapter Optional AC/DC Adapter

  • AC/DC 12V/5A, 60W
  • AC/DC 24V/5A, 120W
PHYSICAL
Dimension (WxDxH) 203 x 142 x 66.8 mm
Weight Information 1.65 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / Side / DIN-RAIL / VESA
Unibody Design Yes
Fanless Design Yes
Cable-less Design Yes
Jumper-less Design Yes
PROTECTION
Reverse Power Input Protection Yes
Over Voltage Protection 58V
Over Current Protection 15A
ESD Protection +/-15kV(Air), +/-8kV(Contact)
Surge 3kW
MTBF
Time 360, 145 Hours
Calculation Model Telcordia SR-332 Issue 3, Method 1, Case 3
Environment GB, GC
Temperature 40°C
OPERATING SYSTEM
Windows
  • Windows 10
  • Windows 8.1
  • Windows 7
ENVORENMENT
Operating Temperature Operating Temperature: -40°C to 70°C

(With extended temperature peripherals; Ambient with air flow;

According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage Temperature -40°C to 85°C
Relative Humidity 95% RH @ 40°C (Non-condensing)
Shock Operating, 50 Grms, Half-sine 11 ms Duration

(w/ SSD, according to IEC60068-2-27)

Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes

(w/ SSD, according to IEC60068-2-64)

EMC CE,  FCC Class A
Railway EN50155, EN50121-3-2
In-Vehicle E-Mark (E13, No. 10R-0514273) Certified
