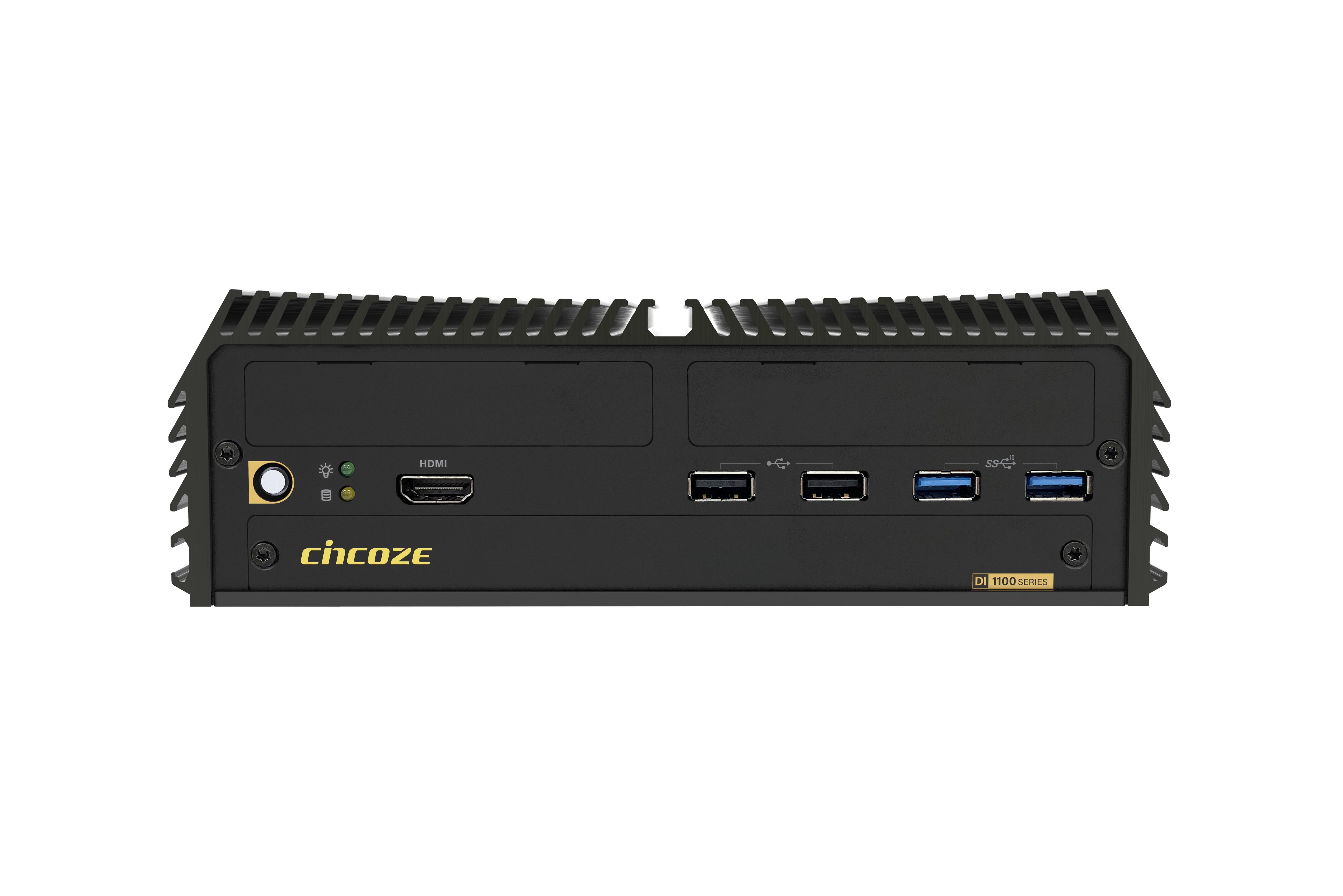

Fansız Endüstriyel PC

DI-1100

Intel® 8th Gen. Core™ U Series Processor, High Performance and Power Saving Rugged Embedded Computer

  • Onboard Intel ® 8th Gen. Core™ Ui7/i5/i3 Processor (TDP 15W)
  • 1x 2.5″ front-accessible SATA HDD bay for quick access and 1x mSATA socket
  • 2x full-size Mini PCIe sockets for module expansion
  • 2x front-accessible SIM card slots for signal redundancy
  • Optional CMI modules (2x 10 GbE LAN, M12 A-coded, or M12 X-coded)
  • Optional CFM modules (power ignition sensing, or 4x PoE)
  • Wide operating temperature -40°C to 70°C
  • MIL-STD-810G, E-mark, and EN50155 (EN 50121-3-2 only) certified
Destekleyen İşlemciler
  • DI-1100
  • DI-1100
  • DI-1100
  • DI-1100
  • DI-1100
  • DI-1100
  • DI-1100
DI-1100
DI-1100
DI-1100
DI-1100
DI-1100
DI-1100
Teklif Al
PDF
Fansız Endüstriyel PC

DI-1100

The DI-1100 packs high performance, lots of I/O ports, and expansion flexibility in a compact form factor. The DI-1100 is powered by an 8th Gen Intel® Core™ U-Series processor (Whiskey Lake) with ultra-low 15W TDP yet delivering uncompromised performance. The DI-1100 shines because it fits multiple I/Os and other expansion options into a very compact chassis, making it the perfect high-performance rugged embedded computer for space-constrained environments. The DI-1100 is ideal for industrial applications, logistics and warehousing, transportation, security and surveillance, IoT deployments, and other applications

DI-1100
DI-1100
DI-1100
DI-1100
DI-1100
DI-1100
Teklif Al
PDF
Available Models
Model No. Product Description
DI-1100-i3-R10 8th Generation Intel Core i3-8145UE High Performance, Compact and Modular Rugged Embedded Computer
DI-1100-i5-R10 8th Generation Intel Core i5-8365UE High Performance, Compact and Modular Rugged Embedded Computer
DI-1100-i7-R10 8th Generation Intel Core i7-8665UE High Performance, Compact and Modular Rugged Embedded Computer
Package Checklist
√ DI-1100 Embedded System x1 √ Heatsink Pack x1
√ Wall Mount Kit x1 √ Screw Pack x1
√ Remote Function Terminal Block Connector x 2 √ Power Terminal Block Connector x1
√ Fan Terminal Block Connector x 1
Optional I/O Modules
Model No. Description
CMI-LAN01-R12 / UB1512-R11 CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout
CMI-M12LAN01-R12 / UB1510-R11 CMI Module with M12 A-Coded Connector, 4x Intel I210 GbE LAN Ports/ 1x Universal Bracket with 4x M12 Cutout
CMI-XM12LAN01-R10 / UB1510-R11 CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports/ 1x Universal Bracket with 4x M12 Cutout
CMI-10GLAN04-R10 / UB1528-R11 CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port / 1x Universal Bracket with 2x RJ45 Cutout
CMI-COM05-R10 / UB1503-R11 CMI Module with 2x RS232/422/485 Ports (Support 5V/12V) / 1x Universal Bracket with 2x DB9 Cutout
CMI-DIO05-R10 / UB1518-R10 CMI Module with 16DIO (8in 8out) / 1x Universal Bracket with DIO Cutout
MEC-LAN-M102-30 / UB1511-R11 Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout
MEC-COM-M212-TDB9 / UB1503-R11 Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Thin DB9 Cable / 1x Universal Bracket with 2x DB9 Cutout
Fansız Endüstriyel PC

DI-1100

Daha Fazla

Ürün Özellikleri

Model Name DI-1100
System Processor Onboard 8th Intel® Core™ U Processors (Whiskey Lake)
• Intel® Core™ i7-8665UE Quad Core Processor (8M Cache, up to 4.4 GHz, 15W)
• Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz, 15W)
• Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz, 15W)
Memory 1x DDR4 SO-DIMM Socket, Support Up to 2400MHz 32 GB ( Un-buffered and non-ECC)
BIOS AMI BIOS
Graphics Graphics Engine Integrated Intel® UHD Graphics 620
Maximum Display Output Supports Triple Independent Display
HDMI 1x HDMI Connector (4096 x 2304@60Hz)
DP 1x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications)
* Verified maximum resolution: 3840×2160
VGA 1x VGA Connector (1920 x 1200 @60Hz)
Audio Audio Codec Realtek® ALC888, High Definition Audio
Line-out 1x Line-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm
I/O LAN • 2x GbE LAN, RJ45
– GbE1: Intel® I219
– GbE2: Intel® I210
COM 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB • 2x 10 Gbps USB 3.2 Gen2, Type A
• 2x 5 Gbps USB 3.2 Gen1, Type A
• 2x 480 Mbps USB 2.0, Type A
PS/2 1x PS/2, 6 Pin Mini-DIN Female Connector
Storage SSD/HDD 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA3.0 )
mSATA 1x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket)
RAID Support RAID 0/1
Expansion Mini PCI Express 2x Full-size Mini-PCIe Socket
SIM Socket 2x SIM Socket
CMI (Combined Multiple I/O) Interface • 1x High Speed CMI Interface for optional CMI Module Expansion
• 1x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Interface 1x CFM IGN Interface for optional CFM-IGN Module Expansion
Other Function External FAN Connector 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
Power Ignition Sensing Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
Clear CMOS Switch 1 x Clear CMOS Switch
Reset Button 1 x Reset Button
Instant Reboot Support 0.2sec Instant Reboot Technology
Watchdog Timer Software Programmable Supports 256 Levels System Reset
Power Power Button 1 x ATX Power On/Off Button
Power Mode Switch 1 x AT/ATX Mode Switch
Power Input 9 – 48VDC, 3-pin Terminal Block
Remote Power On/Off 1 x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED 1 x Remote Power LED, 2-pin Terminal Block
Total Power Budget 120W
Physical Dimension ( W x D x H ) 203 x 142 x 66.8 mm
Weight Information 1.74 KG
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / Side / DIN-RAIL / VESA Mount
Physical Design • Fanless Design
• Cableless Design
• Jumper-less Design
• Unibody Design
Reliability & Protection Reverse Power Input Protection Yes
Over Voltage Protection • Protection Range: 51~58V
•​ Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection 15A
CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF • 513,628 Hours
– Database: Telcordia SR-332 Issue3, Method 1, Case 3
Operating System Windows Windows® 10
Linux Supports by project
Environment Operating Temperature • 15W CPU: -40°C to 70°C
* PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling)
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14• 15W CPU + 61.6W PoE + FAN: -40°C to 70°C
* PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling)
* 4 Port PoE Full-load, IEEE 802.3af Class3(15.4 Watt)
* With extended temperature peripherals; Ambient with air flow
Storage Temperature -40°C to 85°C
Relative Humidity 95%RH @ 70°C (non-Condensing)
Shock MIL-STD-810G
Vibration MIL-STD-810G
EMC • CE, UKCA, FCC, ICES-003 Class A
• EN 50155 (EN 50121-3-2 Only)
• E-mark
EMI • CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Safety IEC/EN 62368-1
