Fansız Endüstriyel Bilgisayar

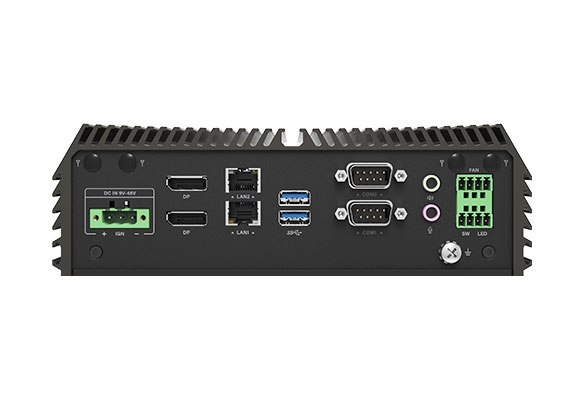

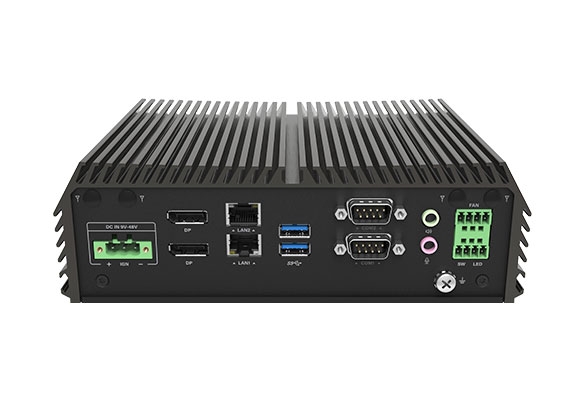

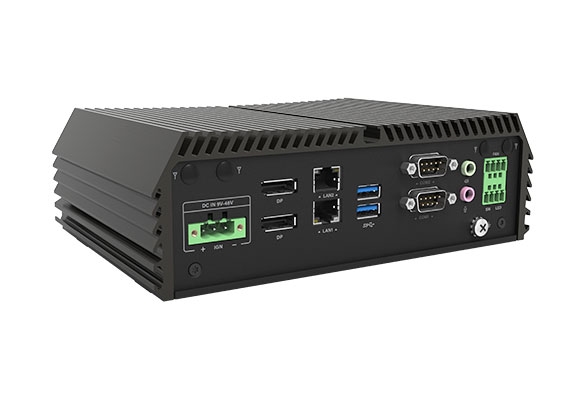

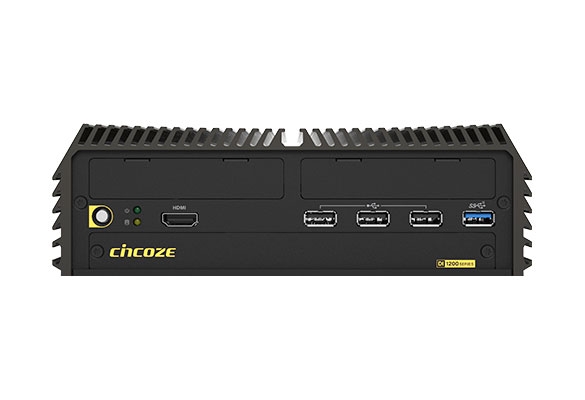

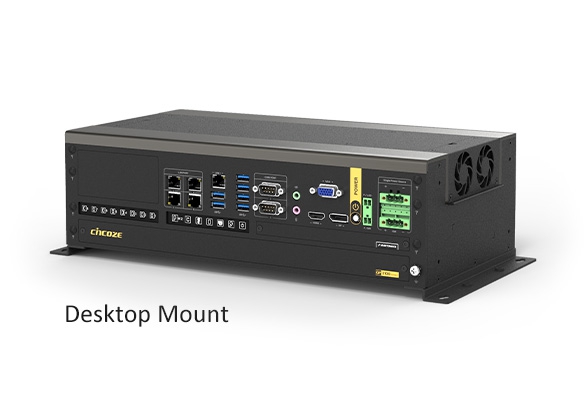

DI-1200

Onboard 12th Intel® Alder Lake-P U-Series Core™ i7/i5/i3 Processors

  • Onboard 12th Intel® Alder Lake-P U-Series Core™ i7/i5/i3 Processors
  • 1 x DDR5 SO-DIMM Sockets, Supports up to 4800MHz 32GB Memory
  • Quad Independent Display (2x DP/HDMI/CMI Display)
  • 1x M.2 Key E Type 2230 Socket for Wireless / Intel CNVi Module Expansion
  • 1x M.2 Key B Type 3042 / 3052 Socket for 5G / Storage / Add-on Card Expansion
  • CMI Technology for Optional I/O Module Expansions
  • CFM Technology for Power Ignition Sensing Function & PoE
  • Wide Operating Temperature -40°C to 70°C
  • Safety Standard: UL, cUL, CB, IEC, EN 62368-1
Destekleyen İşlemciler
  • DI-1200
  • DI-1200
  • DI-1200
  • DI-1200
  • DI-1200
  • DI-1200
  • DI-1200
Fansız Endüstriyel Bilgisayar

DI-1200

The DI-1200, with a 12th generation Intel® Core™ U-series (Alder Lake-P Platform) processor, provides outstanding performance and boasts a low power consumption of 15W. The compact DI-1200 oers rich I/O interfaces and expansion options, meeting the requirements for high-performance, rugged embedded computers used in confined spaces. It suits for industrial automation, warehousing and logistics, transportation, environmental monitoring, and IoT applications.

Available Models
Model No. Product Description
DI-1200-i7-R10 12th Generation Intel Core i7-1265UE High Performance, Compact and Modular Rugged Embedded Computer
DI-1200-i5-R10 12th Generation Intel Core i5-1245UE High Performance, Compact and Modular Rugged Embedded Computer
DI-1200-i3-R10 12th Generation Intel Core i3-1215UE High Performance, Compact and Modular Rugged Embedded Computer
Package Checklist

• DI-1200 Embedded Computer x1

• CPU Thermal Pad  x1

• Screw Pack x 1

• Wall Mounting Kit x1

• Power Terminal Block Connector x1

• Remote Power On/Off  + Remote Power LED Connector x 1

• Fan Terminal Block Connector x 1

• M.2 Key B Type 3052 to 3042 Adapter Bracket x1

Optional Modules and Accessories
Model No. Description
CFM-IGN102 CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable
CFM-PoE06-R10 CFM Module with PoE Function, Individual Port 25.5W
CMI-LAN01-R12 CMI Module with 4x RJ45 Intel I210 GbE LAN Ports
CMI-M12LAN01-R12 CMI Module with 4 x M12 Intel I210 GbE LAN Ports
CMI-XM12LAN01-R10 CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports
CMI-10GLAN04-R10 CMI Module with 2x Intel X550 10GbE LAN Ports
CMI-VGA02-R10 CMI Module with 1x VGA Port
CMI-HD04-R10 CMI Module with 1x HDMI Port
CMI-DP02-R10 CMI Module with 1x DisplayPort
CMI-DIO05-R10 CMI Module with 16DIO (8in 8out)
CMI-COM05-R10 CMI Module with 2x RS232/422/485 (Support 5V/12V)
UB1503-R11 Universal Bracket with 2x DB9 Cutout
UB1506-R10 Universal Bracket with DisplayPort Cutout
UB1508-R10 Universal Bracket with HDMI Cutout
UB1510-R11 Universal Bracket with 4x M12 Cutout
UB1512-R11 Universal Bracket with 4x RJ45 Cutout for CMI-LAN Expansion
UB1516-R10 Universal Bracket with VGA Cutout
UB1518-R10 Universal Bracket with DIO Cutout
UB1528-R11 Universal Bracket with 2x RJ45 Cutout for CMI-10GLAN Expansion
DINRAIL-R10 Diamond series DIN-RAIL Mount Kit
FAN-EX103 External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan (*External fan must be installed when using CFM-PoE module)
SIDE01 DI Series Side Mount Kit
GST60A12-CIN1 Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug and Tubes, Level VI
GST120A24-CIN Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
GST220A24-CIN Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI

Ürün Özellikleri

Model Name DI-1200
System Processor • Onboard 12th Intel® Alder Lake-P U-Series CPU:
– Intel® Core™ i7-1265UE 10 Cores Up to 4.70 GHz, TDP 15W
– Intel® Core™ i5-1245UE 10 Cores Up to 4.40 GHz, TDP 15W
– Intel® Core™ i3-1215UE 6 Cores Up to 4.40 GHz, TDP 15W
Memory • 1x DDR5 SO-DIMM Socket,
Supports Un-buffered and non-ECC Type, Up to 32GB
BIOS • AMI BIOS
Graphics Graphics Engine • Integrated Intel® Iris® Xe Graphics: Core™ i7-1265UE, i5-1245UE
• Integrated Intel® UHD Graphics: Core™ i3-1215UE
Maximum Display Output • Supports Quad Independent Display
HDMI • 1x HDMI Connector (3840 x 2160@60Hz)
DP • 2x DisplayPort Connector (3840 x 2160@60Hz)
CMI Display • 1x CMI Interface for Optional CMI-DP/CMI-HDMI/CMI-VGA Module Expansion
Audio Audio Codec • Realtek® ALC888, High Definition Audio
Line-out • 1 x Line-out, Phone Jack 3.5mm
Mic-in • 1 x Mic-in, Phone Jack 3.5mm
I/O LAN • 2x 2.5 GbE LAN, RJ45
– GbE1: Intel® I225
– GbE2: Intel® I225
COM • 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB • 1 x USB 3.2 Gen2x1 (10Gbps), Type A
• 2 x USB 3.2 Gen1x1 (5Gbps), Type A
• 3 x USB 2.0 (480Mbps), Type A
Storage SSD/HDD • 1x 2.5″ SATA HDD/SSD Bay (SATA 3.0)
M.2 SSD • 1 x M.2 SSD shared by M.2 Key B Type 3052 Socket
RAID • Support RAID 0/1
Expansion M.2 Key E Socket • 1x M.2 Key E Type 2230 Socket (PCIe Gen 3×1 / USB2.0), Support Wireless/Intel CNVi Module Expansion

* The maximum height of the M.2 Key E add-on card is limited to 6.7mm.
M.2 Key B Socket • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3×1 / USB3.2 Gen2 x1 / USB2.0 / SATA ), Support 5G/Storage/Add-on Card Expansion

* The maximum height of the M.2 Key B add-on card varies depending on the installed CMI module. Please refer to the manual for detailed information.
SIM Socket • 2 x Front Accessible SIM Socket
CMI (Combined Multiple I/O) Interface • 1x CMI Interface for optional CMI-LAN Module Expansion
• 1x CMI Interface for optional CMI-Display / CMI-COM / CMI-DIO Module Expansion
CFM (Control Function Module) Interface • 1x CFM IGN Interface for optional CFM-IGN Module Expansion
Other Function External FAN Connector • 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
Clear CMOS Switch • 1x Clear CMOS Switch
Reset Button • 1x Reset Button
Instant Reboot • Support 0.2sec Instant Reboot Technology
Watchdog Timer • Software Programmable Supports 256 Levels System Reset
Power Power Button • 1 x ATX Power On/Off Button
Power Mode Switch • 1 x AT/ATX Mode Switch
Power Input • 9 – 48VDC, 3-pin Terminal Block
Remote Power On/Off • 1 x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED • 1 x Remote Power LED, 2-pin Terminal Block
Max. Power Consumption • I7-1265UE CPU
– OS Idle Mode: 74.21 W
– Full Loading: 104.74W
Inrush Current (Peak) • I7-1265UE CPU: 4.963 A@24V
Physical Dimension ( W x D x H ) • 203 x 142 x 66.8 mm
Weight Information • 1.8 KG
Mechanical Construction • Extruded Aluminum with Heavy Duty Metal
Mounting • Wall / Side / DIN-RAIL / VESA Mount
Physical Design • Fanless Design
• Cableless Design
• Jumper-less Design
• Unibody Design
Reliability & Protection Reverse Power Input • Yes
Over Voltage Protection • Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection • 15A
CMOS Battery Backup • SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF • 486,235 Hours – Database: Telcordia SR-332 Issue3, Method 1, Case 3
Operating System Windows • Windows®11, Windows®10
Linux • Ubuntu 22.04
Environment Operating Temperature • -40°C to 70°C
– PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling)
– With extended temperature peripherals; Ambient with air flow
– According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature • -40°C to 70°C
Relative Humidity • 95% RH @ 70°C (Non-condensing)
Shock • MIL-STD-810H
Vibration • MIL-STD-810H
EMC • CE, UKCA, FCC, ICES-003 Class A
• EN IEC 61000-6-4 / EN IEC 61000-6-2 (24VDC Input Only)
• EN 50155 (EN 50121-3-2 Only)
• E-mark (Pending)
EMI • CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN 61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 10V
(**Compliant with the standard when utilizing shielded cable.)
• EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Safety • UL, cUL, CB, IEC, EN 62368-1
