1) Modüler Panel Bilgisayarlar

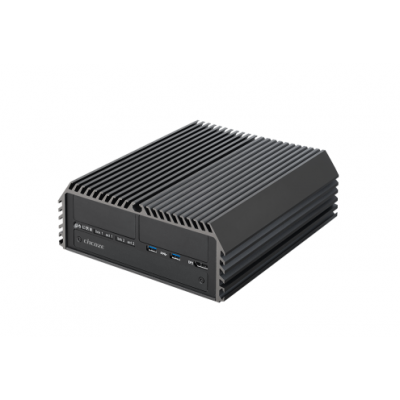

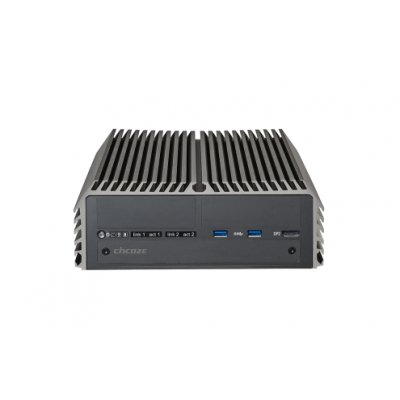

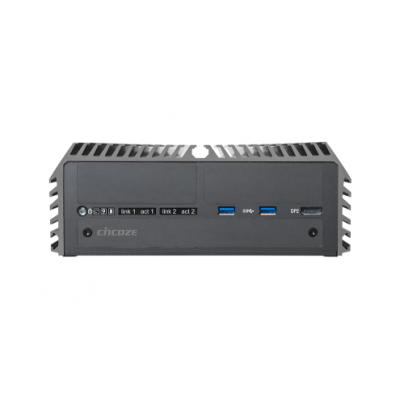

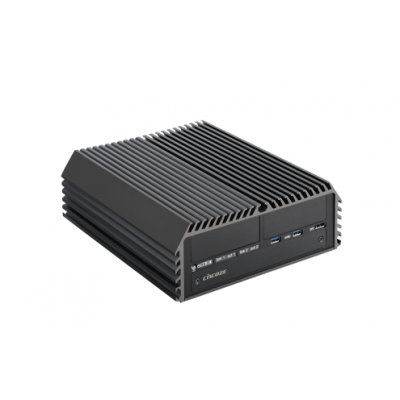

DS-1200

9/8th Generation Intel® Core™ Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer

ÜRÜN ÖZELLİKLERİ

  • Supports 9/8th Gen Intel® Core™ / Pentium® / Celeron® Octa/Hexa Cores 35W/65W LGA1151 Processor
  • 2x DDR4 SO-DIMM Socket Supports Up to 2666MHz 64GB
  • Triple Independent Displays: 1x DVI-I and 2x DP (4K Resolution)
  • 1x M.2 2280 M Key Socket Auto-detection for PCIex4 NVMe SSD or SATA Gen3 SSD
  • 2x Front Accessible SIM Card Slots for Signal Redundancy
  • 4x CMI Slots for Modular I/O Expansions
  • 1x CFM Slot for Power Ignition Sensing Function
  • Wide Operating Temperature (-40°C to 70°C )
  • EN50155 (EN50121-3-2) Certified/ EN60950-1
1) Modüler Panel Bilgisayarlar

DS-1200

DS-1200 is a high-performance fanless embedded computer powered by 8th generation Intel® Core™ platform (Coffee Lake-S) and offers up to 6 cores to fulfill all kinds of high-end computing requirements. DS-1200 provides rich I/O, such as 1x PS/2, 1x Line-out, 1x Mic-in, 2x RS-232/422/485 ports, 2x Intel® GbE ports, 2x USB 3.1 (Gen2), 4x USB 3.0, 2x USB 2.0, and triple independent displays. As for memory and storage, DS-1200 can be equipped with up to 32 GB of DDR4-2666 SO-DIMM memory, 2x 2.5-inch SATA III hard drive, 3x mSATA SSD and 1x M.2 2280 NVMe SSD for high-performance storage requirement.
Based on Cincoze’ CMI & CFM Technology, it allows users to configure the system according to their specific needs by using a variety of ready-to-use modules. DS-1200 is truly a rugged computing system with features of wide operating temperature (-40°C to 70°C), wide range DC power input (from 9V to 48V), high tolerance of shock and vibration, high-standard industrial protections and SuperCap for battery maintenance-free operation. The system is suitable for high-end applications in a harsh environment, such as factory automation, machine vision, in-vehicle computing, and mobile surveillance.

Available Models
Model No. Product Description
DS-1200-R10 9/8th Generation Intel® Core™ Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer
Package Checklist
√ DS-1200 Embedded System x 1 √ Power Terminal Block Connector x 1
√ Utility DVD Driver x1 √ Remote Power On/Off Terminal Block Connector x 1
√ Heat Sink Pack x 1 √ Remote Power Reset Terminal Block Connector x 1
√ Screw Pack x 1 √ Fan Terminal Block Connector x 1
√ Wall Mount Kit x1 √ DVI-I to VGA Adaptor
Optional Modules & Accessories​
Model No. Description
CFM-PoE03 CFM Module with PoE Function, Individual Port 25.5W for DS-1200 Series
CFM-IGN101 CFM Module with Power Ignition Sensing Function, 12V/24V Selectable for DS-1200/ DS-1100/ P1101 Series
CMI-LAN01-R12/UB1012 CMI Module with 4x Intel I210-AT GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout for DS-1200 Series

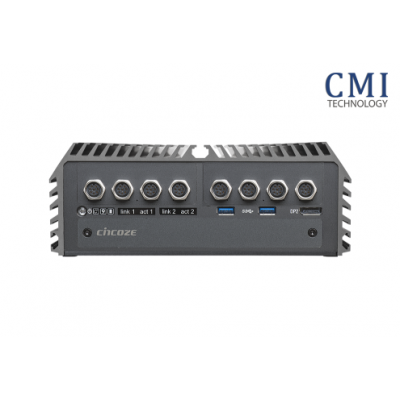

CMI-M12LAN01-R12/UB1010 CMI Module with M12 Connector, 4x Intel GbE LAN / 1x Universal Bracket with 4x M12 Cutout for DS-1200 Series
CMI-DIO02/UB1018 CMI Module with 16DIO (8in 8out) / 1x Universal Bracket with DIO Cutout for DS-1200 Series
CMI-COM02/UB1004 CMI Module with 4x RS232/422/485 Ports (Support 5V/12V) / 1x Universal Bracket with 4x DB9 Cutout for DS-1200 Series
CMI-ICOM01/UB1004 CMI Module with 4x Isolated RS232/422/485 Ports (Support 5V/12V) / 1x Universal Bracket with 4x DB9 Cutout for DS-1200 Series
MEC-COM-M212-DB9/UB0303 Mini-PCIe Module with 2x RS-232 Ports, 1x Standard DB9 Cable / 2x Universal Bracket each with 1x DB9 Cutout for DS / P1000 Series
MEC-USB-M102-15/UB0314 Mini-PCIe Module with 2x USB 3.0 Ports, 1x 15cm cable / 1xUniversal Bracket with 2x USB Cutout for DS Series
MEC-LAN-M002-30/UB0311 Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout for DS Series
FAN-EX101 External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support smart fan
PAH01 Power Adapter Holder for GST120A24
PAH02 Power Adapter Holder for GST220A24
GST120A24-CIN Adapter AC/DC 24V 5A 120W, with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI
GST220A24-CIN Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI

Ürün Özellikleri

Model Name DS-1200
SYSTEM




Processor

9th Generation Intel® Coffee Lake-R S Series CPU:

  • Intel® Core™ i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W
  • Intel® Core™ i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W
  • Intel® Core™ i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W
  • Intel® Core™ i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W
  • Intel® Core™ i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W
  • Intel® Core™ i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W

8th Generation Intel® Coffee Lake S Series CPU:

  • Intel® Core™ i7-8700 6 Cores Up to 4.6 GHz – 12M Cache, TDP 65W
  • Intel® Core™ i5-8500 6 Cores Up to 4.1 GHz – 9M Cache, TDP 65W
  • Intel® Core™ i3-8100 4 Cores 3.6 GHz – 6M Cache, TDP 65W
  • Intel® Core™ i7-8700T 6 Cores Up to 4.0 GHz – 12M Cache, TDP 35W
  • Intel® Core™ i5-8500T 6 Cores Up to 3.5 GHz – 9M Cache, TDP 35W
  • Intel® Core™ i3-8100T 4 Cores 3.1 GHz – 6M Cache, TDP 35W
  • Intel® Pentium® G5400 2 Cores 3.7 GHz – 4M Cache, TDP 58W
  • Intel® Pentium® G5400T 2 Cores 3.1 GHz – 4M Cache, TDP 35W
  • Intel® Celeron® G4900 2 Cores 3.1 GHz – 2M Cache, TDP 54W
  • Intel® Celeron® G4900T 2 Cores 2.9 GHz – 2M Cache, TDP 35W
Chipset Intel Q370
Memory 2x DDR4-2400/2666 MHz SO-DIMM Sockets, Supports up to 64 GB (Un-buffered and Non-ECC Type)
Graphics -Integrated Intel® UHD Graphics 630: Core™ i7/i5/i3

-Integrated Intel® UHD Graphics 610: Pentium® /Celeron®

-Supports Triple Independent Display (1x DVI-I, 2x DisplayPort)

Audio Realtek® ALC888, High Definition Audio
BIOS AMI 32MB SPI BIOS

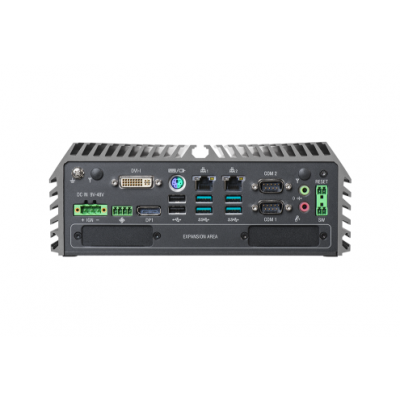

I/O Interface
DVI 1x DVI-I (DVI-D: 1920 x 1200 @60Hz / VGA: 1920 x 1080 @60Hz)
DP 1x DP connector, Up to 3840 x 2160
DP/HDMI 2x DisplayPort (DisplayPort: 4096 x 2304 @60Hz)
LAN 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45

– GbE1: Intel® I210-IT

– GbE2: Intel® I219-LM

Optional CMI Module

– 4x RJ45 GbE LAN Module

– 4x M12 GbE LAN Module

PoE+ Optional CMI & CFM Module

– 4x PoE+, Individual port 25.5W, RJ45 Port

– 4x PoE+, Individual port 25.5W, M12 Port

Serial Port 2x RS-232/422/485, DB9

Optional CMI Module

– 4x Isolated COM Module

– 4x COM Module

* Supports RS-232/422/485 with Auto Flow Control, 5V/12V, DB9

USB 2x USB 3.1 Gen2 (Type A)

4x USB 3.0 (Type A)

2x USB 2.0 (Type A)

PS/2 Port 1x PS/2, 6-pin mini-DIN Female Connector
Optical Isolated DIO Optional CMI Module

– 16x Optical Isolated DIO Module (8 in/8 out)

Line-Out 1x Line-Out, Phone Jack 3.5mm
Mic-In 1x Mic-In, Phone Jack 3.5mm
Power Button 1x ATX Power On/Off Button
AT/ATX Switch 1x AT/ATX Mode Switch
Clear CMOS Switch 1x Clear CMOS Switch
Remote Power On/Off Connector 1x Remote Power On/Off Connector, 2-pin Terminal Block
Remote Reset Connector 1x Remote Reset Connector, 2-pin Terminal Block
External FAN Connector 1x External FAN Connector, 4-pin Terminal Block
Storage
M.2 1x M.2 Key M 2280 Socket, Supports PCIe x4 NVMe SSD or SATA SSD (Gen3)


SSD/HDD

• 2x 2.5″ SATA HDD/SSD bay (Gen3), 1x Internal, 1x Front Accessable

• Supports RAID 0/1

mSATA 3x mSATA (Shared by Mini-PCIe Socket) (Gen2)
Expansion
PCI/ PCIe
CFM (Control Function Module) Interface 1x CFM Interface for CFM Modules
CMI (Combine Multiple I/O) Interface 2x CMI Interface for CMI Modules
Mini PCI Express 3x Full-size Mini PCIe

Supports Wireless &  I/O Expansion

Universal I/O Bracket 2x Universal I/O Bracket
SIM Socket 1x SIM Socket
Antenna Holes 2x Antenna Holes
Other
Instant Reboot Support 0.2sec
Power Ignition Sensing Optional Module

-CFM with Delay Time Management and Selectable 12V/24V, Dip Switch

Super Cap Super Cap integrated for CMOS Battery Maintenance-free
Watchdog Timer Software Programmable Supports 1~255 sec. System Reset
Power Requirement


Power Type

AT/ATX
Power Input Voltage 9~48VDC
Connector 3-pin Terminal Block
Power Adapter Optional AC/DC Adapter

  • AC/DC 24V/5A, 120W
  • AC/DC 24V/9.2A, 220W
Physical
Dimension (WxDxH) 227 x 261 x 88 mm
Weight Information 4.98 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall
Unibody Design Yes
Fanless Design Yes
Jumper-less Design Yes
Protection
Reverse Power Input Protection Yes
Over Voltage Protection 58V
Over Current Protection 15A
ESD Protection +/-15kV(Air), +/-8kV(Contact)
Surge 3.84 kV (impedance 12 ohm 1.2/50us waveform)
Operating System
Windows -Windows 10

-Windows 8.1

-Windows 7

Linux -Kernel 4.4
Environment




Operating Temperature

-35W TDP Processor: -40°C to 70°C

-51~65W TDP Processor: -40°C to 45°C

* PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)

* With extended temperature peripherals; Ambient with air flow

* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14

Storage Temperature -40°C to 85°C
Relative Humidity 40°C @ 95% RH (non-Condensing)
Shock Operating, 50 Grms, Half-sine 11 ms Duration

(w/ SSD, according to IEC60068-2-27)

Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes

(w/ SSD, according to IEC60068-2-64)

EMC CE,  FCC Class A
Railway EN50155, EN50121-3-2
