DS-1400

Intel® 13/12th Gen Raptor Lake-S/Alder Lake-S CoreTM i9/i7/i5/i3 Processors

DS-1400 Series

13/12th Generation Intel Core Series Processors, High Performance and PCIe Expandable Rugged Embedded Computer, Supports up to 2x PCI/PCIe Expansion Slot
PRODUCTS FEATURES
  • Intel® 13/12th Gen Raptor Lake-S/Alder Lake-S Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
  • 2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHz, 64GB
  • 2x GbE LAN and optional 2x 10GbE LAN
  • 2x 2.5″ SATA storage, 3x mSATA sockets, 1x M.2 key M for NVMe SSD
  • Up to 2x PCI/PCIe expansion slots
  • Optional CMI modules for I/O expansion
  • Optional CFM modules for ignition sensing & PoE
  • Wide operating temperature -40°C to 70°C
  • MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only)
  • Safety Standard: UL, cUL, CB, IEC, EN 62368-1
  • Support Intel® OpenVINO™ Dev Kit
  • Intel® ESDQ (Edge Software Device Qualification) Certified: the Edge Insights for AMR software package
Destekleyen İşlemciler
  • DS-1400
  • DS-1400
  • DS-1400
  • DS-1400
  • DS-1400
  • DS-1400
  • DS-1400
DS-1400
DS-1400
DS-1400
DS-1400
DS-1400
DS-1400
DS-1400
DS-1400
DS-1400
DS-1400
Teklif Al
PDF
1) Modüler Panel Bilgisayarlar

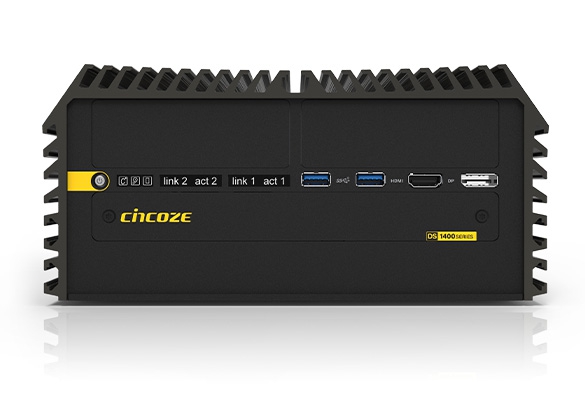

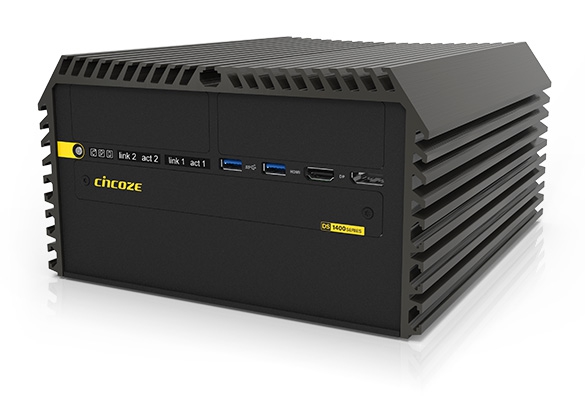

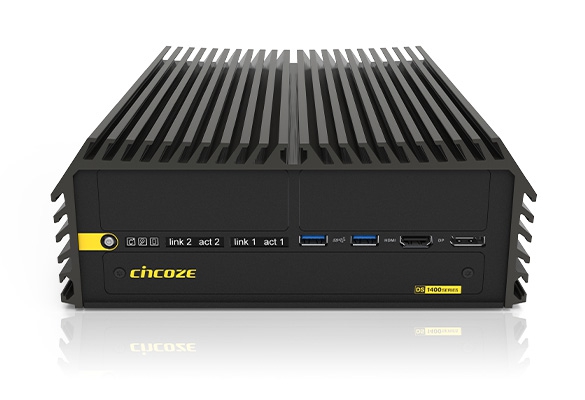

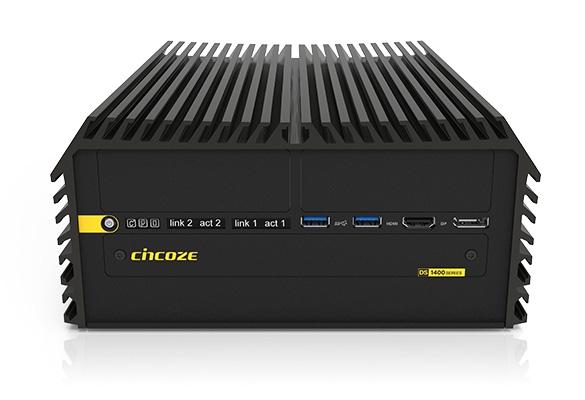

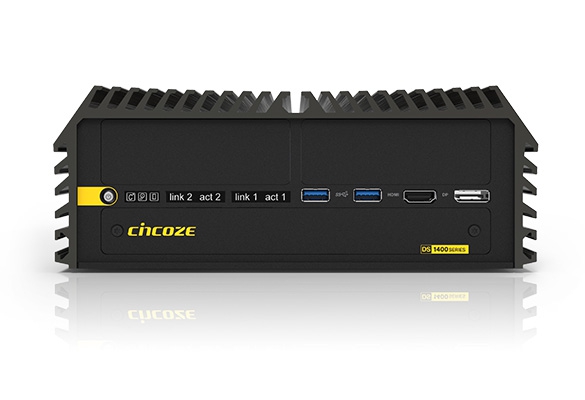

DS-1400

The DS-1400 Series is high-performance, expandable, and rugged embedded computer, boasting outstanding performance as well as rich industrial I/O interfaces and robust functionalities. To meet various application needs, it has dual PCI/PCIe expansion capability and it can also flexibly expand the required I/O and specific functions through Cincoze’s unique CMI, CFM, and MEC modules. Moreover, the DS-1400 Series has passed multiple international certifications, ensuring stable and reliable performance in diverse harsh environments. It is an ideal choice for manufacturing and railway applications.

DS-1400
DS-1400
DS-1400
DS-1400
DS-1400
DS-1400
DS-1400
Teklif Al
PDF
Available Models

Available Models

Model No.

Description

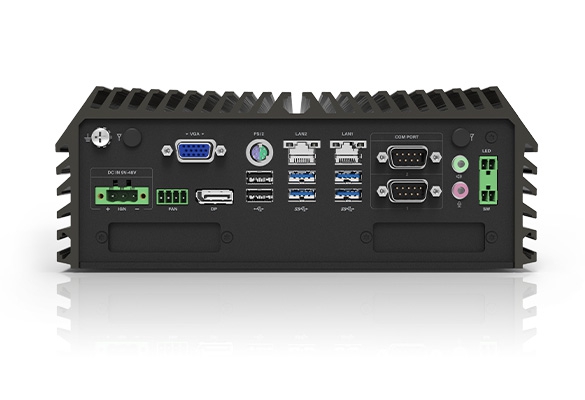

DS-1400-R10

13/12th Generation Intel Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer

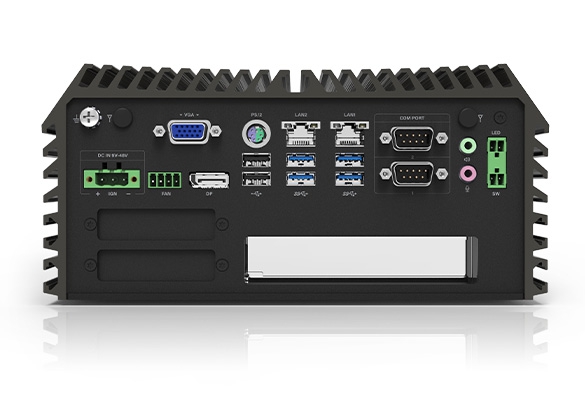

DS-1401-R10

13/12th Generation Intel Core Series Processors, High Performance and PCIe Expandable Rugged Embedded Computer with 1x PCI/PCIe Expansion Slot

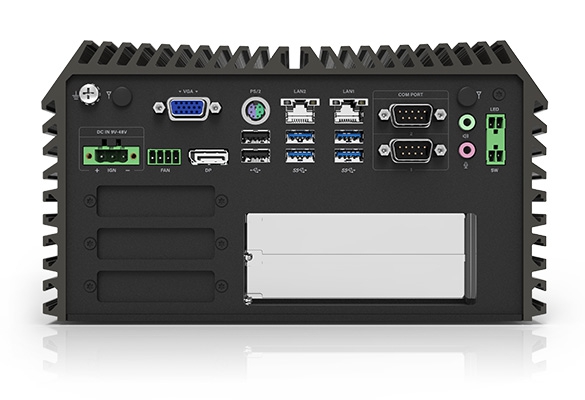

DS-1402-R10

13/12th Generation Intel Core Series Processors, High Performance and PCIe Expandable Rugged Embedded Computer with 2x PCI/PCIe Expansion Slot
Package Checklist

• DS-1400 Series Embedded System x1

• Wall Mounting Kit x 1

• Power Terminal Block Connector x 1

• Fan Terminal Block Connector x 1

• Heatsink Pack x1

• Screw Pack x1
• Remote Function Terminal Block Connector x 2

Optional Modules and Accessories

Model No.

Description

CMI-LAN01-R12

CMI Module with 4x RJ45 Intel I210 GbE LAN Ports

CMI-M12LAN01-R12

CMI Module with 4x M12 Intel I210 GbE LAN Ports

CMI-XM12LAN01-R10

CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports

CMI-10GLAN03-R10

CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port

CMI-COM02

CMI Module with 4x RS232/422/485 Serial Ports

CMI-ICOM01

CMI Module with 4x Electrical Isolated RS-232 Serial Ports

CMI-DIO02

CMI Module with 16x Optical Isolated DIO (8 in/8 out)

MEC-LAN-M102-30

Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable

MEC-USB-M102-30

Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable

MEC-COM-M212-DB9

Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Standard DB9 Cable

UB1004

Universal Bracket with 4x DB9 Cutout

UB1010

Universal Bracket with 4x M12 Cutout

UB1012

Universal Bracket with 4x RJ45 Cutout

UB1018

Universal Bracket with DIO Cutout

UB1028

Universal Bracket with 2x RJ45 Cutout

UB1030-R10

Universal Bracket with 4x M12 X-Coded Cutout

UB0303

2x Universal Bracket each with 1x DB9 Cutout

UB0311

Universal Bracket with 2x RJ45 Cutout

UB0314

Universal Bracket with 2x USB Cutout

CFM-PoE03

CFM Module with PoE Control Function, Individual Port 25.5W
1) Modüler Panel Bilgisayarlar

DS-1400

Daha Fazla
1) Modüler Panel Bilgisayarlar

DS-1400

Intel® 13/12th Gen Raptor Lake-S/Alder Lake-S CoreTM i9/i7/i5/i3 Processors

Ürün Özellikleri

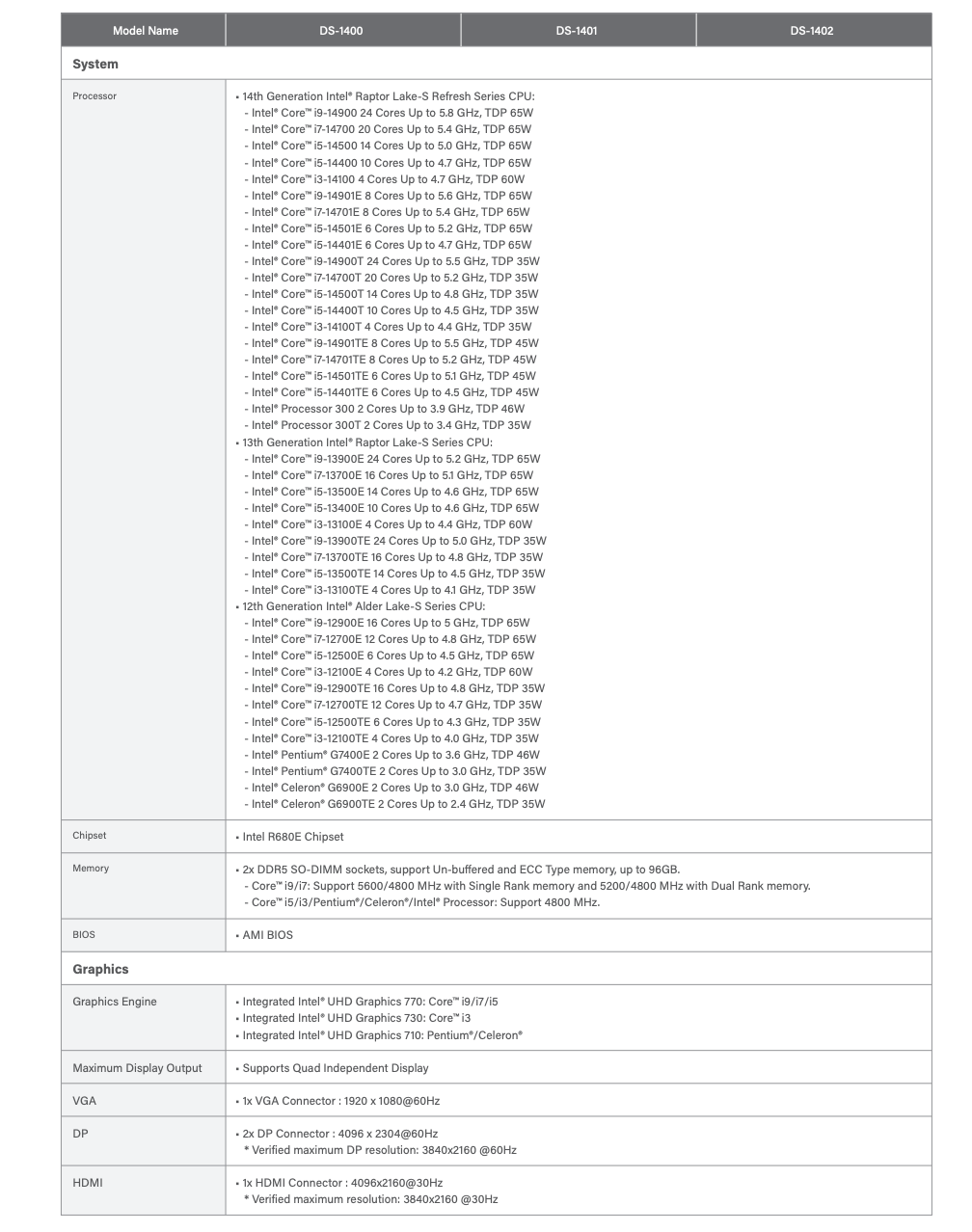

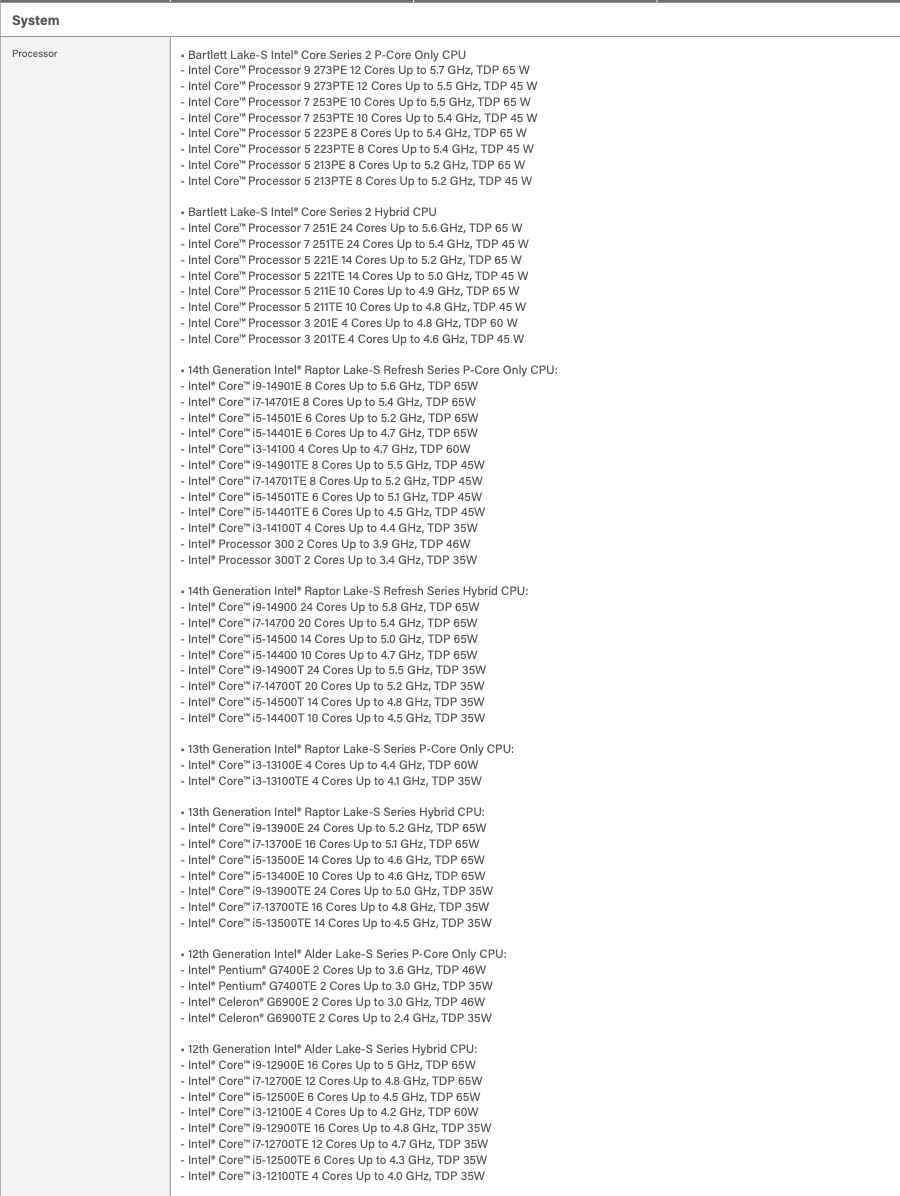

SPECIFICATION
Model Name DS-1400 DS-1401 DS-1402
System Processor • 13th Generation Intel® Raptor Lake-S Series CPU:
– Intel® Core™ i9-13900E 24 Cores Up to 5.2 GHz, TDP 65W
– Intel® Core™ i7-13700E 16 Cores Up to 5.1 GHz, TDP 65W
– Intel® Core™ i5-13500E 14 Cores Up to 4.6 GHz, TDP 65W
– Intel® Core™ i5-13400E 10 Cores Up to 4.6 Ghz, TDP 65W
– Intel® Core™ i3-13100E 4 Cores Up to 4.4 GHz, TDP 60W
– Intel® Core™ i9-13900TE 24 Cores Up to 5.0 GHz, TDP 35W
– Intel® Core™ i7-13700TE 16 Cores Up to 4.8 GHz, TDP 35W
– Intel® Core™ i5-13500TE 14 Cores Up to 4.5 GHz, TDP 35W
– Intel® Core™ i3-13100TE 4 Cores Up to 4.1 GHz, TDP 35W• 12th Generation Intel® Alder Lake-S Series CPU:
– Intel® Core™ i9-12900E 16 Cores Up to 5 GHz, TDP 65W
– Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W
– Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W
– Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W
– Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W
– Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W
– Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W
– Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W
– Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W
– Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W
– Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W
– Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W
Chipset • Intel R680E Chipset
Memory • 2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64GB
BIOS • AMI BIOS
Graphics Graphics Engine • Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5
• Integrated Intel® UHD Graphics 730: Core™ i3
• Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
Maximum Display Output • Supports Quad Independent Display
VGA • 1x VGA Connector : 1920 x 1080 @ 60Hz
DP • 2x DP Connector : 4096 x 2304 @ 60Hz
* Verified maximum DP resolution: 3840×2160 @ 60Hz
HDMI • 1x HDMI Connector : 4096×2160 @ 30Hz
* Verified maximum resolution: 3840×2160 @ 30Hz
Audio Audio Codec • Realtek® ALC888, High Definition Audio
Line-out • 1 x Line-out, Phone Jack 3.5mm
Mic-in • 1 x Mic-in, Phone Jack 3.5mm
I/O LAN • 2 x GbE LAN, RJ45
– GbE1: Intel® I219
– GbE2: Intel® I210
COM • 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB • 2 x USB 3.2 Gen2x1 (10Gbps), Type A
• 4 x USB 3.2 Gen1x1 (5Gbps), Type A
• 2 x USB 2.0 (480Mbps), Type A
PS/2 • 1 x PS/2, 6 Pin Mini-DIN Female Connector
Storage SSD/HDD • 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 )
• 1x 2.5” Internal SATA HDD/SSD Bay ( SATA 3.0 )
mSATA • 3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket )
M.2 SSD • 1x M.2 Key M Type 2280 Socket, Support PCIe Gen3 x4 NVMe SSD or SATA SSD ( SATA 3.0 )
RAID • Support RAID 0/1/5/10
Expansion PCI Express • 1 x PCI/PCIe Expansion Slot with Optional Riser Card
* Supports maximum dimensions of add-on card (H x L) : 111 x 235 mm		 • 2 x PCI/PCIe Expansion Slot with Optional Riser Card
* Supports maximum dimensions of add-on card (H x L) : 111 x 235 mm
Mini PCI Express • 3 x Full-size Mini-PCIe Socket
SIM Socket • 2 x SIM Socket
CMI (Combined Multiple I/O) Interface • 2 x High Speed CMI Interface for optional CMI Module Expansion
• 2 x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Interface • 1 x CFM IGN Interface for optional CFM-IGN Module Expansion
Other Function External FAN Connector • 1 x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
Power Ignition Sensing • Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
Clear CMOS Switch • 1 x Clear CMOS Switch
Reset Button • 1 x Reset Button
Instant Reboot • Support 0.2sec Instant Reboot Technology
Watchdog Timer • Software Programmable Supports 256 Levels System Reset
Power Power Button • 1 x ATX Power On/Off Button
Power Mode Switch • 1 x AT/ATX Mode Switch
Power Input • 9 – 48VDC, 3-pin Terminal Block
Remote Power On/Off • 1 x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED • 1 x Remote Power LED, 2-pin Terminal Block
Max. Power Consumption • 35W CPU
– OS Idle Mode: 92.52W
– Full Loading: 206.93W
• 65W CPU
– OS Idle Mode: 105.70W
– Full Loading: 250.56W
Inrush Current (Peak) • 35W CPU: 6.283 A@24V
• 65W CPU: 6.655 A@24V
Physical Dimension ( W x D x H ) • 227 x 261 x 88 mm • 227 x 261 x 108 mm • 227 x 261 x 128 mm
Weight Information • 4.5 KG • 5.02 KG • 5.44 KG
Mechanical Construction • Extruded Aluminum with Heavy Duty Metal
Mounting • Wall
Physical Design • Fanless Design
• Cableless Design
• Jumper-less Design
• Unibody Design
Reliability & Protection Reverse Power Input Protection • Yes
Over Voltage Protection • Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection • 15A
CMOS Battery Backup • SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF • 371,274 Hours
– Database: Telcordia SR-332 Issue 3, Method 1, Case 3
Operating System Windows • Windows®11, Windows®10
Linux • Ubuntu 22.04
Environment Operating Temperature • 35W TDP Processor: -40°C to 70°C
• 65W TDP Processor: -40°C to 50°C (With External Fan Kit)
– With extended temperature peripherals; Ambient with air flow
– According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature • -40°C to 85°C
Relative Humidity • 95%RH @ 70°C (non-Condensing)
Shock • MIL-STD-810G
Vibration • MIL-STD-810G
EMC • CE, UKCA, FCC, ICES-003 Class A
• EN 50155 (EN 50121-3-2 Only)
EMI • CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Safety • UL, cUL, CB, IEC, EN 62368-1
