1) Modüler Panel Bilgisayarlar

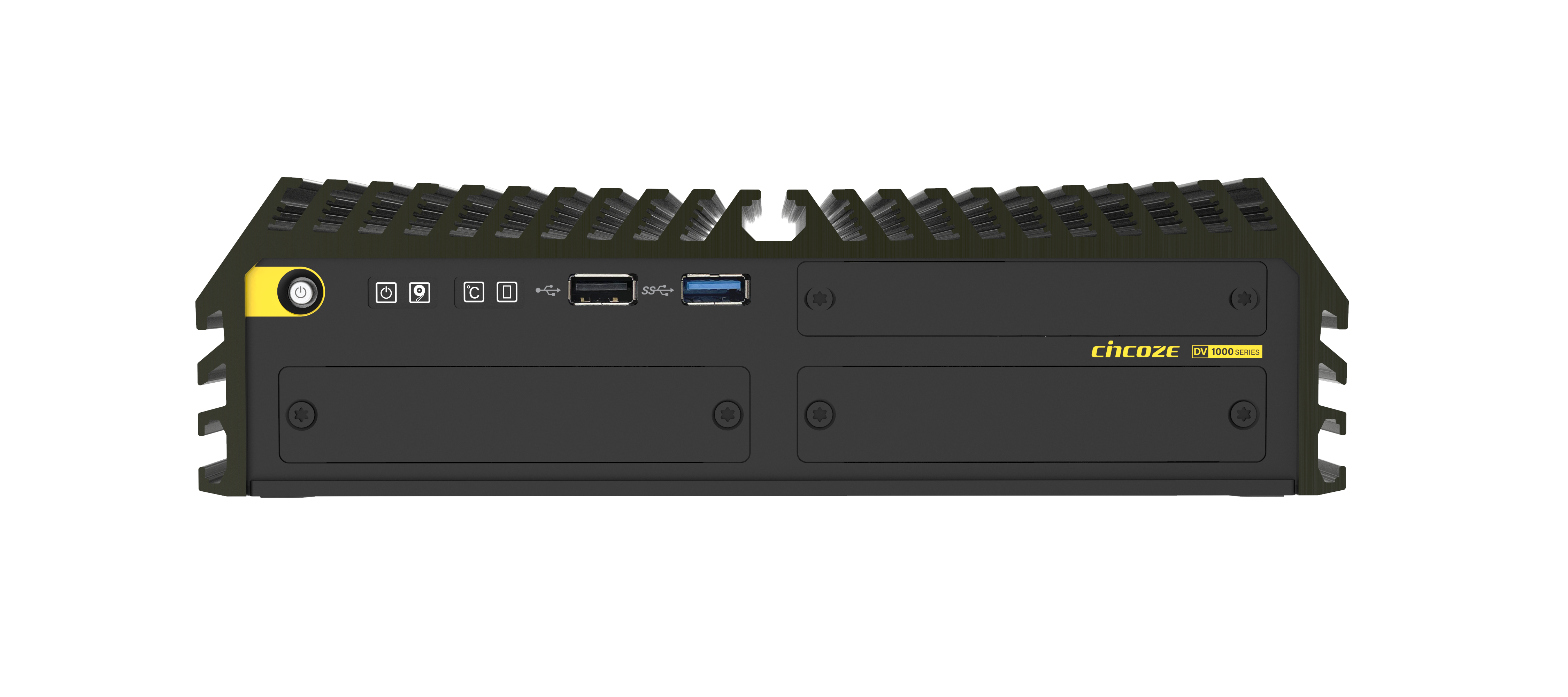

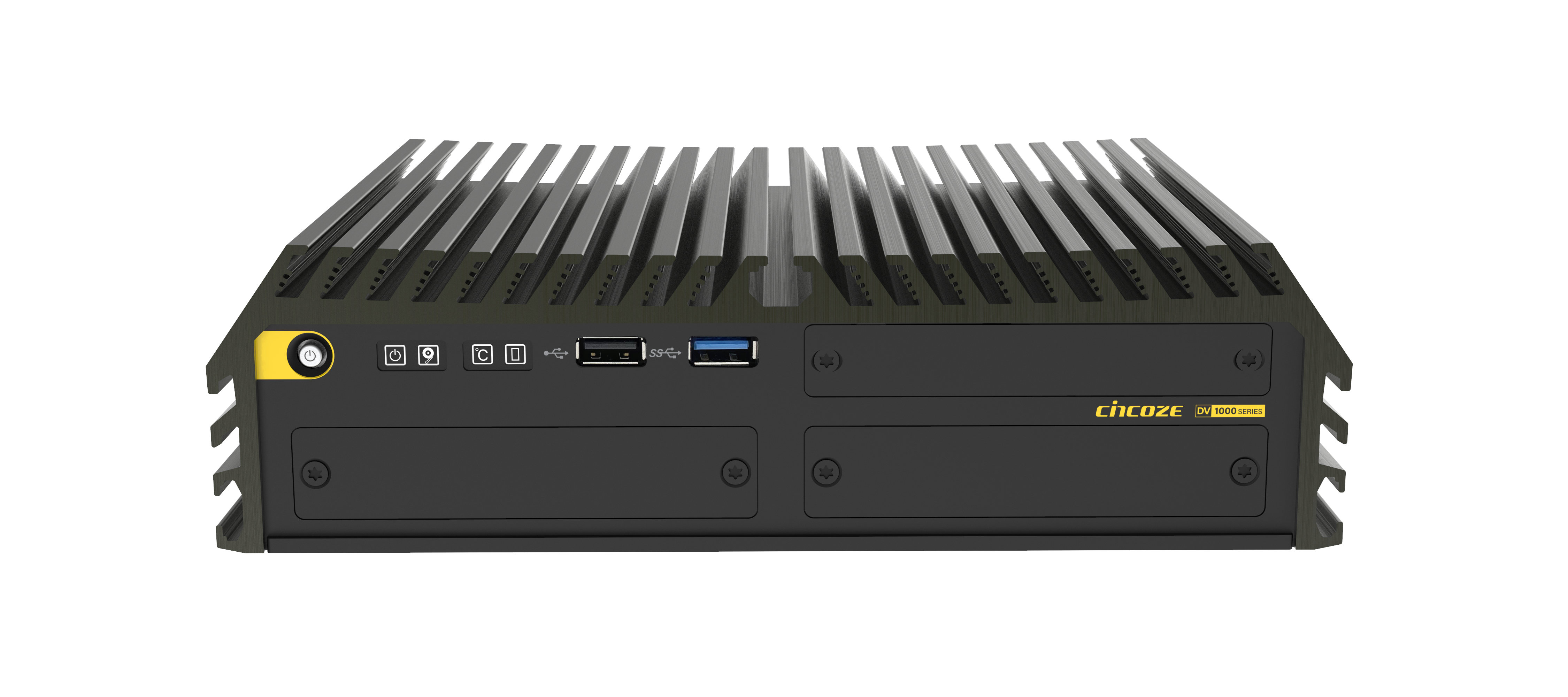

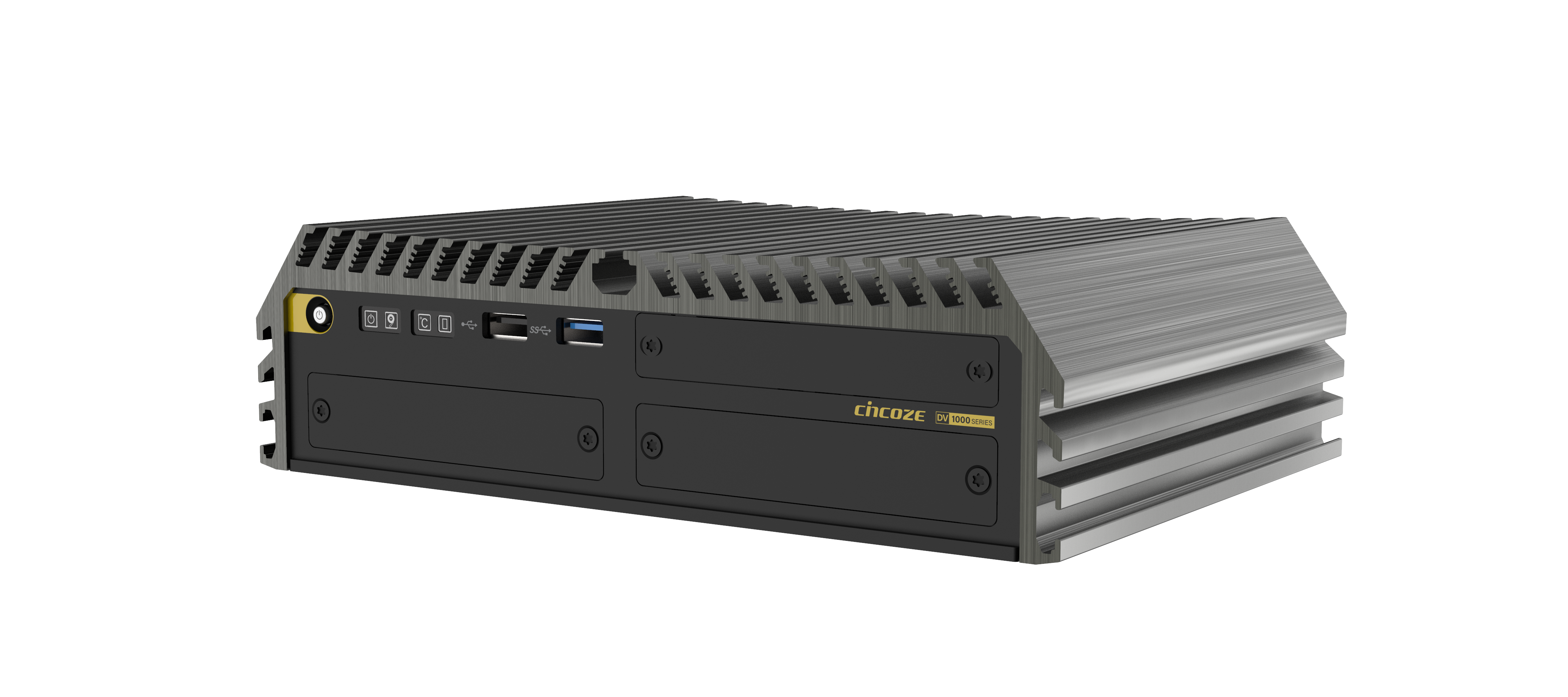

DV-1000

9/8th Gen. Intel® Core™ Series High Performance and Essential Rugged Embedded Computer

  • Supports 9/8th Gen Intel® Core™ i7/i5/i3 or Pentium®/Celeron® processors (up to 65W)
  • Compact size (224 x 162 x 64 mm)
  • 1 x M.2 2280 key M socket, auto-detection for NVMe/SATA SSD
  • 1 x M.2 2230 key E for Intel® CNVi/wireless module
  • 2 x Full-size Mini PCIe sockets for module expansion
  • Optional CMI/MEC modules for I/O expansion
  • Wide operating temperature: -40°C to 70°C
  • Military standard (MIL-STD-810G) shock & vibration proof
  • Railway EMC standard EN50155 (EN 50121-3-2 only) certified
Destekleyen İşlemciler
  • DV-1000
  • DV-1000
ORDERING INFORMATION
Available Models
Model No. Product Description
DV-1000-R10 9/8th Gen. Intel® Core™ Series High Performance and Basic Rugged Embedded Computer
Package Checklist
√ DV-1000 Embedded System x1 √ Wall Mounting Kit x1
√ CPU Thermal Pad x1 √ Power Terminal Block Connector x 1
√ Utility DVD Driver x 1 √ Remote Function Terminal Block Connector x 2
√ Screw Pack x 1 √ External Fan Terminal Block Connector x 1
Optional Modules and Accessories
Model No. Description
CMI-DP01-R10 CMI Module with 1x DisplayPort
CMI-HD03-R10 CMI Module with 1x HDMI Port
CMI-COM06-R10 CMI Module with 2x RS232/422/485 Ports (Support 5V/12V)
CMI-DIO06-R10 CMI Module with 16DIO (8in 8out)
MEC-USB-M102-15 Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 15cm cable
MEC-LAN-M102-15 Mini-PCIe Module with 2x LAN Ports, 2x 15cm cable
UB1606-R10 Universal Bracket with DP Cutout
UB1608-R10 Universal Bracket with HDMI Cutout
UB1603-R10 Universal Bracket with 2x DB9 Cutout
UB1618-R10 Universal Bracket with DIO Cutout
UB1614-R10 Universal Bracket with 2x USB Cutout
UB1611-R10 Universal Bracket with 2x RJ45 Cutout
CFM-IGN04-R10 CFM Module with Power Ignition Sensing Function, 12V/24V Selectable
DINRAIL-R10 Diamond series DIN-RAIL Mount Kit
FAN-EX104 External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan
GST120A24-CIN Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
GST220A24-CIN Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI
1) Modüler Panel Bilgisayarlar

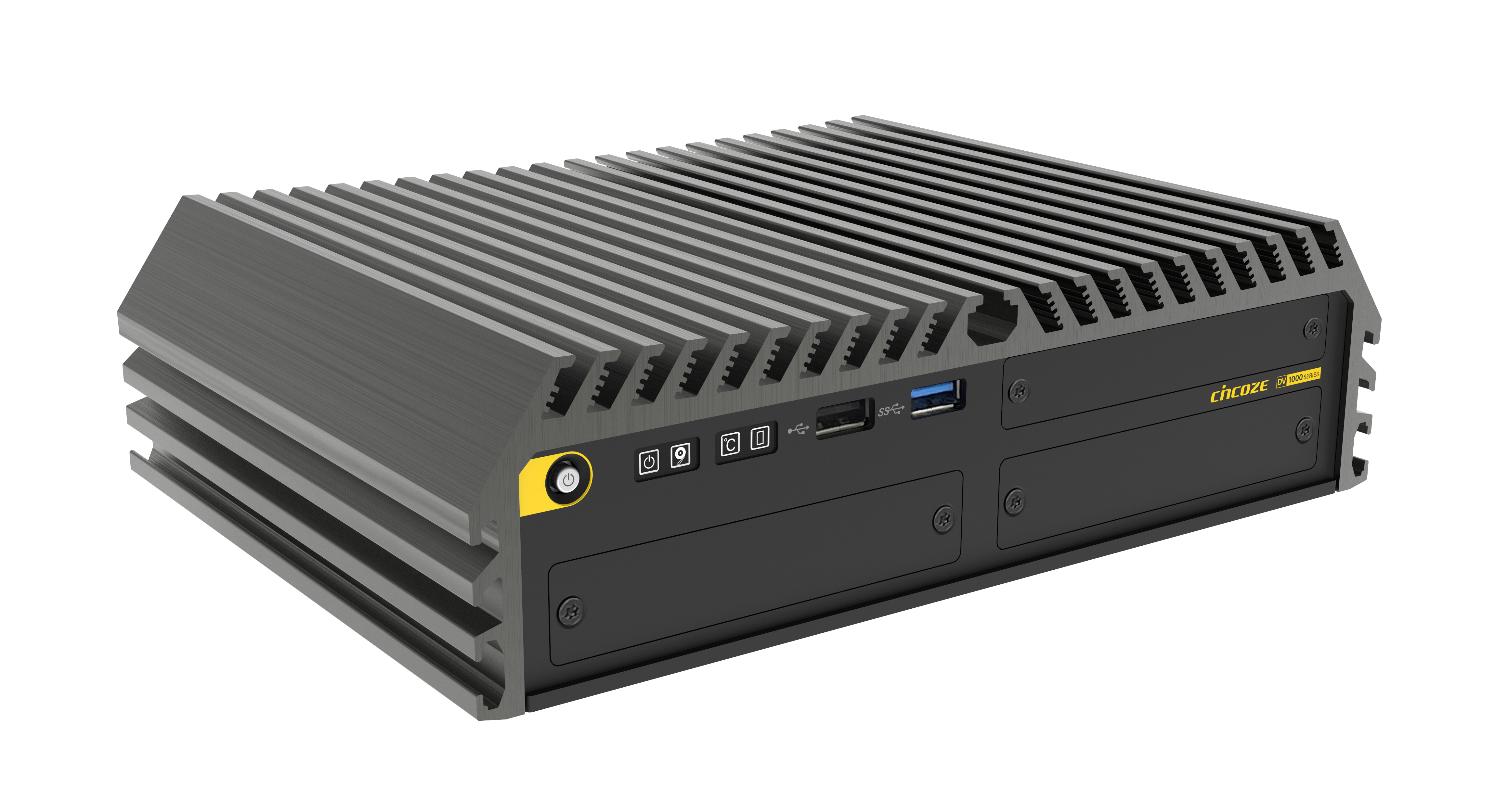

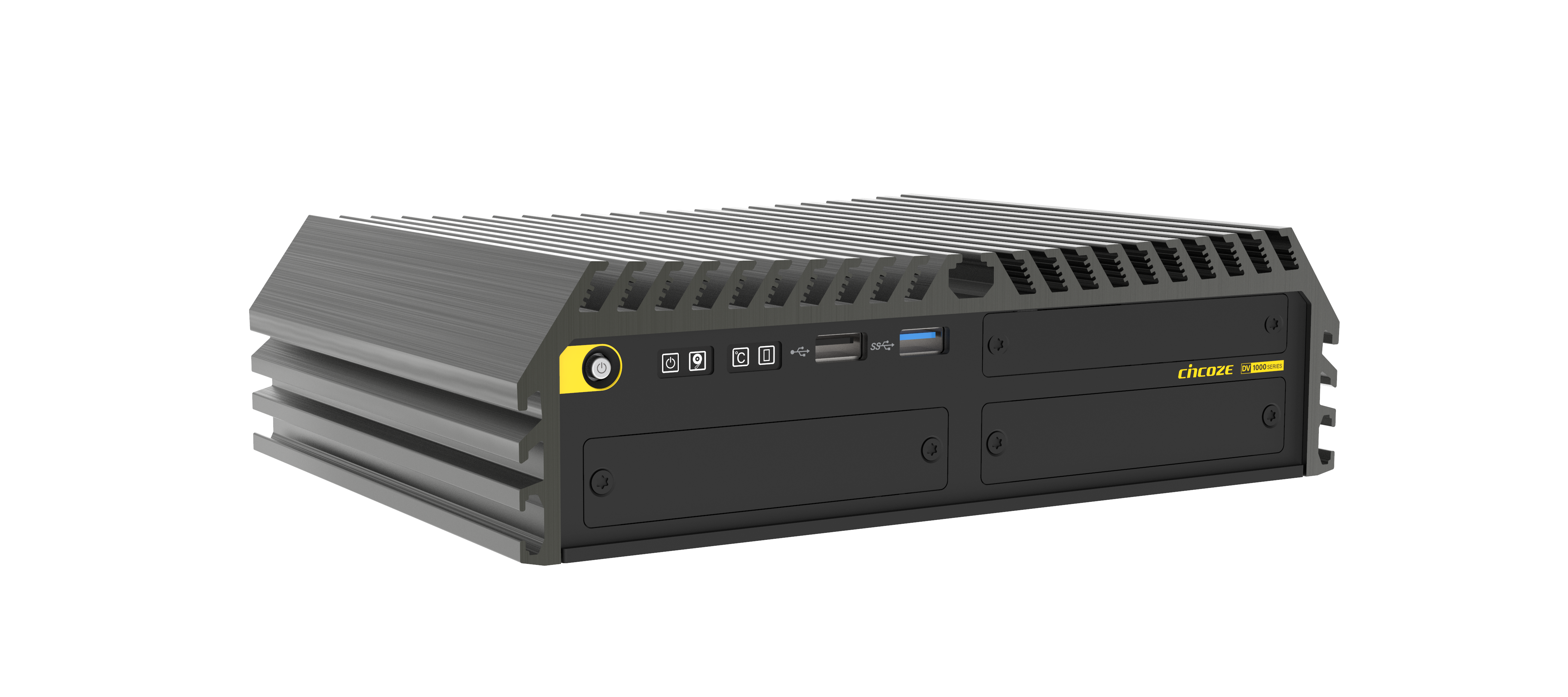

DV-1000

The DV-1000, with 9/8th Gen Intel® Core™ processor, is a fanless and rugged embedded computer optimized for edge computing applications. The high-performance DV-1000 processes data and makes real-time decisions at the edge, enabling enterprises to take immediate action on real-time data. The computer brings high-performance computing and industrial durability together in a compact footprint embedded computer, providing reliable long-time operation for mission-critical and space-limited applications in machine vision, manufacturing, railway infotainment, and smart city applications.

Product Category >>>> Rugged Embedded Fanless PC


Strong Computing Power

Strong
Computing Power

——

The DV-1000 features a 9/8th Generation Intel® Core™ i7/i5/i3 (Coffee Lake-R S series) processor and Intel® H310 chipset, supporting up to 32 GB of DDR4 2666 MHz memory. The DV-1000 provides plenty of power for heavy multitasking workloads and applications.


Compact Size

——

The DV-1000 packs its impressive computing power in a compact size computer with a footprint only about half the size of one sheet of A4 paper. This small size makes the DV-1000 easy to install anywhere you can imagine, especially in space-constrained industrial environments like a small cabinet in a factory.

Compact Size

Essential I/O and Connectivity

Essential I/O and
Connectivity

——

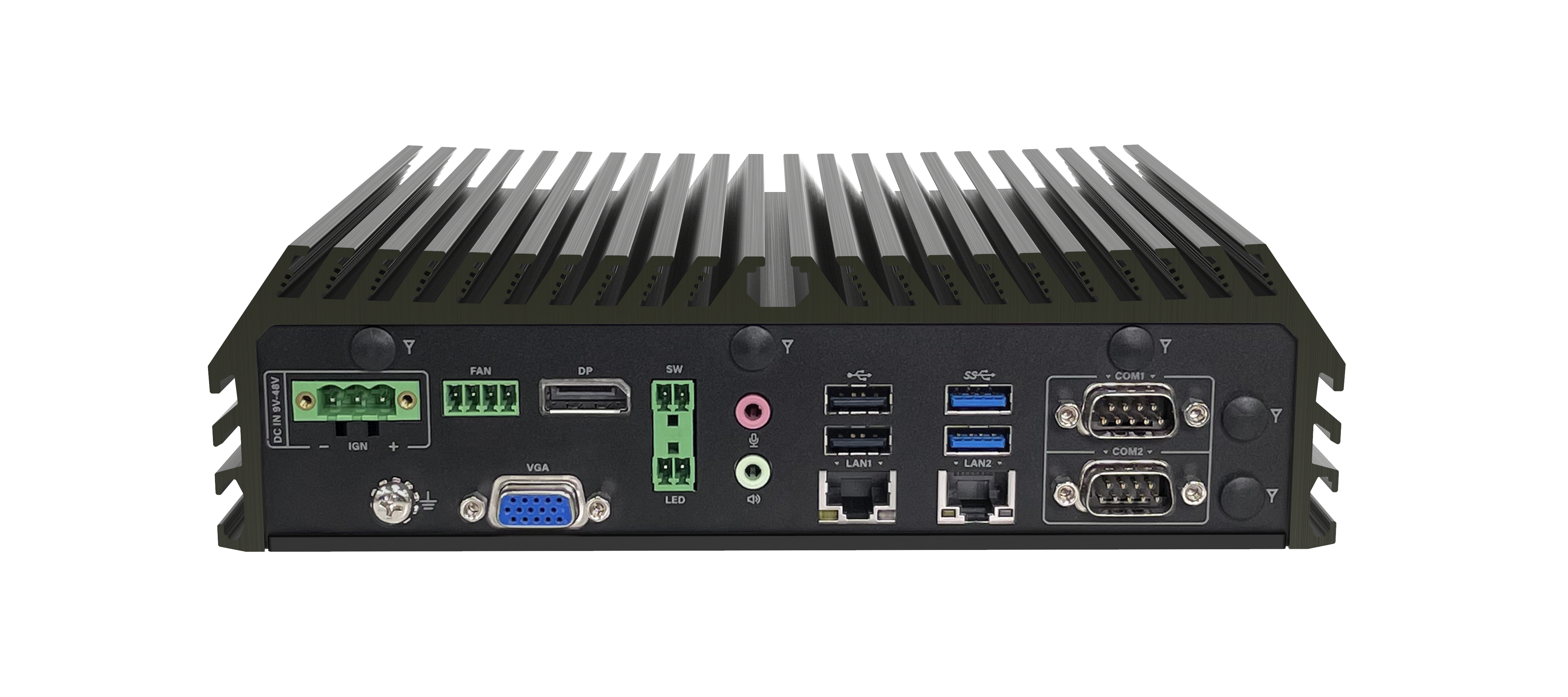

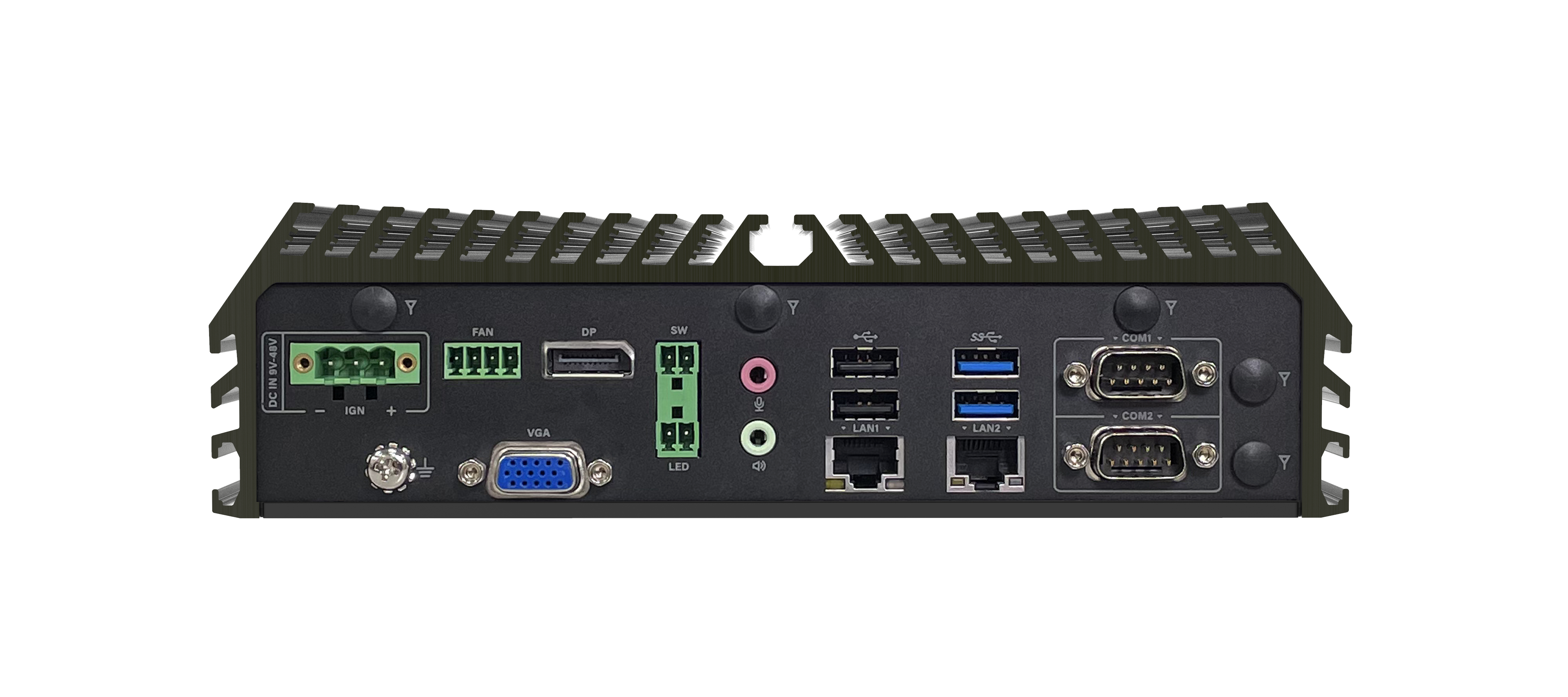

DV-1000 has the most frequently used I/O (LAN, USB, COM ports), analog and digital displays (VGA and DP), and storage options (SATA HDD/SSD, mSATA, or NVMe) sufficient for most industrial applications.


Expandable Extra I/O and
Functionality

——

For adding extra I/O or functions Cincoze offers proprietary Combined Multiple I/O (CMI) modules, Control Function Module (CFM), and also Mini-PCIe Expansion Card Module (MEC). The CMI modules support HDMI, DisplayPort, COM and DIO, MEC modules support GbE LAN and USB expansion, and CFM modules have IGN function.

Expandable Extra I/O and Functionality

Reliable Cooling and Wide Operating Temperature

Reliable Cooling and
Wide Operating Temperature

——

Even in a small form factor, the DV-1000 has an excellent thermal design enabling wide operating temperature from -40°C to 70°C with only passive cooling. An external fan is available for an active cooling solution for higher tempera-ture operations and to ensure continuous operation for space constraint cases or processing power requirements.


Industry Certifications

——

The DV-1000 has been tested to meet a range of industry standards, including MIL-STD-810G to ensure reliable operation under harsh shock and vibration, and EMC compliance EN50155 (EN 50121-3-2 only) for rolling stock deployments.

Industry Certifications

Ürün Özellikleri

Model Name DX-1000
System


Processor

9th Generation Intel® Coffee Lake-R S Series CPU:

  •  Intel® Xeon® E-2278GEL 8 Cores Up to 3.9 GHz, TDP 35W
  •  Intel® Core™ i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W
  •  Intel® Core™ i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W
  •  Intel® Core™ i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W
  •  Intel® Core™ i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W
  •  Intel® Core™ i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W
  •  Intel® Core™ i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W



8th Generation Intel® Coffee Lake S Series CPU:

  •  Intel® Xeon® E-2176G 6 Cores Up to 4.7 GHz – 12M Cache, TDP 80W
  •  Intel® Xeon® E-2124G 4 Cores Up to 4.5 GHz – 8M Cache, TDP 71W
  •  Intel® Core™ i7-8700 6 Cores Up to 4.6 GHz – 12M Cache, TDP 65W
  •  Intel® Core™ i5-8500 6 Cores Up to 4.1 GHz – 9M Cache, TDP 65W
  •  Intel® Core™ i3-8100 4 Cores 3.6 GHz – 6M Cache, TDP 65W
  •  Intel® Core™ i7-8700T 6 Cores Up to 4.0 GHz – 12M Cache, TDP 35W
  •  Intel® Core™ i5-8500T 6 Cores Up to 3.5 GHz – 9M Cache, TDP 35W
  •  Intel® Core™ i3-8100T 4 Cores 3.1 GHz – 6M Cache, TDP 35W
  •  Intel® Pentium® G5400 2 Cores 3.7 GHz – 4M Cache, TDP 58W
  •  Intel® Pentium® G5400T 2 Cores 3.1 GHz – 4M Cache, TDP 35W
  •  Intel® Celeron® G4900 2 Cores 3.1 GHz – 2M Cache, TDP 54W
  •  Intel® Celeron® G4900T 2 Cores 2.9 GHz – 2M Cache, TDP 35W
Chipset Intel C246
Memory •  2x DDR4-2666/2400 MHz SO-DIMM Sockets

•  Support up to 64 GB (Un-buffered and Non-ECC type)

Graphics • Integrated Intel® UHD Graphics

(Xeon: UHD P630; i7/i5/i3: UHD 630; Pentium/Celeron: UHD 610)

• Supports Triple Independent Display (DVI-I/DisplayPort/HDMI)



Audio Realtek® ALC888, High Definition Audio
BIOS AMI 32 MB BIOS
I/O Interface


DVI

1x DVI-I Connector

(VGA: 1920 x1080 @ 60 Hz; DVI-D: 1920 x1200 @ 60 Hz)

DP 1x DisplayPort Connector (3840 x 2160 @30Hz)
HDMI 1x HDMI Connector (3840 x 2160 @30Hz)
LAN 2x GbE LAN (Support WoL, Teaming, Jumbo Frame, IEEE 1588v2 and PXE), RJ45

– GbE1: Intel® I219-LM

– GbE2: Intel® I210-IT

Optional Module

.4x 10/100/1000 Mbps, RJ45 Port

.4x 10/100/1000 Mbps, M12 Port

PoE+ Optional Module

.4x PoE+, Individual port 25.5W (with CMI-LAN01,  RJ45 Port)

.4x PoE+, Individual port 25.5W, (with CMI-M12LAN01, M12 Port)

Serial Port 4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9

Optional Module

.2x RS-232/422/485, DB9 Connector

USB 2x USB 3.1 (Type-A)

6x USB 3.0 (Type-A)

Optical Isolated DIO Optional Module

.16x Optical Isolated DIO(8DI, 8DO), 20 pin Terminal Block

Line-Out 1x Line-Out, Phone Jack 3.5mm
Mic-In 1x Mic-In, Phone Jack 3.5mm
Power Button 1x ATX Power On/Off Button
AT/ATX Switch 1x AT/ATX Mode Switch
Rest Button 1x Rest Button
Clear CMOS Switch 1x Clear CMOS Switch
Remote Power On/Off Connector 1x Remote Power On/Off Connector, 2-pin Terminal Block
External FAN Connector 1x External FAN Connector, 4-pin Terminal Block (support smart fan by BIOS)
Storage


SSD/HDD

2x SATA III (6Gbps) for 2.5” HDD/SSD
mSATA 3x mSATA (Shared by Mini-PCIe Socket) (Gen2)
RAID Support S/W RAID 0, 1, 5 & 10
Expansion
PCI/ PCIe
CFM (Control Function Module) Interface 1x CFM Interface for CFM Modules
CMI (Combine Multiple I/O) Interface 3x CMI Interface for CMI Modules
Mini PCI Express 3x Full-size Mini-PCIe Sockets
M.2 1x M.2 2230 Socket (Key E)
SIM Socket 1x SIM Socket
Antenna Holes 3x Antenna Holes
Other
Instant Reboot Support 0.2sec
Power Ignition Sensing Optional Module

  • CFM with Delay Time Management and Selectable 12V/24V, Dip Switch
Super Cap SuperCap Integrated for CMOS Battery-free Operation
Watchdog Timer Software Programmable Supports 1~255 sec. System Reset
Power Requirement


Power Type

AT/ATX
Power Input Voltage 9~48VDC
Connector 3-pin Terminal Block
Power Adapter Optional AC/DC Adapter

  • AC/DC 24V/5A, 120W
  • AC/DC 24V/9.2A, 220W
Physical


Dimension (WxDxH)

242 x 174 x 77 mm
Weight Information 3.6 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / VESA / DIN Rail / Side
Unibody Design Yes
Fanless Design Yes
Jumper-less Design Yes
Cable-less Design Yes
Protection
Reverse Power Input Protection Yes
Over Voltage Protection 58V
Over Current Protection 15A
ESD Protection +/-15kV(Air), +/-8kV(Contact)
Surge Protection 3.84 kV (impedance 12 ohm 1.2/50us waveform)
Operating System


Windows

  • Windows 10
  • Windows 8.1
  • Windows 7
Linux Support by project
Environment


Operating Temperature

35W TDP Processor: -40°C to 70°C

54~65W TDP Processor: -40°C to 45°C

71~80W TDP Processor: -40°C to 40°C

* PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)

* With extended temperature peripherals; Ambient with air flow

* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14

Storage Temperature -40°C to 85°C
Relative Humidity 40°C @ 95% RH (non-Condensing)
Shock Operating, 50 Grms, Half-sine 11 ms Duration

(w/ SSD, according to IEC60068-2-27)

Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes

(w/ SSD, according to IEC60068-2-64)

EMC CE,  FCC Class A
Safety LVD (EN60950-1)
Fire Protection EN45545-2
Railway EN50155, EN50121-3-2
In-Vehicle E-Mark (E13, No.10R-0514546)
MTBF Time:457,941 Hours

Database: Telcordia SR-332 Issue3, Method 1, Case 3
