1) Modüler Panel Bilgisayarlar

DV-1100

Intel® 13/12th Gen. Core™ i9/i7/i5/i3 Processors

DV-1100

13/12th Gen. Intel® Core™ Series High Performance and Basic Function Rugged Embedded Computer

PRODUCTS FEATURES
  • Intel® 13/12th Gen. Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
  • 1x M.2 Key M Type 2280 Socket for PCIe Gen 4×4 NVMe Storage
  • 1x M.2 Key E Type 2230 Socket for Wireless/Intel CNVi Module Expansion
  • 1x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion
  • 1x M.2 Key B Type 2242 Socket for Storage/Add-on Card Expansion
  • Optional CMI & CFM Modules for I/O Expansion & Power Ignition Sensing Function
  • Wide operating temperature -40°C to 70°C
  • Safety Standard: UL, cUL, CB, IEC, EN 62368-1
Destekleyen İşlemciler
  • DV-1100
  • DV-1100
  • DV-1100
  • DV-1100
  • DV-1100
  • DV-1100
  • DV-1100
1) Modüler Panel Bilgisayarlar

DV-1100

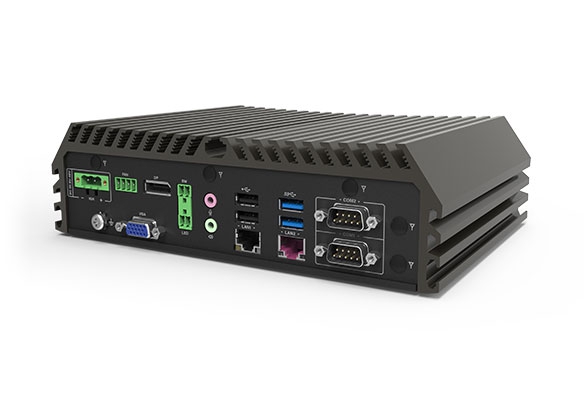

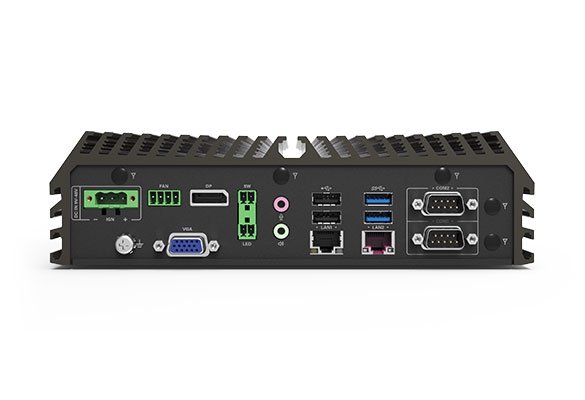

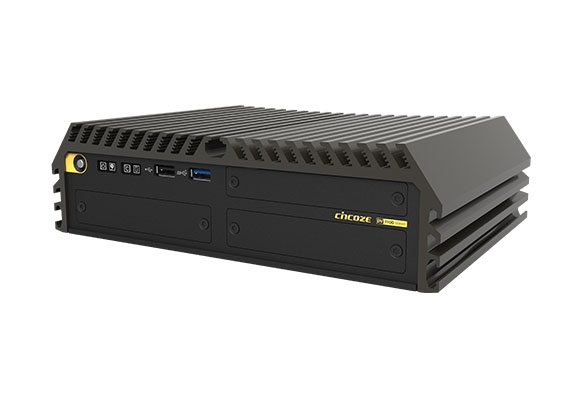

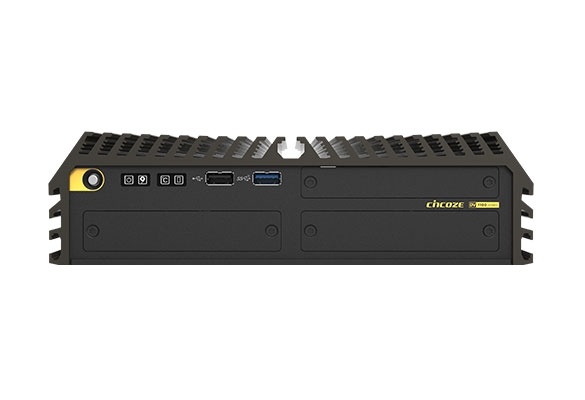

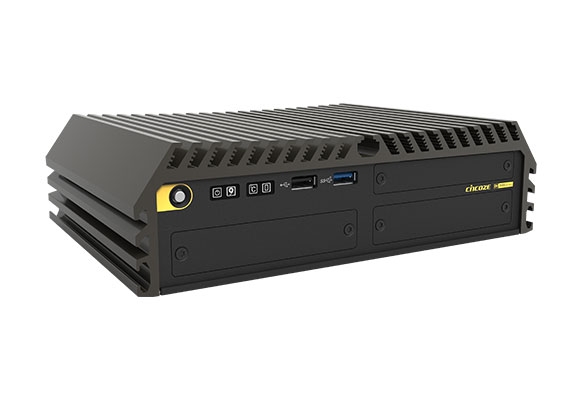

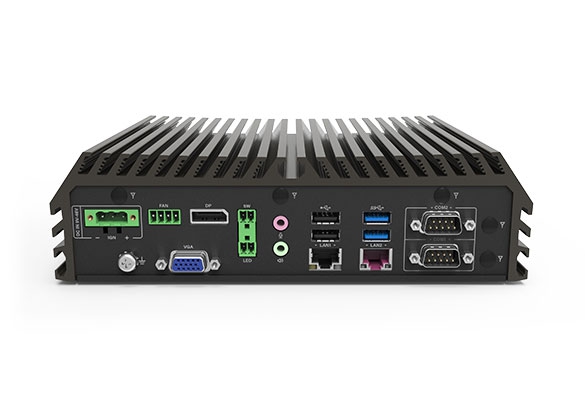

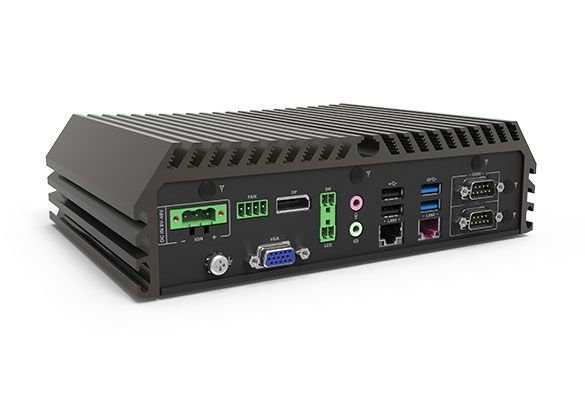

The DV-1100 is a compact, high-performance, embedded edge computer that supports 13th/12th generation Intel® processors. Its balance between high-performance computing needs and cost-eectiveness enables enterprises to quickly analyze and process edge data for better decision-making and improved production eiciency and accuracy. The DV-1100 is ideal for smart manufacturing, machine vision, railway computing, and space-constrained applications where stability and reliability are paramount.

Available Model
Model No. Description
DV-1100-R10 13/12th Gen. Intel® Core™ Series High Performance and Basic Function Rugged Embedded Computer
Package Checklist
DV-1100 Embedded Computer x1 Wall Mounting Kit x1
CPU Installation Kit x1 Power Terminal Block Connector x1
External Fan Terminal Block Connector x1 Remote Function Terminal Block Connector x 2
Screw Pack x1 M.2 Key B Type 3052 to Type 3042 Adapter Bracket x1
Optional Modules and Accessories
Model No. Description
CMI-DP01-R10 CMI Module with 1x DisplayPort
CMI-HD03-R10 CMI Module with 1x HDMI Port
CMI-COM06-R10 CMI Module with 2x RS232/422/485 Ports (Support 5V/12V)
CMI-DIO06-R10 CMI Module with 16DIO (8in/8out)
CFM-IGN04-R10 CFM Module with Power Ignition Sensing Function, 12V/24V Selectable
UB1603-R10 Universal Bracket with 2x DB9 Cutout
UB1606-R10 Universal Bracket with DP Cutout
UB1608-R10 Universal Bracket with HDMI Cutout
UB1618-R10 Universal Bracket with DIO Cutout
DINRAIL-R10 Diamond series DIN-RAIL Mount Kit
FAN-EX104 External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan
GST120A24-CIN Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
GST220A24-CIN Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI

Ürün Özellikleri

Model Name DV-1100
System

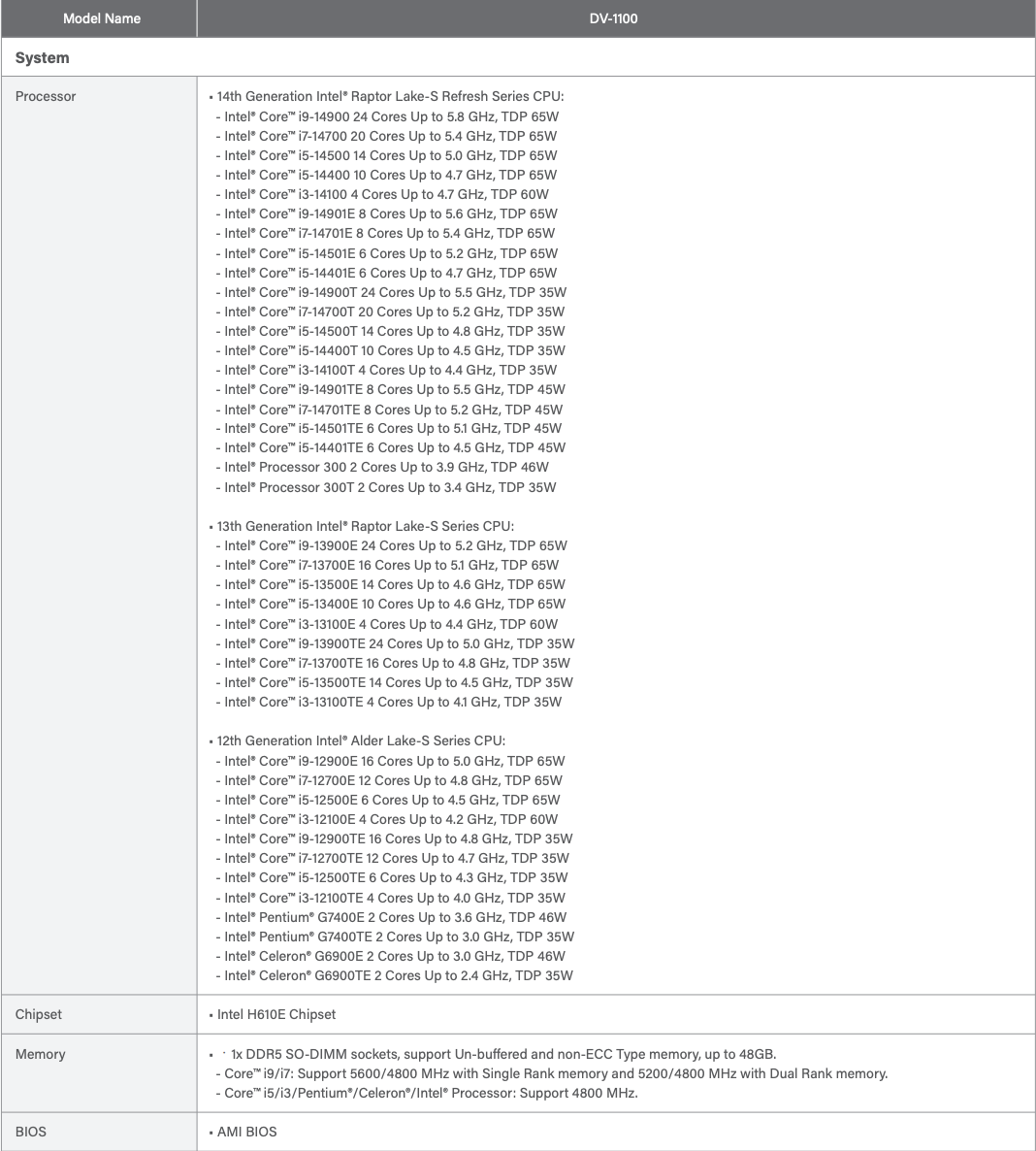

Processor

13th Generation Intel® Raptor Lake-S Series CPU:
• Intel® Core™ i9-13900E 24 Cores Up to 5.2 GHz, TDP 65W
• Intel® Core™ i7-13700E 16 Cores Up to 5.1 GHz, TDP 65W
• Intel® Core™ i5-13500E 14 Cores Up to 4.6 GHz, TDP 65W
• Intel® Core™ i5-13400E 10 Cores Up to 4.6 GHz, TDP 65W
• Intel® Core™ i3-13100E 4 Cores Up to 4.4 GHz, TDP 60W
• Intel® Core™ i9-13900TE 24 Cores Up to 5.0 GHz, TDP 35W
• Intel® Core™ i7-13700TE 16 Cores Up to 4.8 GHz, TDP 35W
• Intel® Core™ i5-13500TE 14 Cores Up to 4.5 GHz, TDP 35W
• Intel® Core™ i3-13100TE 4 Cores Up to 4.1 GHz, TDP 35W12th Generation Intel® Alder Lake-S Series CPU:
• Intel® Core™ i9-12900E 16 Cores Up to 5.0 GHz, TDP 65W
• Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W
• Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W
• Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W
• Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W
• Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W
• Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W
• Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W
• Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W
• Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W
• Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W
• Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W
Chipset • Intel H610E Chipset
Memory • 1x DDR5 4800MHz SO-DIMM Socket
Supports Un-buffered and non-ECC Type, Up to 32GB
BIOS • AMI BIOS
Graphics Graphics Engine • Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5
• Integrated Intel® UHD Graphics 730: Core™ i3
• Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
Maximum Display Output • Supports Triple Independent Display
DP • 1x DisplayPort Connector: 3840 x 2160 @60Hz
VGA • 1x VGA Connector: 1920 x 1200 @60Hz
CMI Display • 1x CMI Interface for Optional CMI-DP/CMI-HDMI Module Expansion
Audio Audio Codec • Realtek® ALC888, High Definition Audio
Line-out • 1 x Line-out, Phone Jack 3.5mm
Mic-in • 1 x Mic-in, Phone Jack 3.5mm
I/O LAN • 1x 2.5GbE LAN, RJ45
– Intel® I225
• 1x 1GbE LAN, RJ45
– Intel® I219
COM • 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB • 1x 10Gbps USB3.2 Gen 2×1, Type A
• 2x 5Gbps USB3.2 Gen 1×1, Type A
• 3x 480Mbps USB2.0, Type A
Storage SSD/HDD • 1x 2.5″ SATA HDD/SSD Bay (SATA 3.0)
M.2 SSD • 1x M.2 SSD Shared by M.2 Key M Type 2280 Socket, Support PCIe Gen 4×4 NVMe SSD or SATA 3.0 SSD
• 2x M.2 SSD Shared by M.2 Key B Socket, Support PCIe Gen 3×2 NVMe SSD or SATA 3.0 SSD
Expansion M.2 Key E Socket • 1x M.2 Key E Type 2230 Socket (PCIe Gen 3×2 / USB2.0), Support Wireless/Intel CNVi Module Expansion
M.2 Key B Socket • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3×2 / USB3.2 Gen2 x1 / USB2.0 / SATA), Support 5G/Storage/Add-on Card Expansion
• 1x M.2 Key B Type 2242 Socket (PCIe Gen 3×2 / USB2.0 / SATA ), Support Storage/Add-on Card Expansion
SIM Socket • 1x Front Accessible Dual Nano SIM Socket
CMI (Combined Multiple I/O) Interface • 1x CMI Interface for optional CMI-Display Module Expansion
• 2x CMI Interface for optional CMI-COM/DIO Module Expansion
CFM (Control Function Module) Interface • 1x CFM IGN Interface for optional CFM-IGN Module Expansion
Other Function External FAN Connector • 1x External FAN Connector, 4-pin Terminal Block
(Support Smart Fan by BIOS)
Clear CMOS Switch • 1x Clear CMOS Switch
Reset Button • 1x Reset Button
Instant Reboot • Support 0.2sec Instant Reboot Technology
Watchdog Timer • Software Programmable Supports 256 Levels System Reset
Antenna Hole • 5x Antenna Holes
Power Power Button • 1 x ATX Power On/Off Button
Power Mode Switch • 1 x AT/ATX Mode Switch
Power Input • 9 – 48VDC, 3-pin Terminal Block
Remote Power On/Off • 1 x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED • 1 x Remote Power LED, 2-pin Terminal Block
Max. Power Consumption • 35W CPU
– OS Idle Mode: 87.34 W
– Full Loading: 204.46 W
• 65W CPU
– OS Idle Mode: 91.18 W
– Full Loading: 307.92 W
Inrush Current (Peak) • 35W CPU: 4.362 A@24V
• 65W CPU: 4.516 A@24V
Physical Dimension ( W x D x H ) • 224.1 x 162 x 62 mm
Weight Information • 2.52 KG
Mechanical Construction • Extruded Aluminum with Heavy Duty Metal
Mounting • Wall / DIN-RAIL / VESA Mount
Physical Design • Fanless Design
• Cableess Design
• Jumper-less Design
• Unibody Design
Reliability & Protection Reverse Power Input Protection • Yes
Over Voltage Protection • Protection Range: 51~58V
•​ Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection • 15A
CMOS Battery Backup • SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF • 413,236 Hours
– Database: Telcordia SR-332 Issue3, Method 1, Case 3
Operating System Windows • Windows®11, Windows®10
Linux • Ubuntu 22.04
Environment Operating Temperature • 35W TDP Processor: -40°C to 70°C
• 65W TDP Processor: -40°C to 55°C (With External Fan Kit)
* PassMark BurnInTest: 100% CPU, 2D/3D Graphics
(without thermal throttling)
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature • -40°C to 70°C
Relative Humidity • 95% RH @ 70°C (Non-condensing)
Shock • MIL-STD-810H
Vibration • MIL-STD-810H
EMC • CE, UKCA, FCC, ICES-003 Class A
• EN IEC 61000-6-4 / EN IEC 61000-6-2 (24VDC Input Only)
• EN 50155 (EN 50121-3-2 Only)
• E-mark
EMI • CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN 61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 10V
(**Compliant with the standard when utilizing shielded cable.)
• EN/IEC 61000-4-8 PFMF: 50 Hz, 30A
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Safety UL, cUL, CB, IEC, EN 62368-1
