1) Modüler Panel Bilgisayarlar

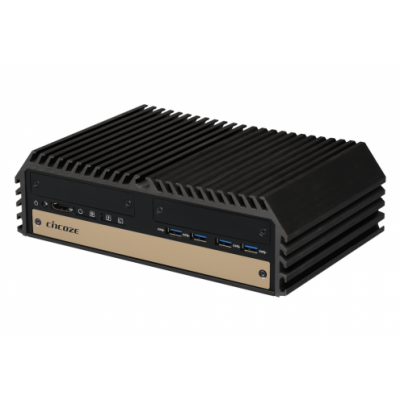

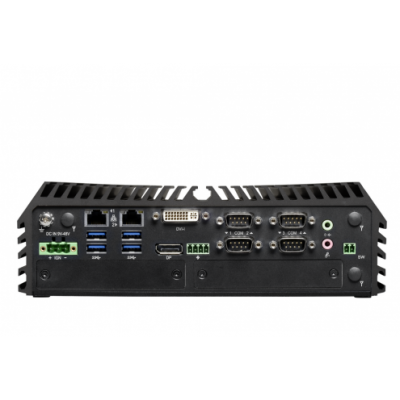

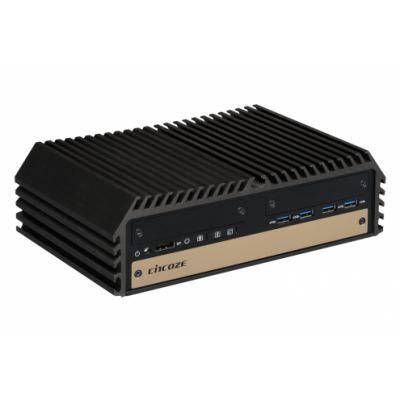

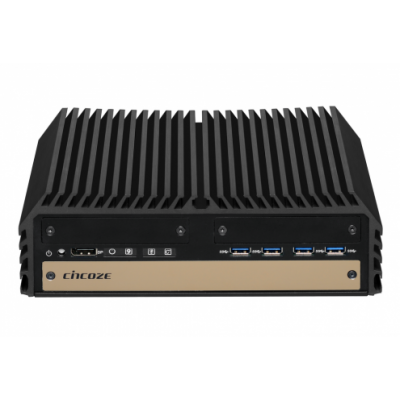

DX-1000

7/6th Generation Intel® Xeon® and Core™ Processors, Extreme Performance, Compact and Modular Rugged Workstation

ÜRÜN ÖZELLİKLERİ

  • Supports 7/6th Generation Intel® Xeon® / Core™ LGA1151 Socket Type Processors with Intel® C236 Chipset
  • 2x DDR4-2133/2400 SO-DIMM Sockets up to 32GB Memory
  • Triple Independent Display (1x DVI-I 2x DisplayPort)
  • 2x 2.5″ Hot Swap SATA III HDD/SSD bays Supports RAID 0/1

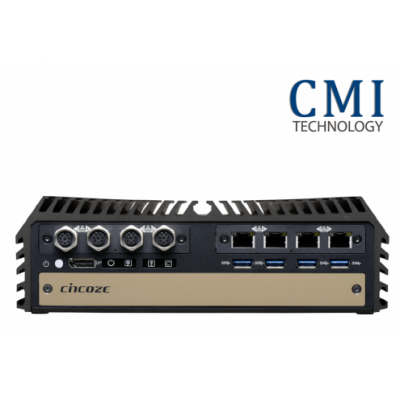

  • 3x CMI Interfaces for RJ45/M12 GbE LAN COM & DIO Expansions
  • 2x CFM Interfaces for Power Ignition Sensing and PoE Functions

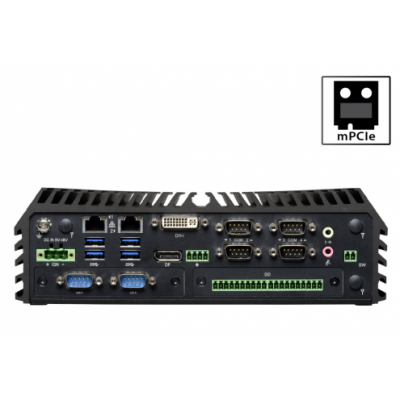

  • 4x Full-size Mini-PCIe Slots for Wireless & I/O Expansions
  • EN50155 / EN50121-3-2 Certified for Railway Application
  • E-Mark (E13 No.10R-0514546) Certification for In-vehicle Application
1) Modüler Panel Bilgisayarlar

DX-1000

The Cincoze DX-1000 is a rugged workstation series based on LGA 1151 socket and Intel® C236 chipset supporting 7th/6th generation Intel® Xeon® and Intel® Core™ Processors, DX-1000 Series supports 4K resolution through Intel® Gen9 graphics engine with two DDR4 SO-DIMM sockets up to 32GB memory which delivers outstanding computing performance for high-end applications.

Despite remarkably compact footprint and rich I/O including 1x DVI-I, 2x Display ports, 2x GbE LAN ports, 4x RS232/422/485 serial ports and 8x USB 3.0 ports, Cincoze provides its exclusive CMI (Combined Multiple I/O) and CFM (Control Function Module) technologies to make DX-1000 Series a highly scalable system for specific applications such as Industrial automation, transportation, machine vision, in-vehicle and mobile surveillance. DX-1000 Series can be expanded with powered serial port, optical isolated digital I/O, multiple GbE LAN, M12 connector, Power over Ethernet and power ignition sensing function through versatile modules.

Featuring wide operating temperature (-40~+70°C), wide range DC power input (9~48 VDC), high tolerance to vibration and shock (5/50 Grms), rugged uni-body construction, fanless, cable-less and jumper-less design, the DX-1000 Series is ideal to be deployed in harsh environments

Available Models
Model No. Product Description
DX-1000 7/6th Generation Intel® Xeon® and Core™ Processors,
Extreme Performance, Compact and Modular Rugged Workstation
Package Checklist
√ DX-1000 Rugged Workstation x1 √ Power Terminal Block Connector x1
√ CPU Heatsink Thermal Pad x1 √ Remote Power On/Off Terminal Block Connector x1
√ Utility DVD Driver x1 √ Fan Terminal Block Connector x1
√ Screw Pack x1 √ DVI-I to VGA Adaptor x1
√ Wall Mounting Kit x1
Optional Accessories
Model No. Description
CFM-IGN01 CFM Module with Power Ignition Sensing Control Function, Select 12V/24V
CFM-PoE01 CFM Module with PoE Control Function, Individual Port 25.5W
CMI-COM01/UB0903 CMI Module with 2x RS232/422/485, 1x Universal Bracket [97 x 18 mm]
CMI-DIO01/UB0918 CMI Module with 16x Optical Isolated DIO (8 in/8 out), 1x Universal Bracket [97 x 18 mm]
CMI-LAN01/UB0912 CMI Module with 4x RJ45 Ports, Intel® I210-AT GbE LAN, 1x Universal Bracket [97 x 18 mm]
CMI-M12LAN01/UB0910 CMI Module with 4x M12 A Coded Connectors, Intel® I210-AT GbE LAN, 1x Universal Bracket [97 x 18 mm]
MEC-COM-M212/UB0903 Mini-PCIe Module with 2x COM Ports, 1x Universal Bracket [97 x 18 mm]
MEC-COM-M334/ 2xUB0903 Mini-PCIe Module with 4x COM Ports, 2x Universal Brackets [97 x 18 mm]
MEC-FIR-M003/UB0901 Mini-PCIe Module with 1x 1394A Port, 2x 1394B Ports, 1x Universal Bracket [97 x 18 mm]
MEC-LAN-M002/UB0911 Mini-PCIe Module with 2x LAN Ports, 1x Universal Bracket [97 x 18 mm]
MEC-USB-M002/UB0914/CB0101 Mini-PCIe Module with 2x USB 3.0 Ports, 1x Universal Bracket [97 x 18 mm], 1x Cable for MEC-USB (15cm)
FAN-EX100 External Fan with 4pin Terminal Block Plug, Mounting Bracket
GS120A24-CIN1 Adapter AC/DC 24V 5.0A 120W with 3pin Terminal Block Plug 5.0mm Pitch, with Tubes
GS220A24-CIN1 Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with Tubes
Side-DX DX Series Side Mount Kit
DIN01 Dinrail Mount Kit, KMRH-K175

Ürün Özellikleri

Model Name DX-1000
System
Processor 7th Generation Intel® CPU (Kaby Lake-S)

  • Intel® Core i3-7100T: 3M Cache, 3.4 GHz, TDP 35W
  • Intel® Core i5-7500T: 6M Cache, up to 3.3 GHz, TDP 35W
  • Intel® Core i7-7700T: 8M Cache, up to 3.8 GHz, TDP 35W
  • Intel® Core i3-7300: 4M Cache, 4.0 GHz, TDP 51W
  • Intel® Core i5-7500: 6M Cache, up to 3.8 GHz, TDP 65W
  • Intel® Core i7-7700: 8M Cache, up to 4.2 GHz, TDP 65W
  •  Intel® Xeon E3-1275 v6: 8M Cache, up to 4.2 GHz, TDP 73W

6th Generation Intel® CPU (Skylake-S)

  • Intel® Core i3-6100TE: 4M Cache, 2.7 GHz, TDP 35W
  • Intel® Core i5-6500TE: 6M Cache, up to 3.3 GHz, TDP 35W
  • Intel® Core i7-6700TE: 8M Cache, up to 3.4 GHz, TDP 35W
  • Intel® Xeon E3-1268L v5: 8M Cache, up to 3.4 GHz, TDP 35W
  • Intel® Core i3-6100: 3M Cache, 3.7 GHz, TDP 51W
  • Intel® Core i5-6500: 6M Cache, up to 3.6 GHz, TDP 65W
  • Intel® Core i7-6700: 8M Cache, up to 4.0 GHz, TDP 65W
  • Intel® Xeon E3-1225 v5: 8M Cache, up to 3.7 GHz, TDP 80W
  • Intel® Xeon E3-1275 v5: 8M Cache, up to 4.0 GHz, TDP 80W
Chipset Intel® C236
Memory 2x DDR4-2133/2400MHz SO-DIMM Sockets, Support up to 32 GB (Un-buffered and Non-ECC type)
Graphics
  • Integrated Intel® HD Graphics
  • Three Independent Display (1x DVI-I, 2x DisplayPort)
Audio
  • Realtek® ALC888
  • High Definition Audio
BIOS AMI 16MB BIOS
I/O Interface
DVI 1x DVI-I connector, Up to 1920×1080@60Hz
DP 2x DP connector, Up to 3840 x 2160@30Hz
LAN 2x 10/100/1000 Mbps, RJ45

GbE1: Intel I219LM

GbE2: Intel I210AT

Support WoL, Teaming, Jumbo frame, IEEE 1588v2, RJ45

Optional Module

  • 4x 10/100/1000 Mbps, RJ45 Port
  • 4x 10/100/1000 Mbps, M12 Port
PoE+ Optional Module

  • 4x PoE+, Individual port 25.5W (with CMI-LAN01,  RJ45 Port)
  • 4x PoE+, Individual port 25.5W, (with CMI-M12LAN01, M12 Port)
Serial Port 4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9

Optional Module

  • 2x RS-232/422/485, DB9 Connector
  • 4x RS-232/422/485, DB9 Connector
USB 8x USB 3.0 (Type-A)
Optical Isolated DIO Optional Module

  • 16x Optical Isolated DIO(8DI, 8DO), 20 pin Terminal Block
Line-Out 1x Line-Out, Phone Jack 3.5mm
Mic-In 1x Mic-In, Phone Jack 3.5mm
Power Button 1x ATX Power On/Off Button
AT/ATX Switch 1x AT/ATX Mode Switch
Rest Button 1x Rest Button
Clear CMOS Switch 1x Clear CMOS Switch
Remote Power On/Off Connector 1x Remote Power On/Off Connector, 2-pin Terminal Block
External FAN Connector 1x External FAN Connector, 4-pin Terminal Block (support smart fan by BIOS)
Storage
SSD/HDD 2x SATA III (6Gbps) for 2.5” HDD/SSD
mSATA 4x mSATA (Shared by Mini-PCIe Socket) (Gen2)
RAID Support S/W RAID 0, 1, 5 & 10
Expansion
PCI/ PCIe
CFM (Control Function Module) Interface 1x CFM Interface for CFM Modules
CMI (Combine Multiple I/O) Interface 3x CMI Interface for CMI Modules
Mini PCI Express 4x Full-size Mini-PCIe Sockets
SIM Socket 1x SIM Socket
Antenna Holes 3x Antenna Holes
Other
Instant Reboot Support 0.2sec
Power Ignition Sensing Optional Module

  • CFM with Delay Time Management and Selectable 12V/24V, Dip Switch
Super Cap SuperCap Integrated for CMOS Battery-free Operation
Watchdog Timer Software Programmable Supports 1~255 sec. System Reset
Power Requirement
Power Type AT/ATX
Power Input Voltage 9~48VDC
Connector 3-pin Terminal Block
Power Adapter Optional AC/DC Adapter

  • AC/DC 24V/5A, 120W
  • AC/DC 24V/9.2A, 220W
Physical
Dimension (WxDxH) 242 x 174 x 77 mm
Weight Information 3.6 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / VESA / DIN Rail / Side
Unibody Design Yes
Fanless Design Yes
Jumper-less Design Yes
Cable-less Design Yes
Protection
Reverse Power Input Protection Yes
Over Voltage Protection 58V
Over Current Protection 15A
ESD Protection +/-15kV(Air), +/-8kV(Contact)
Surge Protection 3.84 kV (impedance 12 ohm 1.2/50us waveform)
Operating System
Windows
  • Windows 10
  • Windows 8.1
  • Windows 7
Linux Support by project
Environment
Operating Temperature 7th Generation Intel® CPU (Kaby Lake-S)

  • 35W TDP CPU: -40°C to 50°C
  • 51W~65W TDP CPU: -40°C to 45°C
  • 73W TDP CPU: -40°C to 40°C

6th Generation Intel® CPU (Skylake-S)

  • 35W TDP CP: -40°C to 70°C
  • 51W~65W TDP CPU: -40°C to 55°C
  • 80W TDP CPU: -40°C to 40°C

(With Extended Temperature Peripherals; Ambient with Air Flow;

According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage Temperature -40°C to 85°C
Relative Humidity 40°C @ 95% RH (non-Condensing)
Shock Operating, 50 Grms, Half-sine 11 ms Duration

(w/ SSD, according to IEC60068-2-27)

Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes

(w/ SSD, according to IEC60068-2-64)

EMC CE,  FCC Class A
Safety LVD (EN60950-1)
Fire Protection EN45545-2
Railway EN50155, EN50121-3-2
In-Vehicle E-Mark (E13, No.10R-0514546)
MTBF Time:457,941 Hours

Database: Telcordia SR-332 Issue3, Method 1, Case 3
