1) Modüler Panel Bilgisayarlar

DX-1100

9/8th Generation Intel® Xeon® and Core™ Processors, Extreme Performance, Compact and Modular Rugged Workstation

ÜRÜN ÖZELLİKLERİ

  • Supports 9/8th Gen Intel® Xeon® and Core™ Octa/Hexa-core Processor
  • Triple Independent Display with 4K/2K UHD Resolution (HDMI / DP / DVI-I)
  • 2x 2.5″ Hot Swap SATA HDD/SSD Tray 3x mSATA Socket
  • 2x USB 3.1 (10Gb/s) for Ultimate Data-transfer Speed
  • 1x M.2 E Key Socket (CNVi) 3x Full-size Mini-PCIe Socket 1x SIM Card Socket
  • Supports CMI Interface for I/O Expandability
  • Supports PoE+ and Power Ignition Sensing (with optional CFM modules)
  • Wide Operating Temperature -40°C to 70°C
  • E-Mark (E13 No.10R-0515210) LVD EN60950-1 EN50155 / EN50121-3-2
1) Modüler Panel Bilgisayarlar

DX-1100

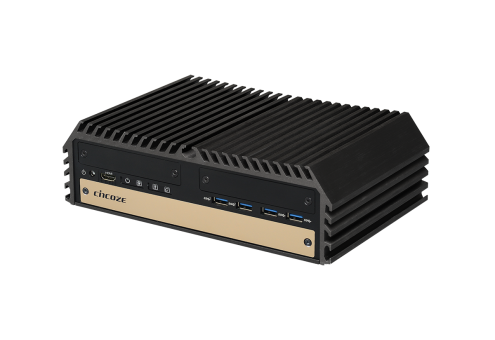

The Cincoze DX-1100 is a rugged workstation specifically designed to satisfy demands for the high-performance computing platform. Based on LGA 1151 socket and Intel® C246 chipset, the system supports 9/8th generation Intel Xeon® and Core™ processors (formerly codenamed Coffee Lake S) with up to 8 cores and 64GB memory capacity.
Despite its remarkably compact size, the DX-1100 still delivers the maximum flexibility of modular I/O expansions and provides dual hot-swap 2.5″ HDD/SSD tray with RAID function. Thanks to Cincoze’ exclusive CFM (Control Function Module) technologies, the DX-1100 can be configured instantly with Power over Ethernet and power ignition sensing functions to be applied in many industrial applications, such as machine vision, in-vehicle transportation, and mobile surveillance.
Featuring rugged construction, fanless/cable-less/jumper-less design, wide operating temperature (-40 to +70°C), wide range DC power input (9~48 VDC), high tolerance to vibration and shock (5/50 Grms), the DX-1100 is maintenance-free and ideal to be deployed in harsh environments.

Available Models
Model No. Product Description
DX-1100-R10 9/8th Generation Intel® Xeon® and Core™ Processors,
Extreme Performance, Compact and Modular Rugged Workstation
Package Checklist
√ DX-1100 Rugged Workstation x1 √ Power Terminal Block Connector x1
√ CPU Heatsink Pack x1 √ Remote Power On/Off Terminal Block Connector x1
√ Utility DVD Driver x1 √ Fan Terminal Block Connector x1
√ Screw Pack x1 √ DVI-I to VGA Adaptor x1
√ Wall Mounting Kit x1
Optional Accessories
Model No. Description
CFM-PoE01 CFM Module with PoE Control Function, Individual Port 25.5W
CFM-IGN01 CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable
CMI-LAN01-R12/UB0912 CMI Module with 4x Intel I210-IT GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout for DX Series
CMI-M12LAN01-R12/UB0910 CMI Module with M12 Connector, 4x Intel GbE LAN / 1x Universal Bracket with 4x M12 Cutout for DX Series
CMI-DIO01/UB0918 CMI Module with 16DIO (8in 8out) / 1xUniversal Bracket with DIO Cutout for DX Series
CMI-COM01/UB0903 CMI Module with 2x RS232/422/485 (Support 5V/12V) / 1x Universal Bracket with 2x DB9 Cutout for DX Series
MEC-COM-M212-TDB9/UB0903 Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Thin DB9 Cable / 1x Universal Bracket with 2x DB9 Cutout for DX Series
MEC-COM-M334-TDB9/2xUB0903 Mini-PCIe Module with 4x RS-232 Serial Ports, 2x Thin DB9 Cable / 2x Universal Bracket with 2x DB9 Cutout for DX Series
MEC-LAN-M002-30/UB0911 Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout for DX Series
GST120A24-CIN Adapter AC/DC 24V 5A 120W, with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI
GST220A24-CIN Adapter AC/DC 24V 9.2A 220W, with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI
FAN-EX101 External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support smart fan
SIDE-DX DX Series side mount kit
DIN01 DIN-RAIL Mount Kit, KMRH-K175

Ürün Özellikleri

Model Name DX-1000
System


Processor

9th Generation Intel® Coffee Lake-R S Series CPU:

  •  Intel® Xeon® E-2278GEL 8 Cores Up to 3.9 GHz, TDP 35W
  •  Intel® Core™ i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W
  •  Intel® Core™ i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W
  •  Intel® Core™ i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W
  •  Intel® Core™ i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W
  •  Intel® Core™ i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W
  •  Intel® Core™ i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W



8th Generation Intel® Coffee Lake S Series CPU:

  •  Intel® Xeon® E-2176G 6 Cores Up to 4.7 GHz – 12M Cache, TDP 80W
  •  Intel® Xeon® E-2124G 4 Cores Up to 4.5 GHz – 8M Cache, TDP 71W
  •  Intel® Core™ i7-8700 6 Cores Up to 4.6 GHz – 12M Cache, TDP 65W
  •  Intel® Core™ i5-8500 6 Cores Up to 4.1 GHz – 9M Cache, TDP 65W
  •  Intel® Core™ i3-8100 4 Cores 3.6 GHz – 6M Cache, TDP 65W
  •  Intel® Core™ i7-8700T 6 Cores Up to 4.0 GHz – 12M Cache, TDP 35W
  •  Intel® Core™ i5-8500T 6 Cores Up to 3.5 GHz – 9M Cache, TDP 35W
  •  Intel® Core™ i3-8100T 4 Cores 3.1 GHz – 6M Cache, TDP 35W
  •  Intel® Pentium® G5400 2 Cores 3.7 GHz – 4M Cache, TDP 58W
  •  Intel® Pentium® G5400T 2 Cores 3.1 GHz – 4M Cache, TDP 35W
  •  Intel® Celeron® G4900 2 Cores 3.1 GHz – 2M Cache, TDP 54W
  •  Intel® Celeron® G4900T 2 Cores 2.9 GHz – 2M Cache, TDP 35W
Chipset Intel C246
Memory •  2x DDR4-2666/2400 MHz SO-DIMM Sockets

•  Support up to 64 GB (Un-buffered and Non-ECC type)

Graphics • Integrated Intel® UHD Graphics

(Xeon: UHD P630; i7/i5/i3: UHD 630; Pentium/Celeron: UHD 610)

• Supports Triple Independent Display (DVI-I/DisplayPort/HDMI)



Audio Realtek® ALC888, High Definition Audio
BIOS AMI 32 MB BIOS
I/O Interface


DVI

1x DVI-I Connector

(VGA: 1920 x1080 @ 60 Hz; DVI-D: 1920 x1200 @ 60 Hz)

DP 1x DisplayPort Connector (3840 x 2160 @30Hz)
HDMI 1x HDMI Connector (3840 x 2160 @30Hz)
LAN 2x GbE LAN (Support WoL, Teaming, Jumbo Frame, IEEE 1588v2 and PXE), RJ45

– GbE1: Intel® I219-LM

– GbE2: Intel® I210-IT

Optional Module

.4x 10/100/1000 Mbps, RJ45 Port

.4x 10/100/1000 Mbps, M12 Port

PoE+ Optional Module

.4x PoE+, Individual port 25.5W (with CMI-LAN01,  RJ45 Port)

.4x PoE+, Individual port 25.5W, (with CMI-M12LAN01, M12 Port)

Serial Port 4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9

Optional Module

.2x RS-232/422/485, DB9 Connector

USB 2x USB 3.1 (Type-A)

6x USB 3.0 (Type-A)

Optical Isolated DIO Optional Module

.16x Optical Isolated DIO(8DI, 8DO), 20 pin Terminal Block

Line-Out 1x Line-Out, Phone Jack 3.5mm
Mic-In 1x Mic-In, Phone Jack 3.5mm
Power Button 1x ATX Power On/Off Button
AT/ATX Switch 1x AT/ATX Mode Switch
Rest Button 1x Rest Button
Clear CMOS Switch 1x Clear CMOS Switch
Remote Power On/Off Connector 1x Remote Power On/Off Connector, 2-pin Terminal Block
External FAN Connector 1x External FAN Connector, 4-pin Terminal Block (support smart fan by BIOS)
Storage


SSD/HDD

2x SATA III (6Gbps) for 2.5” HDD/SSD
mSATA 3x mSATA (Shared by Mini-PCIe Socket) (Gen2)
RAID Support S/W RAID 0, 1, 5 & 10
Expansion
PCI/ PCIe
CFM (Control Function Module) Interface 1x CFM Interface for CFM Modules
CMI (Combine Multiple I/O) Interface 3x CMI Interface for CMI Modules
Mini PCI Express 3x Full-size Mini-PCIe Sockets
M.2 1x M.2 2230 Socket (Key E)
SIM Socket 1x SIM Socket
Antenna Holes 3x Antenna Holes
Other
Instant Reboot Support 0.2sec
Power Ignition Sensing Optional Module

  • CFM with Delay Time Management and Selectable 12V/24V, Dip Switch
Super Cap SuperCap Integrated for CMOS Battery-free Operation
Watchdog Timer Software Programmable Supports 1~255 sec. System Reset
Power Requirement


Power Type

AT/ATX
Power Input Voltage 9~48VDC
Connector 3-pin Terminal Block
Power Adapter Optional AC/DC Adapter

  • AC/DC 24V/5A, 120W
  • AC/DC 24V/9.2A, 220W
Physical


Dimension (WxDxH)

242 x 174 x 77 mm
Weight Information 3.6 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / VESA / DIN Rail / Side
Unibody Design Yes
Fanless Design Yes
Jumper-less Design Yes
Cable-less Design Yes
Protection
Reverse Power Input Protection Yes
Over Voltage Protection 58V
Over Current Protection 15A
ESD Protection +/-15kV(Air), +/-8kV(Contact)
Surge Protection 3.84 kV (impedance 12 ohm 1.2/50us waveform)
Operating System


Windows

  • Windows 10
  • Windows 8.1
  • Windows 7
Linux Support by project
Environment


Operating Temperature

35W TDP Processor: -40°C to 70°C

54~65W TDP Processor: -40°C to 45°C

71~80W TDP Processor: -40°C to 40°C

* PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)

* With extended temperature peripherals; Ambient with air flow

* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14

Storage Temperature -40°C to 85°C
Relative Humidity 40°C @ 95% RH (non-Condensing)
Shock Operating, 50 Grms, Half-sine 11 ms Duration

(w/ SSD, according to IEC60068-2-27)

Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes

(w/ SSD, according to IEC60068-2-64)

EMC CE,  FCC Class A
Safety LVD (EN60950-1)
Fire Protection EN45545-2
Railway EN50155, EN50121-3-2
In-Vehicle E-Mark (E13, No.10R-0514546)
MTBF Time:457,941 Hours

Database: Telcordia SR-332 Issue3, Method 1, Case 3
