1) Modüler Panel Bilgisayarlar

DX-1200

Intel® 13/12th Gen Raptor Lake-S / Alder Lake-S Core™ i9/i7/i5/i3 Processors

DX-1200

13/12th Gen. Intel® Core Series High Performance and Compact Rugged Embedded Computer

PRODUCTS FEATURES
  • Intel® 13/12th Gen Raptor Lake-S / Alder Lake-S Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
  • 2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHZ, 64GB
  • Quad Independent Display (HDMI / DP / DVI-I)
  • 1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
  • CMI Technology for Optional I/O Module Expansions
  • CFM Technology for Power Ignition Sensing & PoE Function
  • Wide Operating Temperature -40°C to 70°C
  • Safety Standard: UL, cUL, CB, IEC, EN 62368-1
Destekleyen İşlemciler
  • DX-1200
  • DX-1200
  • DX-1200
  • DX-1200
  • DX-1200
  • DX-1200
  • DX-1200
1) Modüler Panel Bilgisayarlar

DX-1200

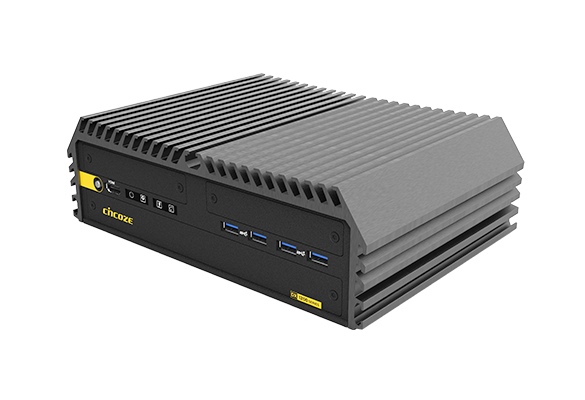

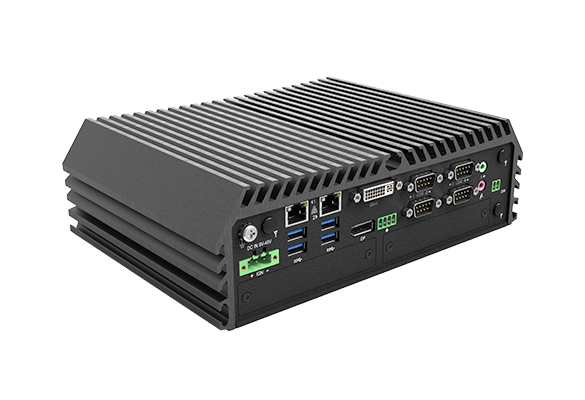

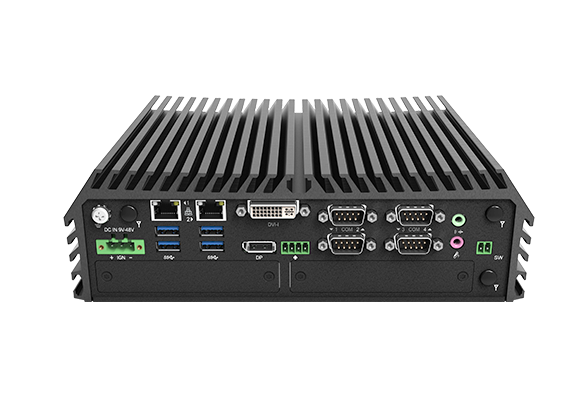

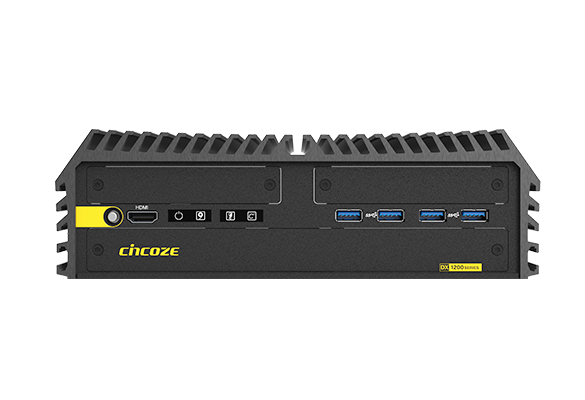

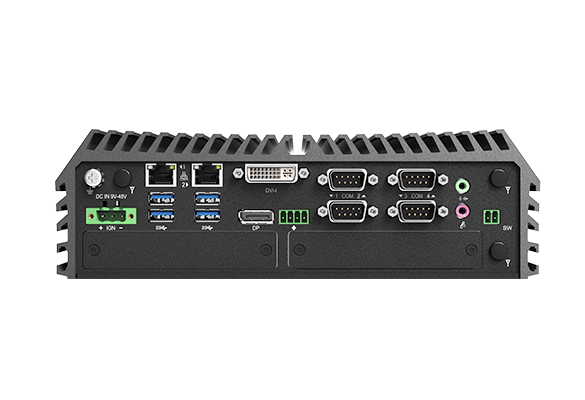

The DX-1200 is a fanless embedded computer that packs extreme performance into a rugged, compact chassis, making it the ideal choice for smart manufacturing, machine vision, and edge AI applications. 13th/12th gen Intel® Core™ (Raptor Lake-S/Alder Lake-S) processor (TDP up to 65W) and DDR5 4800 MHz memory provide high-speed computing performance, while additional functions, including rich native I/O and modular expansion design, meet the requirements for a wide range of applications.

Available Model
Model No. Description
DV-1100-R10 13/12th Gen. Intel® Core™ Series High Performance and Basic Function Rugged Embedded Computer
Package Checklist
DV-1100 Embedded Computer x1 Wall Mounting Kit x1
CPU Installation Kit x1 Power Terminal Block Connector x1
External Fan Terminal Block Connector x1 Remote Function Terminal Block Connector x 2
Screw Pack x1 M.2 Key B Type 3052 to Type 3042 Adapter Bracket x1



Optional Modules and Accessories
Model No. Description
CMI-DP01-R10 CMI Module with 1x DisplayPort
CMI-HD03-R10 CMI Module with 1x HDMI Port
CMI-COM06-R10 CMI Module with 2x RS232/422/485 Ports (Support 5V/12V)
CMI-DIO06-R10 CMI Module with 16DIO (8in/8out)
CFM-IGN04-R10 CFM Module with Power Ignition Sensing Function, 12V/24V Selectable
UB1603-R10 Universal Bracket with 2x DB9 Cutout
UB1606-R10 Universal Bracket with DP Cutout
UB1608-R10 Universal Bracket with HDMI Cutout
UB1618-R10 Universal Bracket with DIO Cutout
DINRAIL-R10 Diamond series DIN-RAIL Mount Kit
FAN-EX104 External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan
GST120A24-CIN Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
GST220A24-CIN Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI

Ürün Özellikleri

Model Name DX-1200
System Processor 13th Generation Intel® Raptor Lake-S Series CPU:
– Intel® Core™ i9-13900E 24 Cores Up to 5.2 GHz, TDP 65W
– Intel® Core™ i7-13700E 16 Cores Up to 5.1 GHz, TDP 65W
– Intel® Core™ i5-13500E 14 Cores Up to 4.6 GHz, TDP 65W
– Intel® Core™ i5-13400E 10 Cores Up to 4.6 Ghz, TDP 65W
– Intel® Core™ i3-13100E 4 Cores Up to 4.4 GHz, TDP 60W
– Intel® Core™ i9-13900TE 24 Cores Up to 5.0 GHz, TDP 35W
– Intel® Core™ i7-13700TE 16 Cores Up to 4.8 GHz, TDP 35W
– Intel® Core™ i5-13500TE 14 Cores Up to 4.5 GHz, TDP 35W
– Intel® Core™ i3-13100TE 4 Cores Up to 4.1 GHz, TDP 35W12th Generation Intel® Alder Lake-S Series CPU:
– Intel® Core™ i9-12900E 16 Cores Up to 5 GHz, TDP 65W
– Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W
– Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W
– Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W
– Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W
– Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W
– Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W
– Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W
– Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W
– Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W
– Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W
– Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W
Chipset Intel R680E Chipset
Memory 2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64GB
BIOS AMI BIOS
Graphics Graphics Engine Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5
Integrated Intel® UHD Graphics 730: Core™ i3
Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
Maximum Display Output Supports Quad Independent Display
DVI 1x DVI-I Connector
– VGA: 1920 x 1080 @ 60 Hz
– DVI-D: 1920 x 1200 @ 60 Hz
DP 1x DP Connector: 4096 x 2304 @ 60Hz
* Verified maximum resolution: 3840 x 2160 @ 60Hz
HDMI 1 x HDMI Connector (3840×2160@30Hz)
Audio Audio Codec Realtek® ALC888, High Definition Audio
Line-out 1x Line-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm
I/O LAN 2x 1GbE LAN, RJ45(Supports Wake on LAN, PXE)
– GbE1: Intel® I219
– GbE2: Intel® I210
COM 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB 4 x USB 3.2 Gen2x1 (10Gbps), Type A
4 x USB 3.2 Gen1x1 (5Gbps), Type A
Storage SSD/HDD 2x 2.5″ SATA HDD/SSD Bay (SATA 3.0)
mSATA 2x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket )
RAID Support RAID 0/1/5/10
Expansion Mini PCI Express 2x Full-size Mini-PCIe Socket
M.2 E Key Socket 1x M.2 Key E Type 2230 Socket, Support Intel CNVi Module
SIM Socket 1x SIM Socket
CMI (Combined Multiple I/O) Interface 2x High Speed CMI Interface for optional CMI Module Expansion
1x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Interface 1x CFM IGN Interface for optional CFM-IGN Module Expansion
Other Function External FAN Connector 1x External FAN Connector, 4-pin Terminal Block
(Support Smart Fan by BIOS)
Clear CMOS Switch 1x Clear CMOS Switch
Reset Button 1x Reset Button
Instant Reboot Support 0.2sec Instant Reboot Technology
Watchdog Timer Software Programmable Supports 256 Levels System Reset
Power Power Button 1 x ATX Power On/Off Button
Power Mode Switch 1 x AT/ATX Mode Switch
Power Input 9 – 48VDC, 3-pin Terminal Block
Remote Power On/Off 1 x Remote Power On/Off, 2-pin Terminal Block
Max. Power Consumption • 35W CPU
– OS Idle Mode: 86.14 W
– Full Loading: 201.17 W
• 65W CPU
– OS Idle Mode: 99.89 W
– Full Loading: 274.80 W
Inrush Current (Peak) • 35W CPU: 4.151 A@24V
• 65W CPU: 4.360 A@24V
Physical Dimension ( W x D x H ) 242 x 173 x 75 mm
Weight Information 3.05 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / DIN-RAIL / VESA / Side Mount
Physical Design • Fanless Design
• Cableless Design
• Jumper-less Design
• Unibody Design
Reliability & Protection Reverse Power Input Protection Yes
Over Voltage Protection • Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection 15A
CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF 394,488 Hours – Database: Telcordia SR-332 Issue3, Method 1, Case 3
Operating System Windows Windows®11, Windows®10
Linux Ubuntu 22.04
Environment Operating Temperature • 35W TDP Processor: -40°C to 70°C
• 65W TDP Processor: -40°C to 50°C (With External Fan Kit)
– With extended temperature peripherals; Ambient with air flow
– According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature -40°C to 85°C
Relative Humidity 95% RH @ 70°C (Non-condensing)
Shock MIL-STD-810G
Vibration MIL-STD-810G
EMC • CE, UKCA, FCC, ICES-003 Class A
• EN 50155 (EN 50121-3-2 Only)
• E-Mark
EMI • CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Safety UL, cUL, CB, IEC, EN 62368-1
Fire Protection EN 45545-2
