1) Modüler Panel Bilgisayarlar

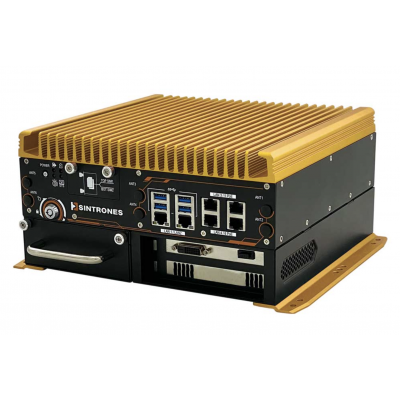

EBOX-7000

Intel 9th Gen Core i7/ Intel 8th Gen Core i7/i5/i3 CPU w/ 6 x RJ45 GbE (opt. 4 x PoE max. 100W)/ 4 x COM/ 1 x DP/ 1 x HDMI/ 1 x DVI-I/ 4 x USB 3.0/ 9-48V Edge AI GPU Computing

ÜRÜN ÖZELLİKLERİ

  • Intel 9th Gen Core i7/ Intel 8th Gen Core i7/i5/i3
  • 1 x PCIe 3.0 x16 Interface Expansion (optional 2 x PCIe 3.0 x8 Interface)
  • 6 x RJ45 GbE (optional 4 x PoE Max. 100W)
  • 8 x GPI 4 x GPO and 2 x RS-232/422/485
  • 1 x DP + 1 x HDMI + 1 x DVI-I (Single Link w/o Analog Video)
  • Dual Hot Swappable SATA Storage RAID 015
  • 9-48V DC Input and Operating Temp.: -40~70°C
1) Modüler Panel Bilgisayarlar

EBOX-7000

ORDERING INFORMATION
Part Number EBOX-7000PE1-i7R Optional for i7/i5/i3/C1 (with PoE)、EBOX-7000E1-i7R Optional for i7/i5/i3/C1
EBOX-7000PE2-i7R Optional for i7/i5/i3/C1 (with PoE)、EBOX-7000E2-i7R Optional for i5/i3/C1
Description Intel 9th Gen Core i7/ Intel 8th Gen Core i7/i5/i3 CPU w/ 6 x RJ45 GbE (optional 4 x PoE Max. 100W)/ 4 x COM/ 1 x DP/ 1 x HDMI/ 1 x DVI-I/ 4 x USB 3.0/ 9-48V Edge AI GPU Computing

Ürün Özellikleri

SYSTEM
CPU Intel Gen9 Core i7-9700TE (12M Cache 1.8GHz up to 3.8GHz)
Intel Gen8 Core i7-8700T (12M Cache 2.4GHz up to 4.0GHz)
Intel Gen8 Core i5-8500T (9M Cache 2.1GHz up to 3.5GHz)
Intel Gen8 Core i3-8100T (6M Cache 3.1GHz)
Intel Gen8 Celeron G4900T (2M Cache 2.9GHz)
Memory 2 x DDR4 2400/2666 MHz SO-DIMM up to 32GB
LAN Chipset 5 x Intel i210-AT and 1 x i219 (iAMT9.5 w/ i5, i7 only) Gb/s Ethernet Controllers Onboard Support PXE and WOL
Watchdog 1 ~ 255 Level Reset
TPM 2.0
I/O
Serial Port 4 x RS 232/422/485 (Auto Direction Control)
USB Port 4 x USB 3.0 Ports
LAN 6 x RJ45 GbE (optional 4 x PoE Max. 100W)
Video Port 1 x DP + 1 x HDMI + 1 x DVI-I (Single Link w/o Analog Video)
DIO Port 8 x GPI (5~48VDC) and 4 x GPO (5VDC, 100mA)
Audio 1 x Line-out, 1 x Line-in and 1 x Mic-in
Expansion Bus
  • Riser card w/ 1 x PCIe x16 slot (1 x PCIe 3.0 x16 interface w/ 1 x ATX 6 Pin Power supports up to 185mm length and total 90W~150W PCIe cards)
  • Optional riser card w/ 2 x PCIe x16 slot (2 x PCIe 3.0 x8 interface w/ 1 x ATX 6 Pin Power supports up to 185mm length total 90W~150W PCIe cards)
    *Maximum 90W power supply for PCIe cards when DC 9V system power input is in used. Maximum 150W power supply for PCIe cards requires DC power input to be above 15V.
  • 2 x Full Mini-PCle Slots and 1x M.2 A-E Key 2230 slot (PCIe & USB2.0 Interface for WiFi/BT)
  • 1x M.2 B Key 2242 slot (USB3.0 Interface only for 3G/4G LTE w/ 2 x SIM sockets)
GRAPHICS
Graphics Intel® UHD Graphics 630
Resolution Max Resolution (HDMI) : 4096×2304@24Hz
STORAGE
Type 2 x 2.5” Drive Bay for SATA Type HDD/SSD RAID 0, 1, 5
1 x M.2 M key 2242 and 2280 (SATA)
POWER REQUIREMENT
Power Input 9V -48V DC Power Input
Power Protection Automatics Recovery Short Circuit Protection
Power Management Vehicle Power Ignition for Variety Vehicle
Power Off Control Power off Delay Time Setting by Software and BIOS
Battery (UPS) Internal Battery Kit for 10 Mins Operating (Optional and cannot be installed with PoE module)
UPS operating time varies depending on PCIe cards w/ different power consumption
MECHANICAL & ENVIRONMENTAL
Dimensions 260(L) x 250(W) x 137(H) mm
Mounting Wall-mount
Relative Humidity 10% RH – 90% RH (non-condensing)
Operating Temp. -40ºC ~ 70ºC, with SSD and ambient w/ air flow 0.6m/s (System only, not including PCIe cards)
-20ºC ~ 60ºC with BAT-5200 Battery Kit
Storage Temp. -40°C ~ 80°C
Certifications CE, FCC Class A, RoHS (Self declaration)
Patent No. (Taiwan) M592609 – Automatic SIM Card Detection
M447854 – Build-in Battery
