Gateway (ECU-EKI Serisi)

ECU-150

NXP i.MX8M Dört Çekirdekli Cortex A53, 2 LAN, 2 COM ve 1 USB ile Kompakt Yüksek Performanslı IoT Ağ Geçidi

  • NXP i.MX8M Quad Core Cortex A53 1.3G CPU
  • DDR4 2GB RAM, 16GB eMMC for system storage
  • 2 x RS-232/485 isolated serial ports
  • 2 x 10/100/1000 Ethernet ports
  • 1 x Mini-PCIe for WIFI/Cellular/4G
  • Support web service for remotely on-line monitoring
  • Support SD card & on-line firmware update
  • Support Modbus, IEC-60870-5, DNP3.0, OPC-UA, BACNet protocol (ECU-150-12A1&ECU-150-12A1U need container EdgeLink)
  • Support Data logger on SD card
Gateway (ECU-EKI Serisi)

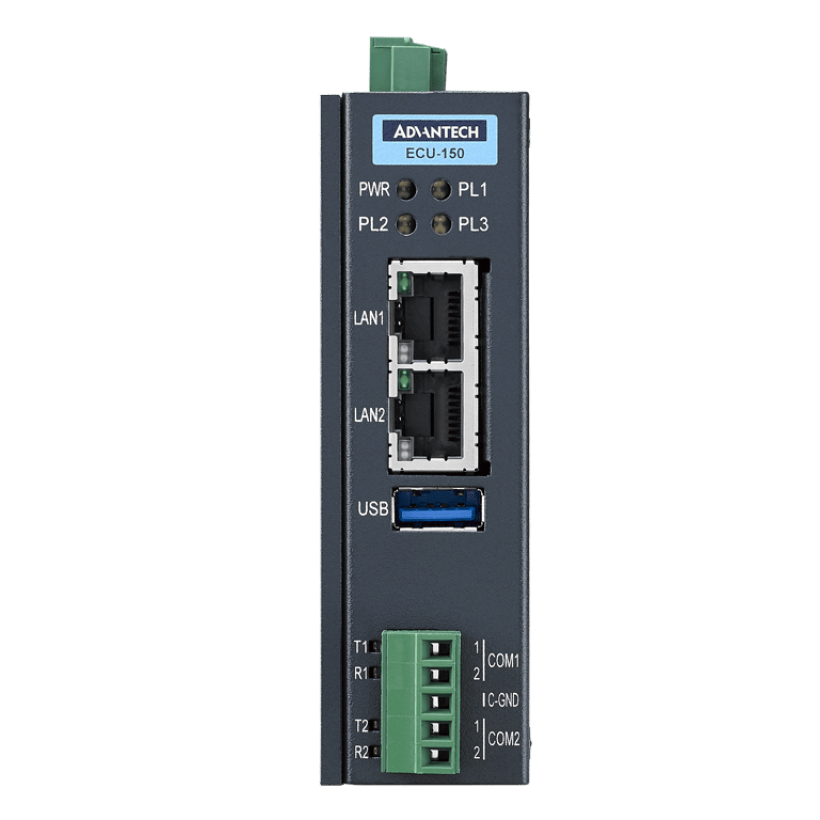

ECU-150

The ECU-150 is an IoT gateway built on the i.MX8M platform, featuring a high-performance Quad Core processor. With its open platform design, it offers exceptional flexibility. The gateway includes two RS-232/485 isolated serial ports, two 10/100/1000 Ethernet ports, and a USB 3.0 port, ensuring seamless connectivity. It operates reliably in extreme temperatures ranging from -40°C to 70°C. Equipped with Mini-PCIe and M.2 slots, the ECU-150 allows easy integration of Wi-Fi/4G/5G modules. The gateway supports Linux operating system and is bundled with the user-friendly EdgeLink configuration tool, empowering system integrators to develop precise applications for solar and electricity generation, and factory automation, which often demand extensive data collection, cloud-based solutions, and video monitoring capabilities.

Sipariş Bilgileri

ECU-150-12A

ECU-150-12A1

ECU-150-12A1U

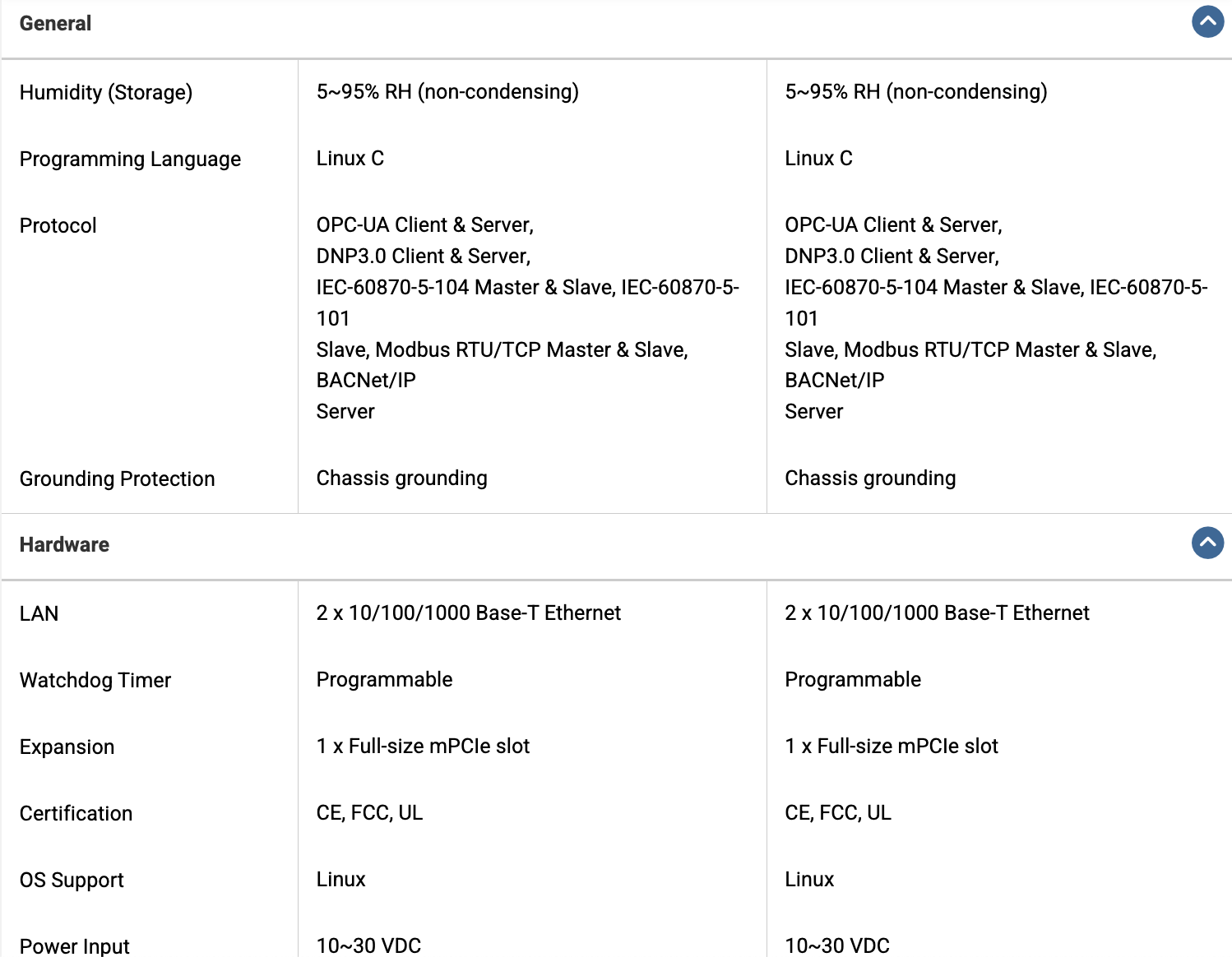

Ürün Özellikleri
