Gateway (ECU-EKI Serisi)

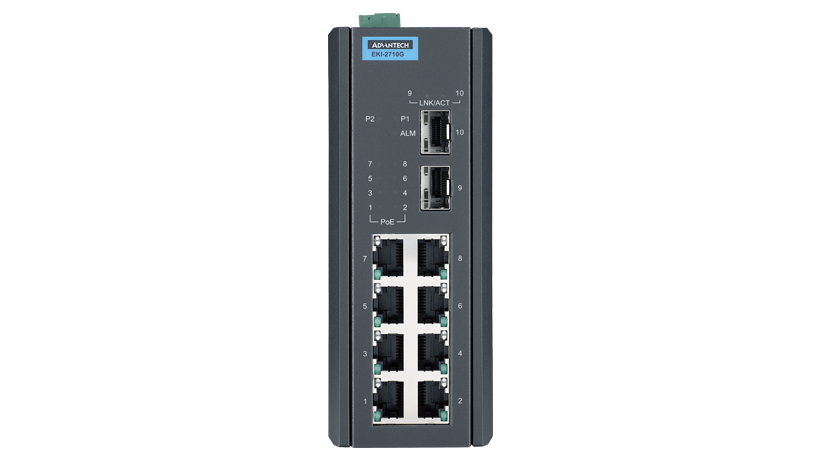

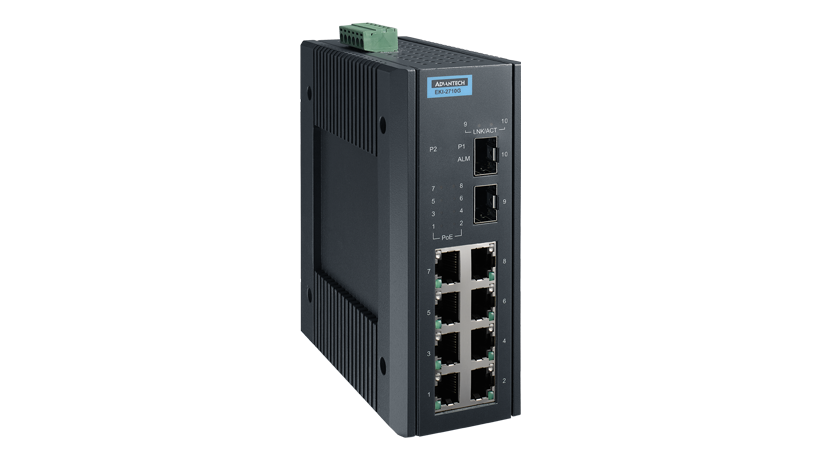

EKI-2710G-2FPI

8GE + 2G SFP Port Gigabit Unmanaged Industrial PoE Ethernet Switch

  • 8 x Gigabit Ethernet ports plus 2 Gigabit SFP ports
  • Support 8 x IEEE 802.3at/af PoE ports for PD demands
  • Up to 30W output per PoE port
  • Supports jumbo frame transmission up to 9k bytes

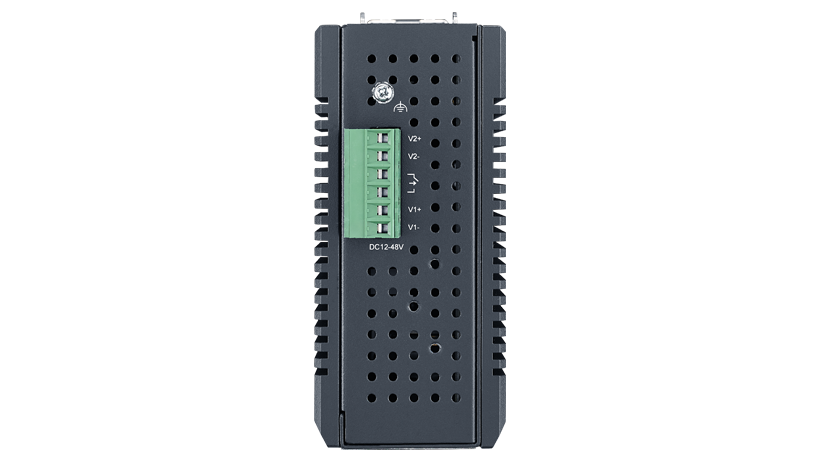

  • 12 ~ 48 VDC redundant dual power input and 1 relay output
  • Wide operating temperature range of -40 ~ 75°C
  • Supports EMC Level 4 protection for extreme outdoor environments
  • Supports LAN surge protection up to ±6 kV

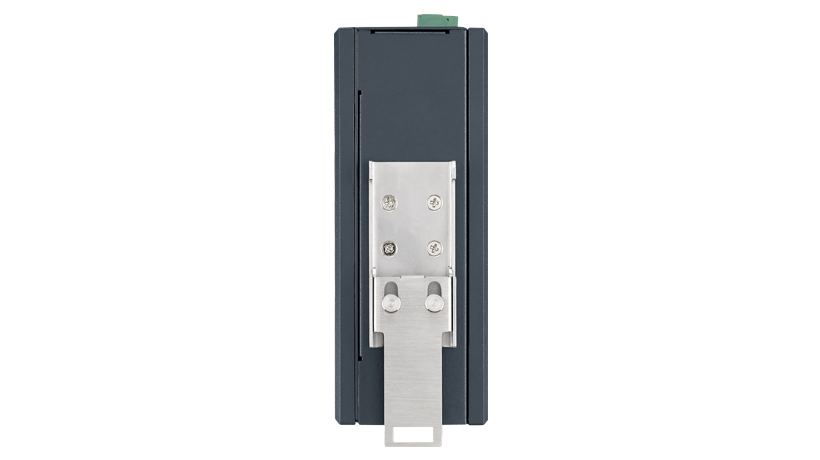

  • Equipped with a pull-down DIN rail mounting kit for easy installation across various DIN rail dimensions
Gateway (ECU-EKI Serisi)

EKI-2710G-2FPI

The EKI-2708G and EKI-2710G PoE switch are unmanaged Ethernet switches supporting 8 ports PoE+ (Power over Ethernet) and compliant with IEEE 802.3at/af standards. Provides up to 30 watts of power per port and fulfill the power budget of max. 240 watts on system with the power input from 12~48VDC. The switch provides a relay output for an event alarm which activate the alarm to notify administrators. Robust design for harsh environment, din rail mounting and fast startup with plug and work. The EKI-2708G and EKI-2710G support IEEE 802.3/802.3u/802.3z/802.3ab/802.3x with 10/100/1000 Mbps, full/half-duplex, auto-negotiation and MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.

Sipariş Bilgileri

EKI-2708G-PI-A : 8GE Port Unmanaged PoE Ethernet Switch w/ Wide Temp. ƒ

EKI-2710G-2FPI-A : 8GE + 2G SFP Port Unmanaged PoE Ethernet Switch w/Wide Temp.

Ürün Özellikleri
