CANbus Modüller

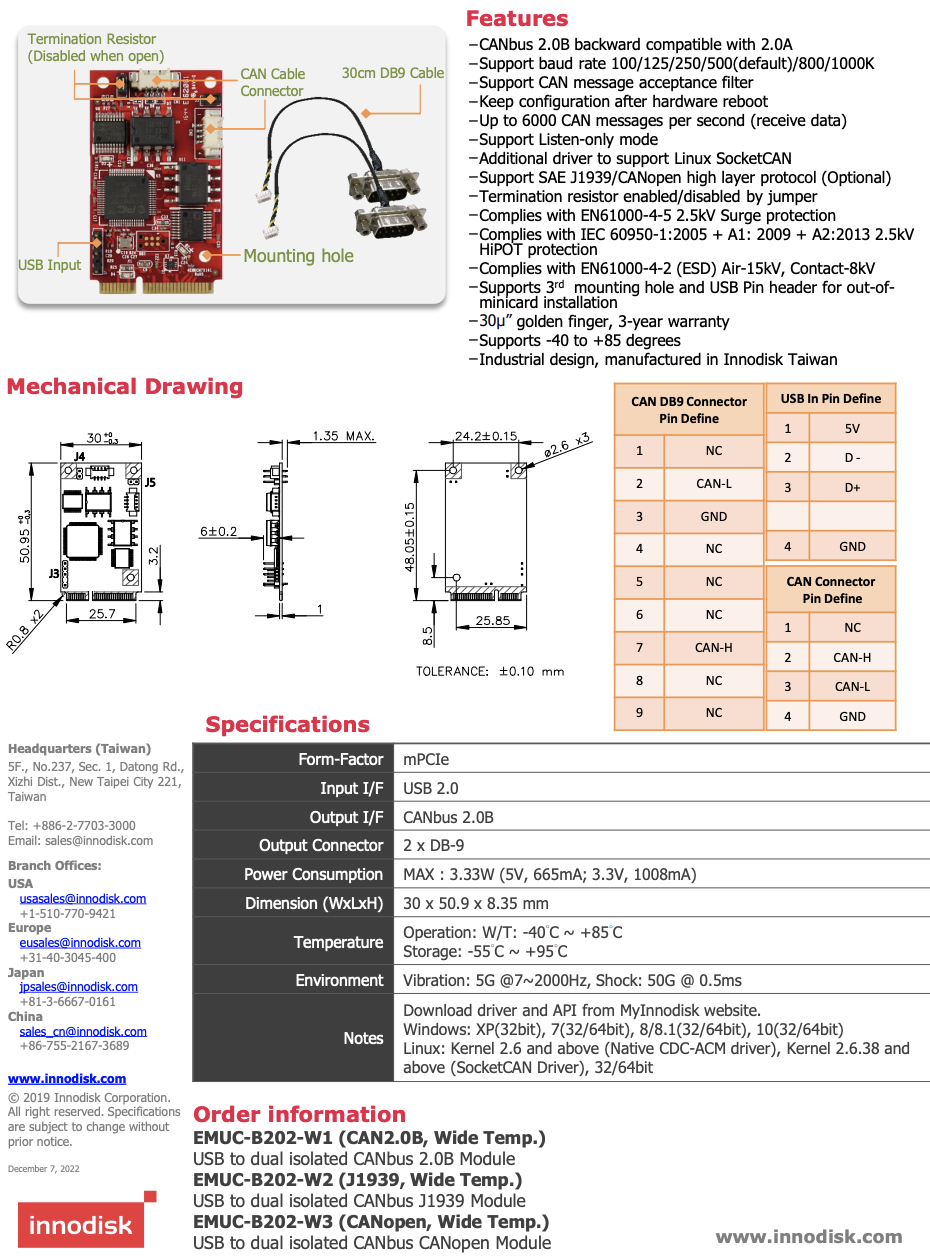

EMUC-B202

USB to dual isolated CANbus 2.0B/J1939/CANopen

-CANbus 2.0B backward compatible with 2.0A

−Support baud rate 100/125/250/500(default)/800/1000K

−Support CAN message acceptance filter

−Keep configuration after hardware reboot

−Up to 6000 CAN messages per second (receive data)

−Support Listen-only mode

−Additional driver to support Linux SocketCAN

−Support SAE J1939/CANopen high layer protocol (Optional)

−Termination resistor enabled/disabled by jumper

−Complies with EN61000-4-5 2.5kV Surge protection

−Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT protection

−Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV

−Supports 3rd mounting hole and USB Pin header for out-of- minicard installation

−30μ” golden finger, 3-year warranty
−Supports -40 to +85 degrees
−Industrial design, manufactured in Innodisk Taiwan

CANbus Modüller

EMUC-B202

-CANbus 2.0B backward compatible with 2.0A

−Support baud rate 100/125/250/500(default)/800/1000K

−Support CAN message acceptance filter

−Keep configuration after hardware reboot

−Up to 6000 CAN messages per second (receive data)

−Support Listen-only mode

−Additional driver to support Linux SocketCAN

−Support SAE J1939/CANopen high layer protocol (Optional)

−Termination resistor enabled/disabled by jumper

−Complies with EN61000-4-5 2.5kV Surge protection

−Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT protection

−Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV

−Supports 3rd mounting hole and USB Pin header for out-of- minicard installation

−30μ” golden finger, 3-year warranty
−Supports -40 to +85 degrees
−Industrial design, manufactured in Innodisk Taiwan

Order information

EMUC-B202-W1 (CAN2.0B, Wide Temp.)

USB to dual isolated CANbus 2.0B Module

EMUC-B202-W2 (J1939, Wide Temp.)

USB to dual isolated CANbus J1939 Module

EMUC-B202-W3 (CANopen, Wide Temp.)

USB to dual isolated CANbus CANopen Module

Ürün Özellikleri
