1) Modüler Panel Bilgisayarlar

GM-1000

9th/8th Gen Intel® Xeon®/Core™ Embedded GPU Computer, Supports 1x MXM 3.1 GPU Expansion Socket

ÜRÜN ÖZELLİKLERİ

  • Supports 9th/8th Gen Intel® Xeon®/Core™ Processor up to 8 cores
  • Supports 1x MXM 3.1 Type A/B form factor GPU module expansion
  • 2x DDR4 SO-DIMM sockets up to 2666MHz 64GB
  • Supports wide operating temperature (-40°C – 70°C) and vibration/shock tolerance (5G/50G)
  • M.2 E key (CNVi) full-size Mini-PCIe and M.2 M Key (NVMe SSD)
  • Proprietary CMI interface for various I/O expandability
  • Proprietary CFM interface for PoE+ or Power Ignition Sensing
1) Modüler Panel Bilgisayarlar

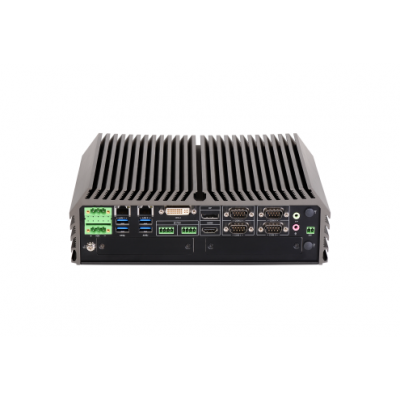

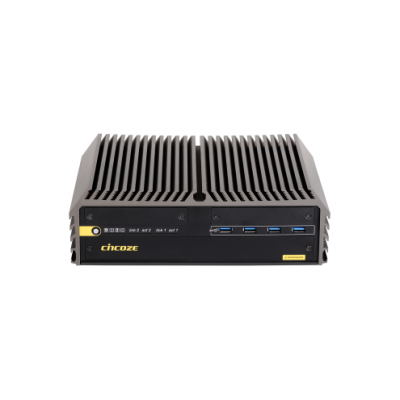

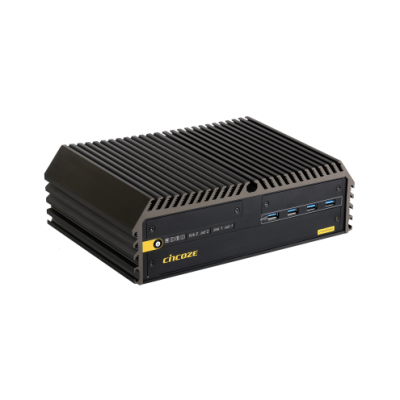

GM-1000

The GM-1000 is a rugged GPU computing platform supporting embedded MXM GPU expansion. It has all the features required for a compact, reliable, and high-performance computing system for field applications in machine vision, image processing, and artificial intelligence.

Based on the latest Intel® Coffee Lake-R platform, GM-1000 is able to equip with 9th/8th generation workstation grade processor up to 8 cores and dual DDR4-2666 SO-DIMM memory up to 64 GB, that can deliver outstanding computing performance for high-end applications.

The compact GPU system, sized at 260 mm x 200 mm x 85 mm, can accommodate 1 x standard MXM 3.1 Type A/B form factor GPU module slot. It allows GPU-accelerated technology from NVIDIA® or AMD® to speed up intensive workloads by executing massive parallel processing, delivering an optimized performance for demanding embedded vision computing applications.

The unique thermal design is adopted for GM-1000 to maximize the heat dissipation efficiency and allows GM-1000 to thrive in extreme environmental conditions. The thermal solution is made possible with the design of industrial grade components, copper heat pipes, a special aluminum extrusion case, and an optional external fan. This thermal design provides effective heat dissipation and allows high performance GPU applications with reliability.

Moreover, the GM-1000 supports extra functionality and I/O expansions. Thru Cincoze’s innovative CMI / CFM (Combined Multiple IO / Control Function Module) technologies, the GM-1000 can be extended with PoE, power ignition sensing, and various I/Os such as LAN, M12, DIO, USB, and COM. The technologies provide a customized expansion to fulfill each user’s specific needs and applications.

Available Models
Model No. Product Description
GM-1000-R10 9th/8th Gen Intel® Xeon®/Core™ Embedded GPU Computer,
Supports 1x MXM 3.1 GPU Expansion Socket
Package Checklist
√ GM-1000 GPU Computer x 1 √ Remote Power On/O Terminal Block Connector x 1
√ Utility DVD Driver x 1 √ Fan Terminal Block Connector x 2
√ CPU Heat Sink and Thermal Pad x 1 √ DVI-I to VGA Adaptor
√ Screw Pack x1 √ Wall Mount Kit x1
√ Power Terminal Block Connector x 2
Optional Accessories

Optional MXM GPU Module

Model No. Description
MXM-P2000-01 Nvidia Quadro Embedded P2000 MXM Kit with Heatsink and Thermal Pad
MXM-E9174-01 AMD Radeon Embedded E9174 MXM Kit with Heatsink and Thermal Pad
Model No. Description
CB-DP01-R10 Carrier Board Module with 1x MXM 3.1 Interface and 4x DisplayPort Output / 1x Universal Bracket with 4x DP Cutout
CMI-LAN01-R12/UB1312 CMI Module with 4x Intel® I210-IT GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout for GM Series
CMI-10GLAN01-R10/UB1328 CMI Module with 2x Intel® X550 10GbE LAN, RJ45 Port / 1x Universal Bracket with 2x RJ45 Cutout for GM Series
CMI-M12LAN01-R12/UB1310 CMI Module with M12 Connector, 4x Intel® GbE LAN / 1x Universal Bracket with 4x M12 Cutout for GM Series
CMI-DIO01/UB1318 CMI Module with 16DIO (8in 8out) / 1xUniversal Bracket with DIO Cutout for DX & GM Series
CMI-COM01/UB1303 CMI Module with 2x RS232/422/485 (Support 5V/12V) / 1x Universal Bracket with 2x DB9 Cutout for DX & GM Series
CMI-LAN01-R12/UB1312/CFM-PoE01 CMI Module with 4x Intel® I210-IT GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout for GM Series / CFM Module
with PoE Control Function, Individual Port 25.5W
CMI-M12LAN01-R12/UB1310/CFM-PoE01 CMI Module with M12 Connector, 4x Intel® GbE LAN / 1x Universal Bracket with 4x M12 Cutout for GM Series / CFM Module
with PoE Control Function, Individual Port 25.5W
CFM-IGN01 CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable
MEC-COM-M212-TDB9/UB1303 Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Thin DB9 Cable / 1x Universal Bracket with 2x DB9 Cutout for DX & GM Series
MEC-COM-M334-TDB9/2xUB1303 Mini-PCIe Module with 4x RS232/422/485 Serial Ports, 2x Thin DB9 Cable / 2x Universal Bracket with 2x DB9 Cutout forDX & GM Series
MEC-LAN-M002-30/UB1311 Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout for DX & GM Series
MEC-USB-M102-15/UB1314 Mini-PCIe Module with 2x USB Ports, 1x 15cm cable / 1x Universal Bracket with 2x USB Cutout for DX & GM Series
FAN-EX102 External Fan Kit with 2x 4pin Terminal Block Plug for GM Series, Support Smart Fan Function
SIDE-GM GM Series side mount kit
DIN01 DIN-RAIL Mount Kit, KMRH-K175
GST220A24-CIN Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI

Ürün Özellikleri

Model Name GM-1000
Processor   9th Generation Intel® Coffee Lake-R CPU:

  •  Intel® Xeon® E-2278GE 8 Cores Up to 4.7 GHz, TDP 80W
  •  Intel® Xeon® E-2278GEL 8 Cores Up to 3.9 GHz, TDP 35W
  •  Intel® Core™ i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W
  •  Intel® Core™ i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W
  •  Intel® Core™ i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W
  •  Intel® Core™ i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W
  •  Intel® Core™ i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W
  •  Intel® Core™ i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W

8th Generation Intel® Coffee Lake CPU:

  •  Intel® Xeon® E-2176G 6 Cores up to 4.7 GHz, TDP 80W
  •  Intel® Xeon® E-2124G 4 Cores up to 4.5 GHz, TDP 71W
  •  Intel® Core™ i7-8700 6 Cores up to 4.6 GHz, TDP 65W
  •  Intel® Core™ i5-8500 6 Cores, up to 4.1 GHz, TDP 65W
  •  Intel® Core™ i3-8100 4 Cores 3.6 GHz, TDP 65W
  •  Intel® Core™ i7-8700T 6 Cores up to 4.0 GHz, TDP 35W
  •  Intel® Core™ i5-8500T 6 Cores up to 3.5 GHz, TDP 35W
  •  Intel® Core™ i3-8100T 4 Cores 3.1 GHz, TDP 35W
  •  Intel® Pentium® G5400 2 Cores 3.7 GHz, TDP 58W
  •  Intel® Pentium® G5400T 2 Cores 3.1 GHz, TDP 35W
  •  Intel® Celeron® G4900 2 Cores 3.1 GHz, TDP 54W
  •  Intel® Celeron® G4900T 2 Cores 2.9 GHz, TDP 35W
Chipset Intel C246
Memory
  • 2x DDR4-2666/2400 MHz SO-DIMM Sockets
  • Support up to 64 GB (Un-buffered and non-ECC type)
  • Xeon/i7/i5: Up to DDR4 2666MHz
  • i3/Pentium/Celeron: Up to DDR4 2400MHz
  • Graphics
  • Integrated Intel® UHD Graphics (Xeon/i7/i5/i3: UHD 630; Pentium/Celeron: UHD 610)
  • Supports Triple Independent Display (DVI-I/DisplayPort/HDMI)
Audio Realtek® ALC888, High Definition Audio
BIOS AMI BIOS
DVI 1x DVI-I Connector (VGA: 1920 x1080 @ 60 Hz; DVI-D: 1920 x1200 @ 60Hz)
DP 1x DisplayPort Connector (4096 x 2304 @ 60Hz)
HDMI 1x HDMI Connector (4096 x 2160 @ 30Hz)
LAN 2x GbE LAN Ports (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45

  • GbE1: Intel® I219-LM
  • GbE2: Intel® I210-IT
Serial Port 4x RS-232/422/485 Ports with Auto Flow Control (Support 5V/12V), DB9
USB
  • 4x 10Gbps USB3.2 Gen2 Ports, Type-A
  • 4x 5Gbps USB3.2 Gen1 Ports, Type-A
Line-Out 1x Line-Out, Phone Jack 3.5mm
Mic-In 1x Mic-In, Phone Jack 3.5mm
Power Button 1x ATX Power On/Off Button
AT/ATX Switch 1x AT/ATX Mode Switch
Rest Button 1x Rest Button
Clear CMOS Switch 1x Clear CMOS Switch
Remote Power On/Off Connector 1x Remote Power On/Off Connector, 2-pin Terminal Block
External FAN Connector 2x External Fan Connectors, 4-pin Terminal Block

(Supports Smart Fan by BIOS)

SSD/HDD 2x SATA III (6Gbps) Front Accessible 2.5” HDD/SSD Trays (up to 15mm in Height)
mSATA 3x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket)
RAID Supports S/W RAID 0, 1, 5 & 10
PCIe 1x PCIe x4 M.2 Key M 2280 Socket, Supports NVMe SSD
MXM Socket 1x MXM Carrier Board Interface for MXM GPU Module Expansion
CFM (Control Function Module) Interface 1x CFM Interface for CFM Modules

– CFM-IGN01: Ignition Sensing Function

CMI (Combine Multiple I/O) Interface 1x High Speed CMI Interface for I/O Expansion

  • CMI-10GLAN01 : 2x 10G Intel® X550 RJ45 LAN
  • CMI-LAN01 : 4x 1G Intel® I210-IT RJ45 LAN
  • CMI-M12LAN01 : 4x 1G Intel® I210-IT M12 LAN

1x Low Speed CMI Interface

  • CMI-COM01 : 2x RS232/422/485, Support 5V/12V
  • CMI-DIO01 : 16x DIO (8 in, 8 out)
Mini PCI Express 3x Full-size Mini-PCIe Sockets
M.2 Socket 1x M.2 2230 Socket (Key E), support Intel CNVi Module
SIM Socket 2x SIM Socket
Antenna Holes 2x Antenna Holes
Instant Reboot Support 0.2sec
Power Ignition Sensing Optional Module

CFM with Delay Time Management and Selectable 12V/24V, Dip Switch

Super Cap SuperCap Integrated for CMOS Battery Maintenance-free Operation
Watchdog Timer Software Programmable Supports 256 Levels System Reset
Power Type AT/ATX
Total Power Budget 360W
Power Input Voltage 9-48 VDC, Single Power Source
Connector 2x 3-pin Terminal Block, Each Terminal Block Current

Limitation is 15A

Power input voltage from 9V to 23V must use dual power connectors,

power input voltage from 24V to 48V can use single power connector

Power Adapter Optional – AC/DC 24V Power Adapter, 220W
Dimension (WxDxH) 260 x 200 x 85 mm
Weight Information 4.6 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / VESA / DIN Rail / Side
Unibody Design Yes
Fanless Design Yes
Jumper-less Design Yes
Cable-less Design Yes
Reverse Power Input Protection Yes
Over Voltage Protection Protection Range: 51~58V

Protection Type: shut down operating voltage, re-power on at the preset level to recover

Over Current Protection 30A
ESD Protection +/-8kV (air), +/-4kV (contact)
Surge Protection 3.84 kV (impedance 12 ohm 1.2/50us waveform)
Windows Windows® 10
Linux Support by project
Operating Temperature Without MXM GPU Module

  • 35W CPU: -40°C – 70°C
  • 65W CPU + FAN: -40°C – 60°C
  • 80W CPU + FAN: -40°C – 55°C

With MXM GPU Module ( 58W )

  • 35W – 65W CPU + FAN: -40°C – 55°C
  • 80W CPU + FAN: -40°C – 50°C
  • * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)
  • * Furmark: 1920x 1080, 8x MSAA (without thermal throttling)
  • * With extended temperature peripherals; Ambient with air flow
  • * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature -40°C to 85°C
Relative Humidity 95% RH @ 70°C (Non-condensing)
Shock Operating, 50 Grms, Half-sine 11 ms Duration

* w/ SSD, according to IEC60068-2-27

Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes

* w/ SSD, according to IEC60068-2-64

EMC CE/FCC Class A, EN 50121-3-2, E-mark (E13 No. 10R-0615566)
Safety LVD (EN62368-1)
MTBF 331,596 Hours

Database: Telcordia SR-332 Issue 3, Method 1, Case 3
