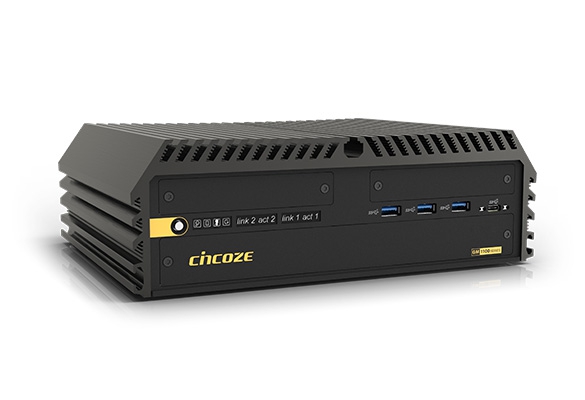

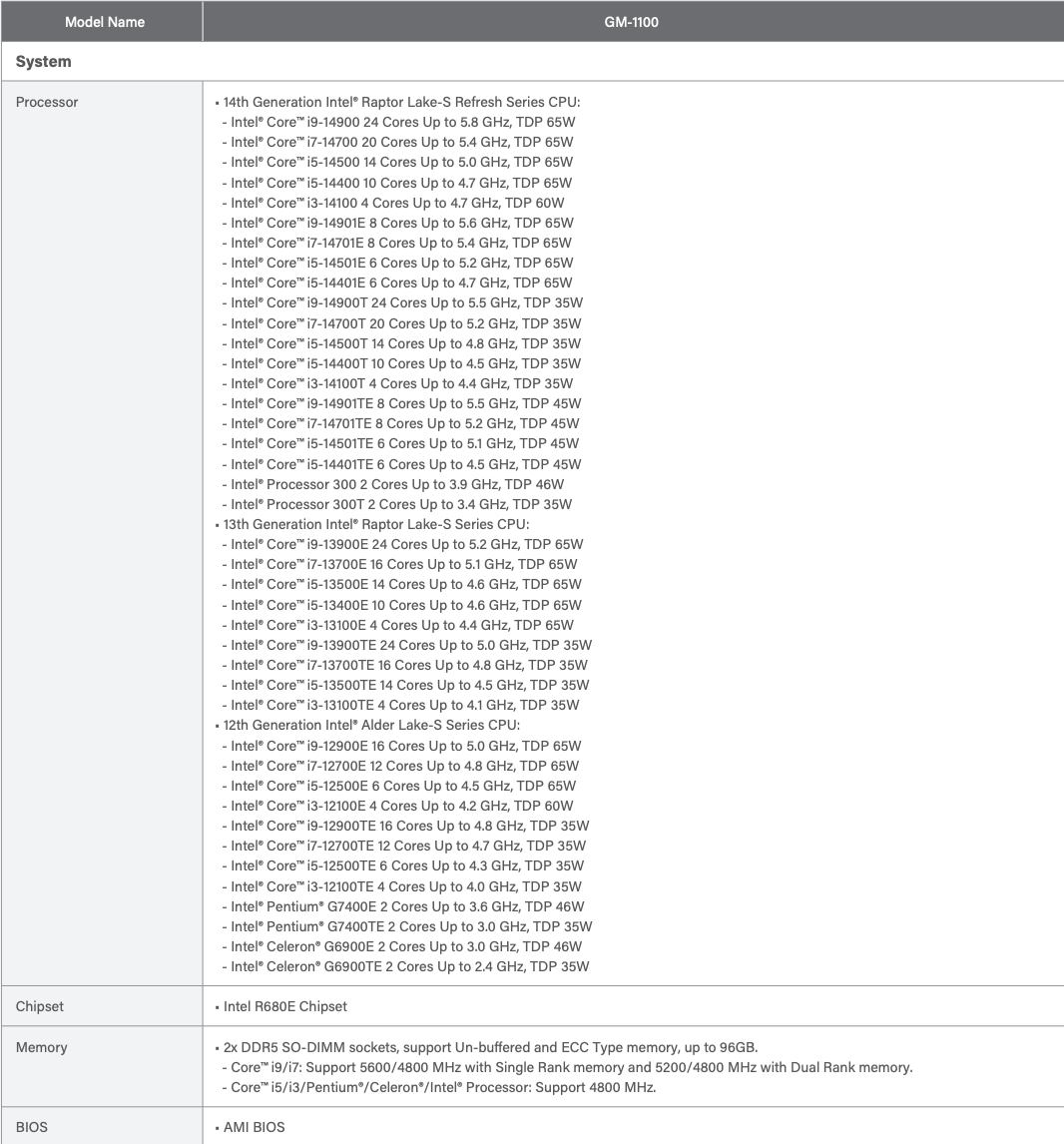

System |

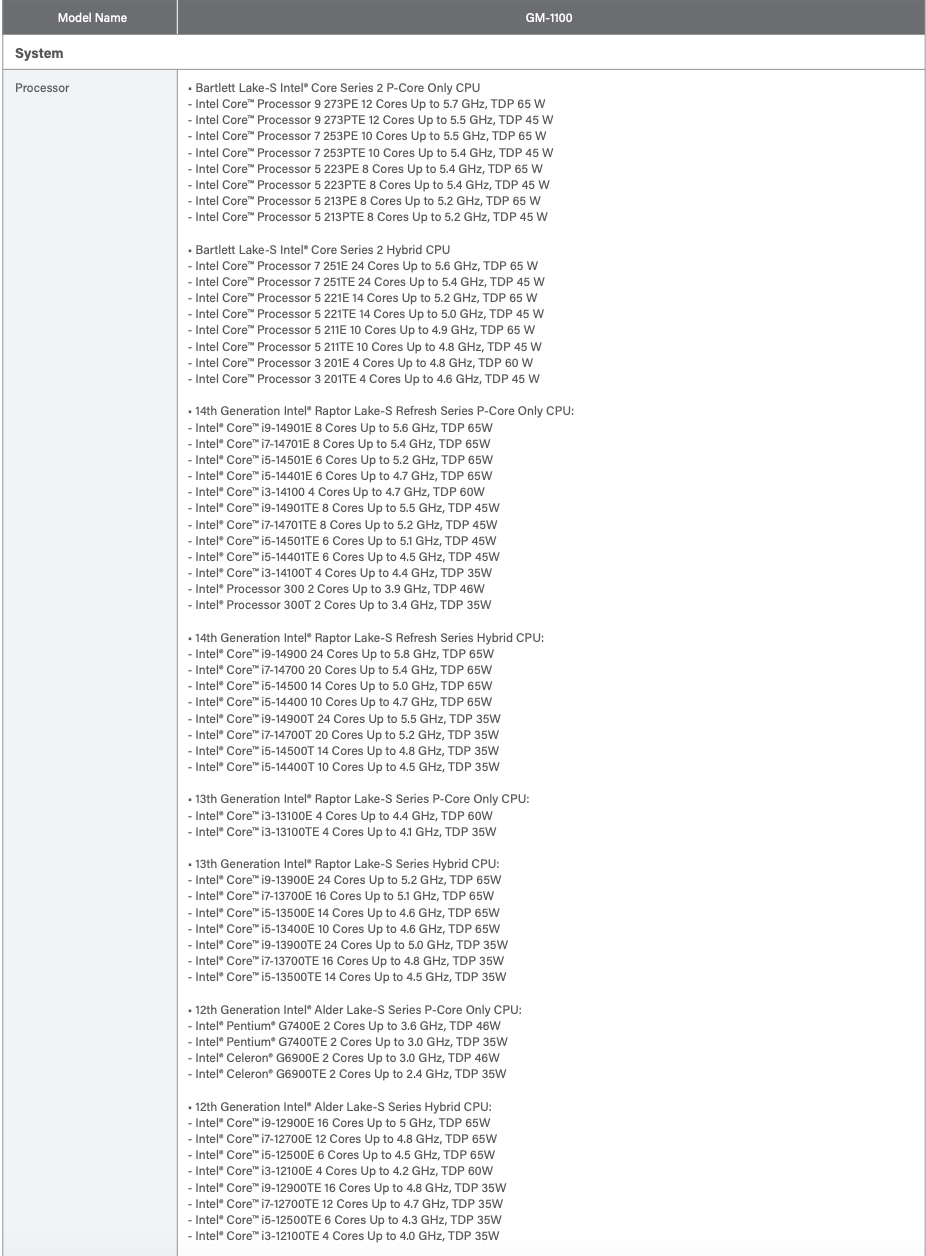

Processor |
14th Generation Intel® Raptor Lake-S Refresh Series CPU (Coming Soon)
13th Generation Intel® Raptor Lake-S Series CPU:
• Intel® Core™ i9-13900E 24 Cores Up to 5.2 Ghz, TDP 65W
• Intel® Core™ i7-13700E 16 Cores Up to 5.1 Ghz, TDP 65W
• Intel® Core™ i5-13500E 14 Cores Up to 4.6 Ghz, TDP 65W
• Intel® Core™ i5-13400E 10 Cores Up to 4.6 Ghz, TDP 65W
• Intel® Core™ i3-13100E 4 Cores Up to 4.4 Ghz, TDP 65W
• Intel® Core™ i9-13900TE 24 Cores Up to 5.0 Ghz, TDP 35W
• Intel® Core™ i7-13700TE 16 Cores Up to 4.8 Ghz, TDP 35W
• Intel® Core™ i5-13500TE 14 Cores Up to 4.5 Ghz, TDP 35W
• Intel® Core™ i3-13100TE 4 Cores Up to 4.1 Ghz, TDP 35W
12th Generation Intel® Alder Lake-S Series CPU:
• Intel® Core™ i9-12900E 16 Cores Up to 5.0 GHz, TDP 65W
• Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W
• Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W
• Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W
• Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W
• Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W
• Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W
• Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W
• Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W
• Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W
• Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W
• Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W |

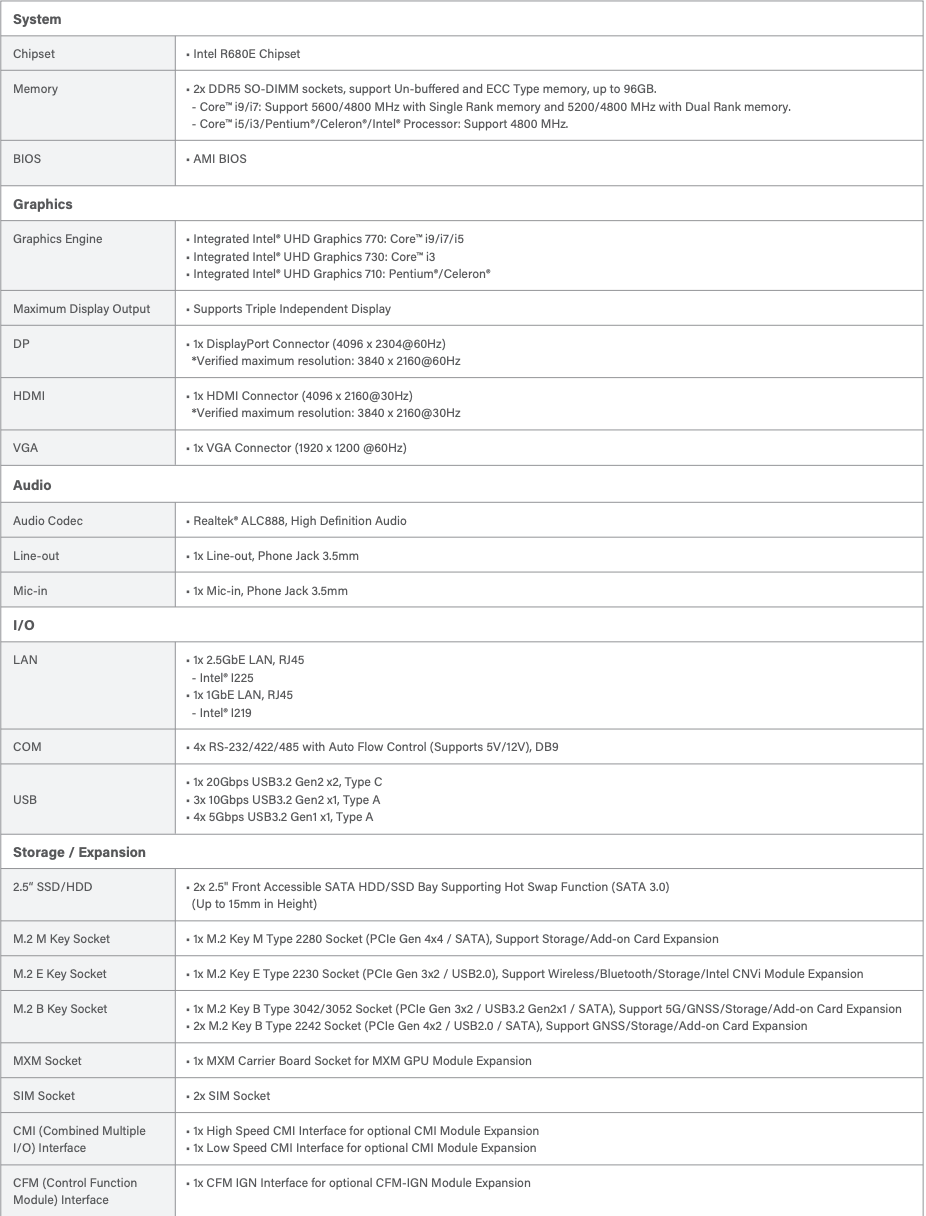

Chipset |
• Intel R680E Chipset |
Memory |
• 2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64 GB |
BIOS |
• AMI BIOS |

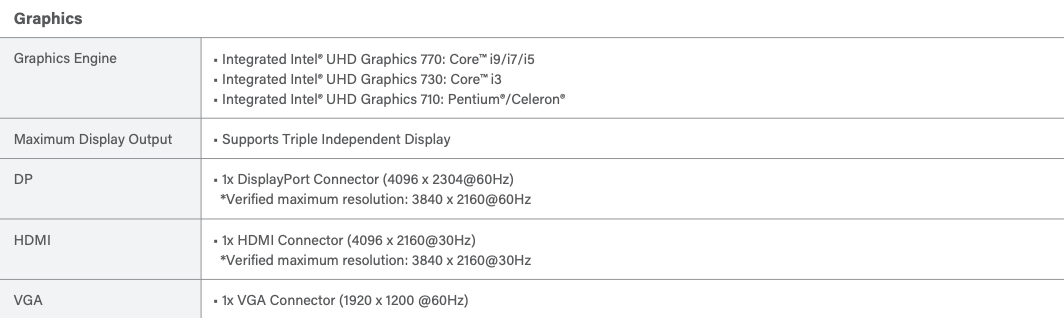

Graphics |
Graphics Engine |
• Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5
• Integrated Intel® UHD Graphics 730: Core™ i3
• Integrated Intel® UHD Graphics 710: Pentium®/Celeron® |
Maximum Display Output |
• Supports Triple Independent Display |
DP |
• 1x DisplayPort Connector (4096 x 2304@60Hz)
*Verified maximum resolution: 3840×2160@ 60Hz |
HDMI |
• 1x HDMI Connector (4096 x 2160@30Hz)
*Verified maximum resolution: 3840×2160@ 30Hz |
VGA |
• 1x VGA Connector (1920 x 1200 @60Hz) |

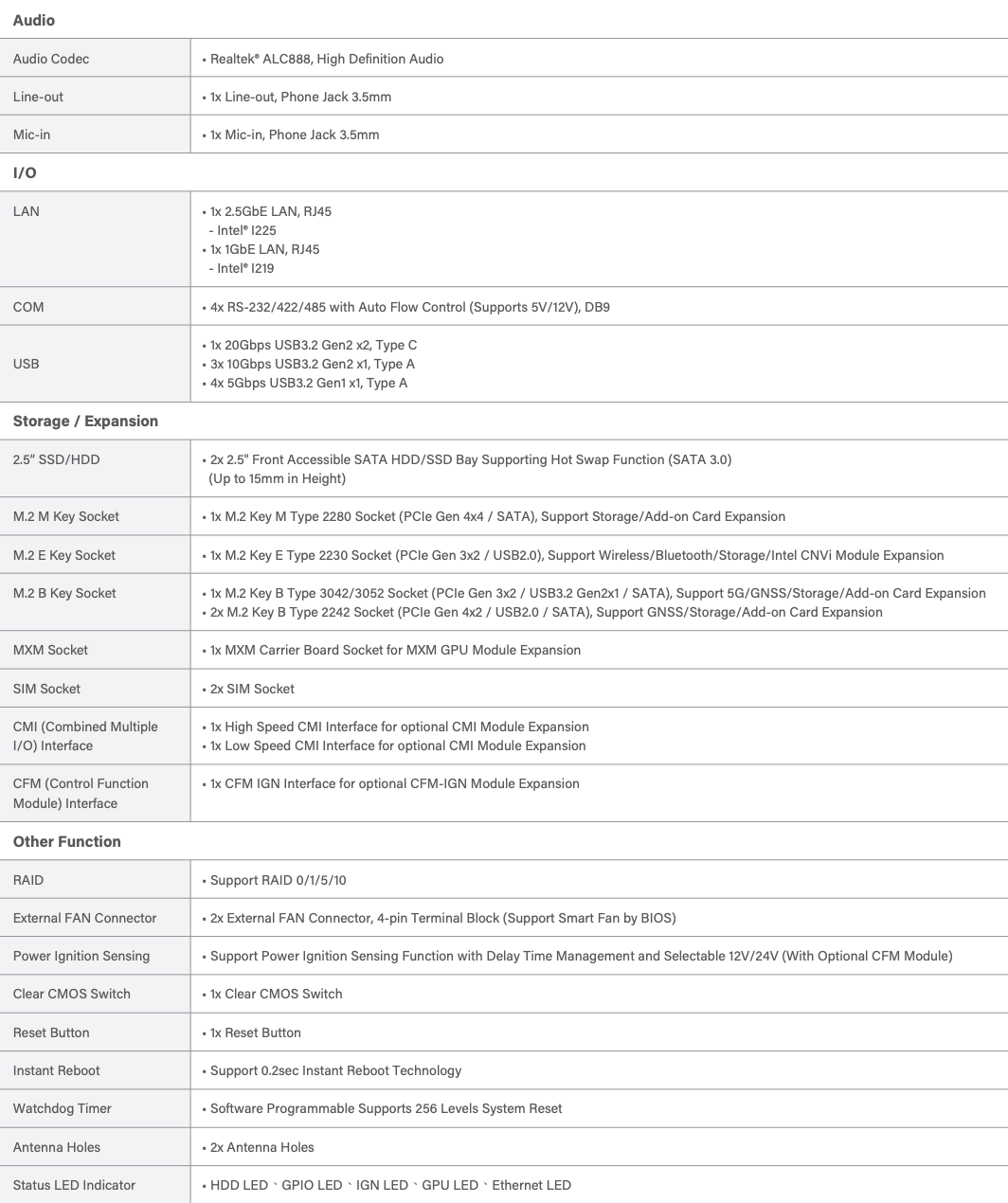

Audio |
Audio Codec |
• Realtek® ALC888, High Definition Audio |
Line-out |
• 1x Line-out, Phone Jack 3.5mm |
Mic-in |
• 1x Mic-in, Phone Jack 3.5mm |

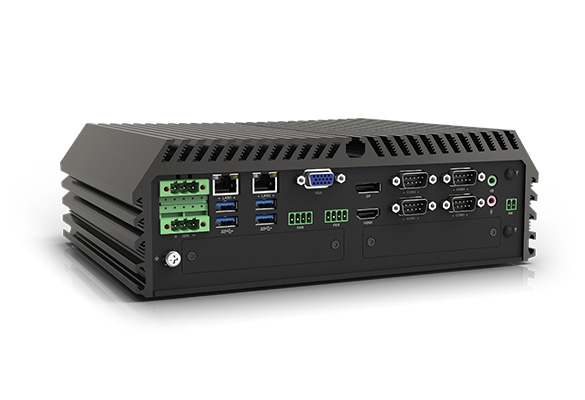

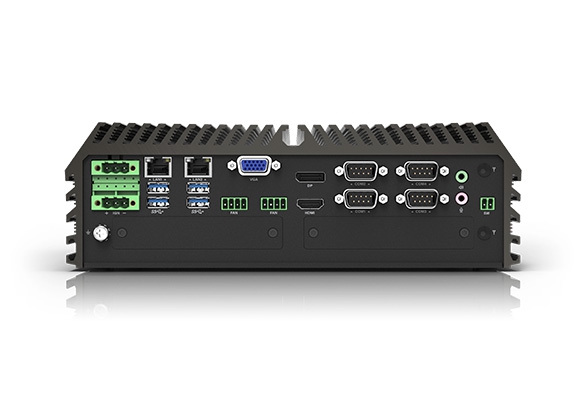

I/O |
LAN |
• 1x 2.5GbE LAN, RJ45
– Intel® I225
• 1x 1GbE LAN, RJ45
– Intel® I219 |
COM |
• 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 |
USB |
• 1x 20Gbps USB3.2 Gen2 x2, Type C
• 3x 10Gbps USB3.2 Gen2 x1, Type A
• 4x 5Gbps USB3.2 Gen1 x1, Type A |
Storage |
SSD/HDD |
• 2x 2.5” Front Accessible SATA HDD/SSD Drive Bay ( SATA3.0 )
(up to 15mm in Height) |
M.2 SSD |
• 1x M.2 Key M Type 2280 Socket, Support PCIe Gen4 x4 NVMe SSD or SATA SSD (SATA3.0)
• 1x M.2 SSD Shared by M.2 Key B Type 3052 Socket, Support PCIe Gen 3×2 NVMe SSD or SATA SSD (SATA3.0)
• 2x M.2 SSD Shared by M.2 Key B Type 2242 Socket, Support PCIe Gen 4×2 NVMe SSD or SATA SSD (SATA3.0) |
RAID |
• Support RAID 0/1/5/10 |
Expansion |
MXM Socket |
• 1x MXM Carrier Board Socket for MXM GPU Module Expansion |
M.2 E Key Socket |
• 1x M.2 Key E Type 2230 Socket (PCIe Gen 3×2 / USB2.0), Support Wireless/Intel CNVi Module Expansion |
M.2 B Key Socket |
• 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3×2 / USB3.2 Gen2x1 / USB2.0 / SATA), Support 5G/Storage/Add-on Card Expansion
• 2x M.2 Key B Type 2242 Socket (PCIe Gen 4×2 / USB2.0 / SATA ), Support Storage/Add-on Card Expansion |
SIM Socket |
• 2x SIM Socket |
CMI (Combined Multiple I/O) Interface |
• 1x High Speed CMI Interface for optional CMI Module Expansion
• 1x Low Speed CMI Interface for optional CMI Module Expansion |
CFM (Control Function Module) Interface |
• 1x CFM IGN Interface for optional CFM-IGN Module Expansion |

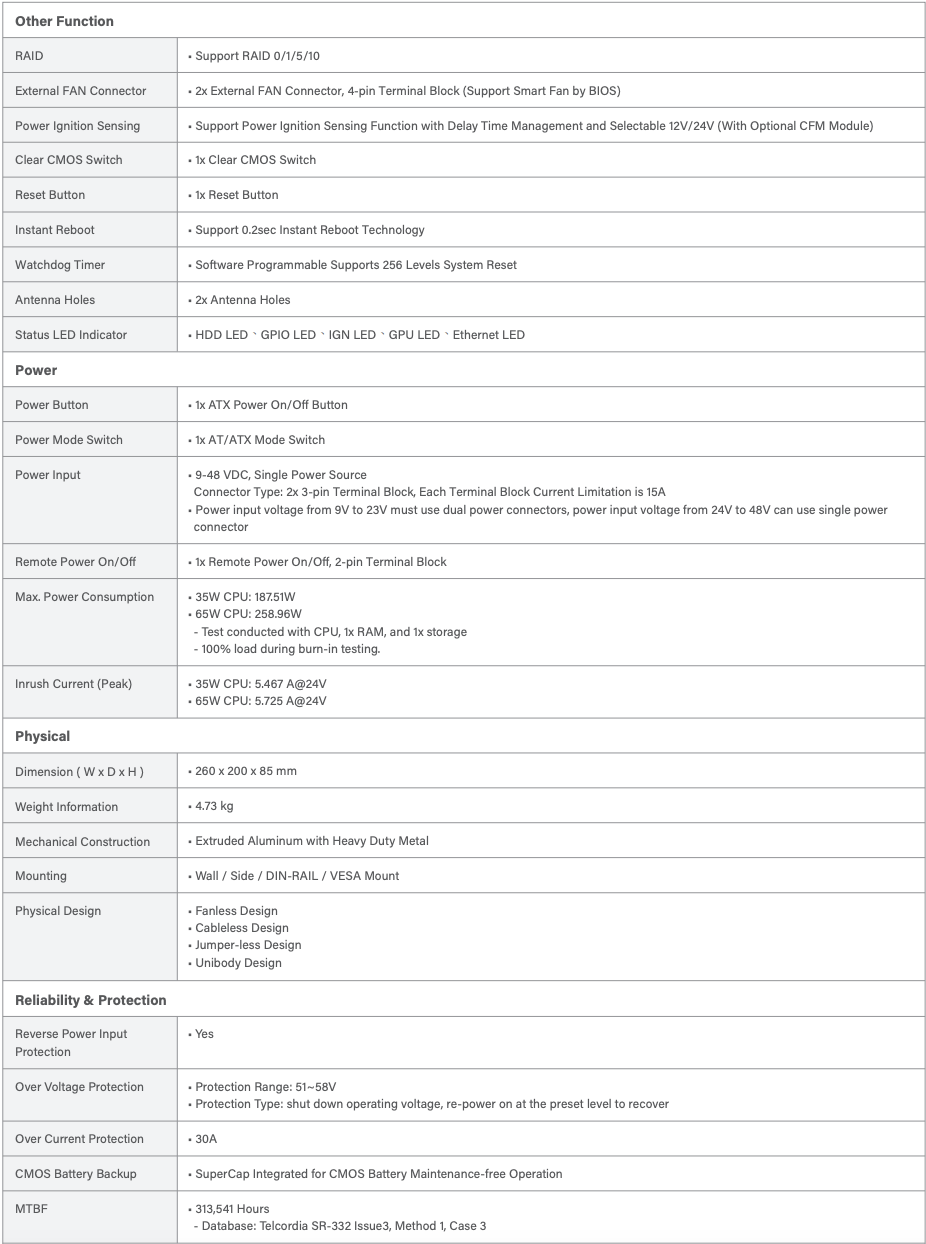

Other Function |
External FAN Connector |
• 2x External FAN Connector, 4-pin Terminal Block
(Support Smart Fan by BIOS) |
Power Ignition Sensing |
• Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V
(With Optional CFM Module) |
Clear CMOS Switch |
• 1x Clear CMOS Switch |
Reset Button |
• 1x Reset Button |
Instant Reboot |
• Support 0.2sec Instant Reboot Technology |
Watchdog Timer |
• Software Programmable Supports 256 Levels System Reset |
Antenna Holes |
• 2x Antenna Holes |
Status LED Indicator |
• HDD LED、GPIO LED、IGN LED、GPU LED、Ethernet LED |
Power |
Power Button |
• 1x ATX Power On/Off Button |
Power Mode Switch |
• 1x AT/ATX Mode Switch |
Power Input |
• 9-48 VDC, Single Power Source
Connector Type: 2x 3-pin Terminal Block, Each Terminal Block Current Limitation is 15A
• Power input voltage from 9V to 23V must use dual power connectors,
power input voltage from 24V to 48V can use single power connector |
Remote Power On/Off |
• 1x Remote Power On/Off, 2-pin Terminal Block |
Max. Power Consumption |
• 35W CPU: 187.51W
• 65W CPU: 258.96W
– Test conducted with CPU, 1x RAM, and 1x storage
– 100% load during burn-in testing. |
Physical |
Dimension ( W x D x H ) |
• 260 x 200 x 85 mm |
Weight Information |
• 4.73 kg |
Mechanical Construction |
• Extruded Aluminum with Heavy Duty Metal |
Mounting |
• Wall / Side / DIN-RAIL / VESA Mount |
Physical Design |
• Fanless Design
• Cableless Design
• Jumper-less Design
• Unibody Design |
Reliability & Protection |
Reverse Power Input Protection |
• Yes |
Over Voltage Protection |
• Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the preset level to recover |
Over Current Protection |
• 30A |
CMOS Battery Backup |
• SuperCap Integrated for CMOS Battery Maintenance-free Operation |
MTBF |
• 313,541 Hours
– Database: Telcordia SR-332 Issue3, Method 1, Case 3 |
Operating System |
Windows |
• Windows®11, Windows®10 |
Linux |
• Ubuntu Desktop 22.04 LTS |

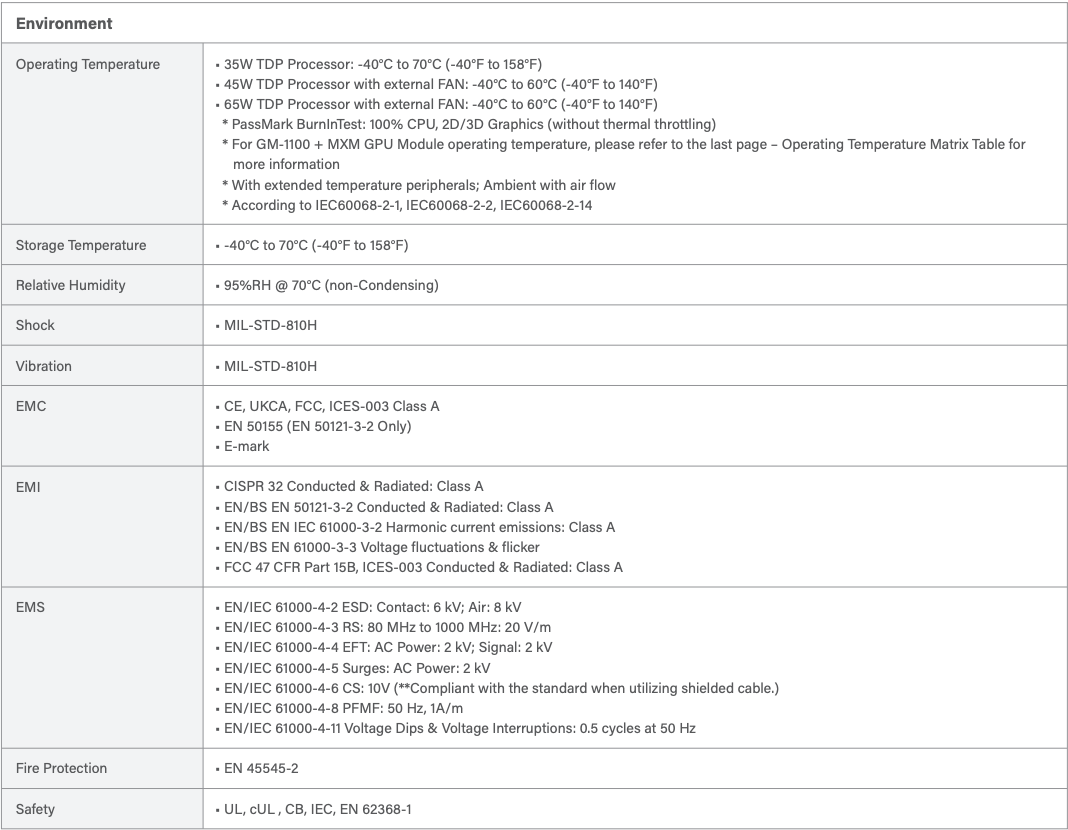

Environment |
Operating Temperature |
• 35W TDP Processor: -40°C to 70°C
• 65W TDP Processor with external FAN: (TBC)
* PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)
* For GM-1100 + MXM GPU Module operating temperature, please refer to the last page – Operating Temperature Matrix Table for more information (TBC)
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
Storage Temperature |
• -40°C to 70°C |
Relative Humidity |
• 95%RH @ 70°C (non-Condensing) |
Shock |
• MIL-STD-810H |
Vibration |
• MIL-STD-810H |
EMC |
• CE, UKCA, FCC, ICES-003 Class A
• EN 50155 (EN 50121-3-2 Only)
• E-mark (Pending) |
EMI |
• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN 61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A |
EMS |
• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV
• EN/IEC 61000-4-6 CS: 10V
(**Compliant with the standard when utilizing shielded cable.)
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz |
