Endüstriyel PC

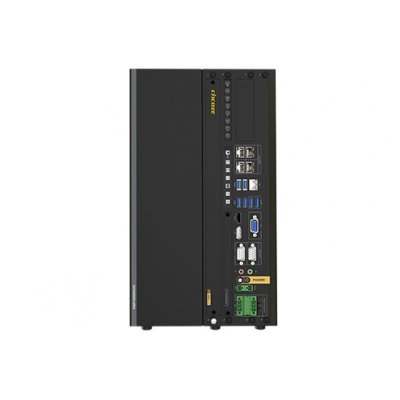

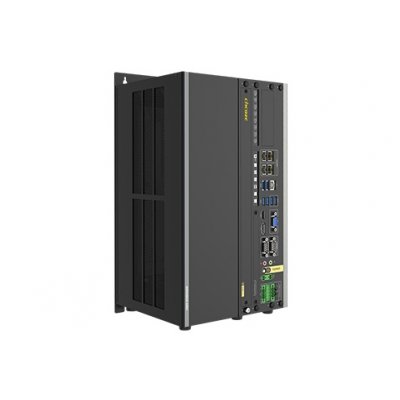

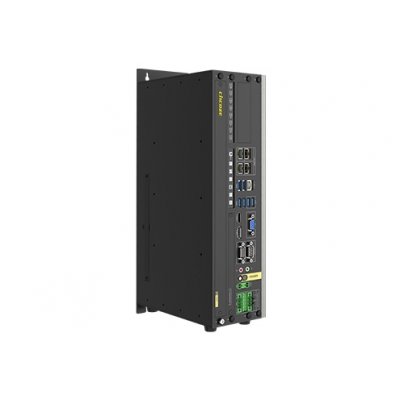

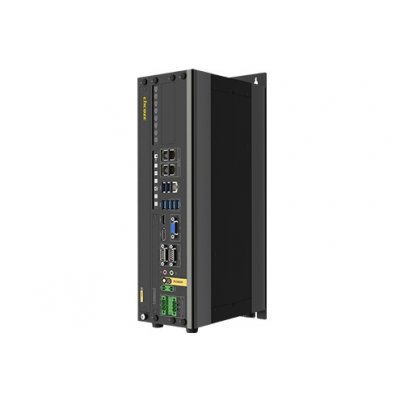

Dual Full-length GPU Expandable Computer

ÜRÜN ÖZELLİKLERİ

Supports 9th/8th Gen Intel® Xeon®/Core™ Processor (35W / 65W / 80W)
2 x DDR4 SO-DIMM Sockets Supports ECC/non ECC type up to 2666 MHz 64GB
4 x 2.5″ Hot Swappable SATA III HDD/SSD Bays (Max Height 15 mm)
1 x M.2 M Key Socket (NVMe) 1 x M.2 E Key Socket (CNVi)
2 x Front Accessible SIM Card Slots for Signal Redundancy
CMI Technology for Various I/O Module Expansions
CFM Technology for Power Ignition Sensing & PoE Function
Versatile Mounting Methods (Wall / Stand / Face-up / 19″ Rack Mount)
Military Standard Shock & Vibration Proof

Teklif Al

PDF

Endüstriyel PC

GP-3000

OVERVIEW

GPUs have evolved—and AI processing, simulation, and 3D graphics rendering have all benefited. Now, powerful GPU-based acceleration is baked into edge computing solutions to provide intensive processing parallelism and performance-driven analytics not possible with traditional PCs. Only these GPU systems can provide the real-time decision-making, predictive analytics, and optimized control at the edge needed to achieve the high efficiency and growth required for industrial operations. Powerful GPU computing drives these applications and necessitates dedicated robust hardware to provide processing and inferencing capabilities.

Cincoze is a professional provider of highly reliable and rugged embedded systems to support customers in the industrial field. Deploying our rugged, high-performance GP-3000 machine vision computer provides the power to manage the most complex artificial intelligence and machine vision workloads.

"Machine

Machine Vision

Vision guided robotics
Automated optical inspection
Artificial Intelligence

"In-vehicle

In-vehicle Computing

Autonomous driving
Predictive maintenance
Fatigue driving detection

"Intelligent

Intelligent Transportation

Traffic monitoring
Environmental monitoring
Object screening

"Security

Security & Surveillance

Object tracking & detection
Real-time pose estimation
Video analytics

Cutting-Edge
Performance

——

The GP-3000 is powered by a 9th generation Intel® Xeon®/Core™ processor and supports up to two 250 W high-end graphics cards adding blazing-fast performance for AI, machine learning, machine vision, and big data analysis. 9th generation Intel® processors are up to 34% percent faster than the previous generation. GP-3000 supports two ECC or non-ECC DDR4-2666 (up to 64 GB) for exceptional speed and responsiveness. The GP-3000 is one of the most formidable industrial AI and machine vision computers available today.

Scalability and Upgradability
With GEB

——

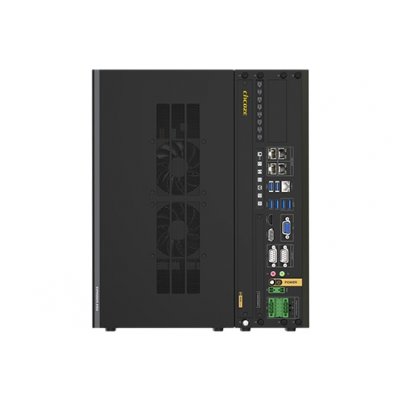

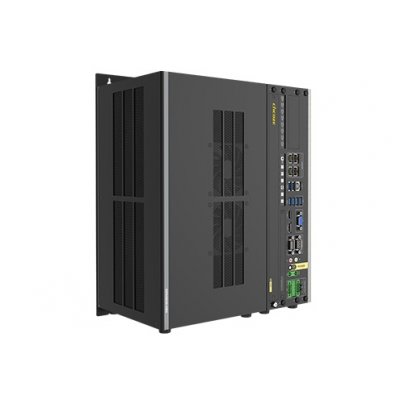

The GP-3000 provides an exclusive GPU Expansion Box (GEB), a scalable GPU solution for performance upgradability and flexibility. It supports the expansion of up to two 250 W 328 mm full-length graphics cards in the market. GP-3000 is the core processing unit, and a single- or dual-GPU GEB connects externally to add GPU processing power and other PCIe add-on cards.

Total Power Budget
Up to 720W

——

GP-3000 has a 720 W total system power budget and supports a wide range DC power input from 9 to 48 V for high-end GPU computing. GP-3000 can power up to 500 W for its GEB with its specialized power design, ideal for dual 250 W graphics cards.

Intelligent Cooling Design
for Enhanced Thermal Support

——

Better performance, higher power requirements. To solve the power consumption and thermal challenges, the GP-3000’s mechanical structure and isolated external smart fan kits on both sides of the chassis effectively dissipate heat under full workloads in extreme conditions.

Multiple Native and
Expandable I/O

——

GP-3000 has multiple native I/O interfaces built-in. Cincoze’s proprietary CMI/CFM modules offer customization for additional I/O or other functionality such as 8x GbE LAN/POE, 6x USB 3.2, and 2x 10 GbE LAN. GP-3000 supports four 2.5″ hot-swap SATA SSDs and has one M.2 M key socket for NVMe SSD storage.

Robust Design
Enabling Reliable Operation

——

GP-3000 packs versatility and performance into a robust design for ultimate GPU computing. GP-3000 has passed a series stringent quality assurance tests and industry standards including MIL-STD-810G military standard, E-mark for in-vehicle applications and EN50155 (EN 50121-3-2 only) for rolling stock environments. It can withstand hot and cold temperature extremes, shock and vibration, and high electromagnetic radiation.

Teklif Al

PDF

Available Models

Model No.	Product Description
GP-3000-R10	9th/8th Gen Intel® Xeon®/Core™ GPU Computer, Supports Dual Full-length GPU Expansion Up to 500W

Package Checklist

√ Wall Mount Bracket	√ Rubber Foot Kit x 1
√ Desktop Mount Kit x 1	√ Power Terminal Block Connector x 2
√ CPU Heatsink and Thermal Pad Kit	√ Remote Function Terminal Block Connector x 2
√ Screw Pack x4	√ Utility DVD Driver x1

Optional GPU Expansion Box

Model No.	Description
GEB-3301-R10	GPU Expansion Box with 1x PCIex16 and 1x PCIe x4 Slots for GP-3000 Series
GEB-3601-R10	GPU Expansion Box with 2x PCIe x 16 (Signal PCIe x 8), 1x PCIe x 4 and 1 x PCIe x 1 Slots for GP-3000 Series

Optional Accessories – I/O Module

Model No.	Description
CMI-LAN01-R12/UB1412	CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout for GP-3000 Series
CMI-M12LAN01-R12/UB1410	CMI Module with M12 A-Coded Connector, 4x Intel I210 GbE LAN / 1x Universal Bracket with 4x M12 Cutout for GP-3000 Series
CMI-XM12LAN01-R10/UB1410	CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports / Universal Bracket with 4x M12 Cutout for GP-3000 Series
CMI-10GLAN02-R10/UB1428	CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port / 1x Universal Bracket with 2x RJ45 Cutout for GP-3000 Series
CMI-COM04-R10/UB1403	CMI Module with 2x RS232/422/485 Ports (Support 5V/12V) / 1x Universal Bracket with 2x DB9 Cutout for GP-3000 Series
CMI-DIO04-R11/UB1418	CMI Module with 16DIO (8in 8out) / 1x Universal Bracket with DIO Cutout for GP-3000 Series
MEC-USB-M102-15/UB1414	Mini-PCIe Module with 2x USB 3.0 Ports, 1x 15cm cable / 1x Universal Bracket with 2x USB Cutout for GP-3000 Series

Optional Accessories – Function Module

Model No.	Description
CFM-PoE07-R10	CFM Module with PoE Function, Individual Port 25.5W (Enable PoE function for CMI-LAN01-R12 and CMI-M12LAN01-R12)
CFM-PoE01	CFM Module with PoE Function, Individual Port 25.5W (Enable PoE function for onboard LAN 2 to LAN 5)
CFM-IGN03-R10	CFM Module with Power Ignition Sensing Function, 12V/24V Selectable

Optional Mounting Kit

Model No.	Description
RM01-R10	19″ Rack Mount Kit for GP-3000
RM02-R10	19″ Rack Mount Kit for GP-3000/GEB-33 Series
RM03-R10	19″ Rack Mount Kit for GP-3000/GEB-36 Series

Optional Power Supply / Power Cord / Power Cable

Model No.	Description
SDR-480-24	DIN Rail Power Supply 480W 24V, SDR-480-24
HEP-1000-24	Power Supply 1000W 24V, HEP-1000-24
US Power Cord	1.8M US Power Cord, Stripped and Tinned End with Tube
EU Power Cord	1.8M EU Power Cord, Stripped and Tinned End with Tube
Power Cable	1M Power Cable with 3-Pin Terminal Block Plug, Stripped and Tinned End with Tube

Endüstriyel PC

GP-3000

Daha Fazla

Ürün Özellikleri

	GP-3000
Processor	• 9th Generation Intel Coffee Lake-R S Series CPU: – Intel® Xeon® E-2278GE 8 Cores Up to 4.7 GHz, TDP 80W – Intel® Xeon® E-2278GEL 8 Cores Up to 3.9 GHz, TDP 35W – Intel® Core™ i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W – Intel® Core™ i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W – Intel® Core™ i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W – Intel® Core™ i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W – Intel® Core™ i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W – Intel® Core™ i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W • 8th Generation Intel Coffee Lake S Series CPU: – Intel® Xeon® E-2176G 6 Cores up to 4.7 GHz, TDP 80W – Intel® Xeon® E-2124G 4 Cores up to 4.5 GHz, TDP 71W – Intel® Core™ i7-8700 6 Cores up to 4.6 GHz, TDP 65W – Intel® Core™ i5-8500 6 Cores, up to 4.1 GHz, TDP 65W – Intel® Core™ i3-8100 4 Cores 3.6 GHz, TDP 65W – Intel® Core™ i7-8700T 6 Cores up to 4.0 GHz, TDP 35W – Intel® Core™ i5-8500T 6 Cores up to 3.5 GHz, TDP 35W – Intel® Core™ i3-8100T 4 Cores 3.1 GHz, TDP 35W – Intel® Pentium® G5400 2 Cores 3.7 GHz, TDP 58W – Intel® Pentium® G5400T 2 Cores 3.1 GHz, TDP 35W – Intel® Celeron® G4900 2 Cores 3.1 GHz, TDP 54W – Intel® Celeron® G4900T 2 Cores 2.9 GHz, TDP 35W
Chipset	Intel C246
Memory	• 2x DDR4-2666/2400 MHz SO-DIMM Sockets • Supports ECC / non-ECC Type Up to 64 GB * Xeon/i7/i5: Up to DDR4 2666MHz * i3/Pentium/Celeron: Up to DDR4 2400MHz
Graphics	• Integrated Intel® UHD Graphics (Xeon/i7/i5/i3: UHD 630; Pentium/Celeron: UHD 610) • Supports Triple Independent Display (VGA/DisplayPort/HDMI)
Audio	Realtek® ALC888, High Definition Audio
BIOS	AMI BIOS
HDMI	1x HDMI Connector (4096 x 2160 @ 30Hz)
DP	1x DisplayPort Connector (4096 x 2304 @ 60Hz)
VGA	1x VGA Connector (1920 x 1200 @30Hz )
LAN	5x GbE LAN, RJ45 – GbE1: Intel® I219-LM – GbE2: Intel® I210 – GbE3: Intel® I210 – GbE4: Intel® I210 – GbE5: Intel® I210
Serial Port	2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB	2x 10Gbps USB 3.2 Gen2, Type A 4x 5Gbps USB 3.2 Gen1, Type A
Line-Out	1x Line-Out, Phone Jack 3.5mm
Mic-In	1x Mic-In, Phone Jack 3.5mm
Power Button	1x ATX Power On/Off Button
Remote Power On/Off	1x Remote Power On/Off, 2-pin Terminal Block
Remote Reset	1x Remote Reset, 2-pin Terminal Block
AT/ATX Switch	1x AT/ATX Mode Switch
Rest Button	1x Rest Button
Clear CMOS Switch	1x Clear CMOS Switch
SSD/HDD	4x 2.5″ Front Accessible SATA HDD/SSD Bay (SATA 3.0), Supports Up to 15mm in Height
M.2	1x M.2 Key M 2280 Socket, Supports PCIe x4 NVMe SSD or SATA SSD (Gen3)
RAID	Supports RAID 0 / 1 / 5 / 10
PCIe	Optional GPU Expansion Box – 1 x PCIe x 4 + 1 x PCIe x 16 – 2 x PCIe x 16 (8 Lanes) + 1 x PCIe x 1 + 1 x PCIe x 4
Mini PCI Express	2x Full-size Mini-PCIe Socket
M.2	1x M.2 Key E 2230 Socket, Supports Intel CNVi Module 1x M.2 Key M 2280 Socket, Support NVMe/SATA SSD
Universal Bracket	1x Universal Bracket
SIM Socket	2x SIM Socket
Antenna Holes	7x Antenna Holes
CMI Interface	1x High Speed CMI (Combined Multiple I/O) Interface 1x Low Speed CMI (Combined Multiple I/O) Interface
CMI Module	Optional Modules: – 4x GbE LAN, RJ45 – 4x GbE LAN, M12 A-Coded – 2x 10GbE LAN, RJ45 – 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 – 16x Optical Isolated DIO(8DI, 8DO), 2x 10 Pin Terminal Block
CFM Interface	1x CFM(Control Function Module) IGN Interface 1x CFM(Control Function Module) PoE Interface
CFM Module	Optional Module • 1x Power Ignition Sensing Module with Delay Time Management and Selectable 12V/24V • 1x PoE Function Module Supports Up to 4x PoE+ with Individual port 25.5W
MEC Module	Optional Modules: • 2x 5Gbps USB 3.2 Gen1, Type A • 2x GbE LAN, RJ45
Fan	2x Fan Kits ( Air-flow isolated from the electronics )
Instant Reboot	Support 0.2sec Instant Reboot Technology
Super Cap	SuperCap Integrated for CMOS Battery Maintenance-free Operation
Watchdog Timer	Software Programmable Supports 256 Levels System Reset
Power Type	AT/ATX
Power Input Voltage	9-48 VDC, Single Power Source
Total Power Budget	220W
Connector	2x 3-pin Terminal Block, Each Terminal Block Current Limitation is 15A – Dual power connect must be used at the same time due to 15A current limitation at each power connector.
Power Supply	Optional AC/DC or DC/DC 24V 480W Power Supply Optional AC/DC or DC/DC 24V 1000W Power Supply
Dimension ( W x D x H )	105 x 195 x 370 mm
Weight Information	8kg
Mechanical Construction	Extruded Aluminum with Heavy Duty Metal
Mounting	Wall Mount / Desktop Mount / 19″ Rack Mount / Face-up Mount
Unibody Design	Yes
Jumper-less Design	Yes
Reverse Power Input Protection	Yes
Over Voltage Protection	• Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection	30A
ESD Protection	+/-8kV(Air), +/-4kV(Contact)
Surge	3.84 kV (impedance 12 ohm 1.2/50us waveform)
Windows	Windows® 10
Linux	Support by project
Operating Temperature	35W CPU: -40°C to 70°C 65W CPU: -40°C to 60°C 80W CPU: -40°C to 50°C * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 * 100% CPU and without thermal throttling
Storage Temperature	-40°C to 85°C
Relative Humidity	95% RH @ 70°C (Non-condensing)
Shock	MIL-STD-810G
Vibration	MIL-STD-810G
EMC	CE, FCC, ICES-003 Class A, EN50121-3-2 (Railway), E-mark
Safety	LVD (EN62368-1)
MTBF	441,283 hr
