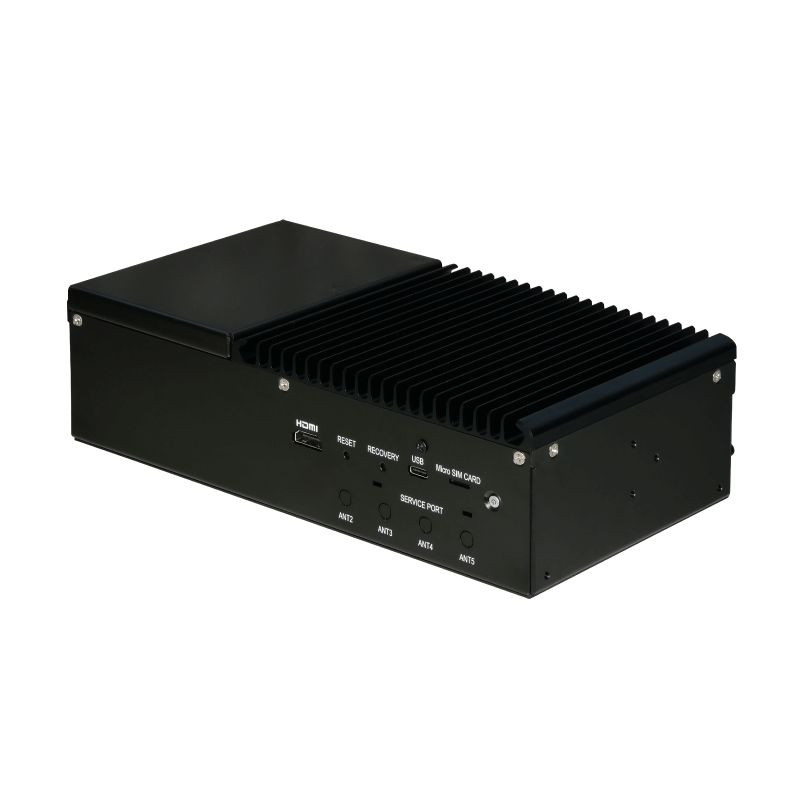

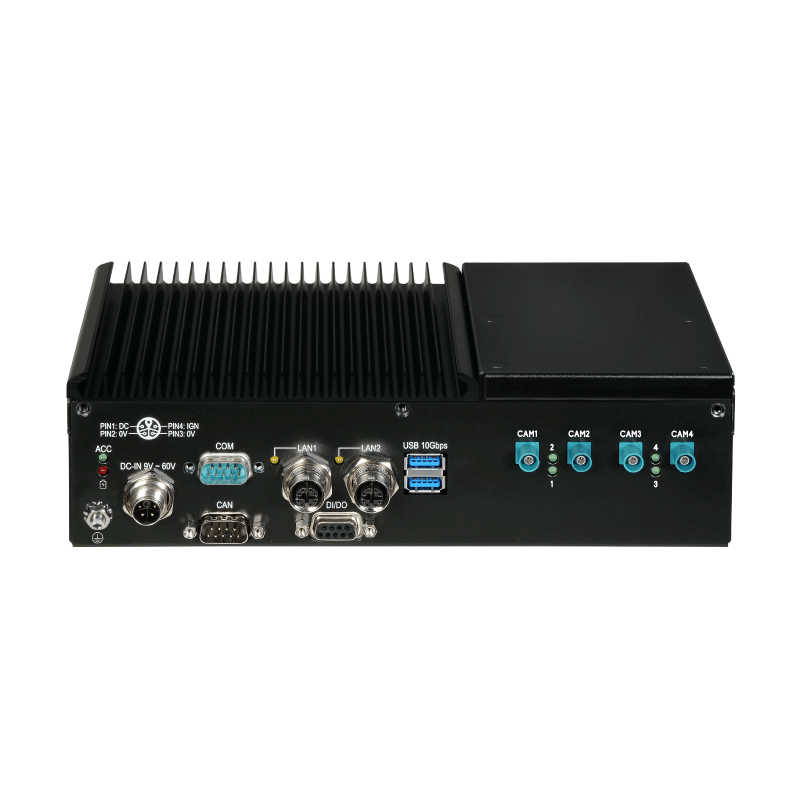

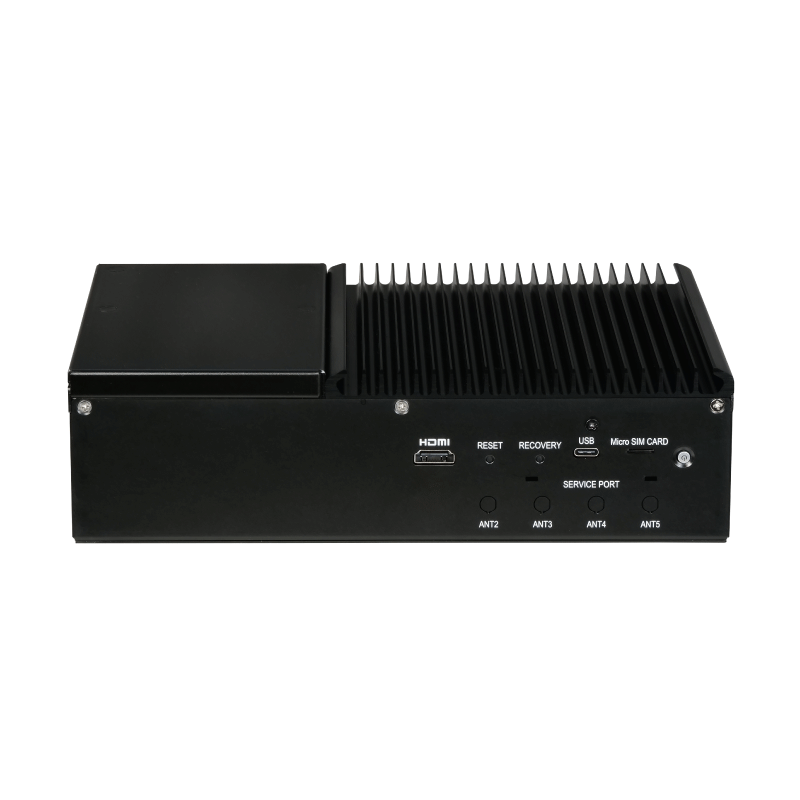

Edge AI Jetson PC

IBOX-601-M12X

NVIDIA® Jetson Orin NX Fanless Edge AI Computer

• NVIDIA® Jetson Orin™ NX SoM with 1024 CUDA Cores

• 4 x GMSL-2 Cameras Support

• 2 x Ethernet with M12 Connectors • 1 x CAN FD for Vehicle Connection

• 9-60VDC Input with Built-in Smart Power Management

• -25°C ~ 70°C Operating with Fanless Design

• Optional Backup Battery for Emergency

Edge AI Jetson PC

IBOX-601-M12X

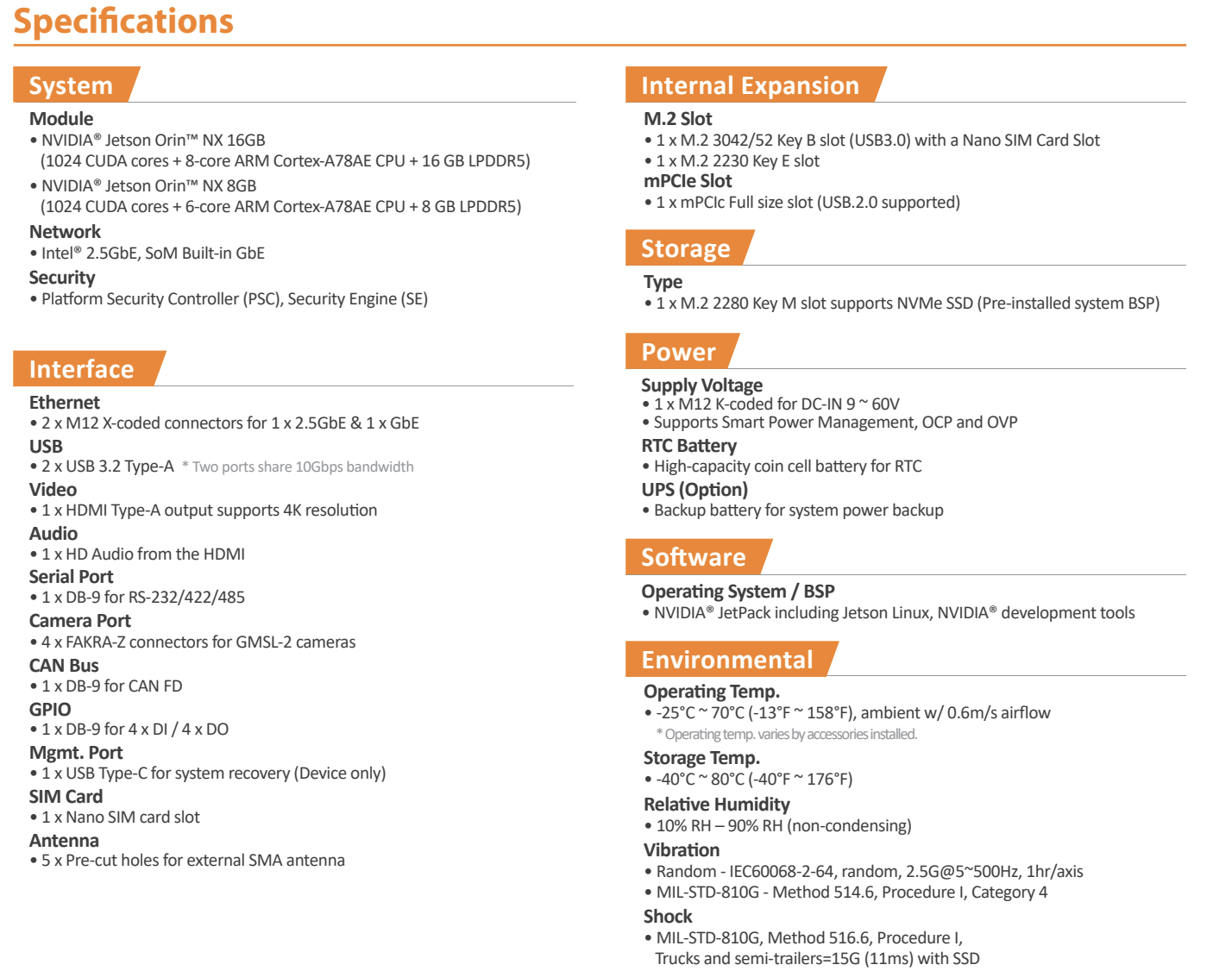

Module

• NVIDIA® Jetson Orin™ NX 16GB (1024 CUDA cores + 8-core ARM Cortex-A78AE CPU + 16 GB LPDDR5)

• NVIDIA® Jetson Orin™ NX 8GB (1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8 GB LPDDR5)

Network

• Intel® 2.5GbE, SoM Built-in GbE Security

• Platform Security Controller (PSC), Security Engine (SE)

Ordering Information

IBOX-601-M12X-00-ONX16 : NVIDIA® Jetson Orin™ NX 16GB / VDB-100 / 4 x GMSL-2 / Model M12

IBOX-601-M12X-00-ONX8 : NVIDIA® Jetson Orin™ NX 8GB / VDB-100 / 4 x GMSL-2 / Model M12

IBOX-601-M12X-01-ONX16* : NVIDIA® Jetson Orin™ NX 16GB / VDB-101 / 4 x GMSL-2 / Model M12

IBOX-601-M12X-01-ONX8* : NVIDIA® Jetson Orin™ NX 8GB / VDB-101 / 4 x GMSL-2 / Model M12

Description : NVIDIA® Jetson Orin™ NX w/ 1 x 2.5GbE / 2 x LAN / 1 x HDMI / 1 x CAN bus / 4 x GMSL-2 / DC 9-60V / Edge AI Computer

Ürün Özellikleri
