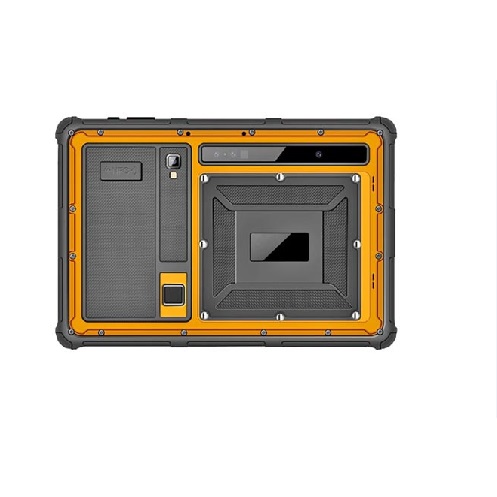

Rugged Tablet

ORT-G8W

8" IPS

Product Form

Form Factor: IP67 Rugged Tablet PC

Dimensions: 234×159×21.5mm

Weight: 0.7KG

LCD

Screen Size: 8″

Screen Resolution: 800×1280 (IPS+300ANSI)

TP

Touch Module: G+G Multi-Touch

Battery

Type: Rechargeable lithium polymer

Capacity: 5500mAh/3.7V

Working Time: Over 6 hours (FHD local video display)

Rugged Tablet

ORT-G8W

Product Form

Form Factor: IP67 Rugged Tablet PC

Dimensions: 234×159×21.5mm

Weight: 0.7KG

LCD

Screen Size: 8″

Screen Resolution: 800×1280 (IPS+300ANSI)

TP

Touch Module: G+G Multi-Touch

Battery

Type: Rechargeable lithium polymer

Capacity: 5500mAh/3.7V

Working Time: Over 6 hours (FHD local video display)

ORT-G8W

ORT-G8W

Ürün Özellikleri

Key Features IP67;8″ IPS + Intel Z8350 + 4GB +64GB + WiFi 2.4G&5G Dual   band + HDMI1.4 + USB3.0
System Physical Standard Configuration:
Type Details Descriptions
Product   Form Form Factor IP67 8″Rugged Tablet PC
Dimensions 234×159×21.5mm
Weight 0.7KG
LCD Screen Size 8″
Screen Resolution 800×1280 (IPS+300ANSI)
TP Touch Module G+G Multi-Touch
Battery Type Rechargeable lithium polymer
Capacity 5500mAh/3.7V
Working   Time Over 6 hours (FHD local video display)
System Hardware Configuration:
Type Details Descriptions
CPU Type Intel Cherry Trail x5-Z8350 Quad-Core
Speed 1.44GHz ~ 1.92GHz
GPU Type Intel HD Graphics Gen8
Memory Capacity 4GB
Storage eMMC 64GB
SSD Optional with M.2 slot
Camera Front 2M
Rear 5M
Speaker Built-in 8Ω/1W with water proof
Micphone Built-in Yes
G-sensor Built-in Yes
Network Connections:
Type Details Descriptions
WIFI WIFI Module: Broadcom   AP6256 WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band
Bluetooth BT Module: Broadcom   AP6256 Bluetooth4.2
3G/4G LTE Optional Optional with M.2 slot
QR code Scanners Optional Optional
NFC Optional Optional
GPS BD2/GPS Optional
Fingerprinter Capacitive fingerprint   sensor Optional
Interface Configuration:
Type Details Descriptions
USB   Interface USB3.0 ×1pc
Type-C   (2.0) ×1pcs (Base on USB2.0; DC-IN AND data transmit)
SD / TF Card   reader TF Card reader ×1pc (up to 256GB)
SIM  Card Slot SIM Slot for 3G/4G LTE Optional
Audio Jack 3.5mm standard ×1pc
HDMI Micro HDMI 1.4 ×1pc
Video   output through HDMI Up to 4K
Button Switch:
Type Details Descriptions
Power On/Off ×1pc
Volume Down/UP ×1pc
Hotkeys Contral QR Scanner ×1pc
Main Accessories:
Type Details Descriptions
Power adapter DC 5V/3A (Type-C) ×1pc
User’s Manual User’s Manual ×1pc
Handle Straps Optional Optional
Extension Docking USB2.0×1pc ; DC IN × 1pc Optional
Software Configuration:
 Type Details Descriptions
PXE Preboot Execution   Environment /
Operating   System Windows 10 Optional
Linux Test by end user
Environment:
Temperature Operation Temperature -10oC ~ 55oC (1080p or 4K local   video display)
Storage   Temperature -20oC ~ 70oC  (Restore to Operation Temperature 2hr   before use)
Humidity Oprating Humidity 35% ~ 80% relative humidity, Non-condensing
Storage   Humidity 20% ~ 93% relative humidity, Non-condensing
Certification:
IP67 IP67 Certification Yes
Other Other Optional
