Endüstriyel Anakart

OVMB-ARM-A33G

64Bit processor. Dual-core Cortex-A72 up to 1.8GHz Quad-core Cortex-A53 up to 1.4GHz Built-in low power consumption MCU Cortex-M0

Various display interfaces: Dual-LVDS, EDP, HDMI etc.

Various expansion interfaces. OVMB-ARM-A33G has seven USB ports(A TYPEC and four internal
expansion ports, two USB standard ports.), a 485 port, four expandable serial ports(TTL*2, one
has hard flow control, RS232*2), a GPIO port and a ADC port,OVMB-ARM-A33G can satisfy your
customization request.

Various internet:1000M Ethernet, 5G/2.4G WIIF supported, Independent dual-antenna, built-in
PCI-E 3G/4G module interfaces.

High def inition.OVMB-ARM-A33G supports 4K 3840×2160 decoding, it also supports Special-
shaped screen with LVDS/EDP/HDMI interfaces and it has multi-monitor extend display mode.

Android system customization. OVMB-ARM-A33G provides system calling interface and API
reference code, it supports upper-layer applications development perfectly.

OVMB-ARM-A33G supports infrared, optical, capacitance, resistance and other mainstream touch
screen, it also supports drive-free HID configuration which no need to debug before using

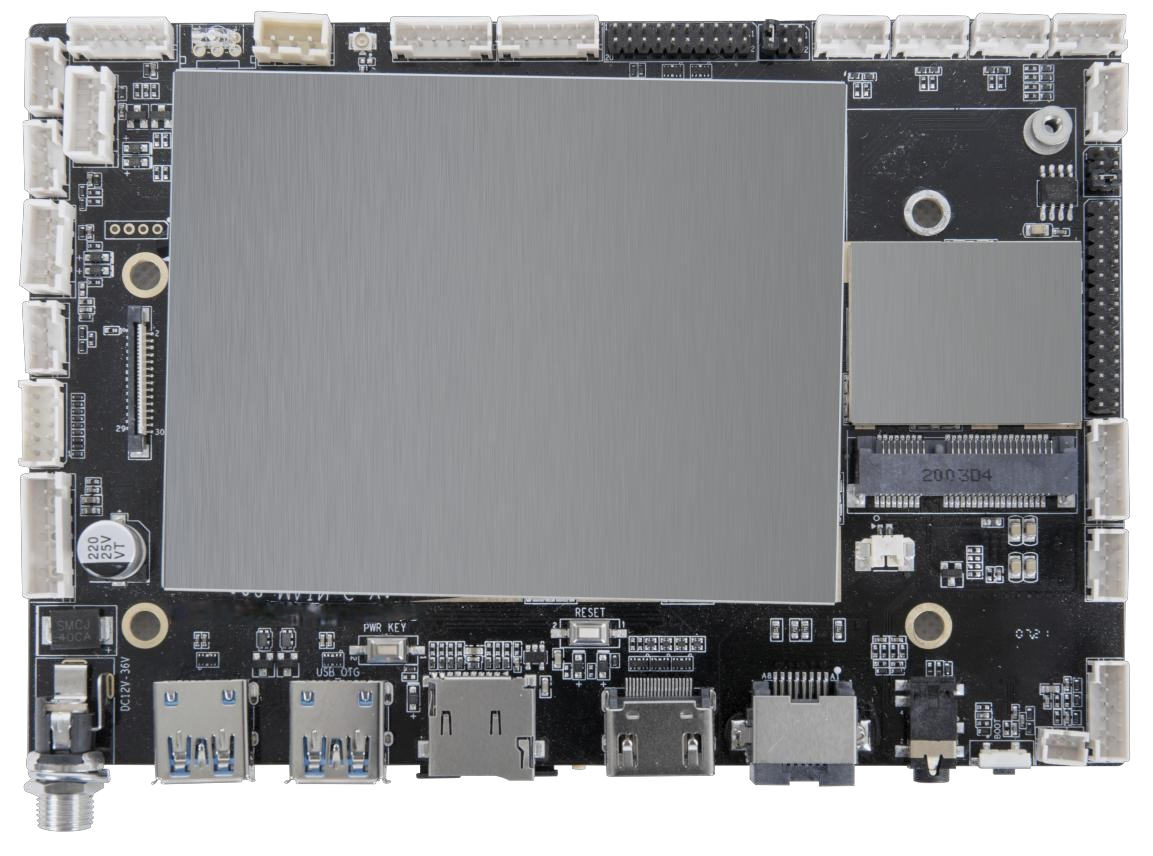

Endüstriyel Anakart

OVMB-ARM-A33G

OVMB-ARM-A33G uses RK3399,a 64bit supper processor with dual-core Cortex-A72 and quad-
core Cortex-A53,its basic frequency is 1.8GHz, OVMB-ARM-A33G Uses Mali-T860 GPU, it has H.265 hardware
decoder to supports 4K display. OVMB-ARM-A33G integrated Dual-LVDS, EDP, HDMI and MIPI
display output interfaces to itself, with common backlight panel interface and screen level jumper,
OVMB-ARM-A33G is compatible to various types of display screen.With powerful performance and
fast process speed, OVMB-ARM-A33G is your best choice for human-computer interaction, intelligent
terminal and industrial control projects.

Sipariş Bilgileri

OVMB-ARM-A33G

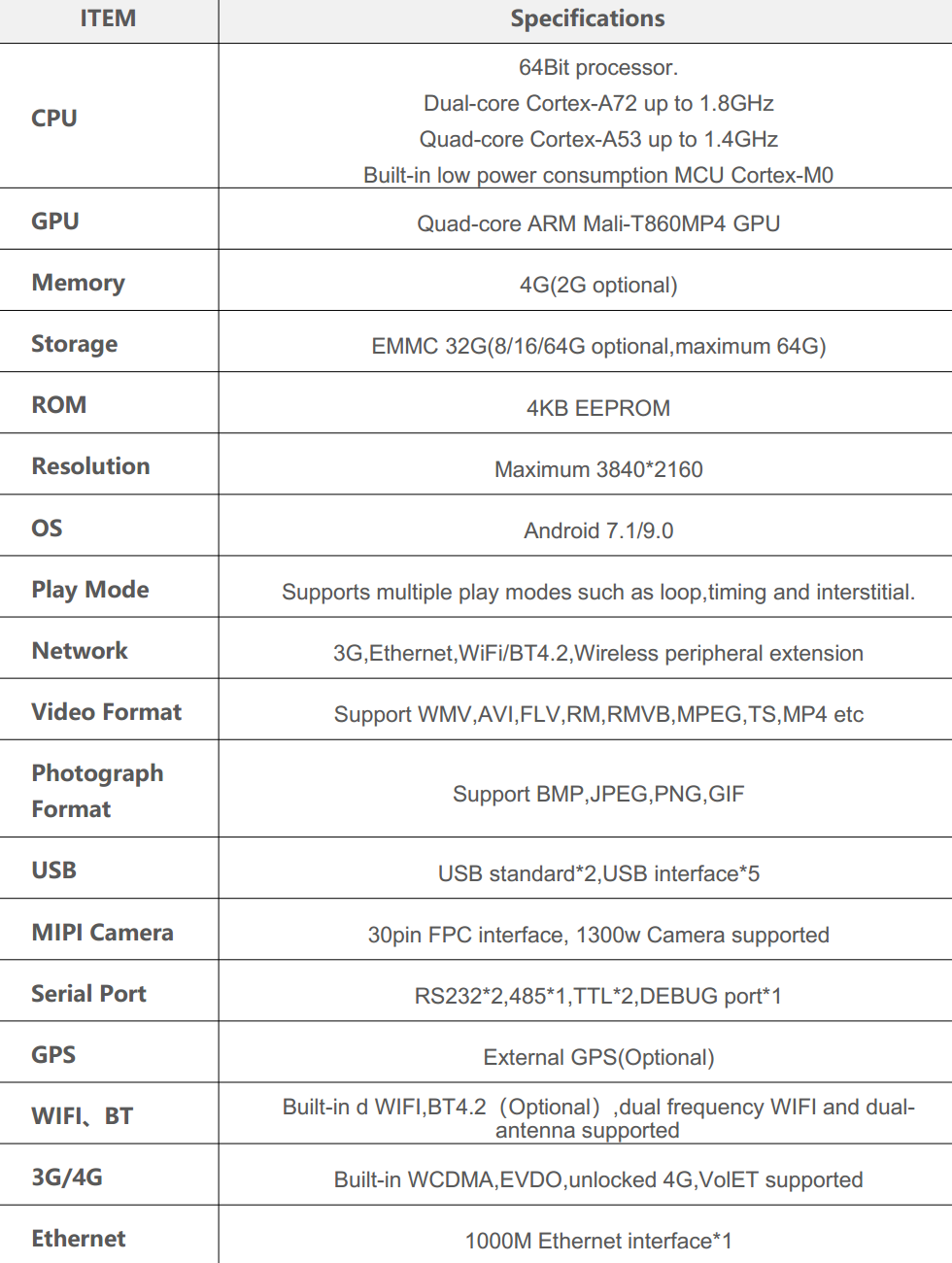

Ürün Özellikleri

Benzer Ürünlerimiz

OVMB-X86-Pro Series

OVMB-X86-Pro Series

◆OVMB-X86-Pro-I3 (8145U )Base frequency: 2.1GHZ Burst frequency: 3.9GHz,dual-core 4threads, Intel Bay trail SOC ◆OVMB-X86-Pro-I3 (10110U )Base frequency: 2.1GHZ Burst frequency: 4.1GHz,dual-core 4threads,Intel Bay trail SOC ◆OVMB-X86-Pro-I5 (8265U )Base frequency: 1.6GHZ Burst frequency: 3.9GHz,quad-core8threads,Intel Bay trail SOC ◆OVMB-X86-Pro-I5 (10210U )Base frequency: 1.6GHZ Burst frequency: 4.2GHz,quad-core8threads,Intel Bay trail SOC ◆OVMB-X86-Pro-I7 (8565U )Base frequency: 1.8GHZ Burst frequency: 4.6GHz,quad-core8threads,Intel Bay trail SOC ◆OVMB-X86-Pro-I7 (10510U )Base frequency: 1.8GHZ Burst frequency: 4.9GHz,quad-core8threads,Intel Bay trail SOC

OVMB-X86-Pro Series has two gigabit internet ports as standard.

OVMB-X86-J41

OVMB-X86-J41

Intel ® Celeron ® J4125, clock speed 2.GHZ, Quad-core, TDP 10W

OVMB-X86-J41 has two gigabit internet ports as standard.

OVMB-X86-J19

OVMB-X86-J19

Intel ® Celeron ® J1900, Base frequency:2.3GHZ 1.99G, Quad- core, TDP 10W

.OVMB-X86-J19 has two versions, with single net port or dual net port, both versions have dual gigabit internet.

OVMB-X86-Basic Series

OVMB-X86-Basic Series

◆OVMB-X86-Basic-I3 (6100U)Base frequency:2.3GHZ Burst frequency:2.3GHz,dual-core 4 threads, ◆OVMB-X86-Basic-I5 (6200U)Base frequency:2.3GHZ Burst frequency:2.8GHz,dual-core 4 threads, ◆OVMB-X86-Basic-I5 (7200U)Base frequency:2.5GHZ Burst frequency:3.1GHz,dual-core 4 threads, ◆OVMB-X86-Basic-I7 (6500U)Base frequency:2.5GHZ Burst frequency:3.1GHz,dual-core 4 threads, ◆OVMB-X86-Basic-I7 (7500U)Base frequency:2.7GHZ Burst frequency:3.5GHz,dual-core 4 threads,

OVMB-X86-Basic has two gigabit internet ports as standard.

OVMB-ARM-A64

OVMB-ARM-A64

A64 、Quad-core,1.2GHz

OVMB-ARM-A64 uses Allwinner R18 Cortex-A53 quad-core 64bit processor with Android 6.0 OS, its basic frequency is 1.2GHz, OVMB-ARM-A64 is best choice for high price performance quad-core terminal.

OVMB-ARM-A3588

OVMB-ARM-A3588

RK3588 is a 64-bit high-performance CPU 1. Four Cortex-A76 large core 64-bit CPU 2.4GHZ 2. Quad Cortex-A55 small core 64-bit CPU 1.8GHZ

OVMB-ARM-A3588 belongs to the high-performance android series products, with 8nm advanced process; with 8-core 64-bit large and small core architecture, 4 A76 large-core main frequency can reach 2.4G, 4 A55 small-core main frequency can reach 1.8G ;With NPU, with 6TOPS AI computing power, using Mali-G610 MC4 GPU; 8K video codec, 8K display output

OVMB-ARM-A3568

OVMB-ARM-A3568

64Bit processor

OVMB-ARM-A3568 is a 22nm advanced manufacturing process android series product with high performance, low power consumption feature. It has a quad-core 64-bit Cortex-A55 core architecture with a 2.0GHz basic frequency; Built-in independent NPU, with 1TOPS AI computing power, support lightweight AI application development, GPU using ARM Mali-G52 2EE ,it supports 4K video decode and 4K display output.

OVMB-ARM-A33N

OVMB-ARM-A33N

64Bit processor. Dual-core Cortex-A72 up to 1.8GHz Quad-core Cortex-A53 up to 1.4GHz Built-in low power consumption MCU Cortex-M0

OVMB-ARM-A33N is a intelligent terminal motherboard can be applied in Advertising machine, digital signage, intelligent self-service terminal, intelligent vending machine, O2O smart equipment, industrial control computer, robot and other equipment.

OVMB-ARM-A33L

OVMB-ARM-A33L

64Bit processor. Dual-core Cortex-A72 up to 1.8GHz Quad-core Cortex-A53 up to 1.4GHz Built-in low power consumption MCU Cortex-M0

OVMB-ARM-A33L is a intelligent terminal motherboard can be applied in Advertising machine, digital signage, intelligent self-service terminal, intelligent vending machine, O2O smart equipment, industrial control computer, robot and other equipment.

OVMB-ARM-A33G

OVMB-ARM-A33G

64Bit processor. Dual-core Cortex-A72 up to 1.8GHz Quad-core Cortex-A53 up to 1.4GHz Built-in low power consumption MCU Cortex-M0

OVMB-ARM-A33G is a intelligent terminal motherboard with shield cover, it is designed to reach certification standards like electromagnetic radiation class B, this design also improve the breakdown voltage 15KV(air) and 8KV(touched) in ESD test, the working temperature rang is 0°to +60 °.

OVMB-ARM-A33

OVMB-ARM-A33

64Bit processor. Dual-core Cortex-A72 up to 1.8GHz Quad-core Cortex-A53 up to 1.4GHz

OVMB-ARM-A33 is a intelligent terminal motherboard can be applied in Advertising machine, digital signage, intelligent self-service terminal, intelligent vending machine, O2O smart equipment, industrial control computer, robot and other equipment.

OVMB-ARM-A32I

OVMB-ARM-A32I

RK3288, Quad-core, 1.6GHz

OVMB-ARM-A32I is a intelligent terminal motherboard can be applied in advertising machine, digital signage, intelligent self-service terminal, intelligent vending machine, O2O smart equipment, industrial control computer, robot and other equipment.

OVMB-ARM-A32G

OVMB-ARM-A32G

RK3288, Quad-core, 1.6GHz

OVMB-ARM-A32G is a intelligent terminal motherboard with large temperature endurance range. It ’s designed for medical industry , all parts included processor is industry grade, the temperature endurance range is -20 °to +70 °.

OVMB-ARM-A32F

OVMB-ARM-A32F

RK3288, Quad-core,1.8GHz,Android 7.1/10.0

Digital signage, intelligent self-service terminal, intelligent vending machine, O2O smart equipment, industrial control computer, robot and other equipment.
