Endüstriyel Anakart

OVMB-ARM-A3588

RK3588 is a 64-bit high-performance CPU 1. Four Cortex-A76 large core 64-bit CPU 2.4GHZ 2. Quad Cortex-A55 small core 64-bit CPU 1.8GHZ

Multiple display interfaces: LVDS, eDP, MIPI, HDMI multiple display output interfaces.

Rich expansion interfaces: 9 USB interfaces (3 USB3.0 HOST standard interfaces, 5 USB2.0
PH2.0 HOST interface sockets, 1 standard USB3.0 OTG interface), 1 TTL serial port, 1
RS232 , 1 channel of RS485, 2 channels of TTL/RS232 serial ports that can be switched by
jumper caps, 6 channels of GPIO, one of which is multiplexed with button LED light output
and GPIO 1 (can be adjusted by software, the default button LED light output), which can
meet the needs of the market. Various peripheral requirements.

Multiple network interfaces: 2 1000M Ethernet interfaces, support 5G and 2.4G WIFI, built-in
PCI-E 4G, M.2 5G module interface.

High definition: maximum support 8K/60HZ video output, support LCD display with
LVDS/eDP/MIPI/HDMI and other interfaces, onboard HDMI IN input port can support 4K high-
definition input.

Endüstriyel Anakart

OVMB-ARM-A3588

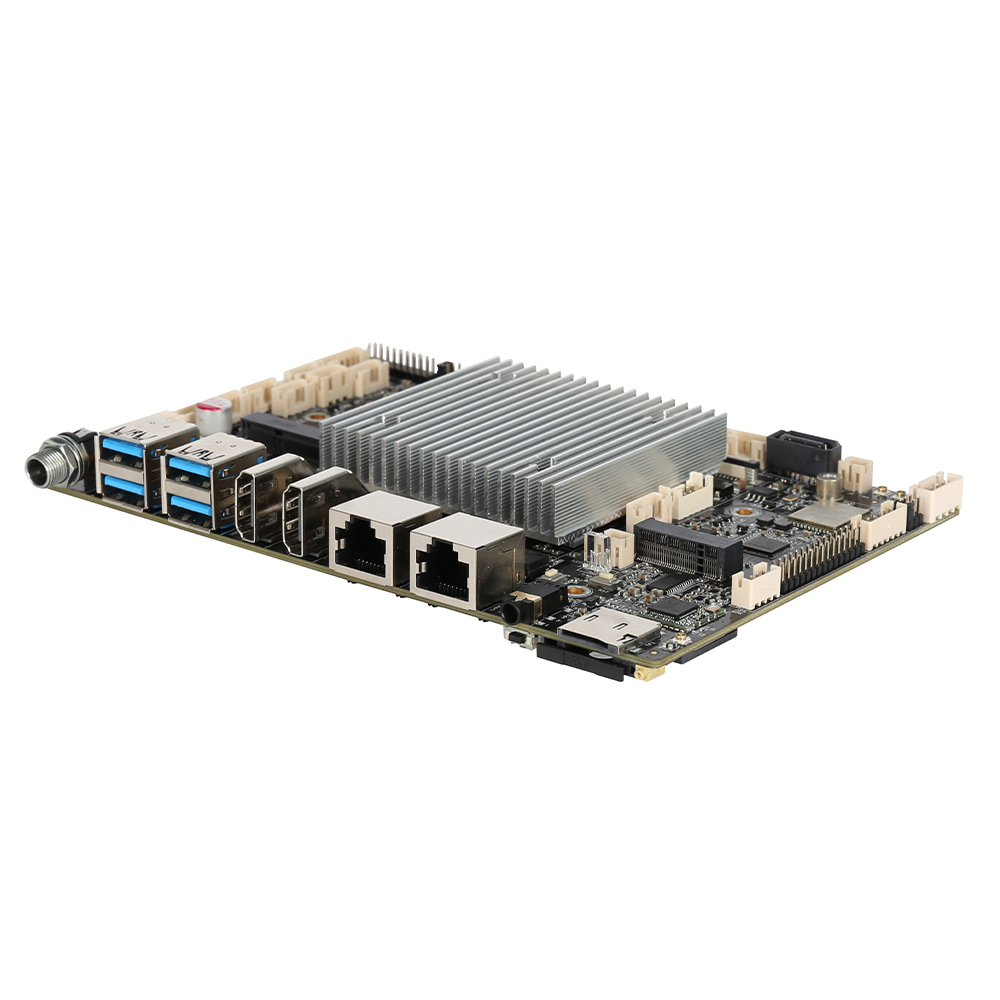

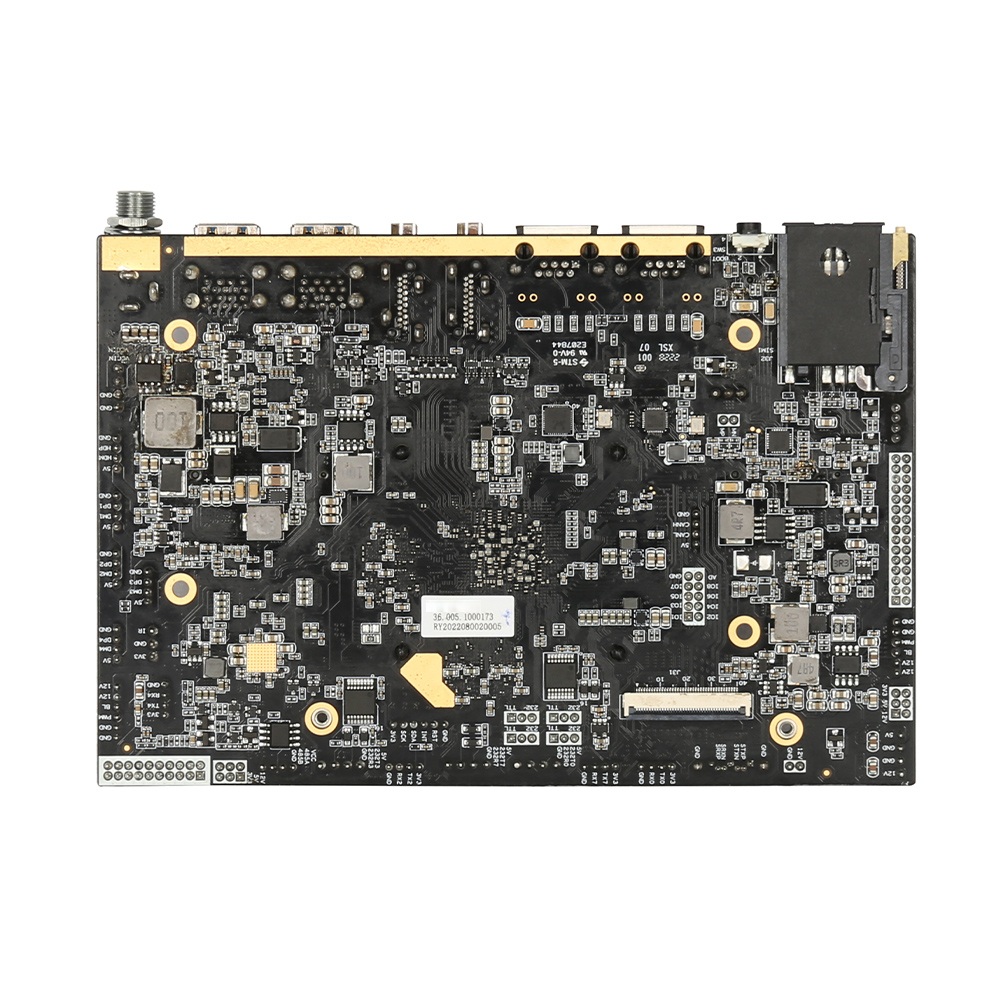

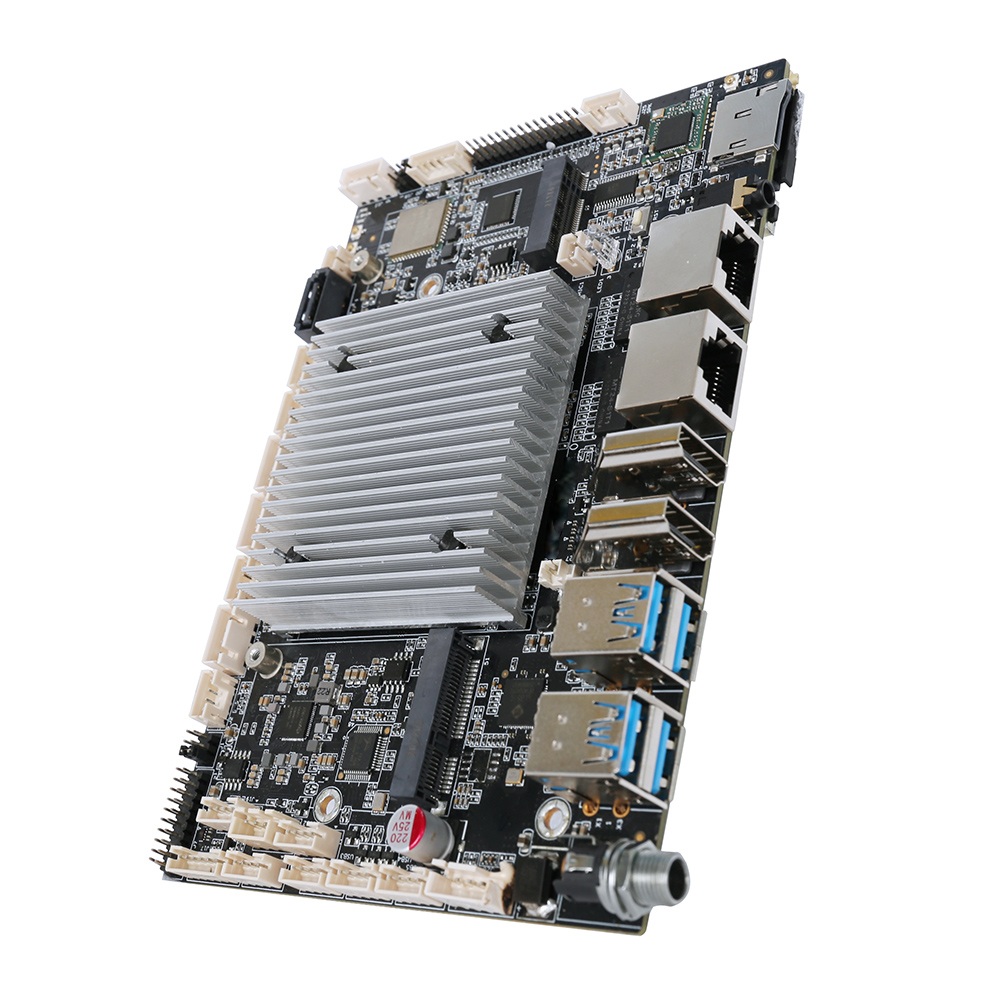

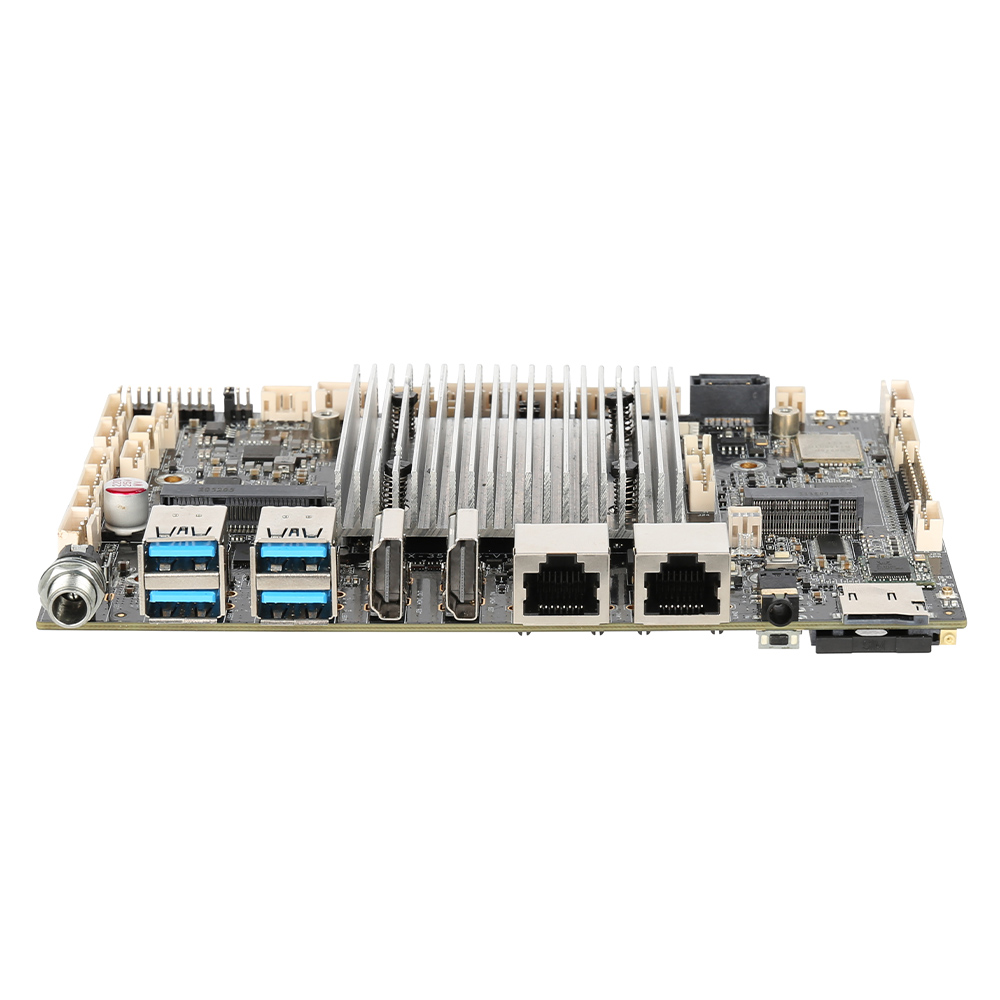

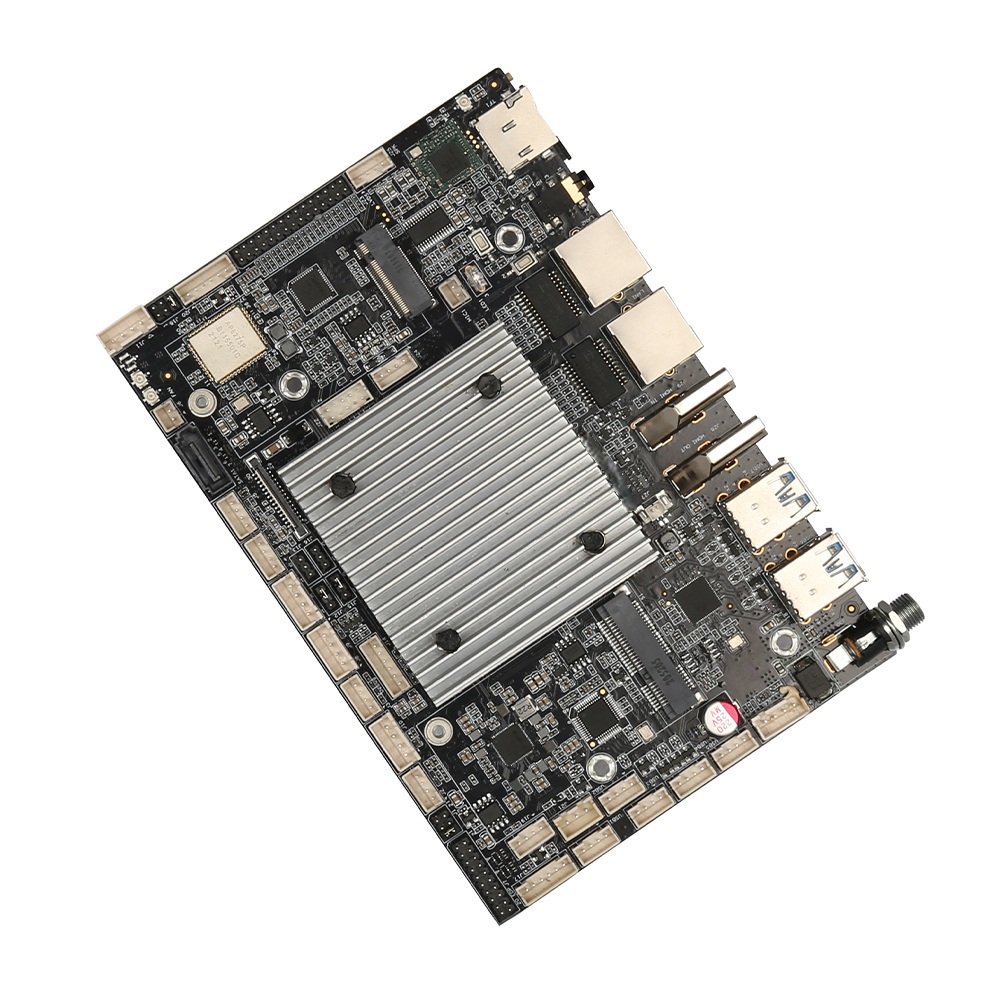

OVMB-ARM-A3588 uses Android12 system. The board has LVDS, eDP, MIPI, HDMI display output
interface, HDMI IN display input interface, MIPI Camera, SATA hard disk interface, dual Gigabit
Ethernet and other interfaces, and built-in universal backlight interface, and screen voltage jumper,
compatible with more Various types of display screens; with stronger performance, faster speed, and
richer interfaces, it is your best choice for human-computer interaction, intelligent terminals, and
industrial control projects.

Sipariş Bilgileri

OVMB-ARM-A3588

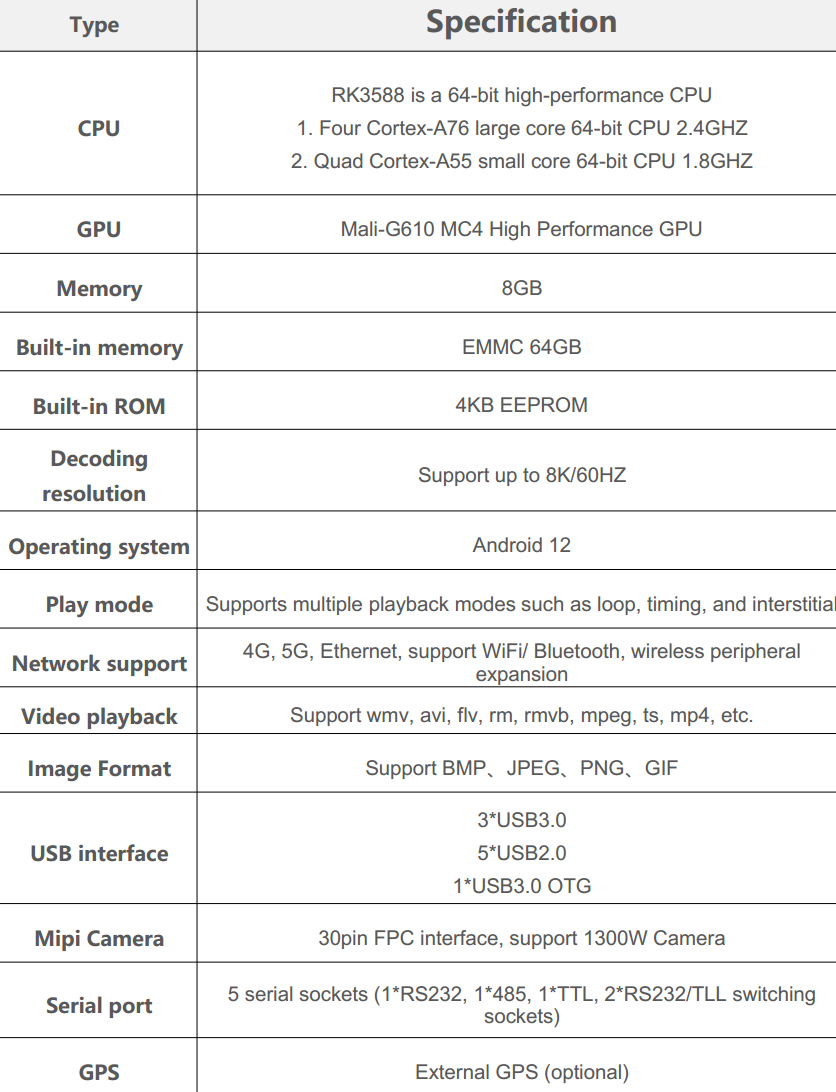

Ürün Özellikleri
