OVİS Otomasyon PC

OVPC-210-Hİ711

11.Nesil Intel i7-1165G7 4 Core 2.80GHz - 4.7 0 GHz 8M Cache, TDP 12W

-Fanless system without cooling fan, Brushed Full Aluminum Alloy shell for heat dissipaon, fit for industrial grade field, work as long as 24 hours.

– High-end Industrial PC less than 1% defec ve rate, super long life me and 3 years warranty.

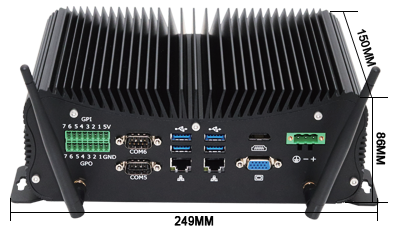

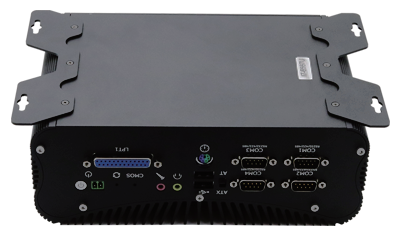

– 2 Intel i201/i211 Gigabit RJ45 LANs, 6 DB9 COM, 4 COM support RS422/RS485, PS/2, GPIO

and LPT rich interfaces for dierent equipments.

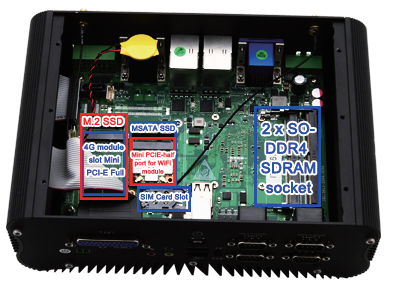

– One embedded SIM card slot onboard for 3G/4G Wi-Fi module. – Support VGA + HDMI dual display output synchronously.

– Support Watchdog, AWAL, RTC, WOL, PXE, Reset funcons.

OVİS Otomasyon PC

OVPC-210-Hİ711

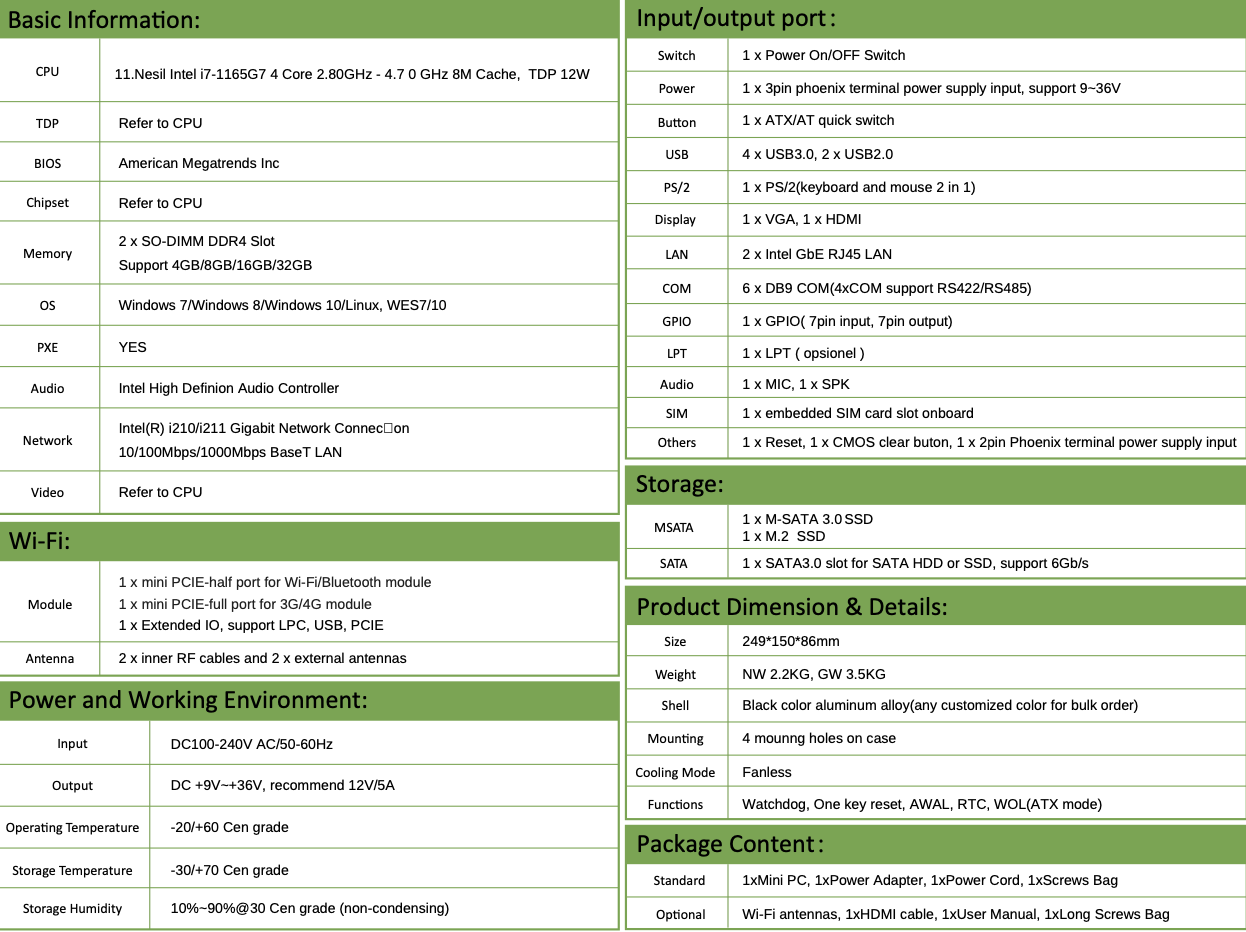

CPU: 11.Nesil Intel i7-1165G7 4 Core 2.80GHz – 4.7 0 GHz 8M Cache, TDP 12W

TDP: Refer to CPU

BIOS: American Megatrends Inc

Chipset: Refer to CPU

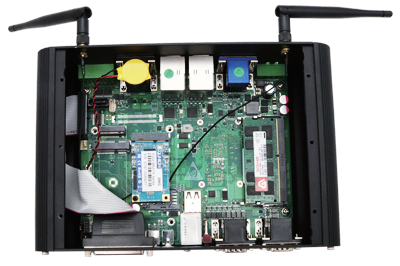

Memory: 2 x SO-DIMM DDR4 Slot ( WJD 16GB SO-DIMM DDR4 Ram ) Support 4GB/8GB/16GB/32GB

OS: Windows 7/Windows 8/Windows 10/Linux, WES7/10

Audio: Intel High Definion Audio Controller

Network: Intel(R) i210/i211 Gigabit Network Connec on 10/100Mbps/1000Mbps BaseT LAN

Video: Refer to CPU

Sipariş Bilgileri

OVPC-210-Hİ711

Ürün Özellikleri

Benzer Ürünlerimiz

OVPC-210-Hİ713

OVPC-210-Hİ713

Intel® CoreTM i7-1365U Processor 12M Cache, up to 5.20 GHz

Fanless system without cooling fan, Brushed Full Aluminum Alloy shell for heat dissipaon, fit for industrial grade field, work as long as 24 hours.

OVPC-210-Hİ712

OVPC-210-Hİ712

Intel® CoreTM i7-1255U Processor 12M Cache, up to 4.70 GHz

Fanless system without cooling fan, Brushed Full Aluminum Alloy shell for heat dissipaon, fit for industrial grade field, work as long as 24 hours.

OVPC-210-Hİ711

OVPC-210-Hİ711

11.Nesil Intel i7-1165G7 4 Core 2.80GHz - 4.7 0 GHz 8M Cache, TDP 12W

Fanless system without cooling fan, Brushed Full Aluminum Alloy shell for heat dissipaon, fit for industrial grade field, work as long as 24 hours.

OVPC-210-Hİ513

OVPC-210-Hİ513

Intel® CoreTM i5-1335U Processor 12M Cache, up to 4.60 GHz

Fanless system without cooling fan, Brushed Full Aluminum Alloy shell for heat dissipaon, fit for industrial grade field, work as long as 24 hours.

OVPC-210-Hİ512

OVPC-210-Hİ512

Intel® CoreTM i5-1235U Processor 12M Cache, up to 4.40 GHz

Fanless system without cooling fan, Brushed Full Aluminum Alloy shell for heat dissipaon, fit for industrial grade field, work as long as 24 hours

OVPC-210-Hİ511

OVPC-210-Hİ511

11.Nesil Intel i5-1135G7 4 Core 2.40GHz - 4.20 GHz 8M Cache, TDP 12W

Fanless system without cooling fan, Brushed Full Aluminum Alloy shell for heat dissipaon, fit for industrial grade field, work as long as 24 hours

OVPC-210-CX-J41-V2

OVPC-210-CX-J41-V2

Fanless Box PC Intel Celeron J4125 Quad-Core 2GHz

The use of all-aluminum alloy structure, fanless fully enclosed design scheme, the machine low power consumption, compact shape,

OVPC-210-J41

OVPC-210-J41

Fanless Industrial PC Intel Celeron J4125 quad-core 2GHz

It adopts all-aluminum alloy structure, fanless and totally enclosed design, light and compact, with low power consump- tion.

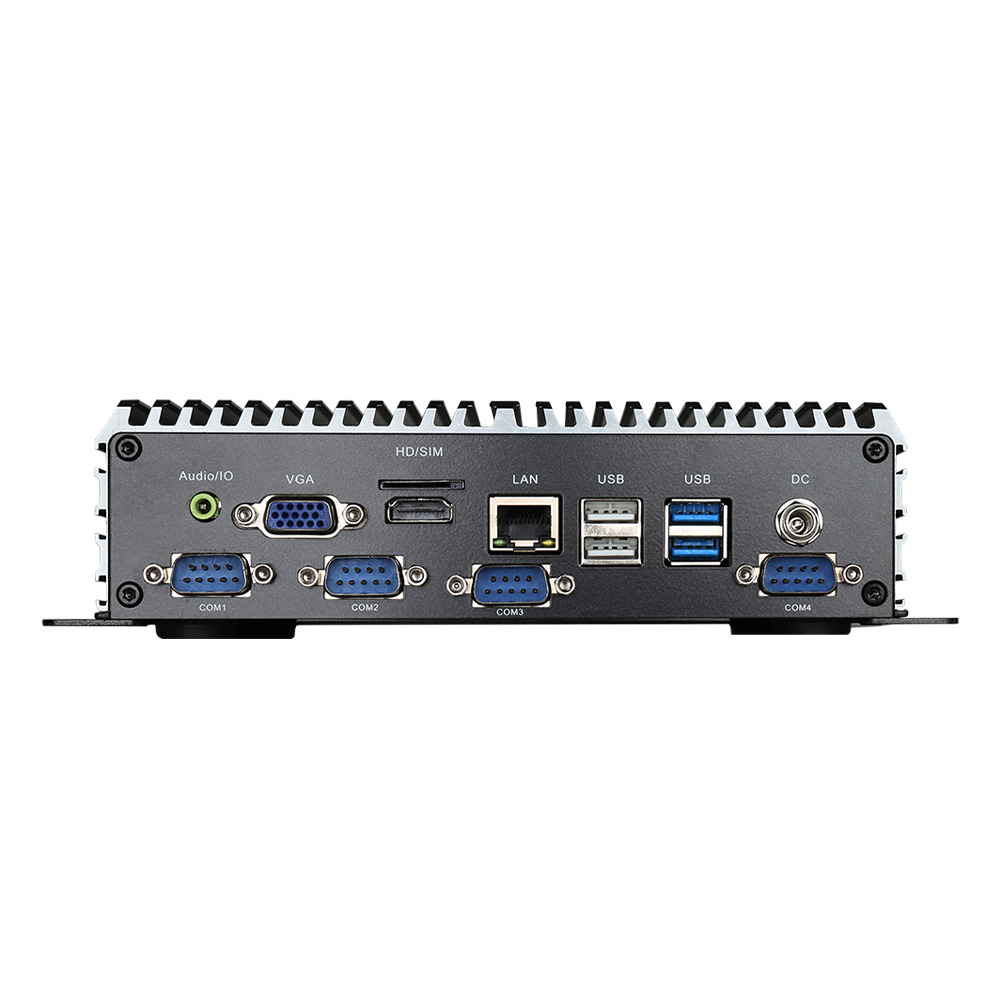

OVPC-210-J19

OVPC-210-J19

Fanless Industrial PC Celeron J1900 quad-core 1.99G (maximum Rui frequency 2.4G)

It adopts all-aluminum alloy structure, fanless and totally enclosed design, light and compact, with low power consump- tion.

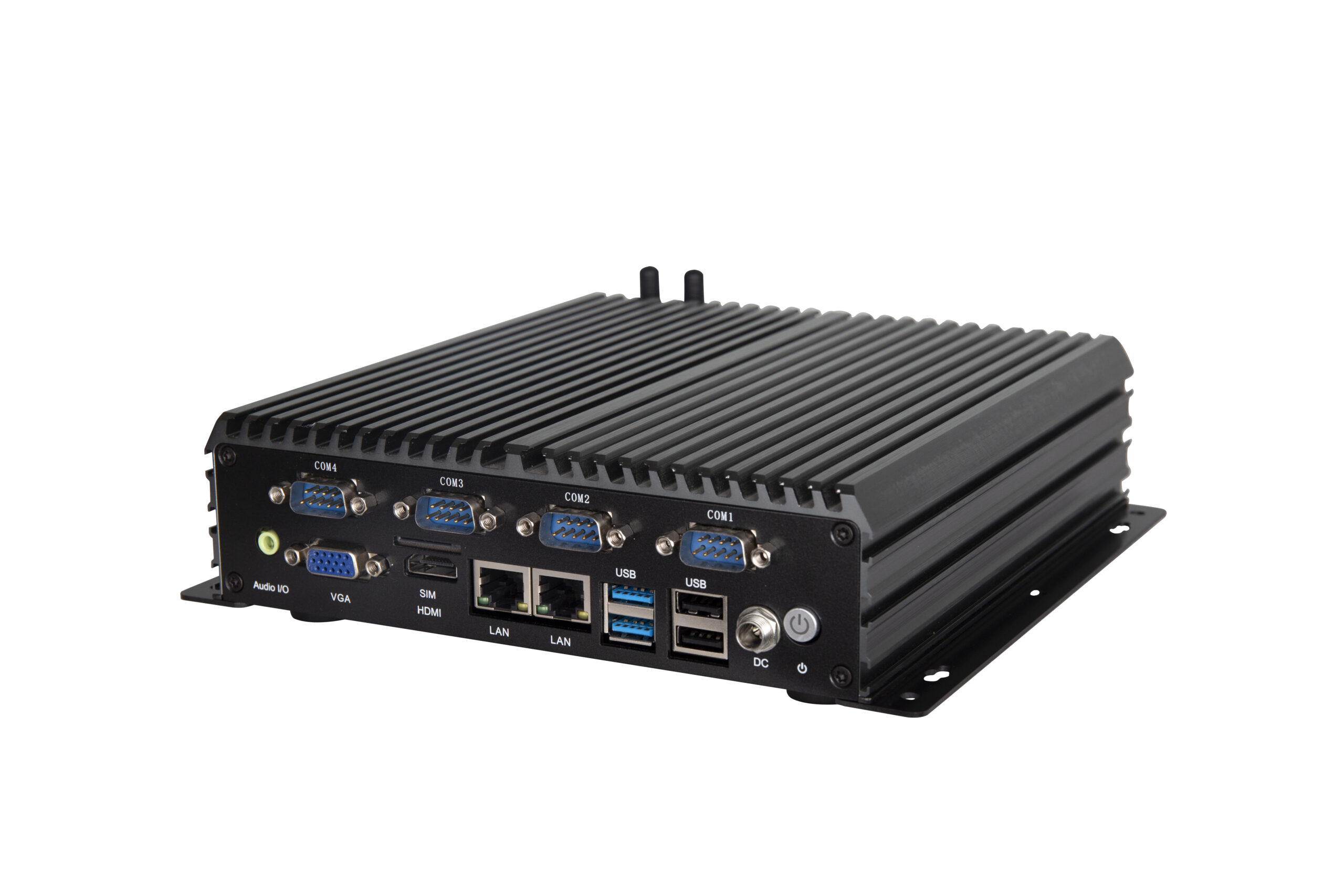

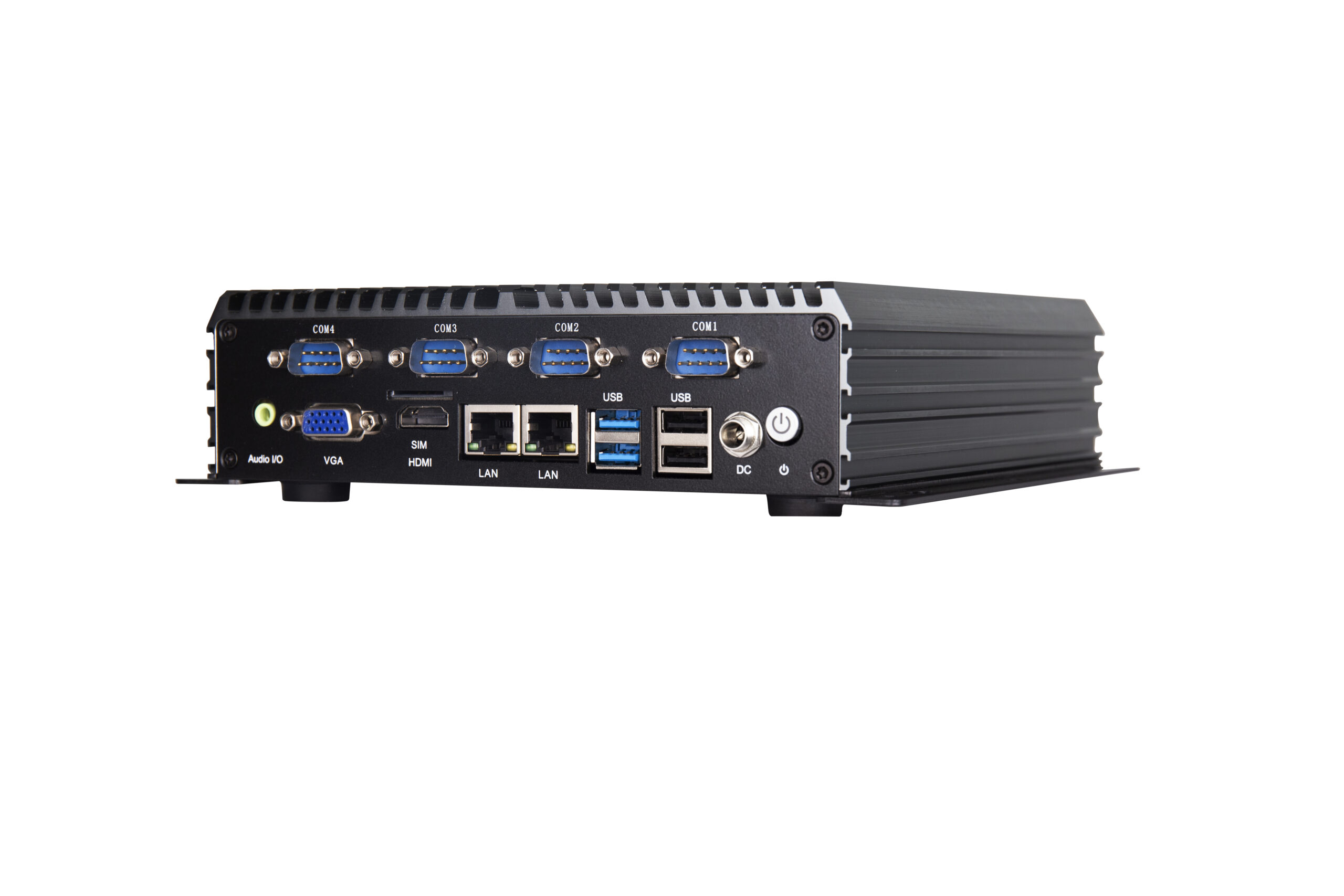

OVPC-210-İ7 Series

OVPC-210-İ7 Series

Fanless Industrial PC Intel Core (I7-6500U, 2.5GHz / I7-7500U, 2.7GHz / I7-8565U, 1.8GHz / I7-10510U, 1.8GHz)

It adopts all-aluminum alloy structure, fanless and totally enclosed design, light and compact, with low power consump- tion.

OVPC-210-İ5 Series

OVPC-210-İ5 Series

Fanless Industrial PC Intel Core (I5-6200U, 2.3GHz / I5-7200U, 2.5GHz / I5 8265U, 1.6GHz / I5-10210U, 1.6GHz)

It adopts all-aluminum alloy structure, fanless and totally enclosed design, light and compact, with low power consump- tion.

OVPC-210-İ3 Series

OVPC-210-İ3 Series

Fanless Industrial PC Intel Core (I3-6100U, 2.3GHz / I3-8145U, 2.1GHz / I310110U 2.1GHz)

It adopts all-aluminum alloy structure, fanless and totally enclosed design, light and compact, with low power consump- tion.

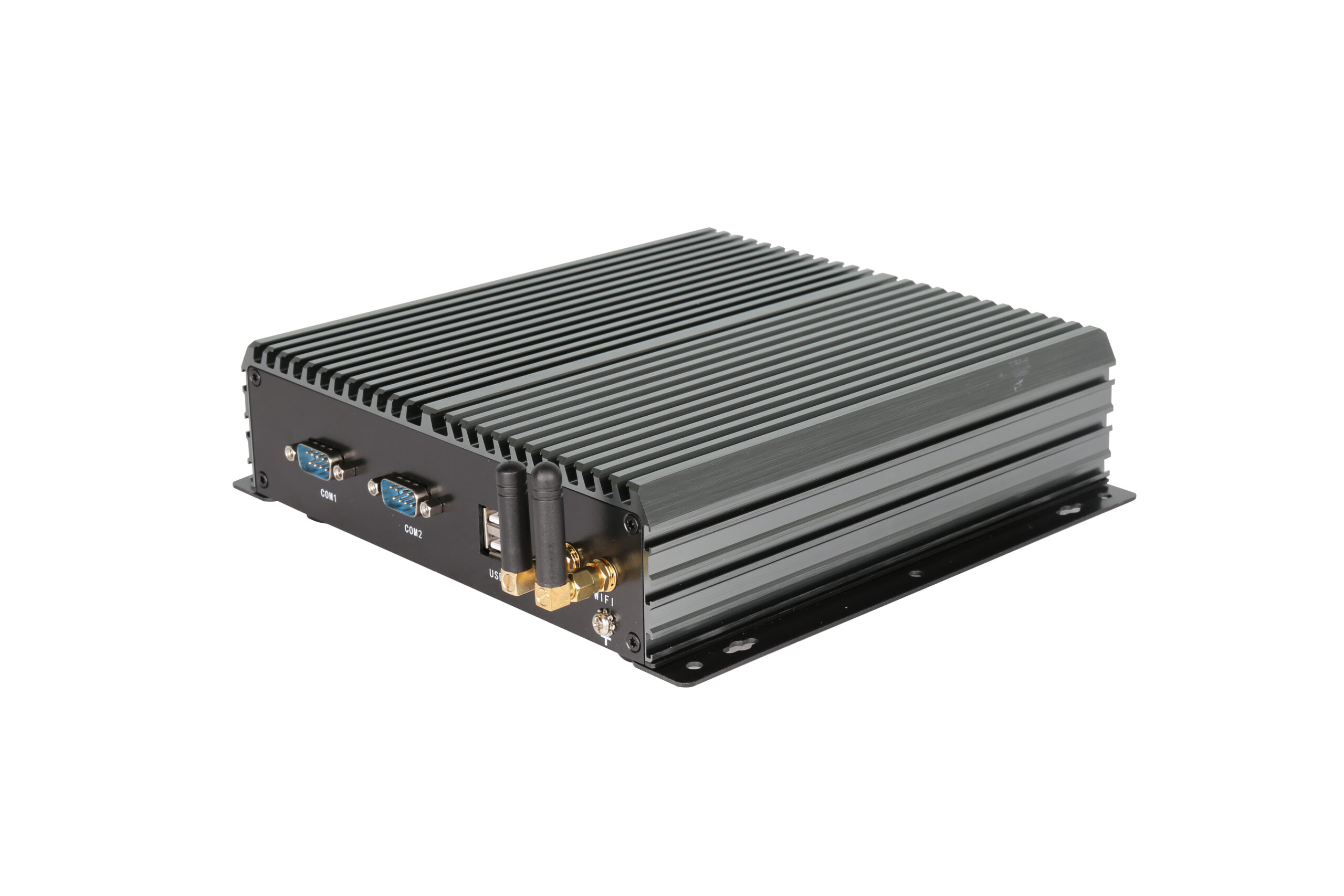

OVPC-210-CX-J41

OVPC-210-CX-J41

Fanless Box PC Intel Celeron J4125 Quad-Core 2GHz

The use of all-aluminum alloy structure, fanless fully enclosed design scheme, the machine low power consumption, compact shape, is designed specifically for a variety of environments and industrial products designed to ensure long-term stable work in harsh environments, in the machine's materials we pay more attention to its reliability, environ- mental adaptability, real-time, scalability, EMC compatibility and other performance, configuration Intel Celeron J4125 quad-core 2GHZ no Fanless motherboard, supporting up to 8G running memory.

OVPC-210-CX-ST Series

OVPC-210-CX-ST Series

Fanless Industrial PC Intel® Alder lake-S 12th Gen CoreTM i9/i7/i5/i3/Pentium/Celeron LGA1700 CPU

Adopting a high-strength aluminum fin heat dissipation shell and precision sheet metal box structure for stable performance and strong impact resistance.

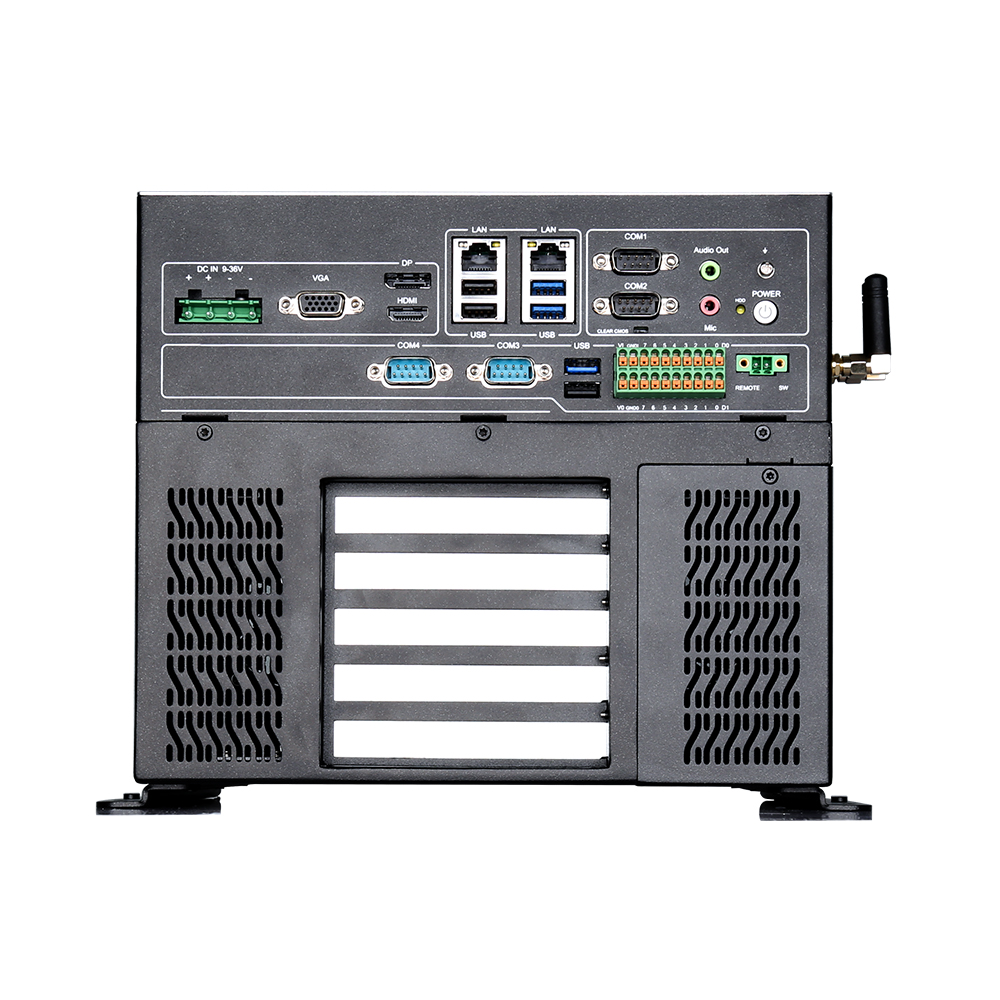

OVPC-210-CX-4PCI Series

OVPC-210-CX-4PCI Series

Fanless Industrial PC Intel® Alder lake-S 12th Gen CoreTM i9/i7/i5/i3/Pentium/Celeron LGA1700 CPU

It is a high-performance expandable industrial computer designed for the peripheral applications around the industrial Internet of Things.

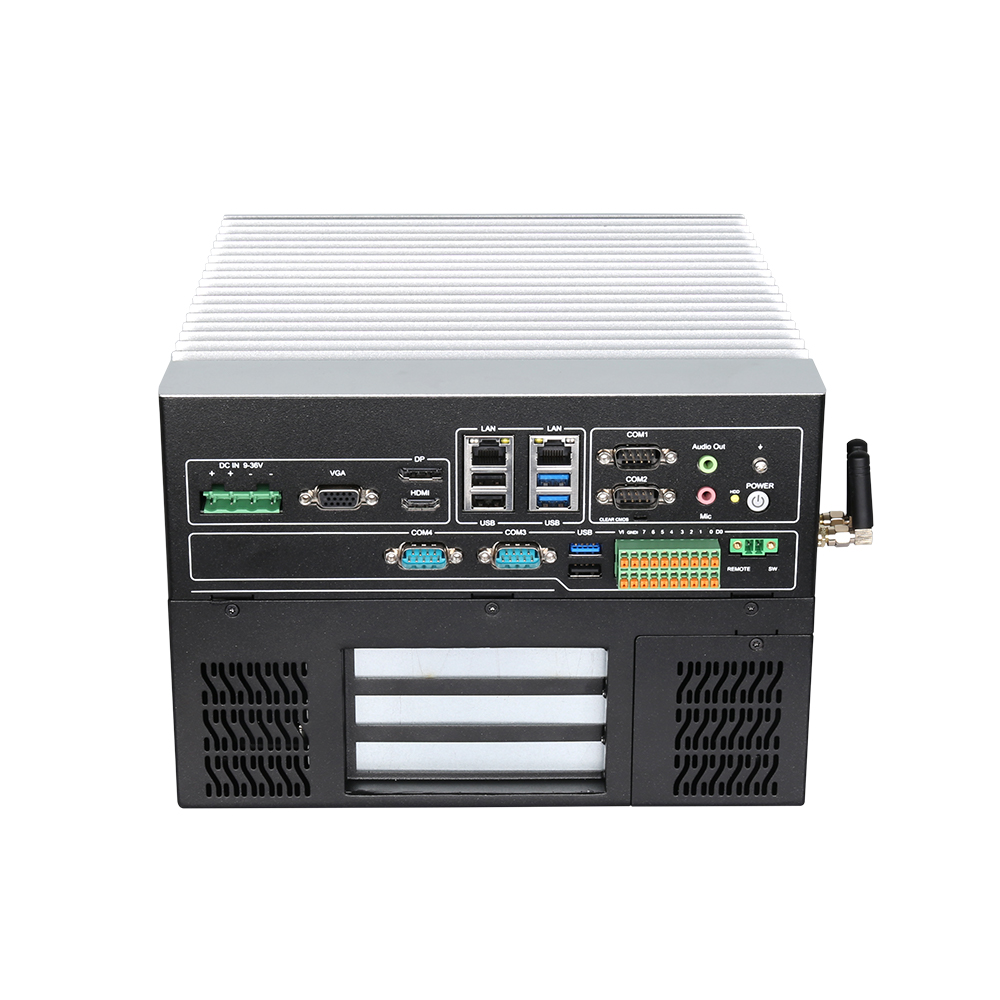

OVPC-210-CX-2PCI Series
