Video Capture Module

VDB-310

4ch Mini-PCIe Video Capture Card

Mini-PCIe (Mini Card) Interface
Up to 4-channel Video Inputs
Support D1, Half-D1, CIF Resolution
Windows Driver & DK Provide

Video Capture Module

VDB-310

4ch Mini-PCIe Video Capture Card support 4 CCTV Cameras input and 4 MIC input at the same time. It’s a 4 channels solution (120/100fps) in the market.

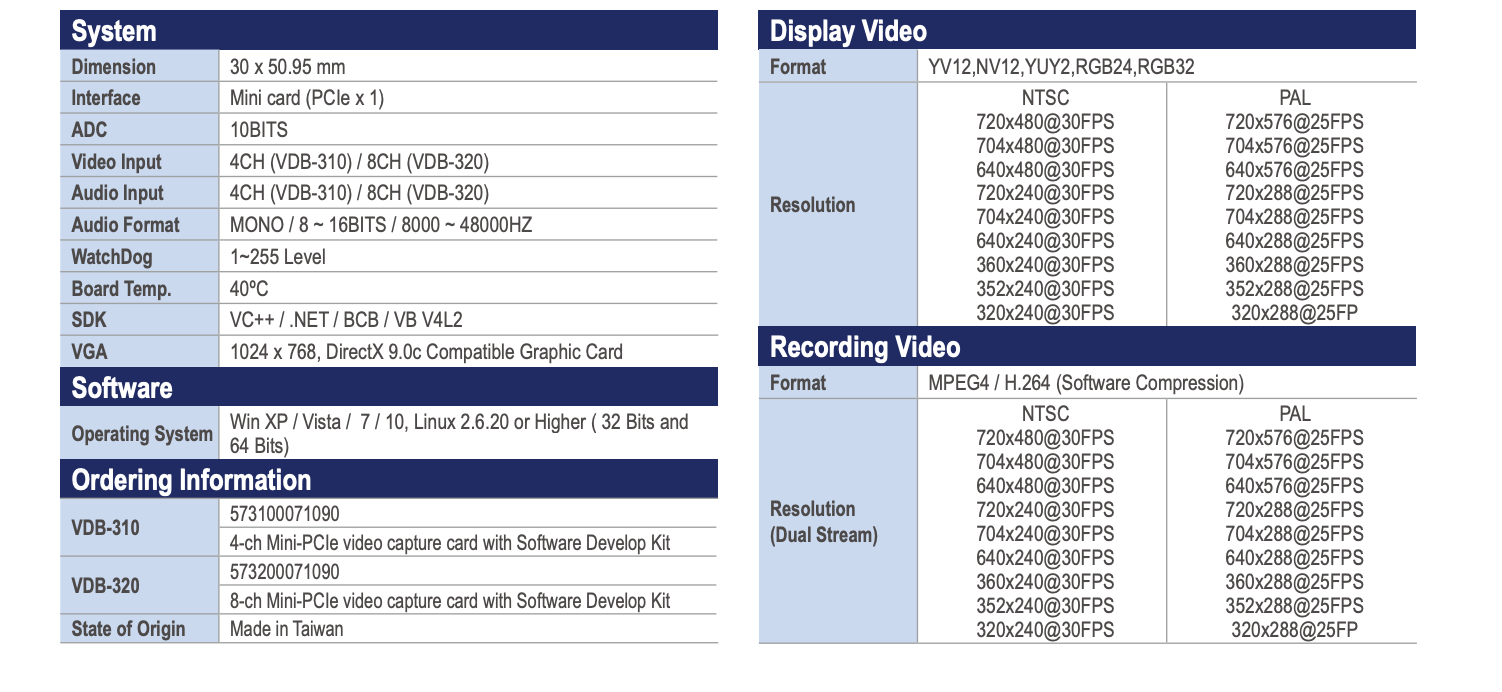

Dimension : 30 x 50.95 mm

Interface : Mini card (PCIe x 1)

ADC : 10BITS

Video Input : 4CH (VDB-310) / 8CH (VDB-320)

Audio Input : 4CH (VDB-310) / 8CH (VDB-320)

Audio Format : MONO / 8 ~ 16BITS / 8000 ~ 48000HZ

WatchDog : 1~255 Level

Board Temp. : 40C

SDK : VC++ / .NET / BCB / VB V4L2

VGA : 1024 x 768, DirectX 9.0c Compatible Graphic Card

Sipariş Bilgileri

VDB-310

Ürün Özellikleri
