Video Capture Module

VDB-320

8ch Mini-PCIe Video Capture Card/8 Cameras input/8 Microphone input

Mini-PCIe (Mini Card) Interface
Up to 8-channel Video Inputs
Support D1, Half-D1, CIF Resolution
Windows Driver & DK Provide

Video Capture Module

VDB-320

8ch Mini-PCIe Video Capture Card support 8 CCTV Cameras input and 8 Microphone input at the same time. It’s a 8 channels solution (120/100fps) in the market.

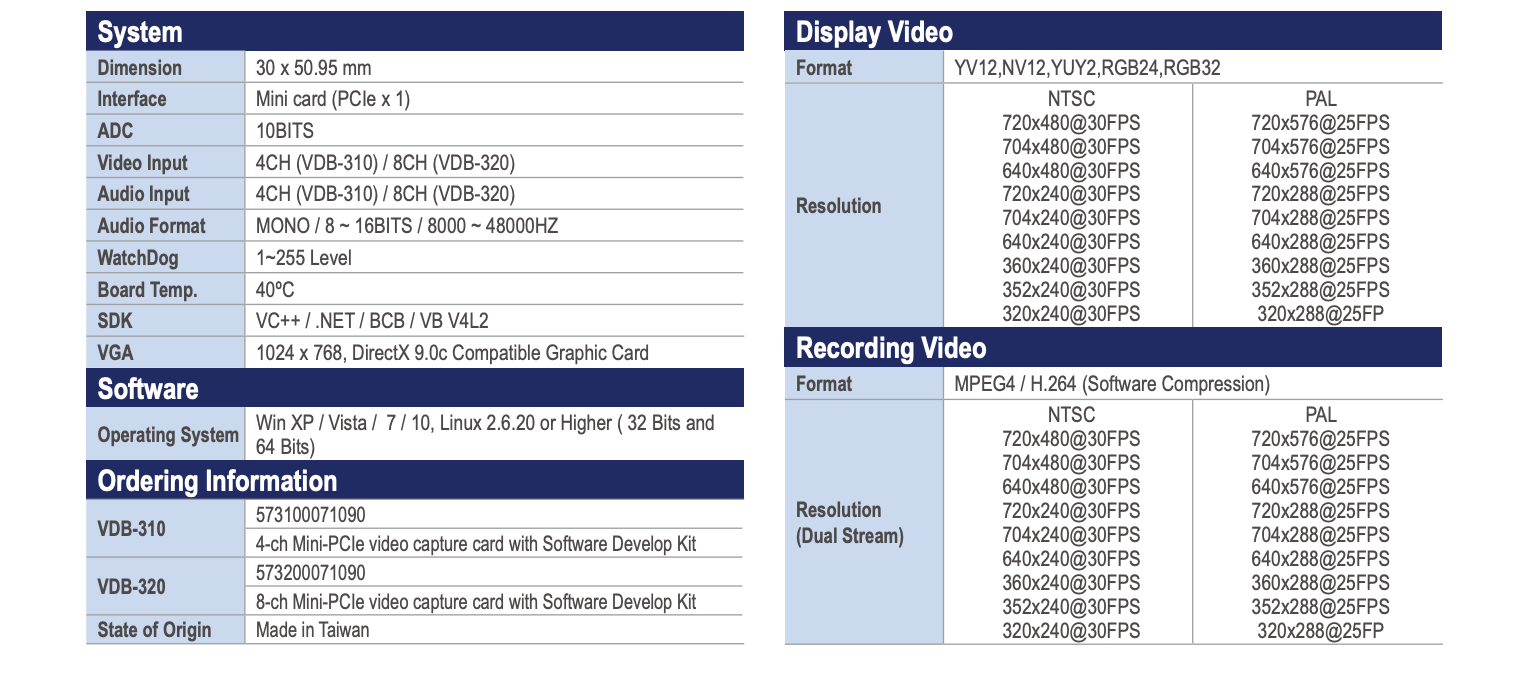

Operating System : Win XP / Vista / 7 / 10, Linux 2.6.20 or Higher ( 32 Bits and 64 Bits)

Format : YV12, NV12,YUY2,RGB24,RGB32

Resolution :

NTSC
720×480@30FPS 704×480@30FPS 640×480@30FPS 720×240@30FPS 704×240@30FPS 640×240@30FPS 360×240@30FPS 352×240@30FPS 320×240@30FPS
PAL
720×576@25FPS 704×576@25FPS 640×576@25FPS 720×288@25FPS 704×288@25FPS 640×288@25FPS 360×288@25FPS 352×288@25FPS 320×288@25FP
Sipariş Bilgileri

VDB-320
