GPS / GNSS Modüller

VDB-810

Embedded u-blox M8 GPS Mini PCIe Card

Concurrent Reception of GPS/QZSS, GLONASS, BeiDou
72-channel u-blox M8 Engine w/ Over 2 Million Effective Correlators
-167dBm SuperSense® Acquisition & Tracking Sensitivity
10 Hz Position Update Rate
Standard Mini PCIe V1.2 Full-Mini Card(USB2.0 Interface)
Time To First Fix (TTFF) : <1 sec
Operating Temp. : -40ºC to 85ºC

GPS / GNSS Modüller

VDB-810

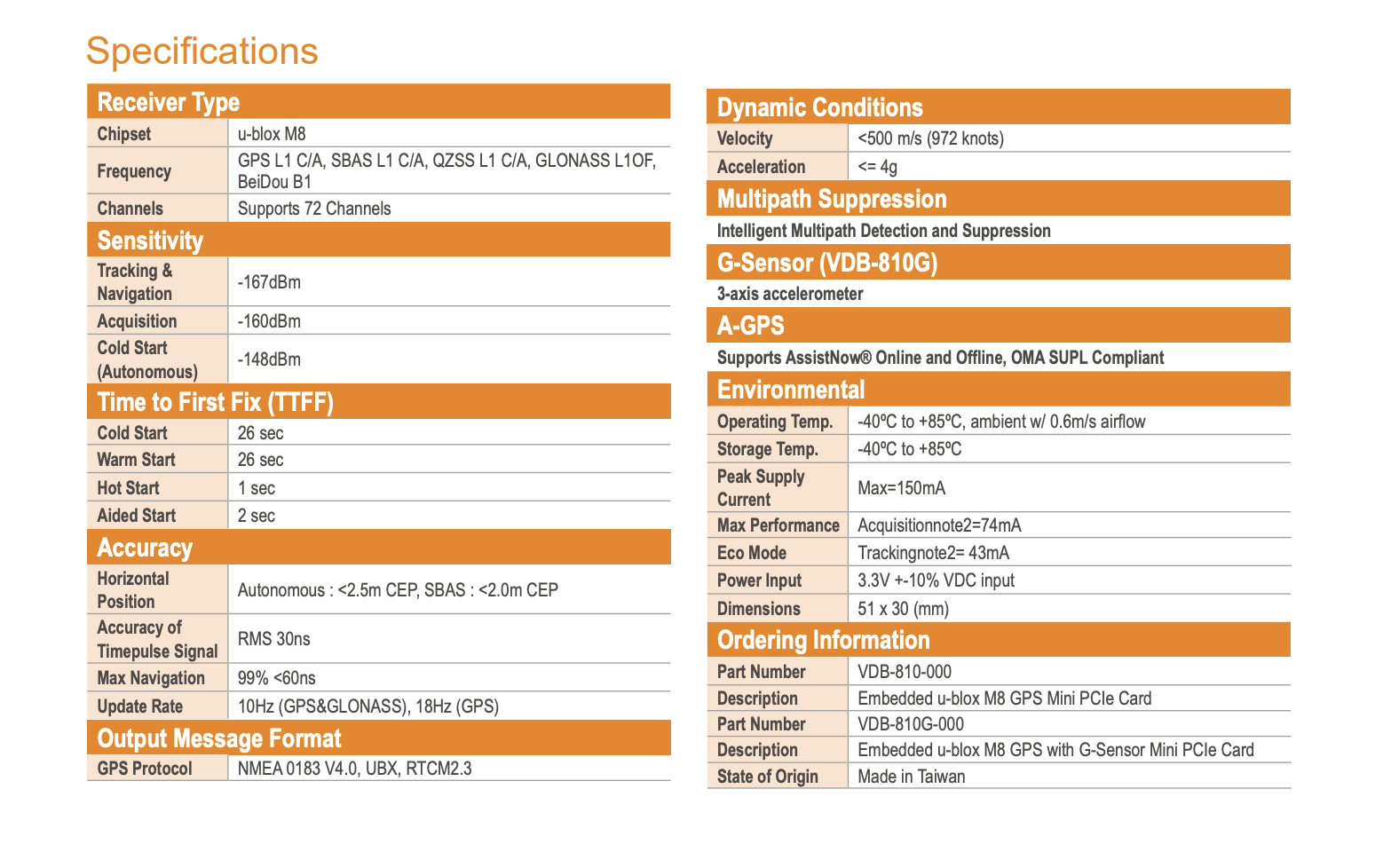

Chipset : u-blox M8

Frequency : GPS L1 C/A, SBAS L1 C/A, QZSS L1 C/A, GLONASS L1OF, BeiDou B1

Channels : Supports 72 Channels

Tracking & Navigation : -167dBm

Acquisition : -160dBm

Cold Start (Autonomous) : -148dBm

Sipariş Bilgileri

VDB-810
