GPS / GNSS Modüller

VDB-810G

Embedded u-blox M8 GPS with G-Sensor Mini PCIe Card

  • Concurrent Reception of GPS/QZSS, GLONASS, BeiDou
  • 72-channel u-blox M8 Engine w/ Over 2 Million Effective Correlators
  • -167dBm SuperSense® Acquisition & Tracking Sensitivity
  • 10 Hz Position Update Rate
  • Standard Mini PCIe V1.2 Full-Mini Card(USB2.0 Interface)
  • Time To First Fix (TTFF): <1 sec
  • Operating Temp. : -40ºC to 85ºC
GPS / GNSS Modüller

VDB-810G

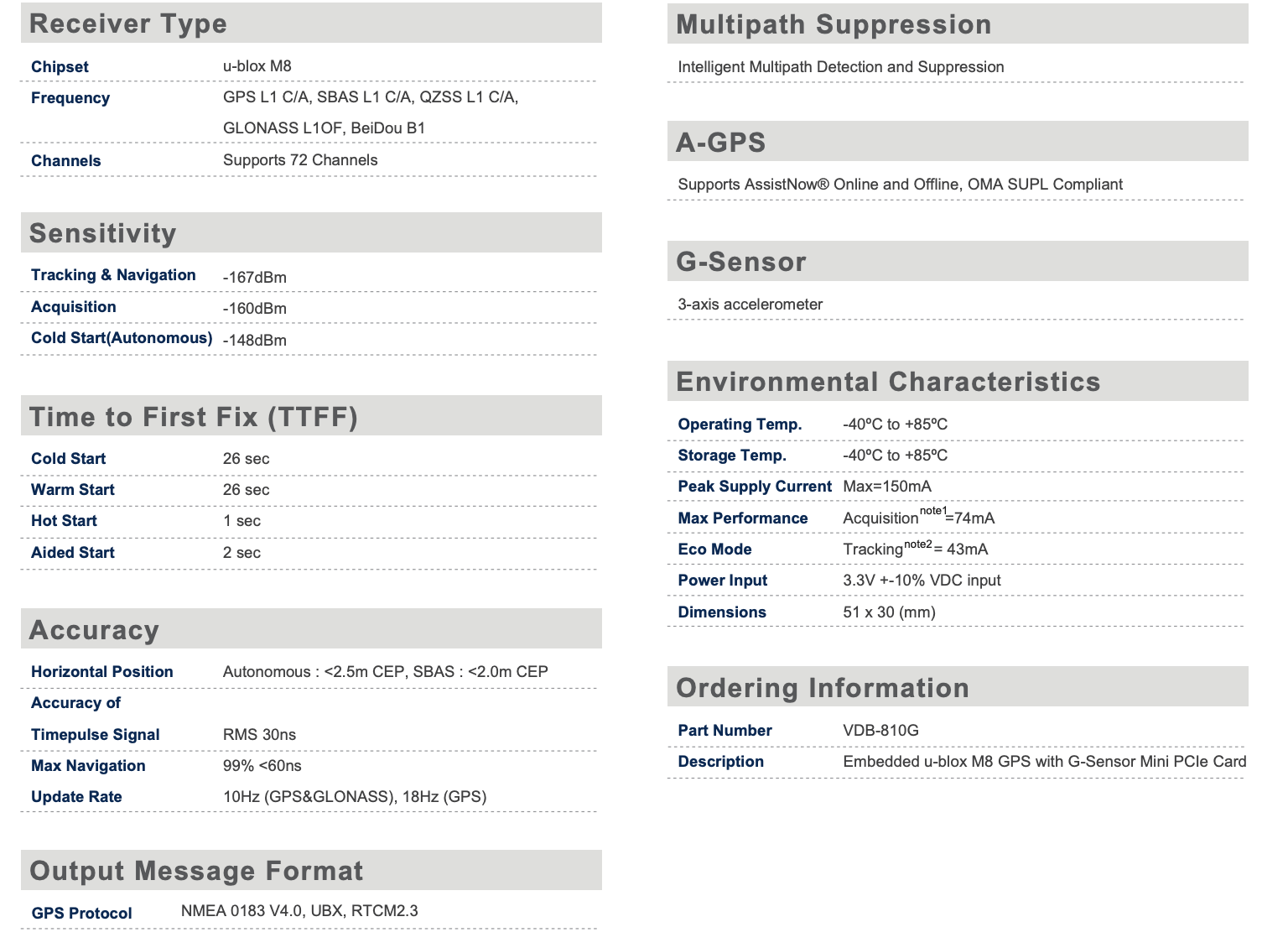

Chipset : u-blox M8

Frequency : GPS L1 C/A, SBAS L1 C/A, QZSS L1 C/A, – GLONASS L1OF, BeiDou B1

Channels : Supports 72 ChannelsSensitivity

Tracking & Navigation : -167dBm

Acquisition : -160dBm

Cold Start(Autonomous) : -148dBm

Sipariş Bilgileri

VDB-810G
