1) Modüler Panel Bilgisayarlar

XF700

ÜRÜN ÖZELLİKLERİ

  • High brightness ultra-low power LED backlight
  • Sun-readable available
  • Touch screen optional
  • 10 Steps configurable backlight dimmer and autodimmer
  • Autopower on/off by VGA signal
  • Native resolution 800x480px input mode
  • 2xComposite Video
  • one Composite input with autopower/autoswitch
  • Power 7-36V
  • meets car/truck requirements
  • including noise/spikes filters
  • Ultra low power consumption
  • Wide temperature range
  • Shock/Vibration proof
  • Aluminium chassis and rear side

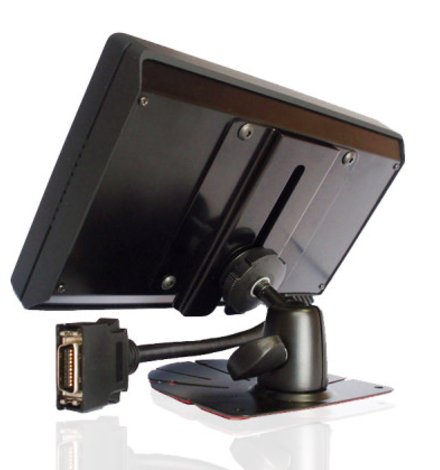

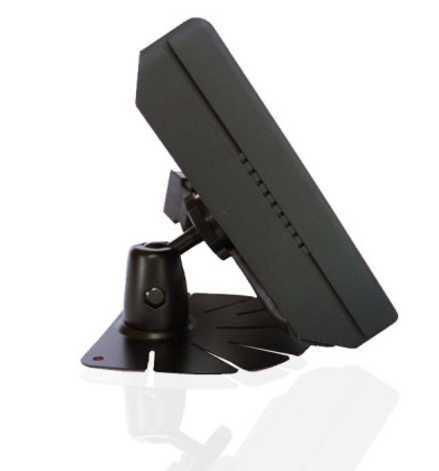

  • Headrest and stand alone mount accessories
  • Customization available for small qty
1) Modüler Panel Bilgisayarlar

XF700

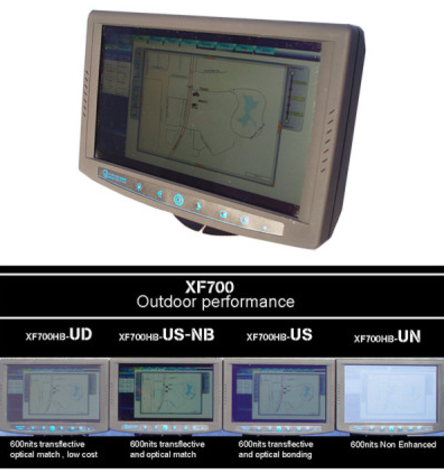

XF700 series by Inelmatic Electronics, brings the possibility of installing a display which realizes a computer application in a restricted space. It’s a perfect Human Machine Interface (HMI) for restricted space and harsh environments, like personal vehicles, public transportation vehicles and any other situation where the dimensions and image quality is important, even under strong ambient light or direct sun light.

It includes a video scaler chipset supporting VESA from 640x480px up to 1024x728px including the native resolution 800x480px for a perfect pixel-match on the most demanding image accuracy.

The Optional touch panel with USB or RS232 interface adds an efficient human interface which brings full interactivity and high reliability.

In addiction, the XF700 includes the last generation of LED backlight with passive enhancement, to achieve a high brightness keeping the lowest power consumption. Besides, the manual dimmer bring the possibility of match the brightness to the ambient light, it makes the display able to work from darkest conditions without disturb the driver’s visibility, up to high brightness for the strongest light environments.

XF800 ORDERING CODE
XF800 XX – X X X X X
350 nits N No touch N Normal N No video N No audio 2.5 Cable 2.5m
HB 500 nits G Protecting glass D Daylight V Video input A Stereo Audio 4.5 Cable 4.5m
SHB 1000nits U USB touch S Sunlight C Custom length
R RS232 touch
UP USB PCAP touch

VGA(DSUB/SCSI) / HDMI(DSUB) / DVI(DSUB) All-in-one cable avaiable

Ürün Özellikleri

Optical:
Size 7 inches
Aspect 16:9
Colors 256K
Native resolution 800x480px
Resolutions 640x480px to 1920x1440px
Contrast 500:1
Physical:
Storage temp. -35ºC to 85ºC
Operation temp. -35ºC to 85ºC
Drop 10cm max. (1cm collision to display area)
Vibrations 1G 2-500Hz
Shock 20G 11ms
Connections:
Input VGA, HDMI or DVI optional
Audio Input Opional
Video input 2 x Composite, optional
Touch panel USB/RS232
Rear camera input Optional
Power supply 7-36V DC
